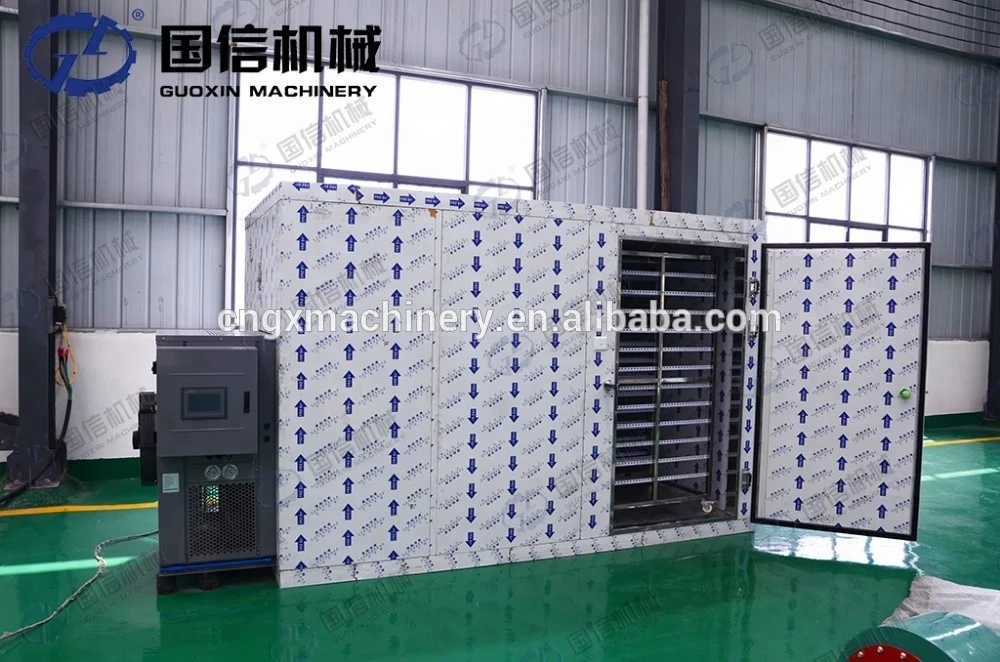

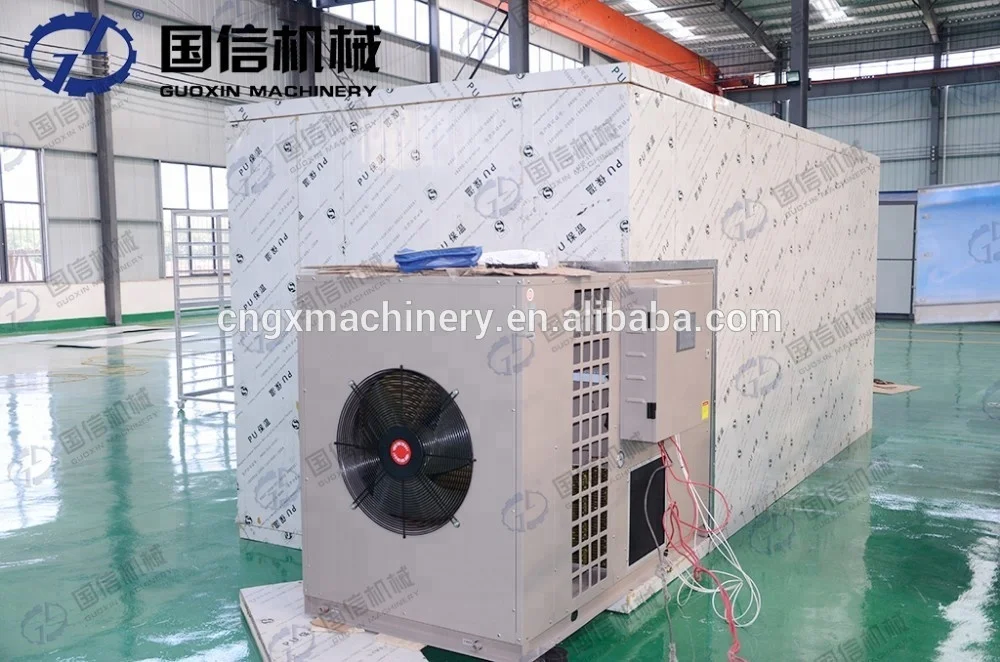

Good For Agricultural Product Drying Machine Yam Fruit Dryer Machine Working Principle:

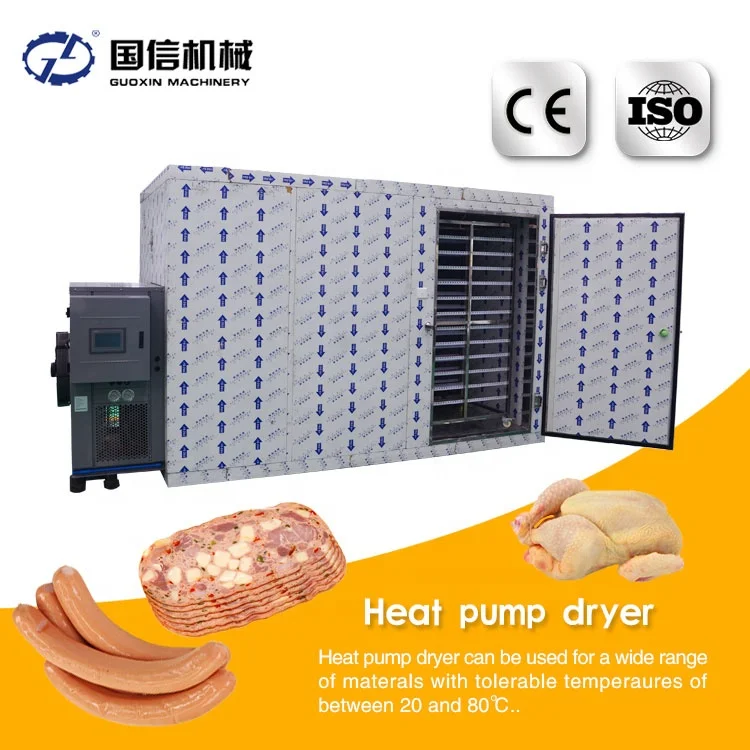

No-pollution vacuum drying oven is a high-temperature heat pump dryer unit, the working principle is:
Compress the refrigerant through the compressor to form the high temperature and high pressure gas, this gas went into the condenser to release heat , the heat would be send into the barn with by circulating fan to heat the barn air (maximum air temperature up to 80 ℃).
With the air temperature increases, the moisture in the drying material will gradually evaporate, and then exhaust of moisture by the fresh air dehumidification system, to achieve the effect of drying. There is a heat recovery device in the dehumidification system, the recycled heat used to heat the new air, to save the 60%-70% fresh air preheating energy consumption.

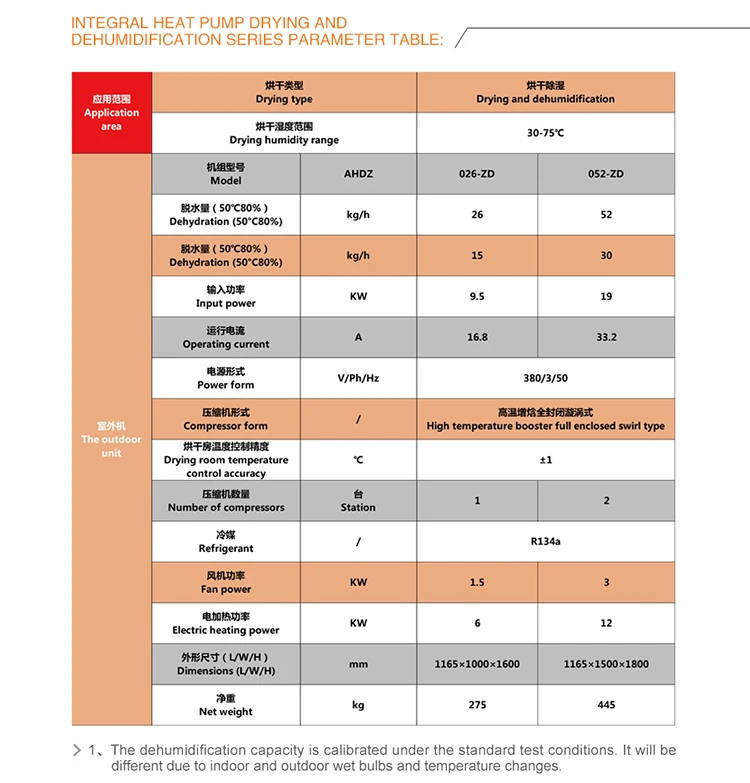

Hot Air Circulating No-Pollution Fruit Vacuum Drying Oven Model:Can Be Customized
MODEL
ROOM SIZE:MM
WORKING TEMPERATURE
POWER:KW
TRAY SIZE:MM
TRAY NUMBER
GX-3P
3500*2100*2200
≥-10℃
4.5
730*430
96
GX-7P
4900*2200*2200
≥-10℃
6.5
600*800
144
GX-14P
8400*3000*2200
≥-10℃
16.5
600*800
288
Hot Air Circulating Drying Oven Application:

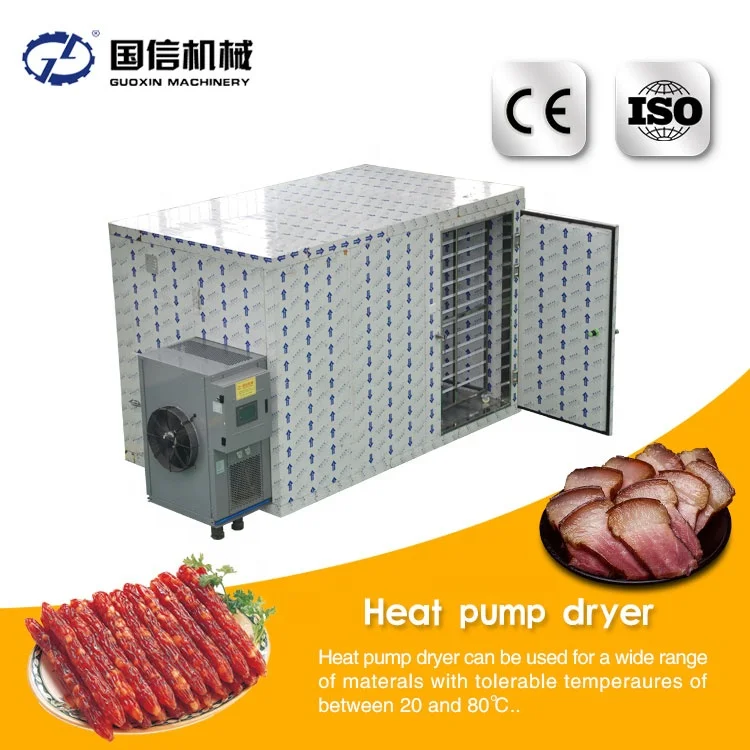

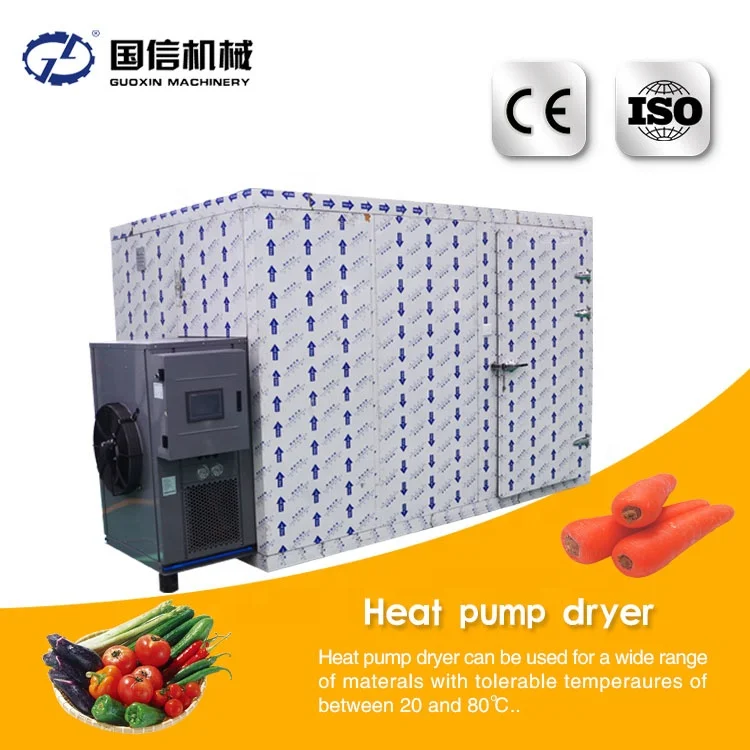

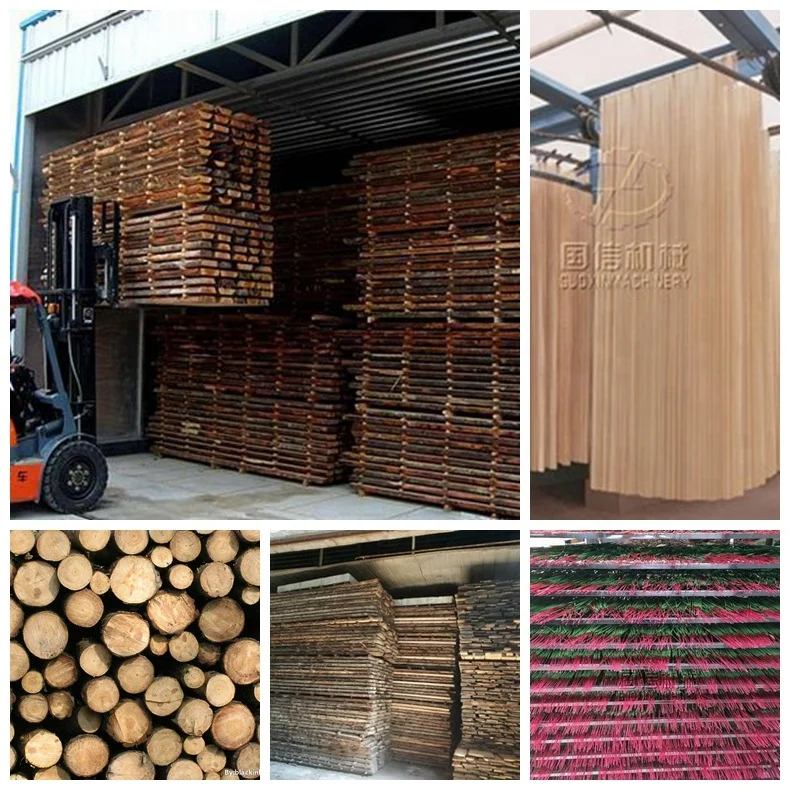

Hot air circulating drying oven can be used for a wide range of materials. Suitable used for a wide range of materials with tolerable temperatures of between 20 and 80 ° C, or although the material which can withstand higher temperatures, and more efficiency and safe with heat pump dryer. Such as wood, grain, seeds, edible fungi, herbs, seafood, sausages, fruits and vegetables, tobacco, paper, Buddha incense ... and so on.

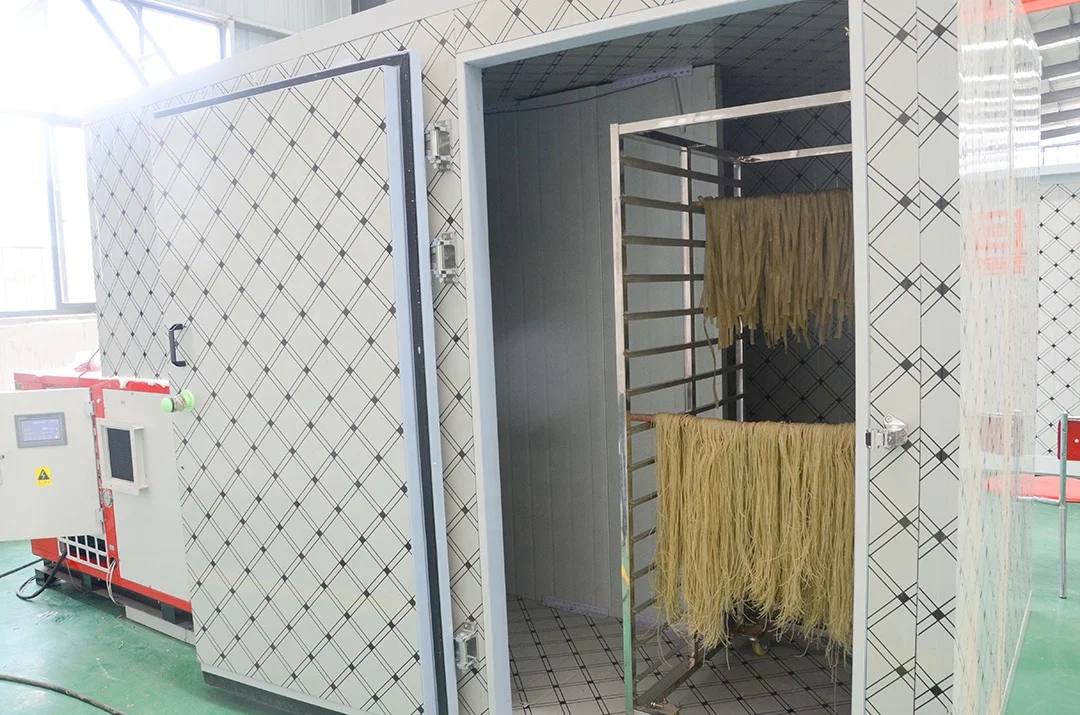

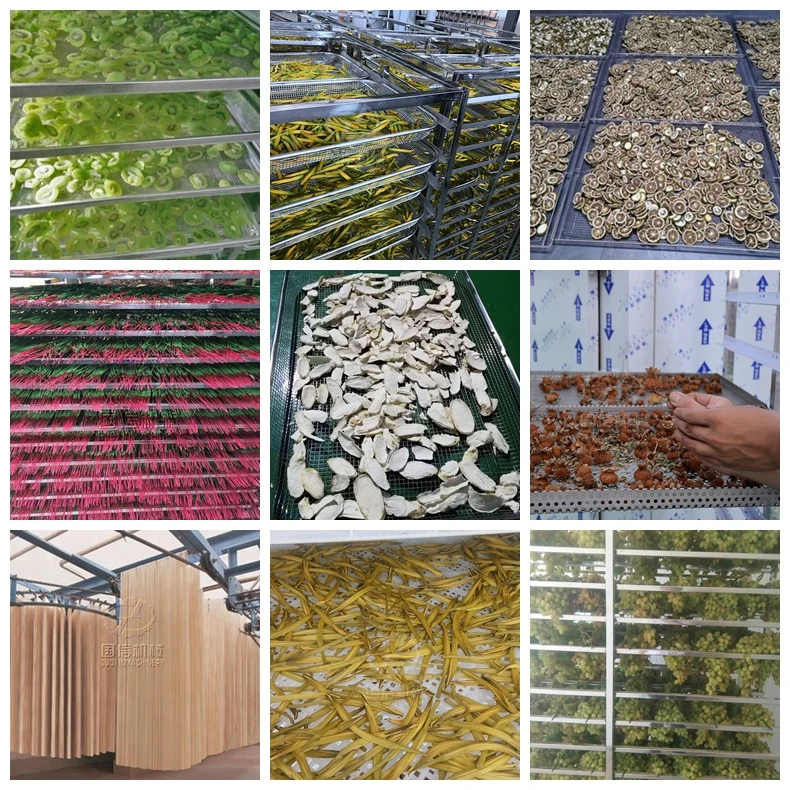

Fruit Dehydrator Sites:
Fruit Drying Machine Main Features:
1,Wide temperature range,high effciency,enhaced vapor injection compressor; 2,High energy display control,high precision configuration,efficient heat recovery; 3,Modular stitching,transport,installation and removal are easier and more efficient.; 4,Environmentally friendly,energy saving,saving time; 5,The drying parameters are easy to control and wide adjustable range,drying quality is good; 6,Reasonable structure design: site survey, scientific planning, optimize investment costs, to ensure drying quality; easy installation and maintenance, smooth operation, easy to use; 7,Automatic temperature control,safe and environment protection.

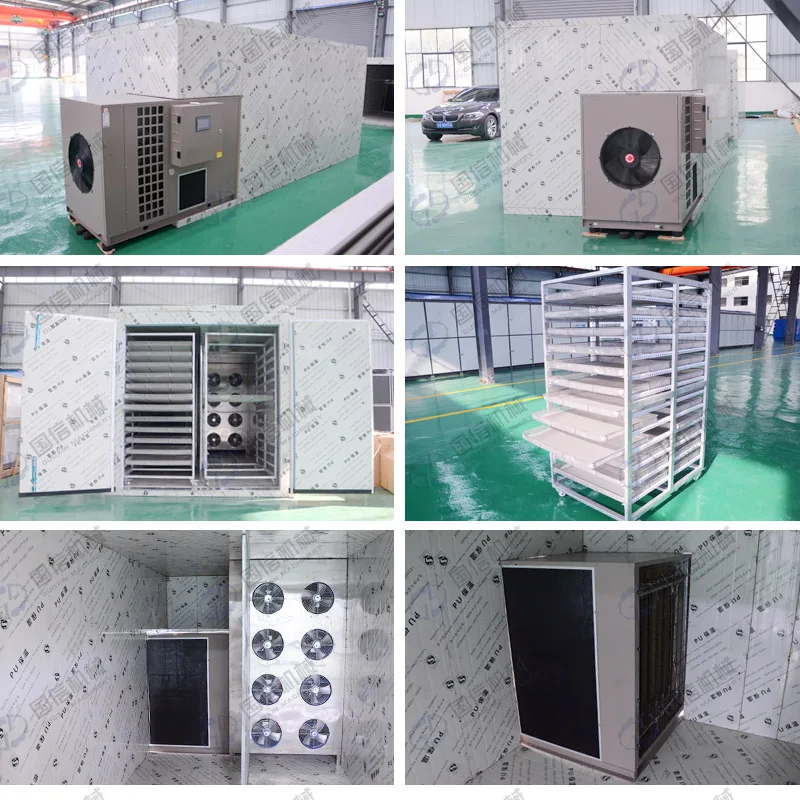

Detailed Images
Certifications

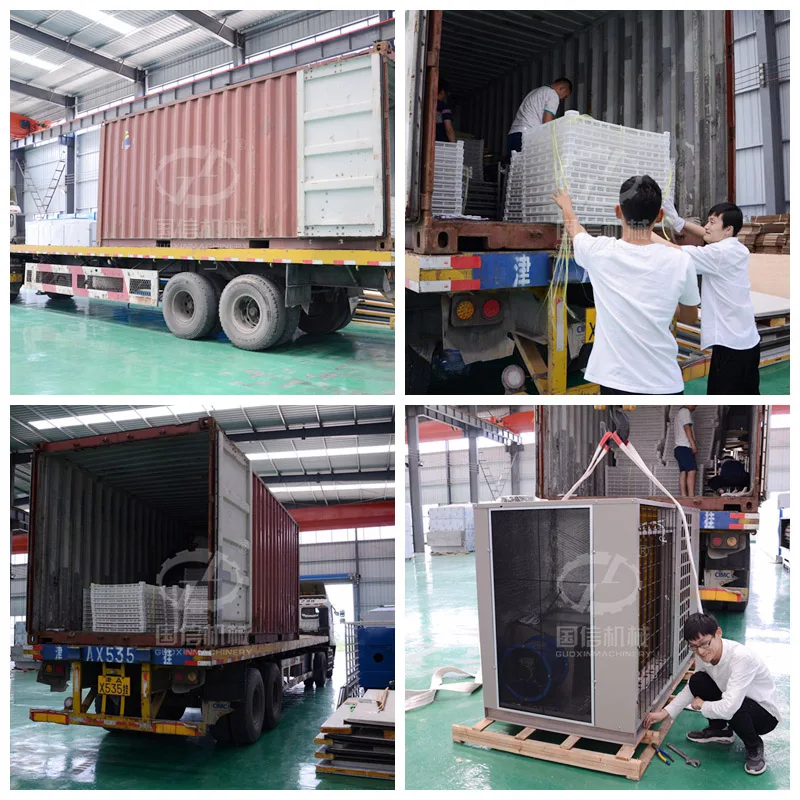

Packing & Delivery
Our Service
Pre-Sales Service
1) Production arrangement. 2) Production planning provided. 3) Workshop visiting available. 4) Detailed specifications of machines provided. 5) Able to provide deatield Solutions. 6)Special machine can be supplied as customer's request.
After-Sales Service 1) Assistance to build factory. 2) Repairing and maintenance if any problem occur in warranty. 3) Installation and clerks training. 4) Spare and wearing parts for free or with discounts. 5) Inspections in factory.

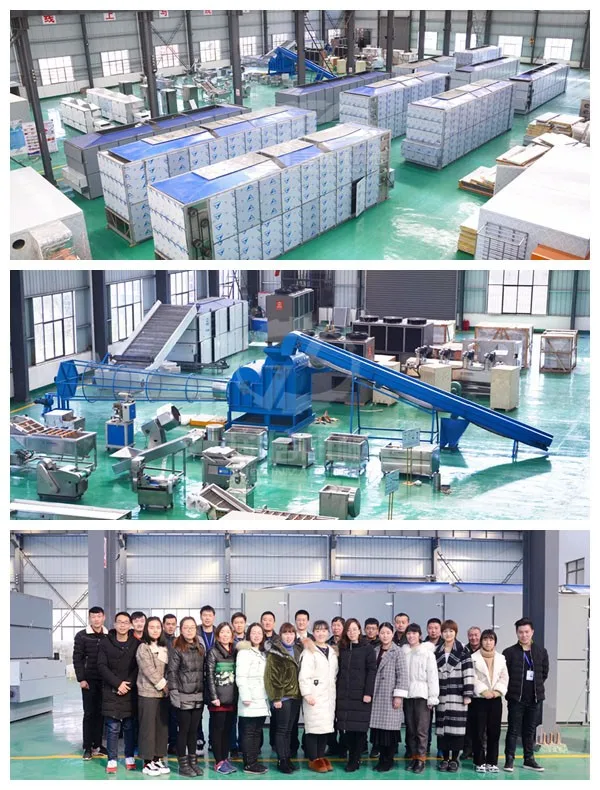

Our Company
Guoxin Machinery Factory of Gongyi City,is an independent state import and export enterpeises,which focus on drying equipment research, development and production.
The main products include: Mesh-belt cross flow dryer equipment,Heat pump drying unit, Microwave drying sterilization equipment, fruit and vegetable cleaning(peeling) and cutting machinery,processing equipment; vegetable and food blanching(fixing, pasteurized)equipment, air dry dehydration production lines, fried potato chips and french fries processing equipment, fried food production line and so on.
Our Customer
In order to adapt to the needs of enterprise development and market competition, the company built a first-class modern production base and global sales service network, customers all over the country, and exported to: the United States, Britain, Australia, Malaysia, Indonesia, South Korea, Bangladesh, Russia, India, Africa, Europe, southeast Asia and other countries, and receive customer consistent high praise.
FAQ
1. What about your fruit dehydrator quality? Our factory has 17 years experience in mechanical processing; all our machines already get ISO9001, CE certificate; already exported into many countries and areas; already got customer's good reputation.
2. What about your yam dryer machine price? Anytime we will make quality as factory life, no matter price is good or not for us. Quality is first, on the top quality basis, Sure you will get reasonable and satisfied price!
3.Can you send me the video to show how fruit frying oven work? Certainly, we have made video of every machine and uploaded them by our chain address. Pls. contact with us, we will send you machine video.
4.What about your installation service and sales service for drying machine? 1>Drying machine is one year, we will supply spare parts or send engineers to your side if you need, we will give you service anytime, 24 hours, 7days. 2>We already prepare technical manual and operation video to show our customers, then it will be easy to install and use the machine. 3>Microwave drying machine is free to train your worker in our factory or in your side or by video.
