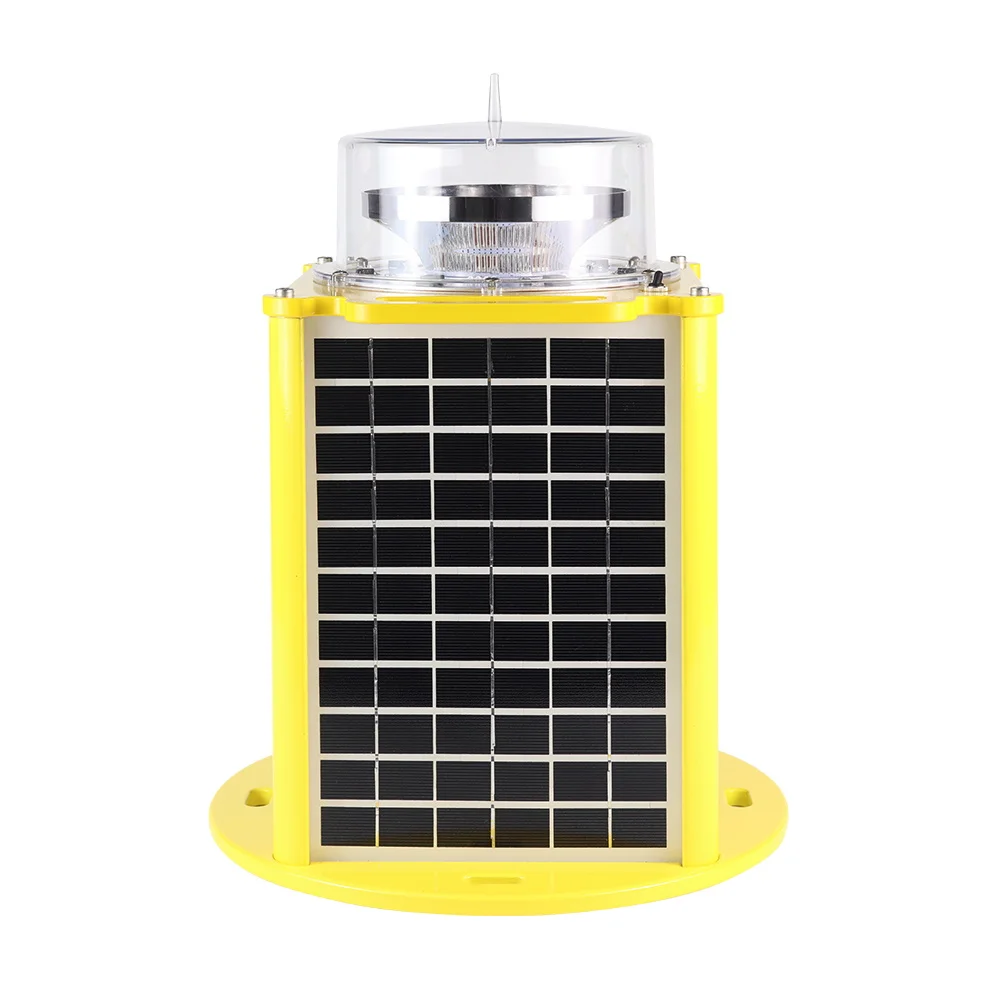

GS-LS/HT Portable LED marine lanternadopts low-light but high efficient solar panels integrated design,cooperate with solar lead-acidbattery as power supply.
The battery adopts advance power management system,which can provide good protection when battery ’s voltage and temperature too high or too low,so it can improve the battery’s service life efficiently.
Control circuit adopts micro-power consumption, which reduce controlling circuit 's power consumption; Light source adopts dedicated LED chip, which has specific of high light intensity, low power consumption, long service life and so on. Adopting the design of the portable design, which is convenient for carrying and transportation, especially suitable for the occasions of the temporary channel, the airport runway, the tower, etc. Lampshade adopts glass material, which can corrosion resistance, anti-UV anti-shock.
Specification
Name
Parameter
Name
Parameter
Type
GS-LS/HT
Light Source Service Life
>100000 hours
Power Supply
Mono Crystalline Silicon Solar Panel
Optional Emitting Color
Red, White, Yellow, Green
Battery Capacity
12V24AH
Battery Type
Lead-Acid Battery
Solar Panel Power
8W×4
Battery Life
2 Years
Solar Panel Voltage
16.5V
Solar panel life
>20 Years
Power Consumption
≤20W
Vertical Divergence
≥8°
Visual Range
11-20NM
Horizontal Out-put
360°
Light Source
LED
Overall Size(mm)
325mm×325mm×366mm
Storage Temperature
-40℃~70℃
Installation Size
270mm x M8 (4holes)
WorkingTemperature
-40℃~50℃
Anti-Wind Ability
80m/s
Weight
15kg
Working Mode
350 Light Characteristics
Continuous Working Time In Rainy Day
> 15days( work 10 hours a day)
Optically Controlled Ambient Brightness
300LUX±100LUX
IP Standard
IP67
Standard
IALA
Optional
GPS sync

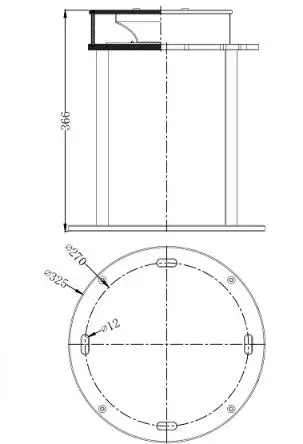

Structure Drawing
