online shop china GT250A suspension Hoist electric mini hoist

Product Overview

Description

online shop china GT250A suspension Hoist electric mini hoist



This powerful single phase electric chain hoist is perfect for lifting in shops, factories, warehouses, and several other industrial applications. It is easy to install and operate and comes packed with safety features.



Wireless Control System



This electric chain hoist comes standard with a 14 foot pendant control and wireless controls that both feature an emergency stop button.

Cooling System

The cooling fan of this Electric Chain Hoist is specifically designed to achieve quick heat dissipation, with rates of up to 12% of continuous labor.

The highly resistant cast aluminum alloy body of this unit features an IP54 Water Resistance Rate, making it ideal for hostile conditions.

Braking System

Electromagnetic brake system designed to automatically engage on any power cut-off.

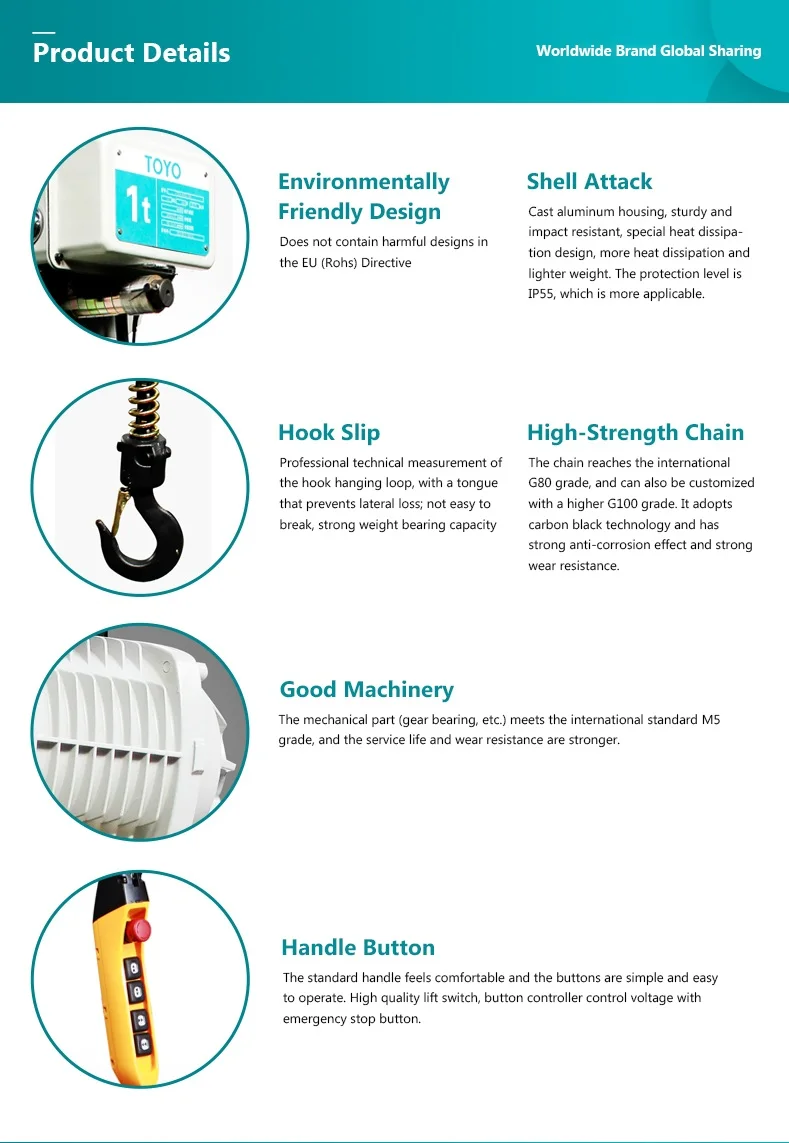

Key Features of Electric Chain Hoist

• Integrated Wireless Controls
• High Precision Gear Set
• Emergency Stop System For Added Protection
• Easily Removable Forged Steel Top Hook with 360 Degree Rotation
• Light Die-Cast Aluminum Housing
• Upper and Lower Limit Switches to Prevent Over-Travel

Description of Electric Chain Hoist



Specification of Electric Chain Hoist

Model		TY1-Dual Speed
		0.5-01D	01-01D	1.5-01D	02-01D	02-02D	2.5-01D	03-01D	03-02D	03-03D	05-02D
Capacity(t)		0.5t	1t	1.5t	2t		2.5t	3t			5t
Lifting speed (m/min)		7.2/2.4	6.9/2.3	9.0/3.0	6.9/2.3	3.3/1.1	5.4/1.8	5.4/1.8	4.5/1.5	2.4/0.8	2.7/0.9
Motor power (KW)		0.8/0.27	1.8/0.6	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0	3.0/1.0	3.0/1.0	1.8/0.6	3.0/1.0
Traverling Speed (m/min)	50Hz	4/20		10/2
	60Hz	23.5/4.7		11.5/2.3
Rotation speed (r/min)		2880 / 960
Insulation grade		F grade
Power supply		3 phase, 200V-690V, 50/60Hz
Control voltage		24V / 36V / 48V
No.of chain		1	1	1	1	2	1	1	2	3	2
Spec.of load chain		Φ6.3	Φ7.1	Φ10.0	Φ10.0	Φ7.1	Φ11.2	Φ11.2	Φ10.0	Φ7.1	Φ11.2
Net weight (kg)		54	74	144	150	86	148	159	168	102	184

1. Strong practicability and reliable quality
Advantage of Toyo Electric Chain Hoist

2. Aluminum aloy body, beautiful appear ance, small size, light weight

3. Schneider electric components, Fec chain from Japan

4. After multi-channel heat treatment, it has the characteristics of high strength and good wear resistance.

5. Compact structure, lightweight and convenient











Any interested, contact us freely to get the Latest Price !!!
