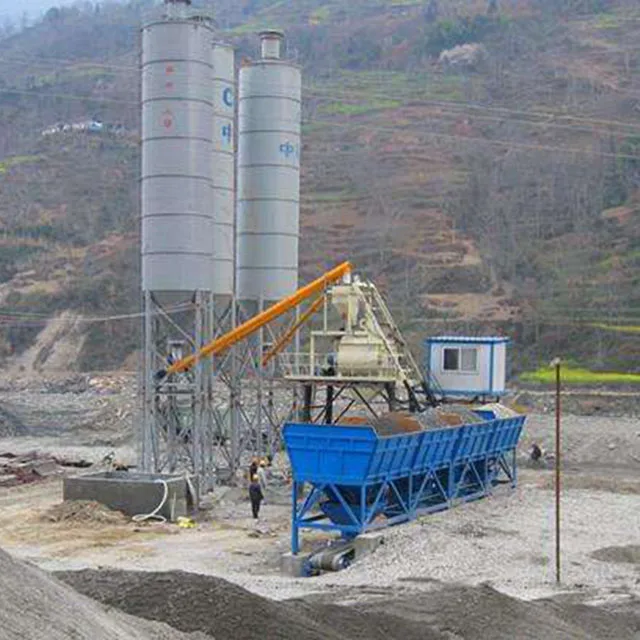

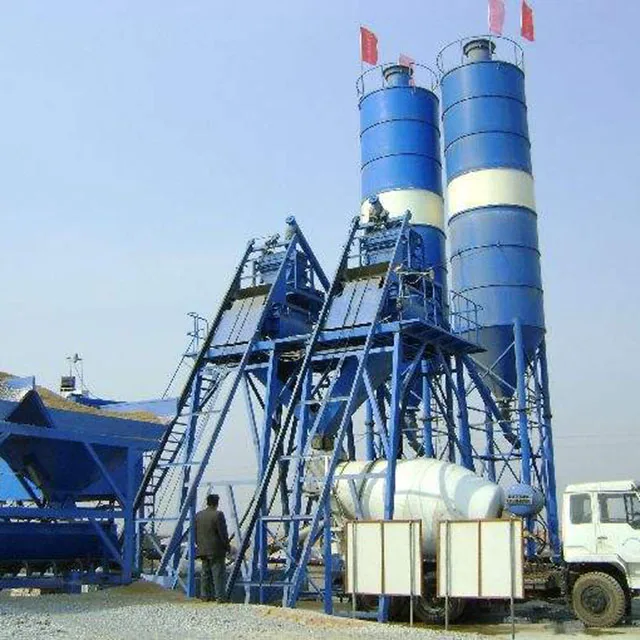

HZS75 Cement and Aggregate Mixing equipment concrete batching plant price

Product Overview

Description

HZS75 Cement and Aggregate Mixing equipment concrete batching plant price

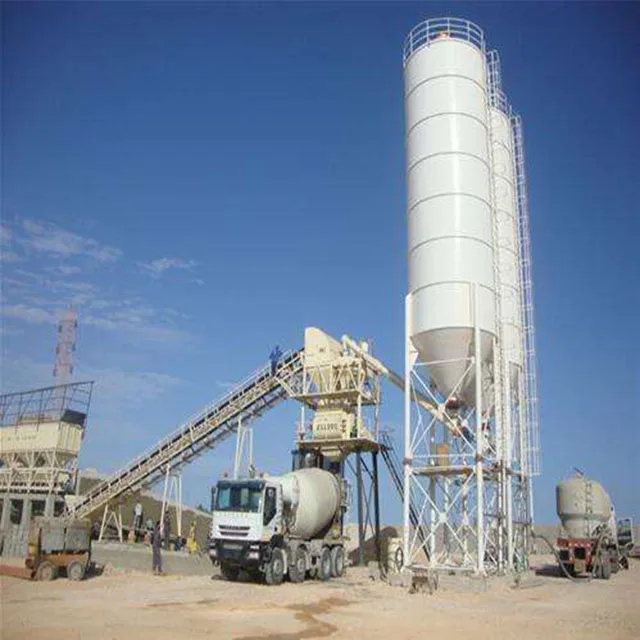

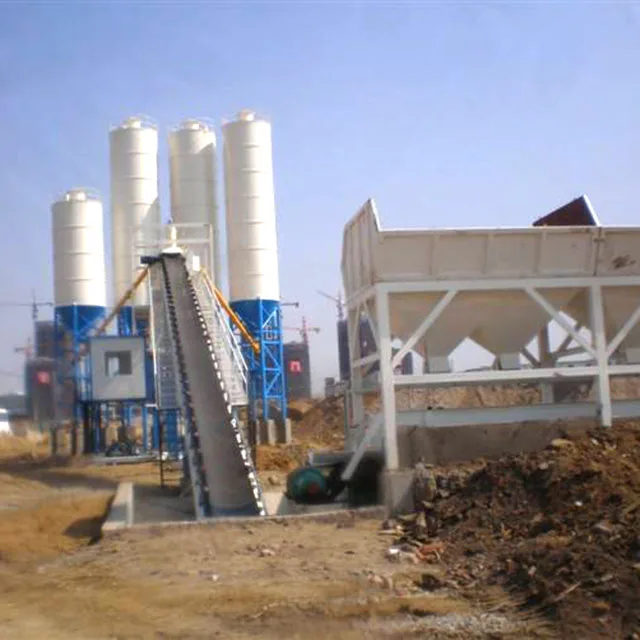

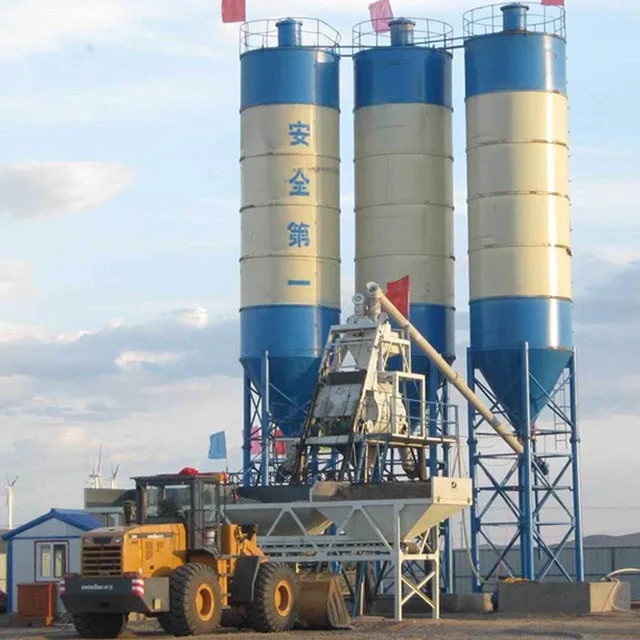

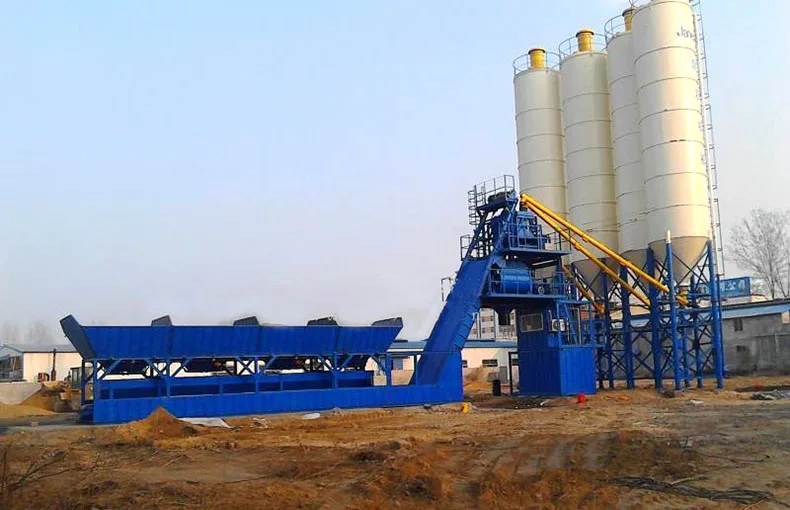

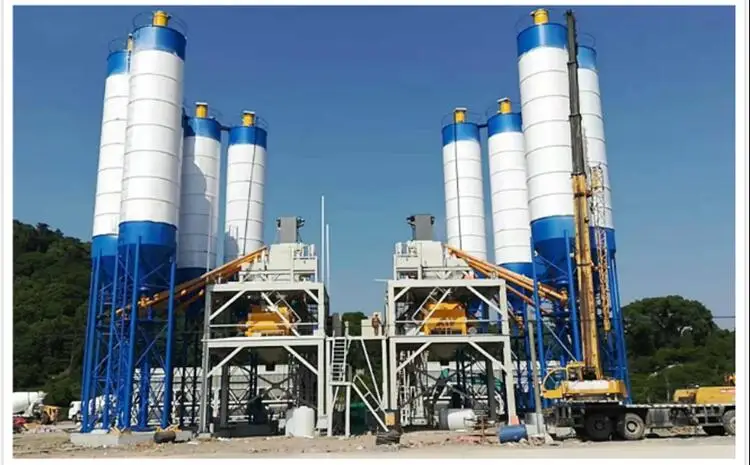

HZS series stationary concrete baching plant is widely used in big or medium building projects, road and bridages projects, precast concrete plants,etc. It is an ideal choice for producing commercial commercial concrete. It has two feeding methods. One is hopper type, it is used for lower than 50m3 per hour output production. The other is belt type, it is usually used for higher than 60m3 per hour output production. For export, we adopt full automatic control system for our stationary concrete mixing plant, It is industrial computer control, which can vividly display the production process on the screen, so that the operator can monitor at real time.

hzs25 China Manufacture Small Concrete Batch Plant



Model	HZS25	HZS35	HZS50	HZS60	HZS75	HZS90	HZS120	HZS180	HZS240
Output(m3/h)	25	35	50	60	75	90	120	180	240
Mixer Capacity(m3)	0.5	0.75	1	1	1.5	1.5	2	3	4
Discharging Height	4100	4100	4100	4100	4100	4100	4100	4100	4100
Mixer	JS500	JS750	JS1000	JS1000	JS1500	JS1500	JS2000	JS2000	JS3000
Aggregate Batcher	PLD800	PLD1200	PLD1600	PLD1600	PLD2400	PLD2400	PLD3200	PLD4800	PLD6400



Mixing system

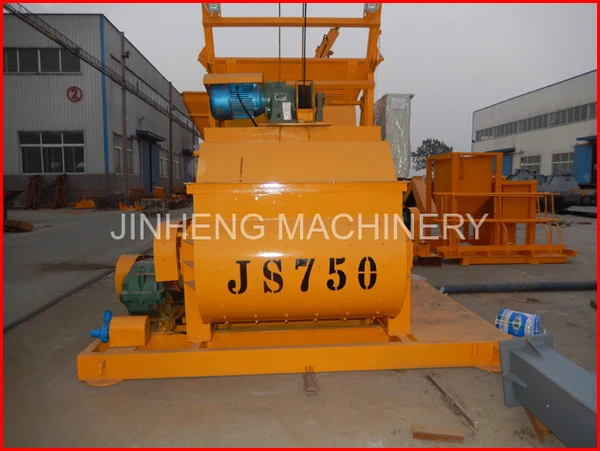

JS type double horizontal shaft forced concrete mixer is composed of feeding mechanism, mixing mechanism, unloading mechanism, water supply system and electrical control system.Dry hard concrete, plastic concrete, light aggregate concrete and all kinds of mortar with aggregate size of up to 80mm and gravel size up to 60mm can be mixed.

Batching system

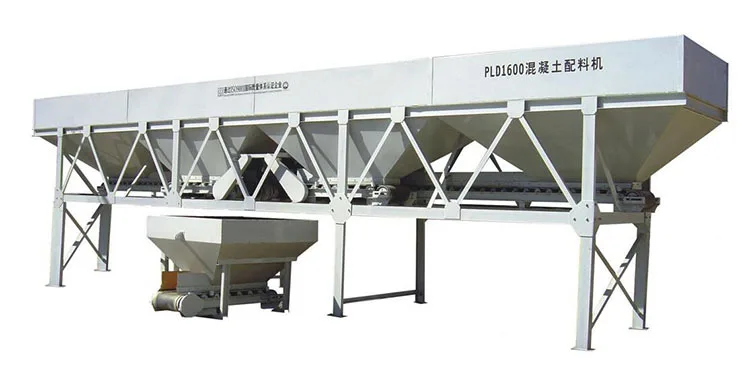

 PLD series batching machine is used in loader or belt conveyor feeding sand batching device, can match more than three kinds of materials, with each type of mixer and other metering device matching, can be combined into automatic and semi-automatic mixing station.

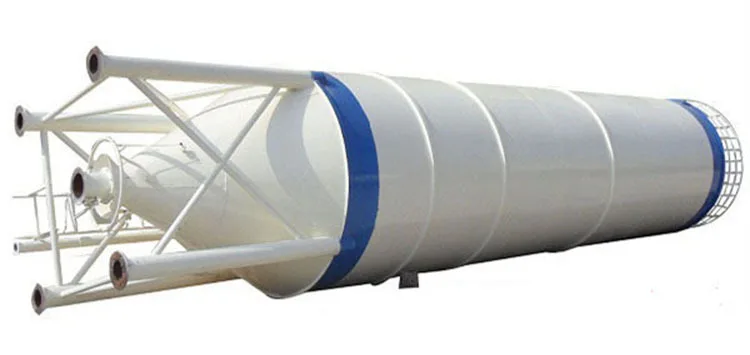

Cement silo

The cement silo is a closed silo for storing materials such as cement and fly ash. The tank body is equipped with a material level system, which can display the location of materials.Cement bin and screw conveyer can transport materials to various positions, the bin is easy to install, reliable performance, is the ideal collocation of various mixing stations.

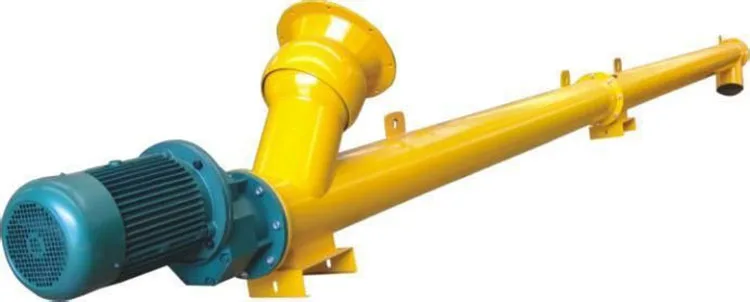

Conveying system

The conveying system is divided into aggregate conveying and powder conveying.The conveying mode of aggregate at HZS50 station is lift feeding.The conveying mode of cement and admixture in HZS50 mixing plant is screw conveyor and pneumatic conveying.Whether it is the transportation of aggregate or powder, we consider to reduce the generation of dust as much as possible in the design and production;The conveying speed and efficiency of the conveying system should match the cycle time of the system.

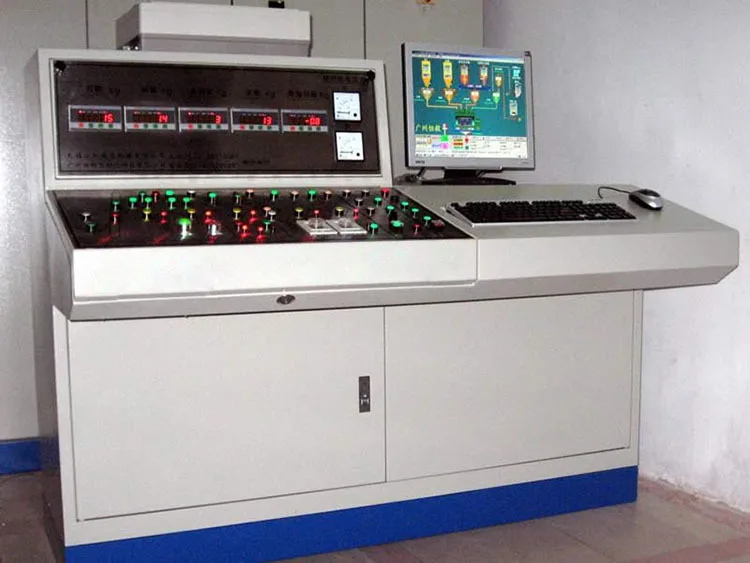

Control system

The control system is controlled by computer, which can be controlled automatically or manually. The operation is simple and easy to grasp.Dynamic panel display, can clearly understand the operation of each part, at the same time can store and print reports

The measuring unit

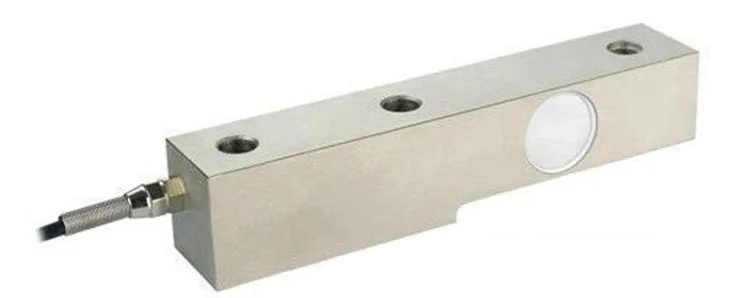

The sensor

 Imported sensor with high precision, accurate weighing and quick response
