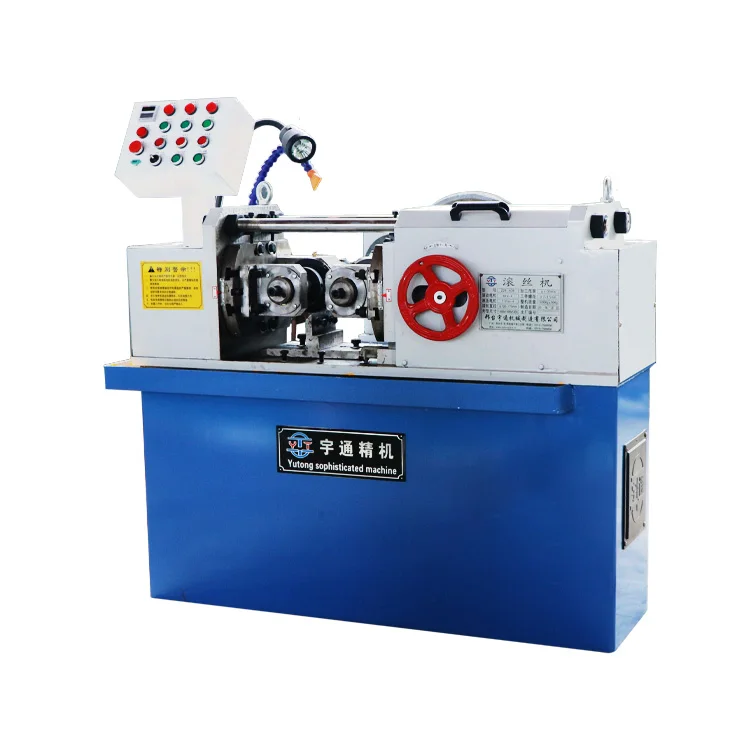

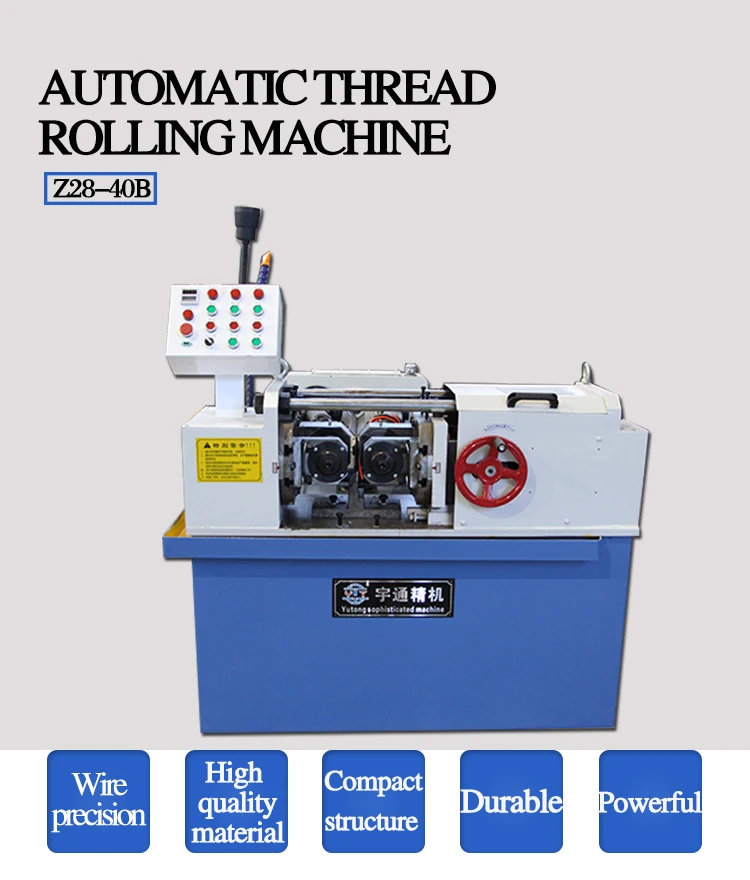

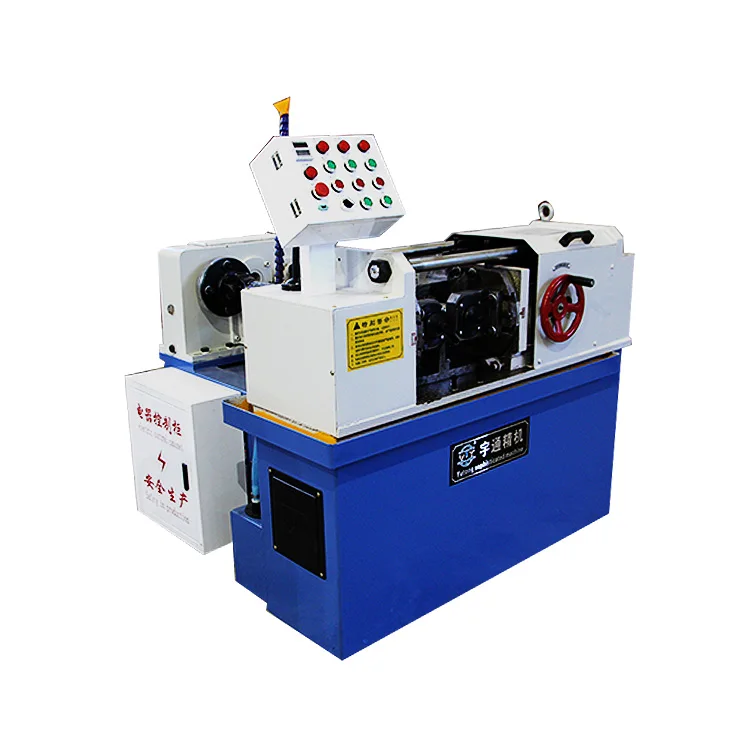

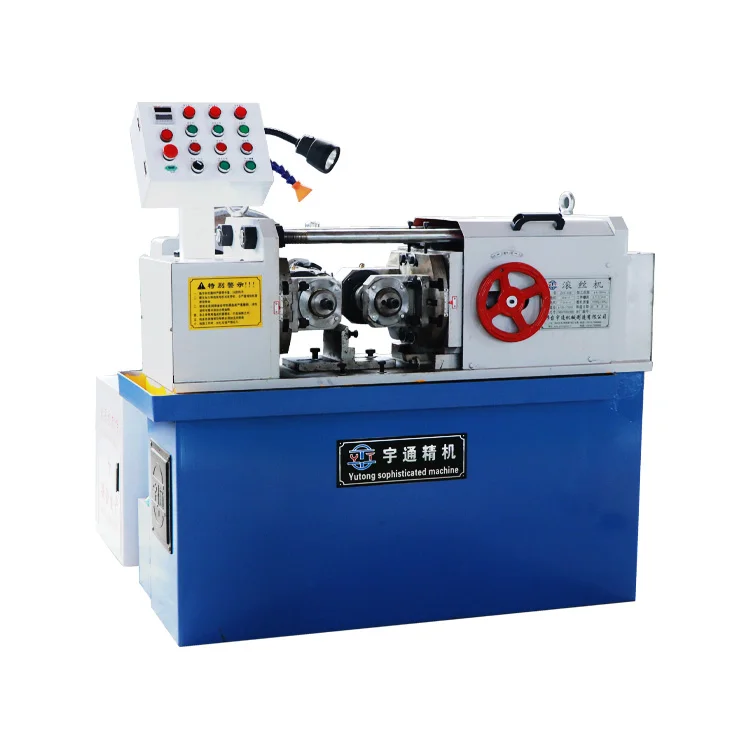

Thread rolling machine thread whirling machine metal moulding machine

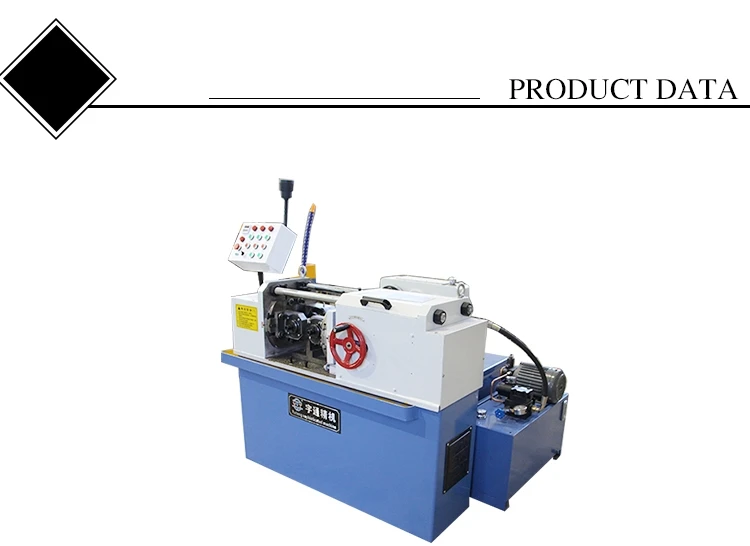

Product Overview

Description

Max rolling pressure	80KN		Length	Unlimited
Rolling material diameter range	Radial feed	Φ5-Φ30mm	Spindle speed	34,43, 57,72(r/min)
	Axial feed	Φ5-Φ22mm
Thread roller	Outer roller diameter	Φ120-Φ170mm	Active power	4.0kw-4
	Inner roller diameter	Φ54mm	Hydraulic power	1.5kw-4
	Max thickness of roller	100mm	Cooling power	90w
Axis tilt angle	±5°		Weight	1000kg±50kg
Spindle center distance	120-240mm		Dimensions	1480×1500×1050mm

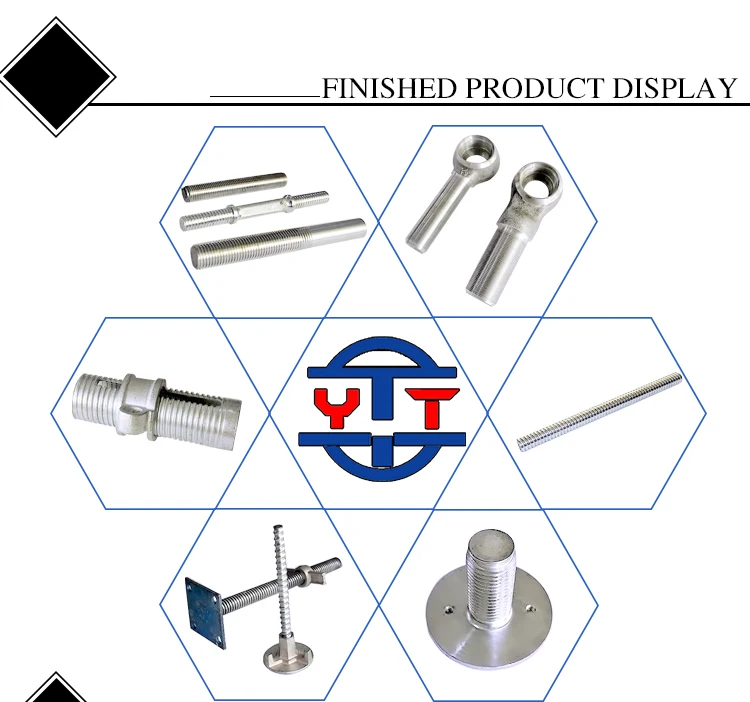

The thread rolling machine is a kind of multi-function cold extrusion forming machine, and the spinning function can process the thread, straight grain and twill rolling in the cold state within the range of the rolling pressure. Rolling of straight teeth, oblique teeth and helical spline gear; Straightening, reducing, rolling and all kinds of forming rolling.

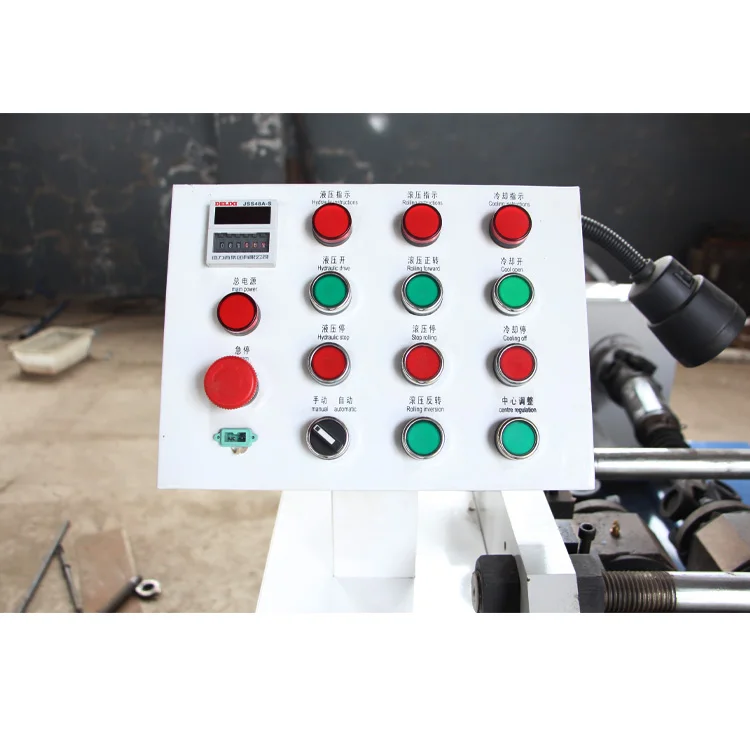

The machine has a safe and reliable electrical - hydraulic execution and control system that allows each working cycle to be selected in three ways: manual, semi-automatic and automatic

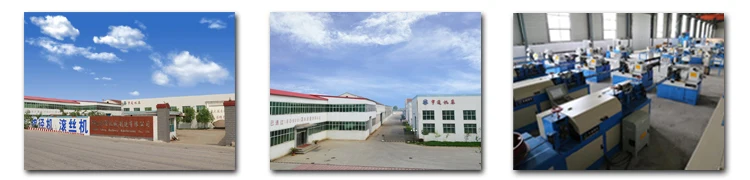

Hebei YuTong Machinery Trade Company

We mainly produce thread rolling machine, diameter reduce machine,railway spike thread rolling machine,straingthening and cutting machine, bending machine and some related products, .Based on over than Twenty year's experience in Machinery business, we are sure our outstanding design and competitive price will help you winning your marketing share. you will be satisified with our professional service. our products have been qualified, and sell well in Southeast Asia, the Middle East, Asia, Africa and other countries and regions. With many well-known manufacturers supporting the production, our factory gets the high praise from The majority of

customer,

Our factory adheres to the "people-oriented, scientific and technological innovation; winning by quality and win-win" for the purpose, and sincerely welcome the domestic and international colleagues and businessmen to join hands today to create the future!
