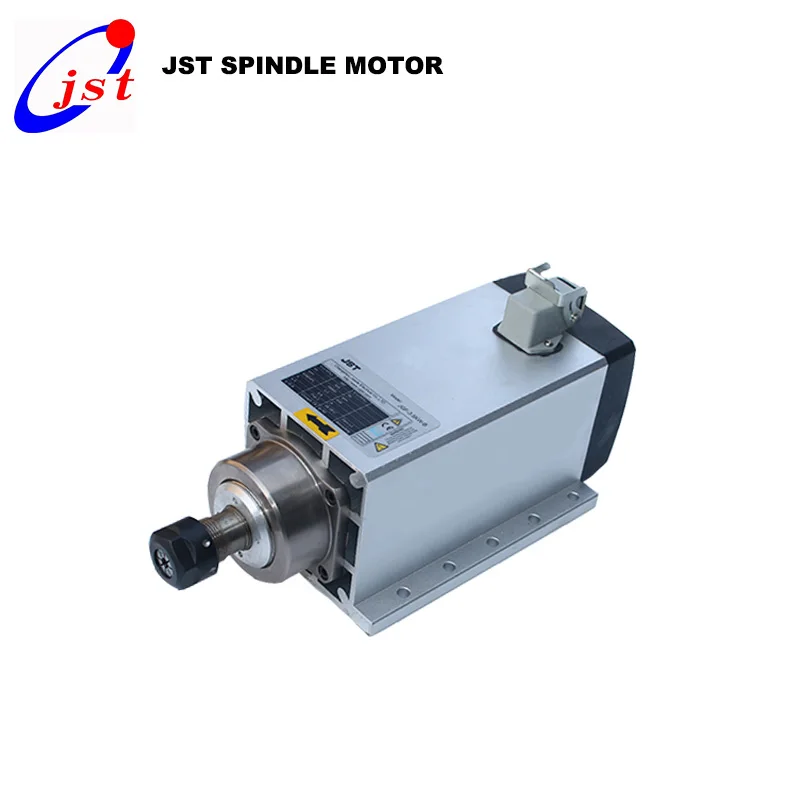

JST spindle motor set for CNC
- Category: >>>
- Supplier: Changzhou Fante Trading Co. Ltd.
Share on (62454223422):
Product Overview
Description
Product Description
Model | JGF-3.5KW | Joint Of Nose | ER25 |
Voltage (V) | 220/380 | Cooling | Air Cooling |
Rotation Speed (Rpm) | 18000 | Current (A) | 7 |
Power (KW) | 3.5 | Bearing Type | 2*7007P4+2*6002 |
Frequency (Hz) | 300 | Lubrication | Grease |
Details Images
Company Profile
FAQ
Maintenance
the inverter shall match the nominal parameters of the spindle, and it will burn the spindle if the settings are not correct.
2. Before using water-cooling spindle, it shall ensure that cooling cycle system works normally and the running under no cooling
conditions is prohibited. The volume of cooling water is calculated as per 1 liter/kw, minute, the minimum flow of cooling water
is not less than 5 liter/minute, cooling water pipe and the nozzle shall be connected reliably and there is no leakage.
3.The cooling liquid shall be clean and free of grease and the temperature shall be within 5-30℃. The cooling medium shall carry
out force cooling when the ambient temperature is higher than 30℃. The precision lathe requires the cooling liquid with a constant
temperature of 20℃.
4.During storage and transport of the spindle, the status of highspeed grease inside the bearing will change. The user shall run
it at a low speed first by starting from the lowest speed of the spindle for 30 minutes and then 20 minutes for every 3000 rounds;
otherwise there will have abnormal sound, noise, heat and other phenomena, which will affect the bearing life if the spindle is
started directly at a high speed. During long term storage, the spindle shall run (at Iow speed) for 15~30minutes once a week at least.
