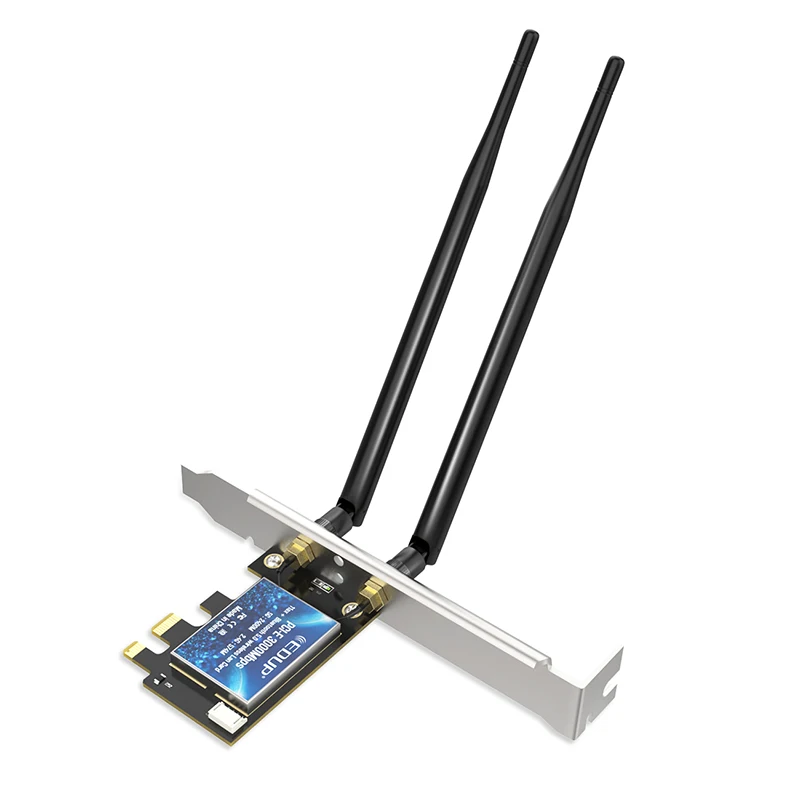

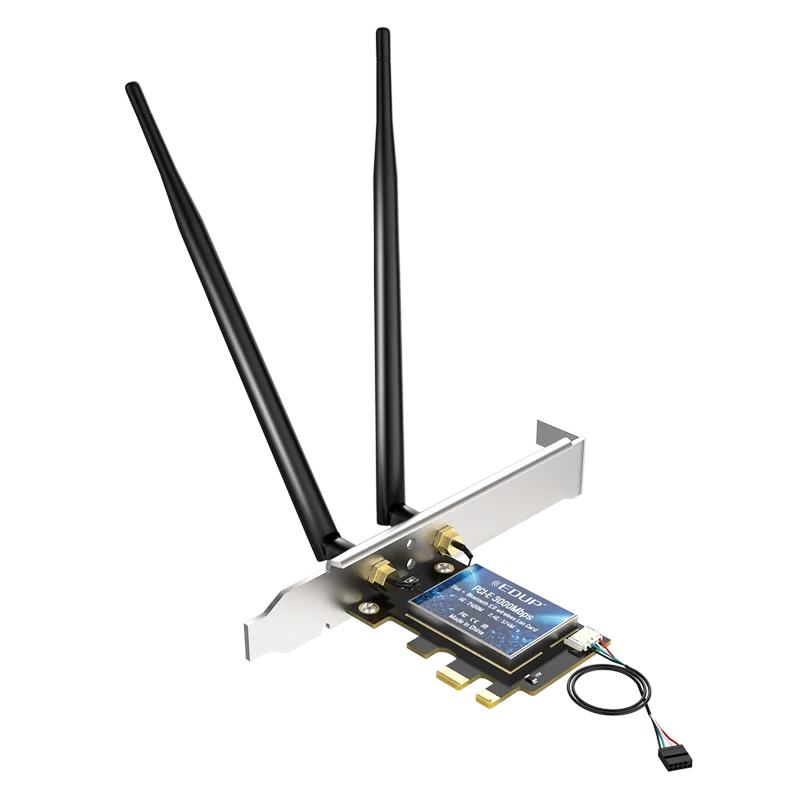

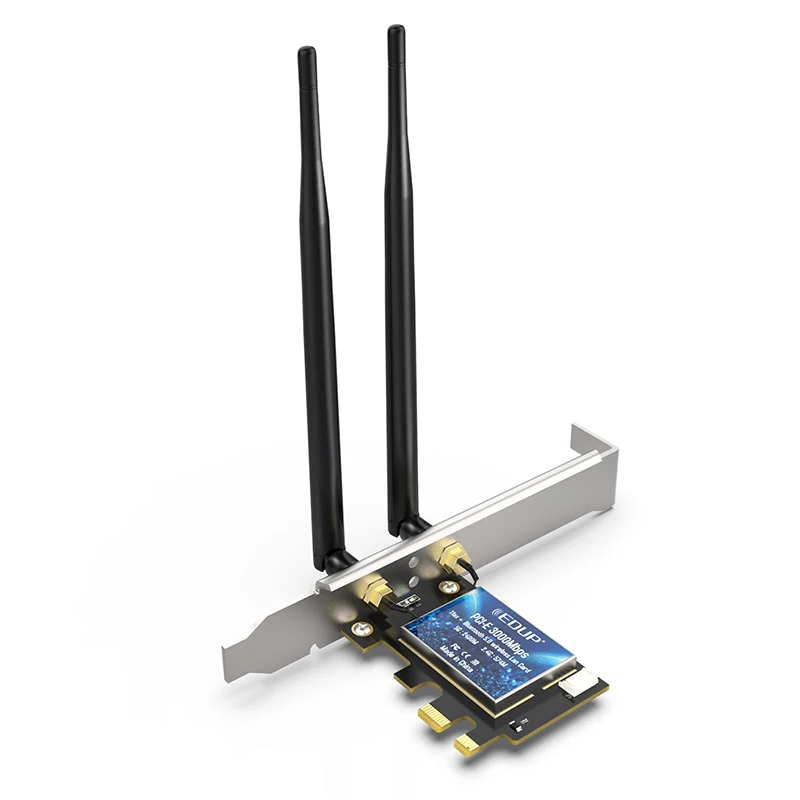

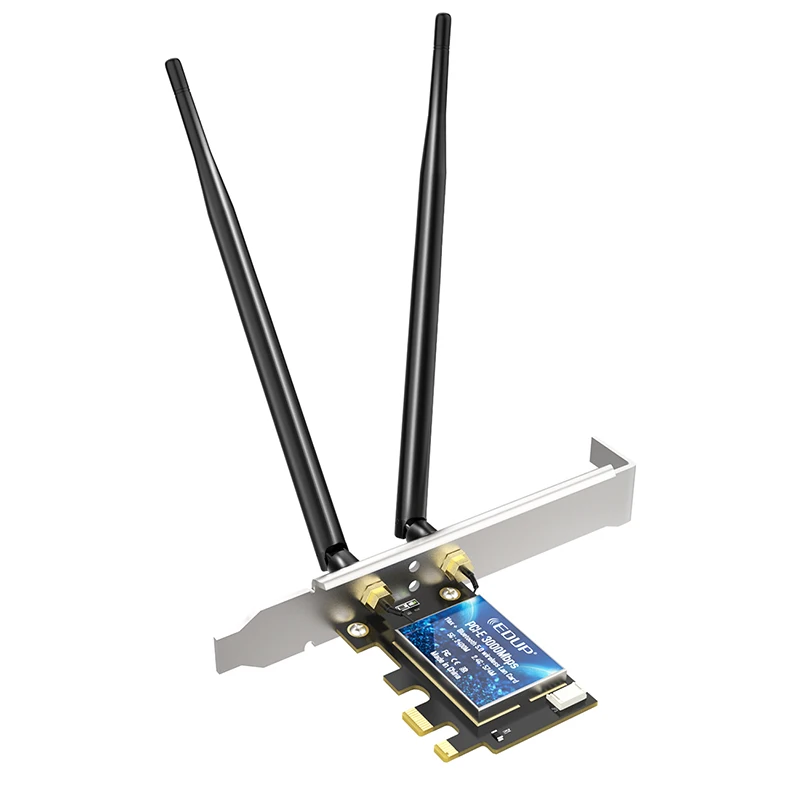

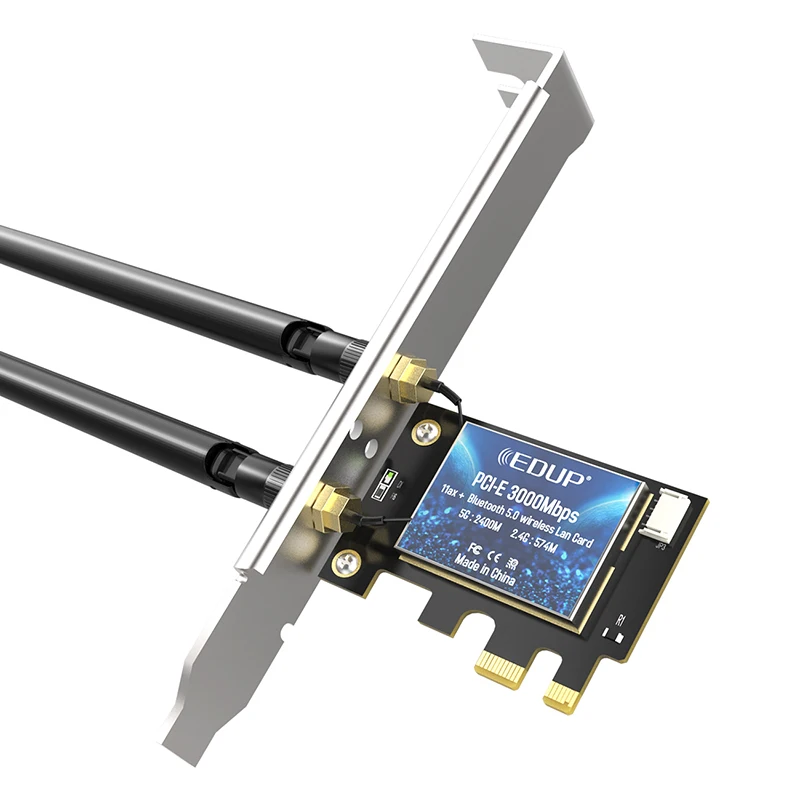

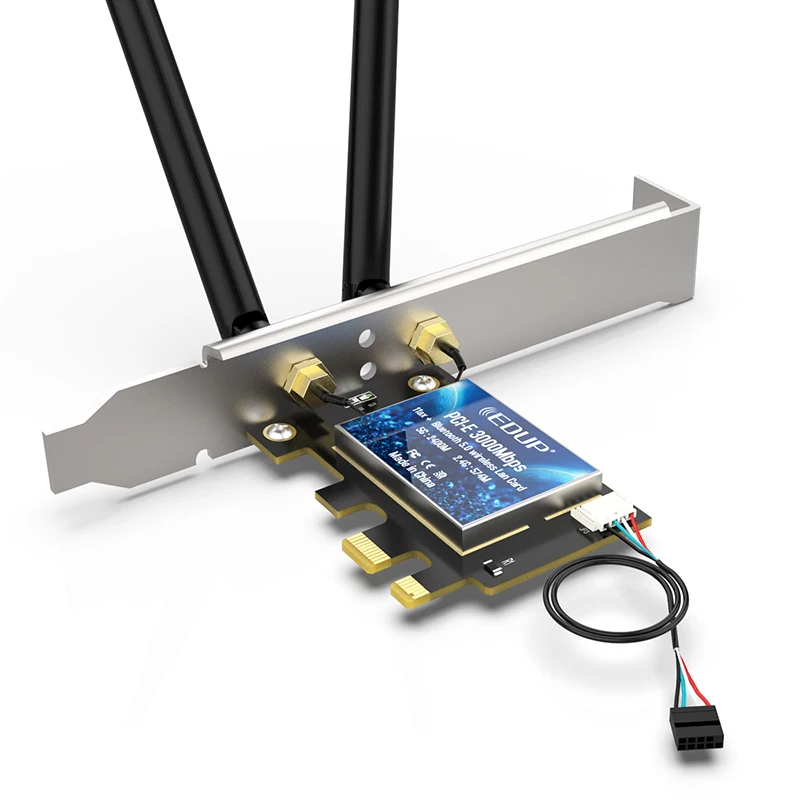

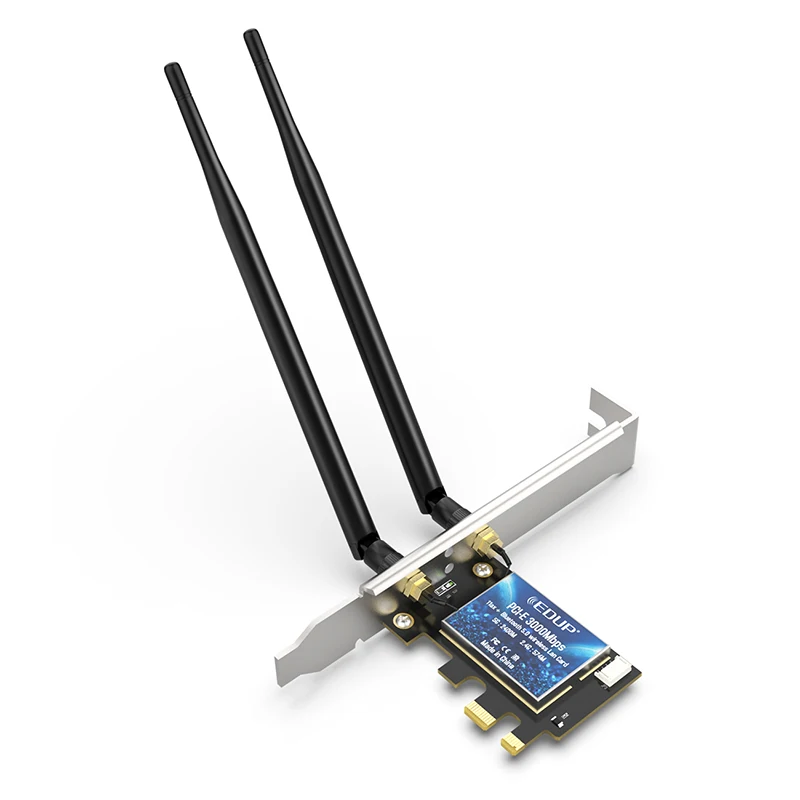

High Speed Network Wifi Card 2.4G/5Ghz 802.11ac/ax Wi fi BT 5.1 Adapter AX200NGW AX200
- Category: >>>
- Supplier: Shenzhen Edup Electronics Technology Co. Ltd.
Share on (62454338646):
Product Overview
Description
High Speed Network Wifi Card 2.4G/5Ghz 802.11ac/ax Wi-fi BT 5.1 Adapter AX200NGW AX200
Similar Products

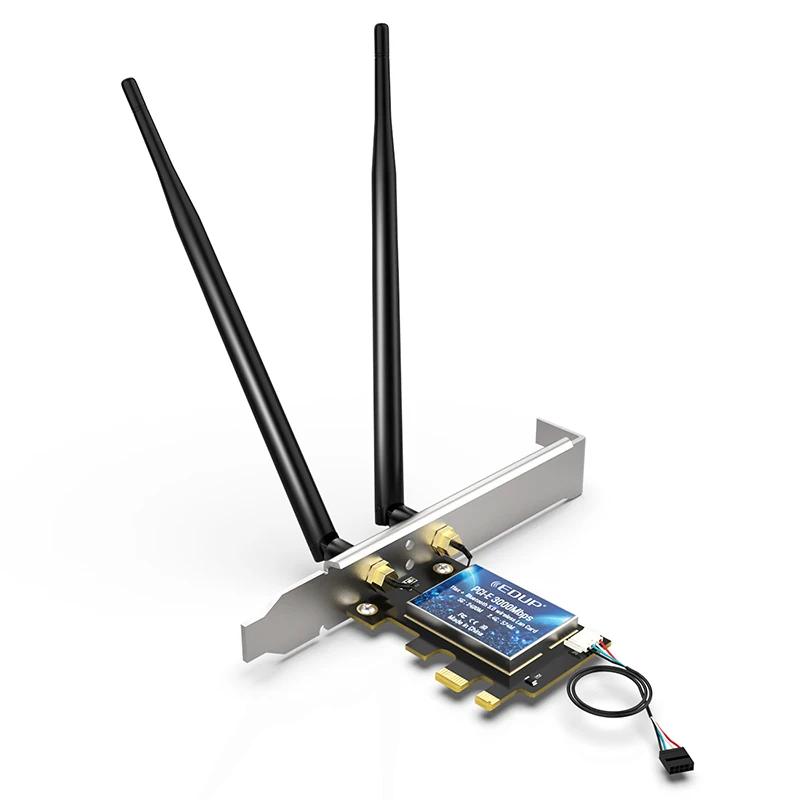

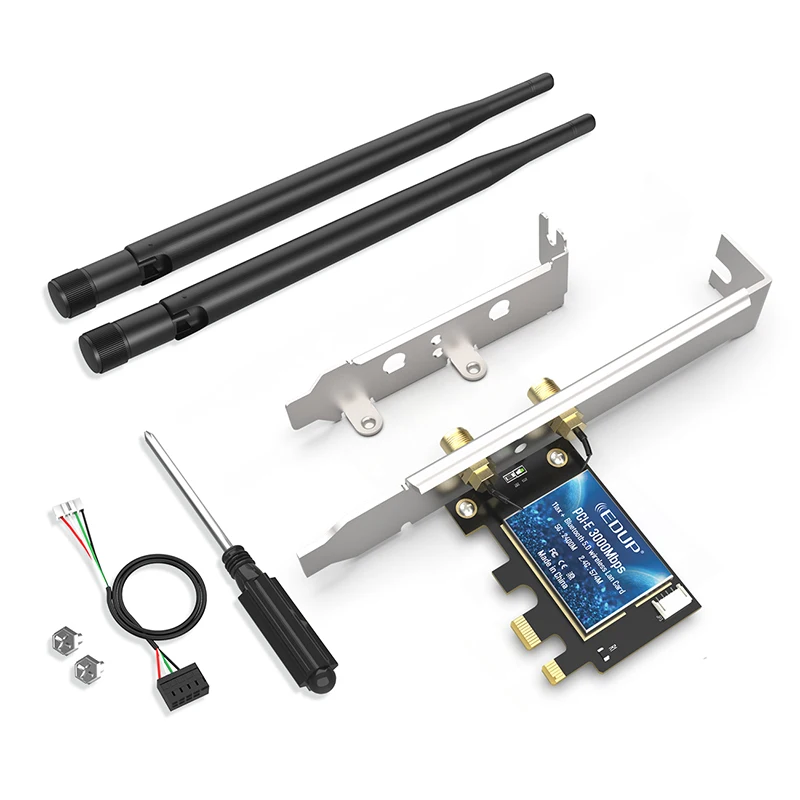

The EP-9636 is a highly integrated and cost-effective Wireless Adapter that provides PCI Express interface, and full compliance with IEEE802.11ax and IEEE802.11a/b/g/n/ac standards. Wireless transmission rates can reach up to 3000Mbps. Using the EP-9636 Wireless Desktop PCI-E Adapter not only can you connect your desktop computer to a high-speed Wi-Fi network and experience faster files transmission and high-speed Internet browsing from further distances across your home than that in previous-generation Wireless n technology, but also you can enjoy high performance wireless viewing HD multimedia and real-time online war game when the PCI-E Adapter work in 11ac 5G mode. This Desktop PCI-E Adapter is the best choice for the desktop computer users who want to enjoy a better wireless performance and high-speed Wi-Fi . the Wi-Fi 6 AX200 module can provide Gigabit wireless speed2 and dramatically improve your connected experience at home, work, or on the go.
Product Description
Features
Ø Complies with IEEE 802.11a/b/g/n/ac/ax WiFi and blue-tooth 5.0HS (WiFi: PCI-E, BT: USB)
Ø Supports PCI-E-X1/X4/X8/X16
Ø 2.4G/5G dual frequency optional, 5GHz band rate up to 2400Mbps, 2.4GHz band rate up to 574Mbps
Ø Supports Cisco CCX
Ø Supports multiple BSSID
Ø The router need to support AX and use 160Mhz channel, then the speed can reach to 2400Mbps
Specifications
Model | EP-9636 |
Chipset | AX200 |
Standards | IEEE 802.11a/b/g/n/ac WiFi and blue-tooth5.0 +HS (WiFi: PCI-E, BT: USB) |
PCI Bus | PCI-E-X1/X4/X8/X16 |
Frequency Range | WiFi: 2.4GHz, 5.8GHz BT: 2402MHz~2483MHz |
Antenna | 2*5 dBi |
Transmission Rate | 2.4G up to 574Mbps, 5.8G up to 2400Mbps |
Operating System | Microsoft Windows* 10, Linux*, Chrome OS* |
Dimensions (H x W x D) | M.2 2230: 22mm x 30mm x 2.4mm [1.5mm Max (Top Side)/ 0.1mm Max (Bottom Side)] M.2 1216: 12mm x 16mm x 1.67 (+-0.08)mm
|
Weight | M.2 2230: 2.83 +/– 0.3 g |
Radio ON/OFF Control | Supported |
Connector Interface | M.2: PCIe, USB |
Operating Temperature (Adapter Shield) | 0°C to +80°C |
Humidity Non-Operating | 50% to 90% RH non-condensing (at temperatures of 25°C to 35°C) |
Wi-Fi Alliance8 | Wi-Fi CERTIFIED* a, b, g, n, ac with wave 2 features, WMM*, WMM*-Power Save, WPA*, WPA2*, WPS*, PMF*, Wi-Fi Direct*, Wi-Fi Miracast* , Wi-Fi Agile Multiband*, Wi-Fi Optimized Connectivity*, Wi-Fi Location, Passpoint*, Wi-Fi Aware*, and Wi- Fi TimeSync* |
IEEE WLAN Standard | IEEE 802.11-2016 and select amendments (selected feature coverage) |
blue-tooth | blue-tooth 5.0 |
Security Methods | WPA* and WPA2* Personal and Enterprise; WPA3* (pending OS support) |
