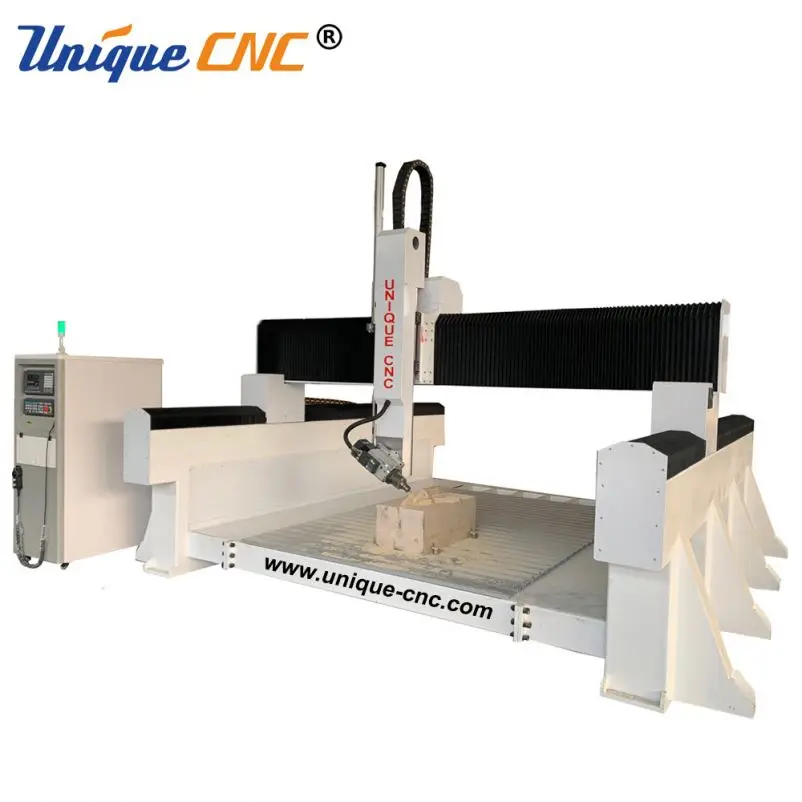

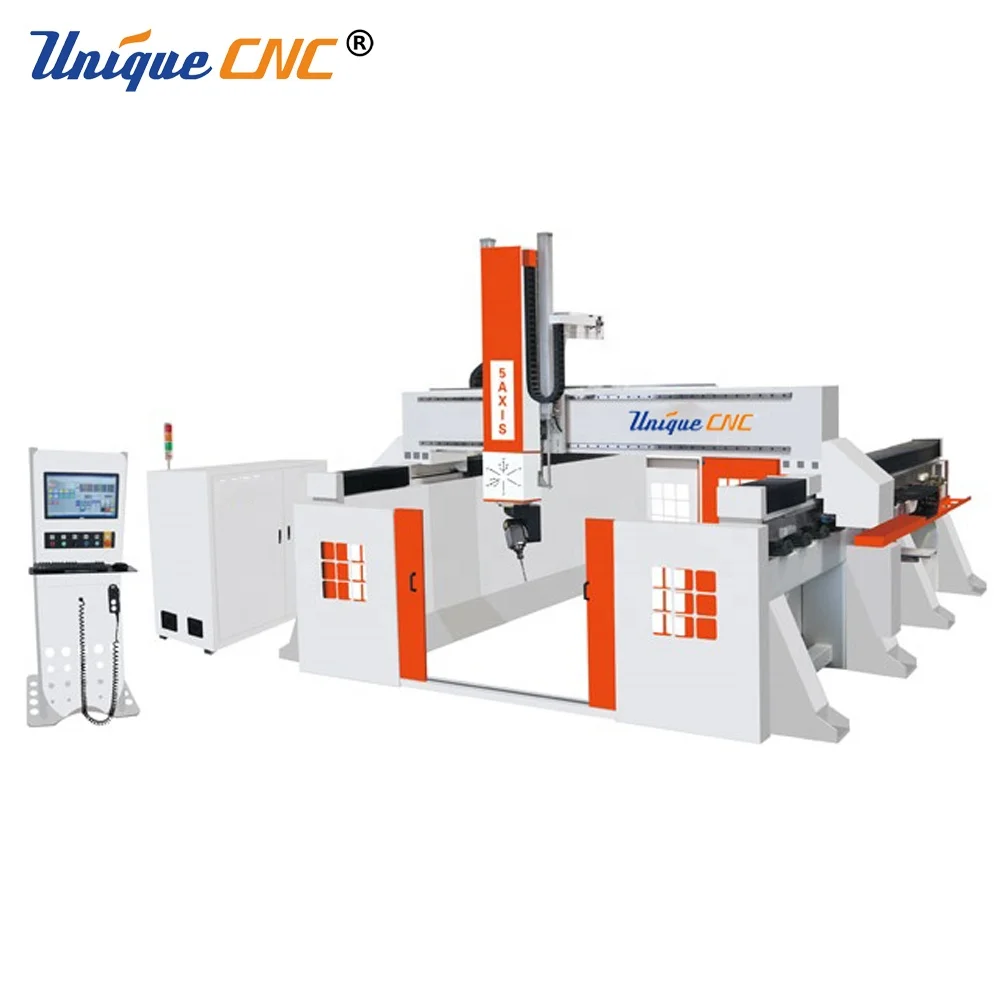

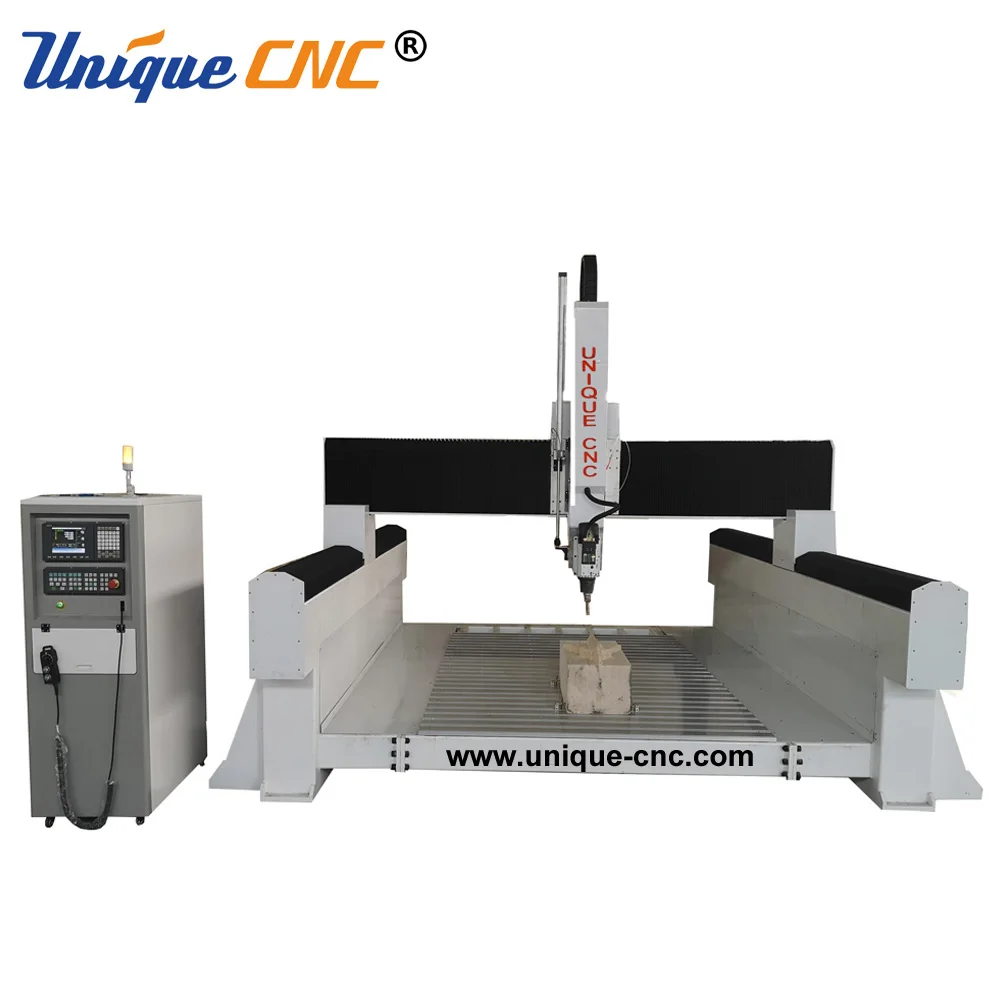

Cheap Cnc router 4030 2030 Airfoil Plane 3D EPS EVA Styrofoam foam mold cnc cutting making machine
- Category: >>>
- Supplier: Jinan Unique Cnc Equipment Co. Ltd.
Share on (62454340975):
Product Overview
Description
3 AXIS big size aluminum wood mold cnc machining center cnc wood lathe with strong structure
Application of the cnc foam thermocol pattern making router machine for casting:
1.Wood, EPS,Composite,Fiberglass,Foam,Styfofoam, Gypsum, Plaster, Polyurethane and lots of other materials`s cutting,milling and engraving.
2.Die and mold industries: Non-metallic mold: the machine is particularly suitable for automotive foam mold, wooden ship model,
wooden model aviation, trains and other wooden mold.
3.Musical instrument industry: Can carve three dimension musical instrument, contour cutting.
Main features of cnc foam thermocol pattern making router machine for casting,
1. The spindle can rotate 180 degree(±90 degree), can make multi-kinds of surface which can designed by CAM softwares.
2. Heavy-duty structure to guarantee the stability. The structure is welded by thick steel tube,then processed by professional
maching center to mill the surface of guide rails and gear rack and drill holes,rust cleaning,then painting.
3. Beautiful and scientific structure design. For large machines,machines use disassemble design to load into container.
4. The machine equips with world class components: famous spindle, Yaskawa servo motors and drivers, Delta driver, Taiwan made guide rails and ballscrews,helical gear rack, best quality cable and components.
5. Professional 4-Axis control system,multi-functional,stable and easy to learn and operate.
6. Machine`s transmit parts equip with dust covers to keep the rails,gear rack and ballscrews clearn,guarantee the precision and parts` long life.
7. Machine control cabinet equips with safety device to protect the operaters.
1.Wood, EPS,Composite,Fiberglass,Foam,Styfofoam, Gypsum, Plaster, Polyurethane and lots of other materials`s cutting,milling and engraving.
2.Die and mold industries: Non-metallic mold: the machine is particularly suitable for automotive foam mold, wooden ship model,
wooden model aviation, trains and other wooden mold.
3.Musical instrument industry: Can carve three dimension musical instrument, contour cutting.
Main features of cnc foam thermocol pattern making router machine for casting,
1. The spindle can rotate 180 degree(±90 degree), can make multi-kinds of surface which can designed by CAM softwares.
2. Heavy-duty structure to guarantee the stability. The structure is welded by thick steel tube,then processed by professional
maching center to mill the surface of guide rails and gear rack and drill holes,rust cleaning,then painting.
3. Beautiful and scientific structure design. For large machines,machines use disassemble design to load into container.
4. The machine equips with world class components: famous spindle, Yaskawa servo motors and drivers, Delta driver, Taiwan made guide rails and ballscrews,helical gear rack, best quality cable and components.
5. Professional 4-Axis control system,multi-functional,stable and easy to learn and operate.
6. Machine`s transmit parts equip with dust covers to keep the rails,gear rack and ballscrews clearn,guarantee the precision and parts` long life.
7. Machine control cabinet equips with safety device to protect the operaters.
Parameters of cnc foam thermocol pattern making router machine for casting:
No. | Description | Parameter |
1 | Model No. | U-R2030 EPS Mold CNC |
2 | X,Y,Z Working Area | 2000mmx3000mmx1000mm (1000mm is feeding heigth) |
3 | X,Y,Z Traveling Positioning Accuracy | ±0.01/300mm |
4 | X,Y,Z repositioning Accuracy | ±001mm |
5 | Table Surface | T-slot table (Vaccum table,steel table,cast iron tables are optional) |
6 | Frame | Thick and big steel tube welded |
7 | X and Y structure | Helical rack and pinion transmit, Taiwan made HIWIN or PMI linear square guide rails |
8 | Z structure | Taiwan made PMI ballscrews, linear square guide rail |
9 | Spindle | 9KW auto tool change spindle, air cooled,0-24000rpm(Other spindles are optional), ER32 collect (Can hold Φ20mm bits) |
10 | Spindle rotate degree | ±90 degrees |
11 | Driving system | 1300W Yaskawa servo motors and drivers, Shimpo reducers for all axis |
12 | Max. Rapid Travel Rate | 40000mm/min |
13 | Max. Working Speed | 30000mm/min |
14 | Control system | Syntec 4 axis system (Others are optional) |
15 | System Interface | USB |
16 | Command language | G code |
17 | Working Voltage | AC380V/50/60Hz,3PH (Option: 220V)) |
18 | Software Compatibility | Artcam,Powermill,Mastercam,UG,Rhino and other CAM softwares |
19 | Running Environment Temperature | 0-50 Centigrade |
20 | Relative Humidity | 30% - 75% |
21 | Packing Size | 6500x2300x2300mm |
22 | N.W. | 5000kg |
23 | G.W. | 5200KG |
24 | Optional Parts/function | Vacuum table,steel table or cast iron table |
Dust collector | ||
Rotary system | ||
Mist-cooling system for soft metal processing | ||
RTCP (Rotating Tool Center Point) function | ||
Rotary attachment for process columns round materials |

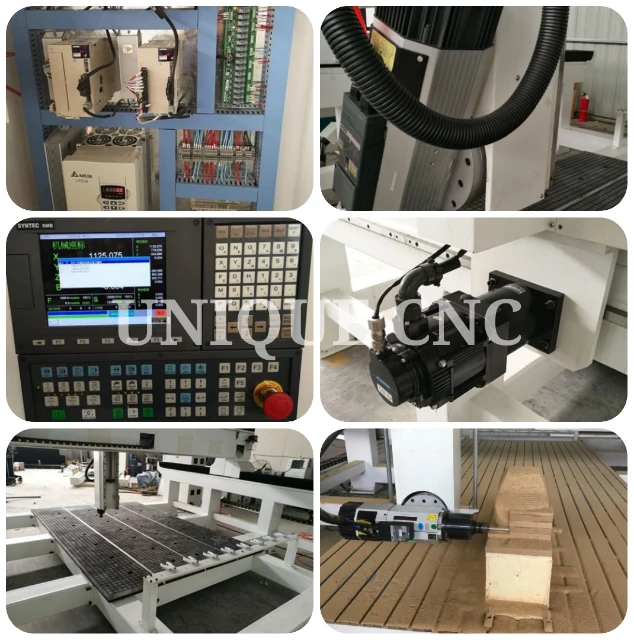

More photos of the parts:
You may consider the following aspects when need an EPS cnc router:
* Materials. What materials will you process by the machine? Styrofoam,wood,aluminum or others? Different materials need different configurations.
* Machine size. Decide the machine size according to your raw materials sizes or products sizes. Do you want to process a whole product, or process piece by piece?
* Do you need a 3-axis,4-axis or 5-axis machine?
* Spindle. For foam carving,can use 6-9KW or bigger spindle,no matter water cooled or air cooled. For wood and aluminum, it is better to use stronger power motor BT spindles.
* How many tools do you need? If the mold is complicated, can choose auto tool change EPS CNC Router.
* What kinds of worktable do you need? Foam machine can use clamp table, wood and aluminum can choose clamp table,steel table or cast iron table.
* Designing software. Artcam, Powermill,UG,Mastercam, and other CAM softwares can work with the EPS CNC Router machines. 4-axis and 5-axis machines will need post process to generate correct toolpath,can buy or rent the software from supplier.
* Do you need RTCP ((Rotating Tool Center Point) function? For 4-axis, we suggest RTCP if have enough budget, for 5-axis,RTCP is necessary. RTCP advantages: no need to set every bits` compensation when programming, easier ,higher precision and save time.
* Machine size. Decide the machine size according to your raw materials sizes or products sizes. Do you want to process a whole product, or process piece by piece?
* Do you need a 3-axis,4-axis or 5-axis machine?
* Spindle. For foam carving,can use 6-9KW or bigger spindle,no matter water cooled or air cooled. For wood and aluminum, it is better to use stronger power motor BT spindles.
* How many tools do you need? If the mold is complicated, can choose auto tool change EPS CNC Router.
* What kinds of worktable do you need? Foam machine can use clamp table, wood and aluminum can choose clamp table,steel table or cast iron table.
* Designing software. Artcam, Powermill,UG,Mastercam, and other CAM softwares can work with the EPS CNC Router machines. 4-axis and 5-axis machines will need post process to generate correct toolpath,can buy or rent the software from supplier.
* Do you need RTCP ((Rotating Tool Center Point) function? For 4-axis, we suggest RTCP if have enough budget, for 5-axis,RTCP is necessary. RTCP advantages: no need to set every bits` compensation when programming, easier ,higher precision and save time.
More videos of other Unique CNC EPS cnc carving machines:
https://youtu.be/O-CVirt6dQ8
https://youtu.be/TYd-7CspeLQ
https://youtu.be/ELbp8y1w4FU
https://youtu.be/AlN0DakP-OA
https://youtu.be/Aj3kmlSjIrI
https://youtu.be/TYd-7CspeLQ
https://youtu.be/ELbp8y1w4FU
https://youtu.be/AlN0DakP-OA
https://youtu.be/Aj3kmlSjIrI

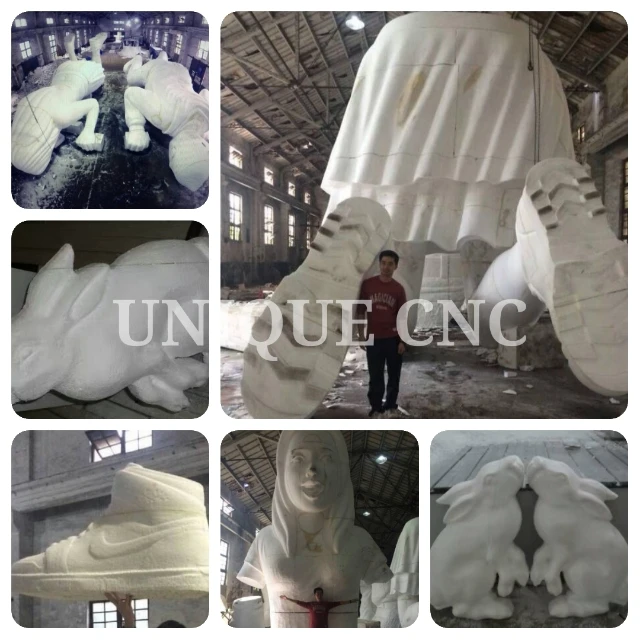

Samples made by the EPS styro foam cnc router:
Service:
1. 1 year warranty for spindle, 2 years warranty for other parts.
2. Our engineers can go to your factory for install and training the machine.
3. 7*24 hours online service by whatspp,wechat,skype,teamviewer or by other way.

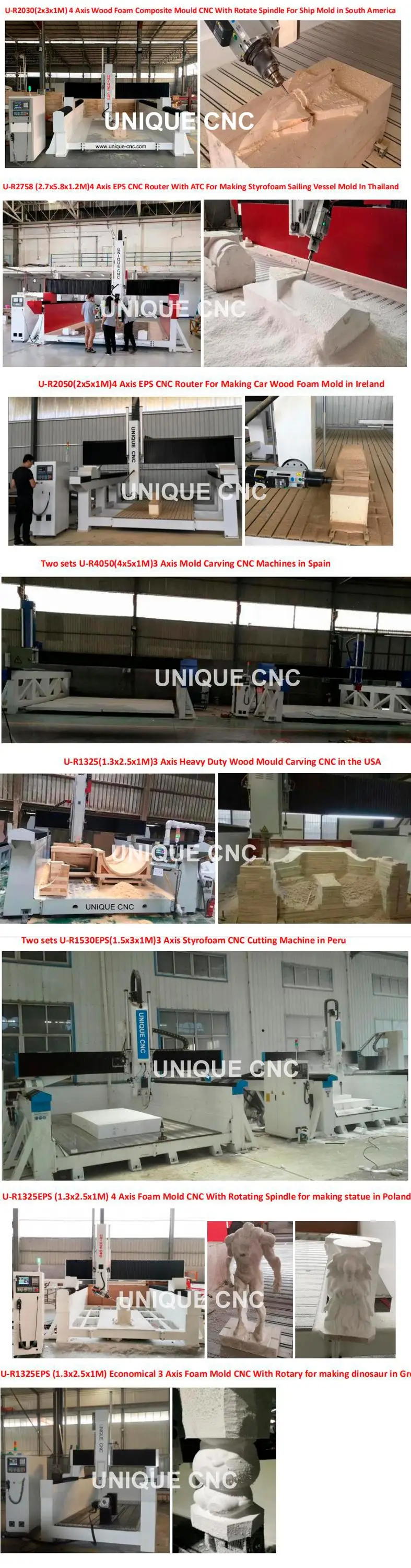

Unique CNC Mold Machines Customers Cases:
1. 1 year warranty for spindle, 2 years warranty for other parts.
2. Our engineers can go to your factory for install and training the machine.
3. 7*24 hours online service by whatspp,wechat,skype,teamviewer or by other way.
Unique CNC Mold Machines Customers Cases:
Product categories
Our Advantages
01 Professional Advantage
Nearly 13 years of professional production and export experience. Cooperation with the largest customers from some countries.
02 Quality Assurance
All the products have the cetificate of ISO and CE approval, Guaranteed quality.
03 Fast Delivery
There are a large number of products in stock, so generally we can ship goods in about 3-5 days.
04 Price Advantage
Good quallity, resonable price, on time shipping and best service for each customers.
05 Customized Service
Tailor-made for each customer's requirements.
06 After-Sale Advantages
Long time guarantee period and 24 hours online service.
Our certificate
FAQ
Q Why should we choose you ?
A If you choose us, you will get top quality, best service, reasonable price and reliable warranty.
Q I'm not familiar with the machine,how to choose?
A Just tell us materials, thickness and working size, I will recommend the suitable machine.
Q How to operate the machine?
A We will deliver English manual and video with the machine to you. If you still need our further help, please contact us.
Q Can I get the sample to check quality of machine ?
A Of course. Please provide your logo or design to us, free samples can be provided for you.
Q Can the machine be customized according my requirements?
A Sure, we have a strong technical team and have rich experience. Our goal is to make you satisfied.
Q Can you arrange the shipment for us?
A Of course. We can arrange the shipment for our clients accordingly by sea and air. Trading terms FOB, CIF, CFR are available.
