2023 Muti point 3D fence panel welding machine
- Category: >>>
- Supplier: Huanghua Feiteng Wire Mesh Machine Co. Ltd.
Share on (62454353137):
Product Overview
Description
Machine Description

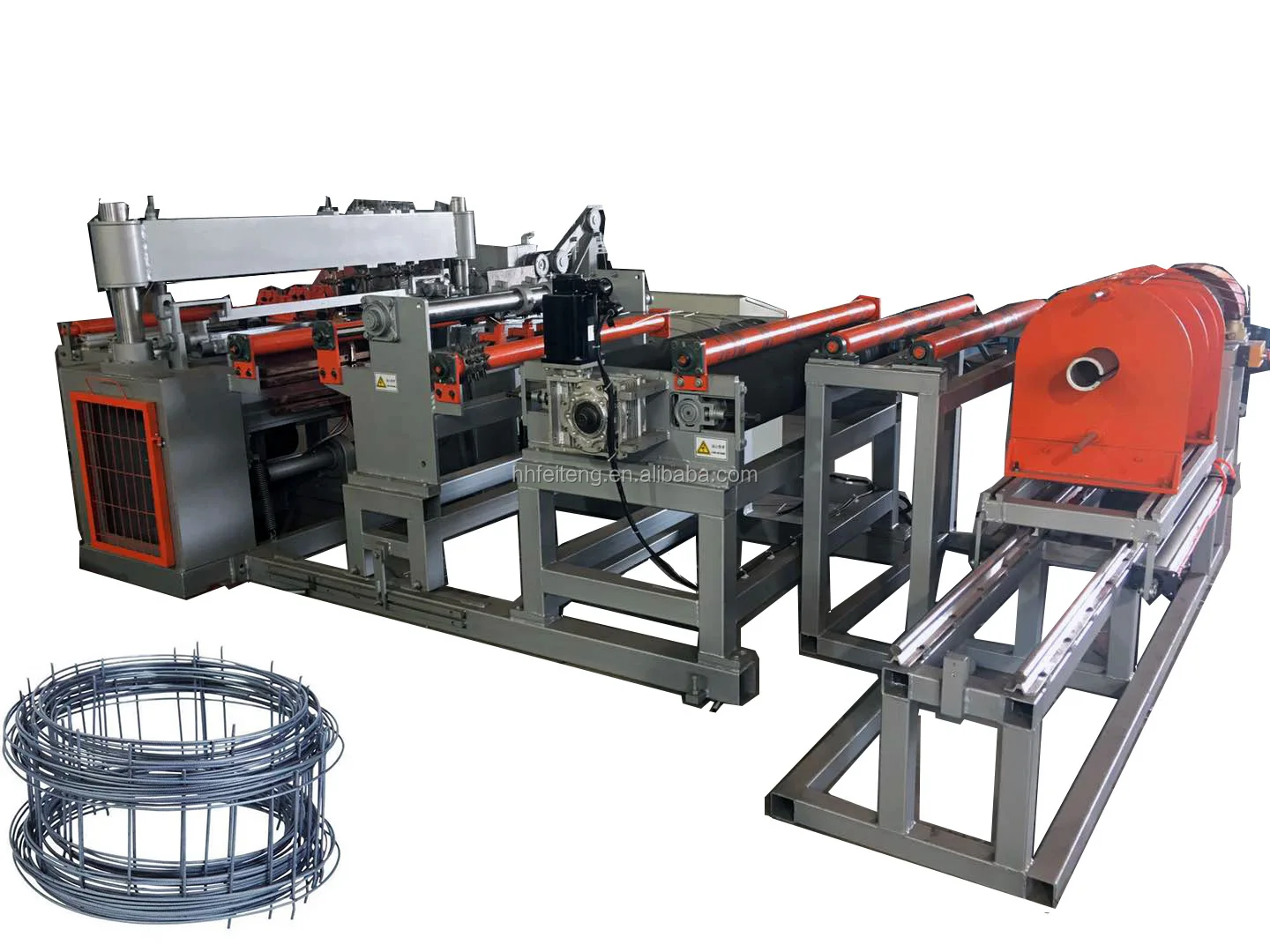

Automatic wire mesh welding and bending machine, also called 3D fence panel production line.
The machine adopts synchronous control technique, both welding time and cent-control welding is composed of PLC program system. The input front-panel has two forms, touch screen and keyboard, it makes the machine more intelligent and reasonable. The weft wire supply is automatic. The greatest advantage is that it can be adjusted the distance of weft random on the same one piece of mesh sheet. Welding machine adopts new type high-efficiency transformer, shifting gear can be divided into eight level, expand the scope of welding wire diameter. Easily operation, high flexibility, the production is several times than the artificial single spot welding machine.
It mainly used for fence netting (highway, railway and mountain fence mesh, construction mesh etc.)
Main Parameter
| Wire diameter | Φ3-Φ6mm |
| Max Width of mesh | 2500mm |
| Rated power | 160KVA×6 |
| Rotated voltage | 380V 3P 50HZ |
| Cooling water supply | 144L/min |
| Welding speed | 60-80time/min |
| Longitudinal wire spacing | 50-300mm |
Main motor | 5.5KW |
| Welding spot | 51pcs |
| Overall dimension | 15000×6000×2600mm |
| Weight | 17T |
Detailed Images
Related Products
Company Information
FAQ
Before preparing the inquiry, pls inform the below basic specification. so that we show the quotation .
1. wire diameter
2. mesh size
3.welding width etc.
Easily Operating & High Quality & Moderate Cost welding machine for you!
FAQ--About Delivery Term
Q--What's the delivery term for making business with us?
A--Usually we send the shipments in FOB term .However, the terms of CIF and C&F are acceptable which depend on preference of clients.
FAQ--About Lead Time
Q--What's the lead time after placing the order?
A--Usually it takes about 20-40 days after we received your confirmation.However,it would depend on our production line schedule(the timing clients place order)and the complication of the item.
FAQ--About Payment Term
Q--What's the payment term?
A--By T/T in Advance, or Irrevocable L/C as Sight.
