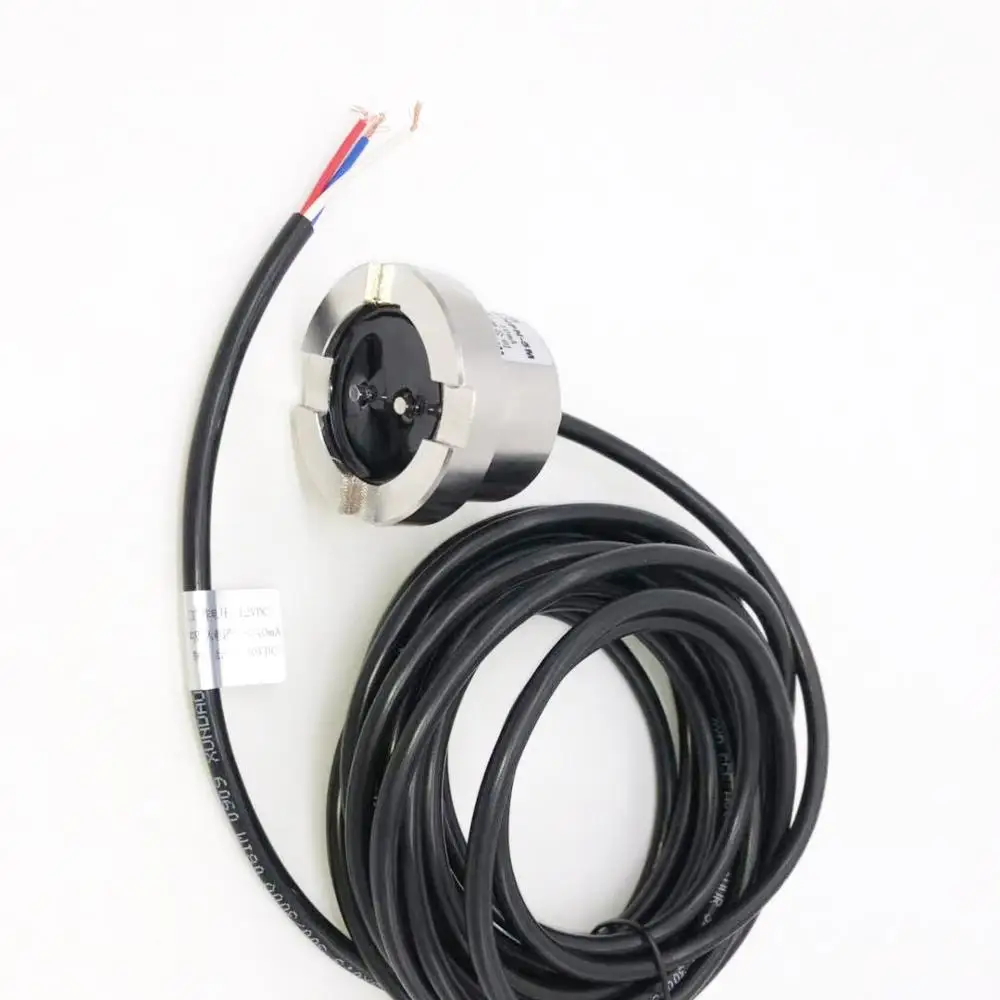

Factory Direct in Wholesale Water Leakage Sensor Flood Leak Liquid Detector Probe Alarm
- Category: >>>
- Supplier: FAST ELECTRIC LIMITED
Share on (62454372479):
Product Overview
Description

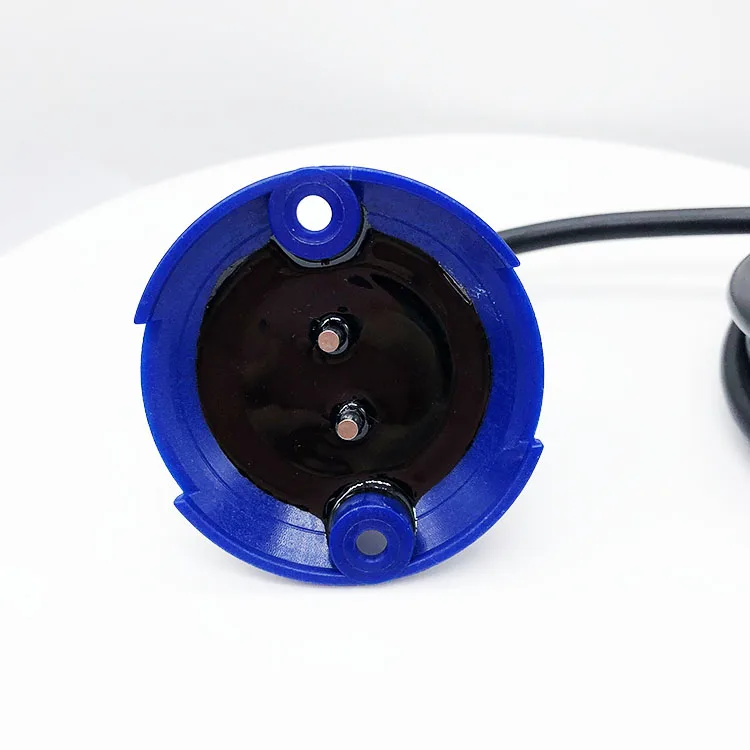

Factory directly wholesale water leakage detector/water leak detection equipment/water leak sensor
Product Description
1.Application:underground,plant room,etc,used for detecting water leakage.
2.Setup:on ground/wall with screw
3.Detection:Water leakage with LED lamp
4.Materials:Nylon fibre/Alluminium Alloy
5.Origin:China
6.MOQ;50pcs/box
When you creat an order on Alibaba,please tell me more details as below,
1.About sensor diameter, 47mm or 60mm?
2. Installation with mounting hole or without mounting hole?
3.With led lamp or without led lamp?
4.About voltage,5VDC,12VDC,24VDC or 8-30VAC/VDC range
5.About material, Aluminum Alloy, SUS 304 or Nylon Fiber
6.About wire length,2m(standard) ,3m or others?
Application | underground,plant room,etc,used for detecting water leakage. Underground Water Detector/ Water Leak Detector | |||
Origin | FAST SENSOR | |||
Product Name | Water Leakage Sensor=FLWS | |||
Sizes | 60=Dia. 60 mm | 47=Dia. 47mm | ||
Colors | B=Blue | R=Red | ||
Materials | P=Nylon Fibre S=Alluminium Alloy | S=Alluminium Alloy | ||
Installation | Mounting holes | No mounting holes | ||
Detector | L=With LED In condition of power supply, No alarm, the lamp is green; Give alarm, the lamp is red. | No L=Without LED | L=With LED In condition of power supply, No alarm, the lamp is green; Make alarm, the lamp is red. | No L=Without LED |
Electrical Data | 8=Supply 8~24VDC/AC 5=Only 5VDC Switch current: <50mA Quiescent current: <15mA Relay contact: 3A,250Vac/30Vdc Response speed: <50Millisecond Work temp.: -5~+60℃ No water, relay contact open For water, relay contact closed | 5=Supply Only 5VDC 8=8~24VDC/AC Switch current: <40mA Quiescent current: <10mA Relay contact: 3A,250Vac/30Vdc Response speed: <50Millisecond Work temp.: -5~+60℃ No water, relay contact open For water, relay contact closed | ||
Cable spec. | 2=2000mm cable (standard) 3=3000mm cable 5=5000mm cable Others | |||

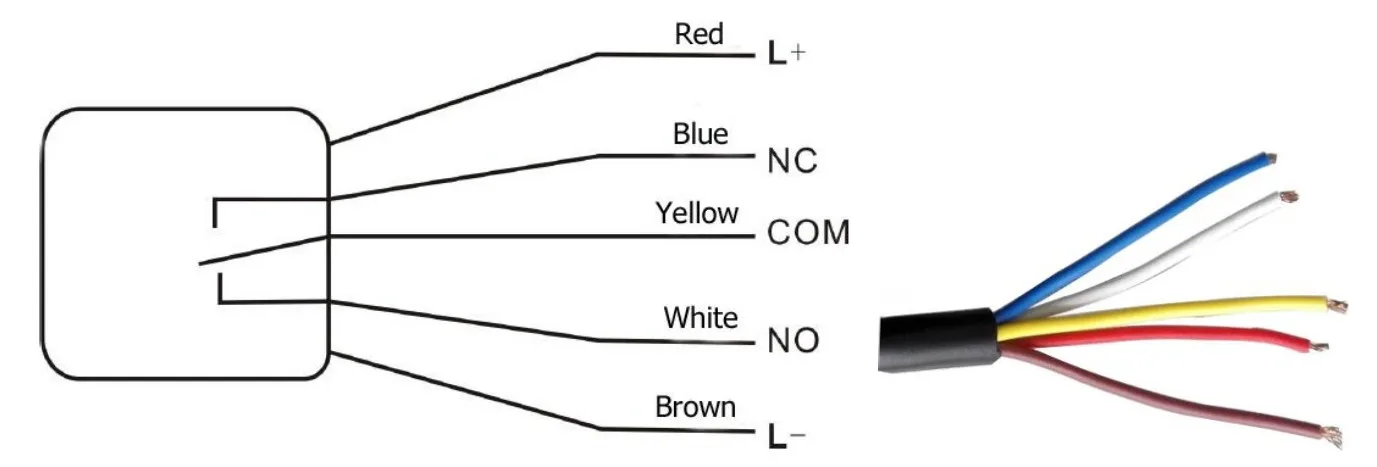

Wiring Diagram | ---------------- Red Wire + --------------- Blue Wire N/C ---------------- Yellow Wire Common --------------- White Wire N/O ---------------- Brown Wire — | |||
Work Temp. | -40~+85 | |||
Order Information | For Example, FLWS-60BSL-8-2 | |||
Fast Leakage Water Sensor-Diameter 60mm Blue Alluminium Alloy with LED-8~24VDC/VAC-2 meters cable | ||||

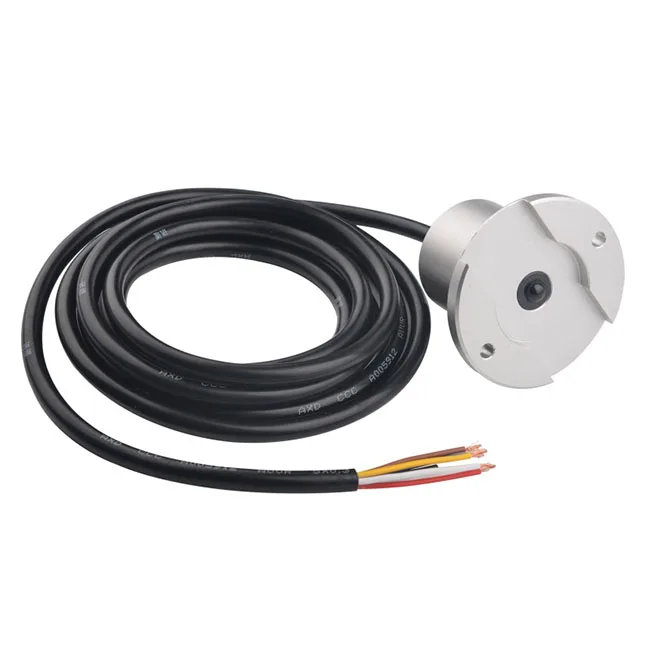

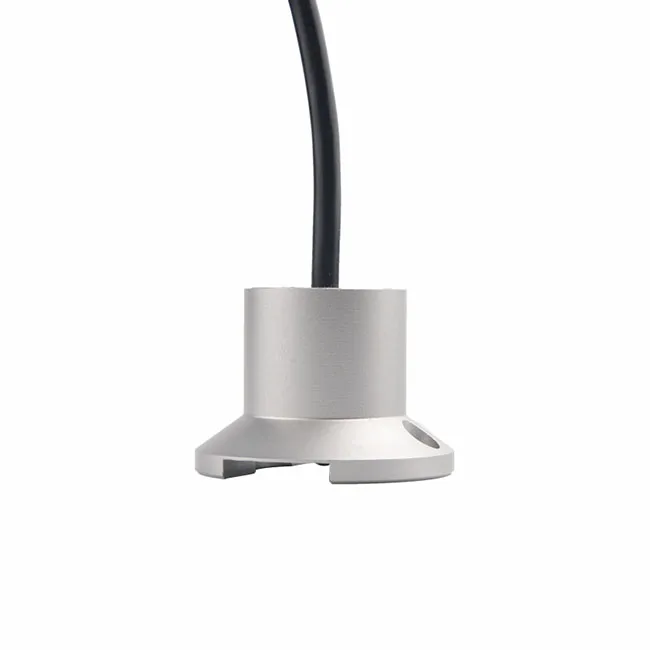

Optical water leakage detector
Application

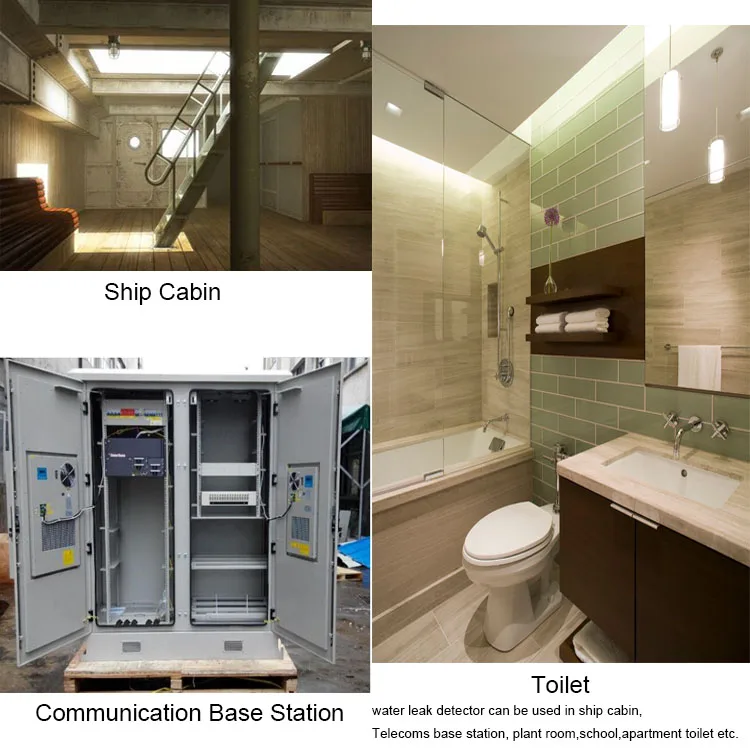

This water leakage detector can be used in school,factory,home,ship cabin,telecoms basestation and so on.
Welcome to inquiry.
Company Information
FAQ
1. Q: How To Order ?
A: Step 1, please tell us what model and quantity you need;
Step 2, then we will make a PI for you to confirm the order details;
Step 3, when we confirmed everything, can arrange the payment;
Step 4, finally we deliver the goods within the stipulated time.
2 . Q: When will make delivery ?
A: Delivery Time
-Sample Order: 1-3 days after receipt of the full payment.
-Stock Order: 3-7days after receipt of the full payment
-OEM Order: 12-20days after receipt of the deposit.
3. After-sales Service
1 year warranty for all kinds of products;
If you find any defective accessories first time, we will give you the new parts for free to replace in the next order, as an experienced manufacturer, you can rest assured of the quality and after-sales service.
4.Payment
T/T, Western Union, Moneygram , Escrow.
5. Transportation
Transported by DHL, UPS, EMS, Fedex, Air freight. sea freight.
6. Do you support drop shipping?
Yes, your drop shipping is available.
