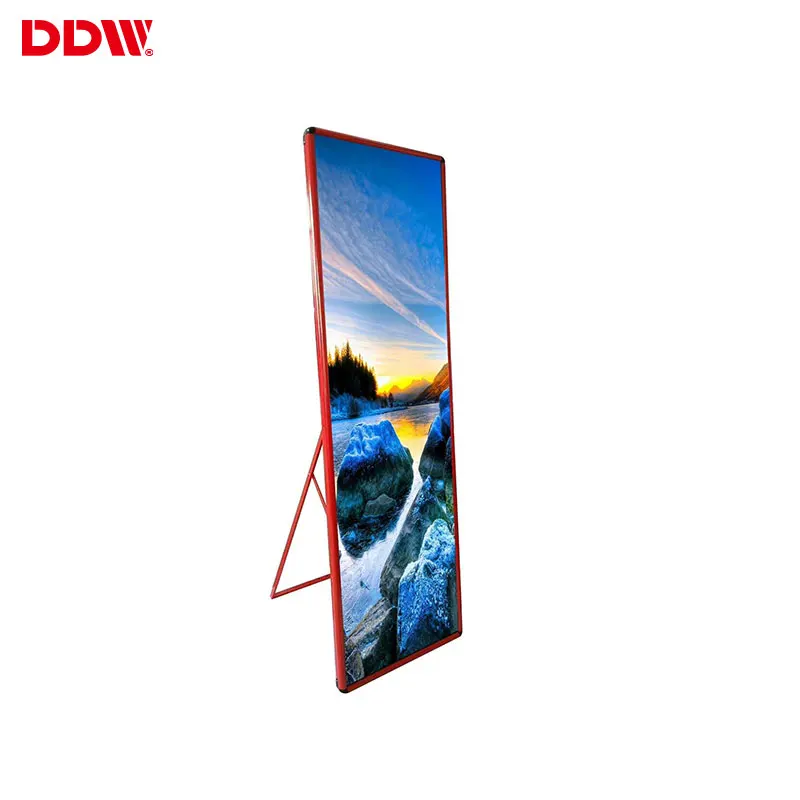

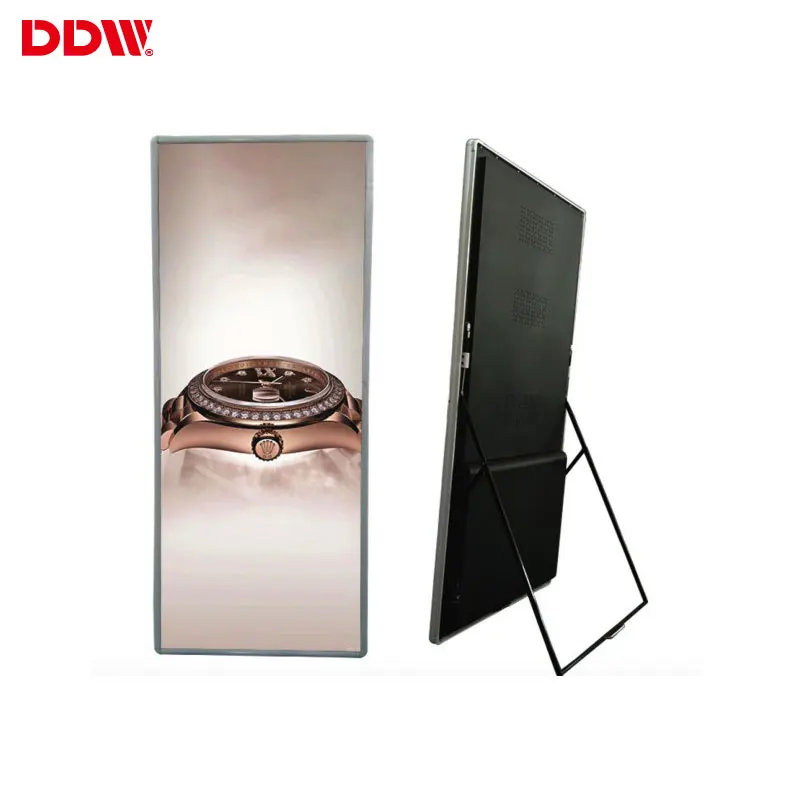

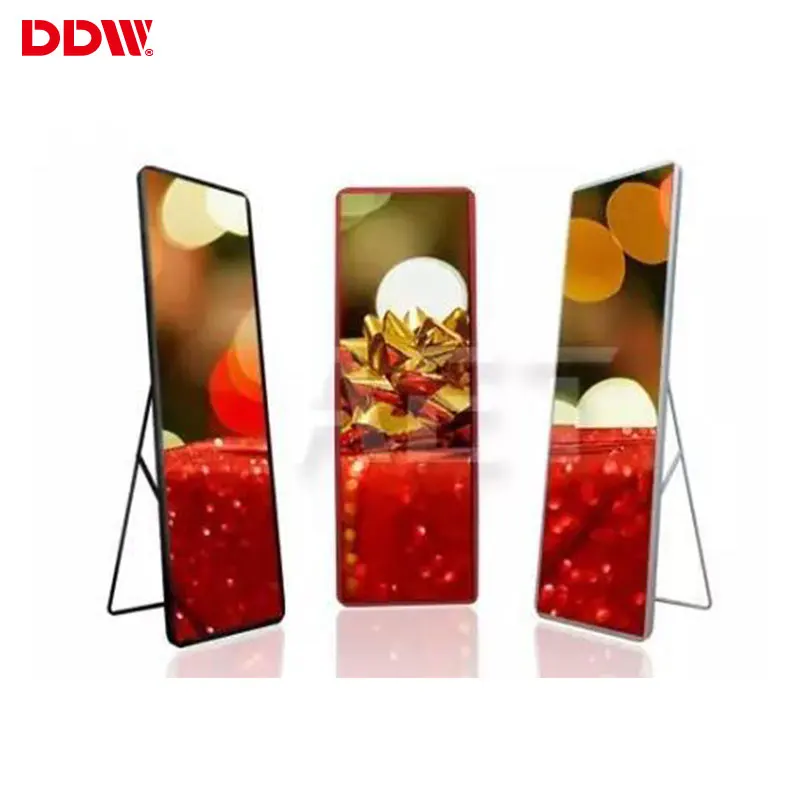

LED POSTER is All-in-one machine which include HDMI/USB/RJ45 interface and Power button,Audiooutput, also has brightness dimming button. Whenmake it power on, the led poster automatically work and dispaly videos/image.

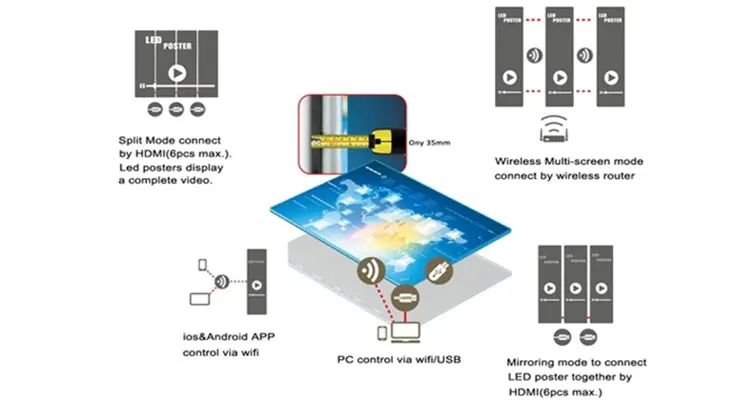

Various Control Methode
USB, WIFI, 3G, 4G, RJ45 network cable can well connect with LED poster and do operation by PC or APP. The video can well display in one led poster, also can well split to several led poster. You can ask 2-6pcs led poster display the same video. All the led poster can do Icloud control when do large project.

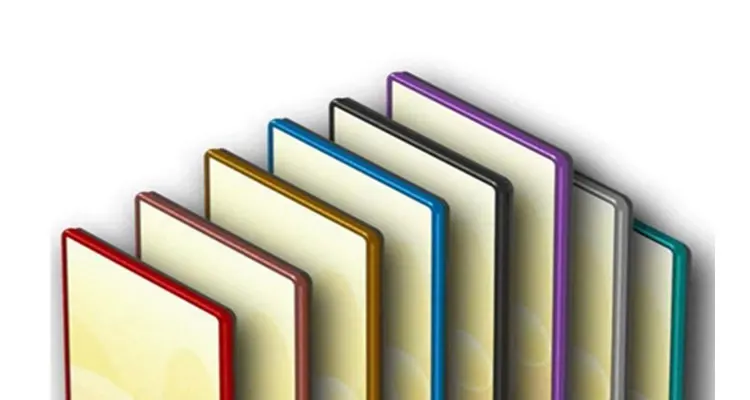

Customzied Color
You can select your own color as company VI and logo printing available. Mostly choose from these 7 colors.

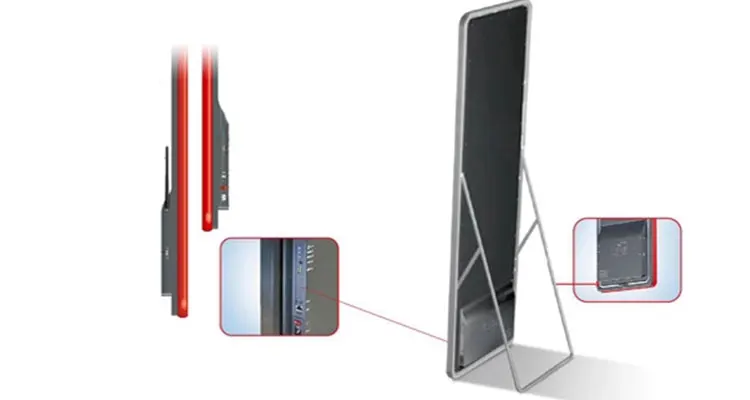

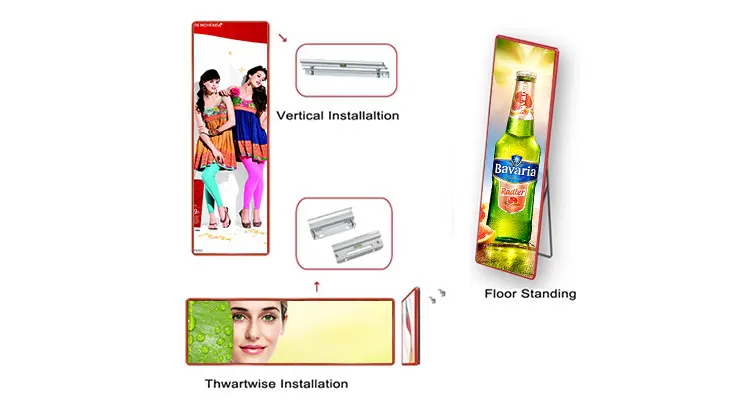

Flexible Installation
LED poster design based on flexible advers machine conception,so you can horizontally / vertically hang it on the wall or make it as floor standing. No need extra harware except for our professionl hanging pendant.
Standard Size and Customized Size
The standard size is 1920x640x35mm with P2.5 led module and totally aluminum frame. It's super slim design only 35mm thickness. For some special application, we can accept for customized dimension.
Item
Specification
Pixel Pitch
3mm
Pixel Configuration
1R1G1B
LED Type
SMD2020 or SMD2121
Module Size
192mm x 192mm
Module Resolution
64dots x 64dots
Module Weight
0.4 KG
Grey Scale
16 bit
Refresh Rate
>2880Hz
Scan Type
1/32 Scan
Brightness
1000-1400cd/m2 or 1400 nits
Viewing Angle(Horizontal/Vertical)
140/140 degree
AC Input Voltage
110-240V
AC Input Voltage
50/60 Hz
Power Consumption(Max./Ave.)
1000/300W/m2
Storage Temperature
-40 ~ +60 degree
Operation Temperature
-40 ~ + 40 degree
IP Rating
IP31
Lifetime at 50% brightness
100,000 hours
Control Distance
CAT6 cable:<100 m; Single mode fiber:<10 km
Signal Input Format
AV, S-Video, VGA, DVI, YPbPr, HDMI, SDI
Operating system
Windows (2000/XP/Vista/7/10)
Control System
Nova/Linsn/XIXUN/LUMEN
Package and delivery for led display

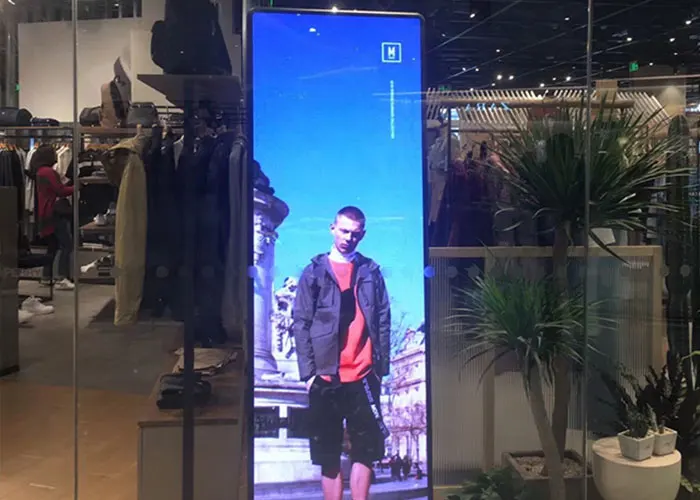

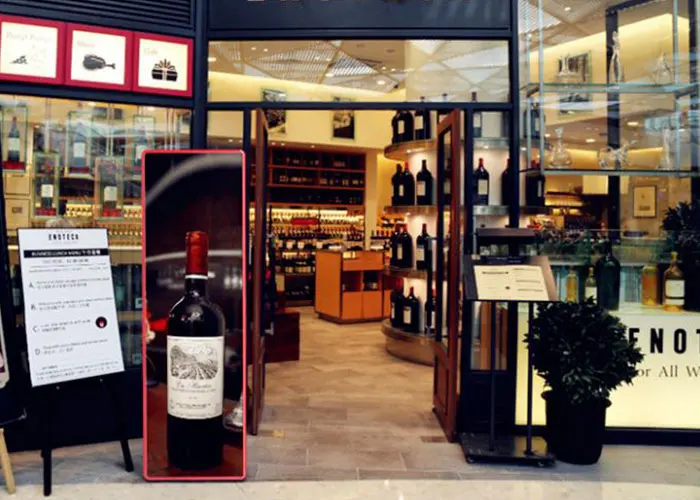

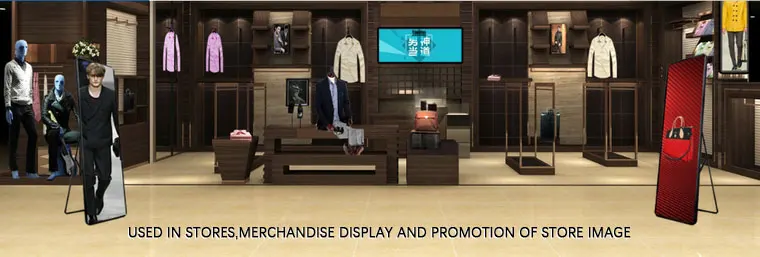

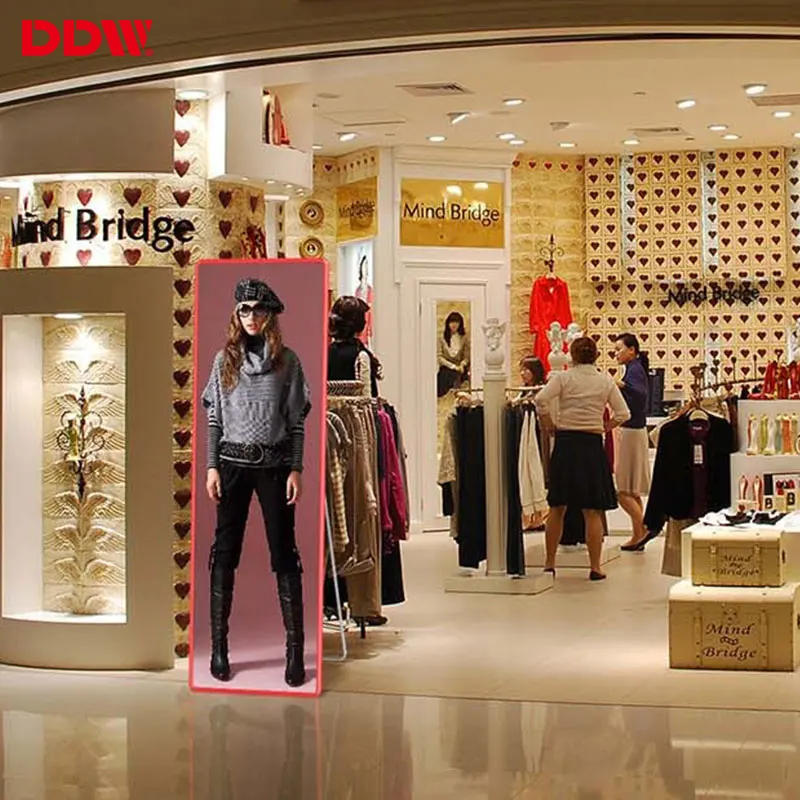

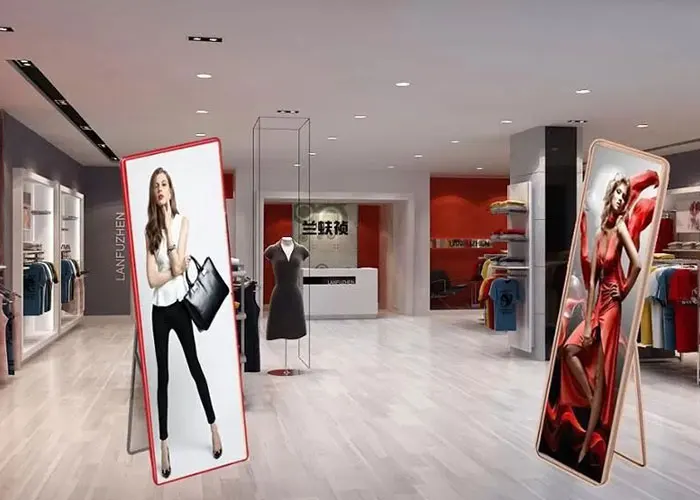

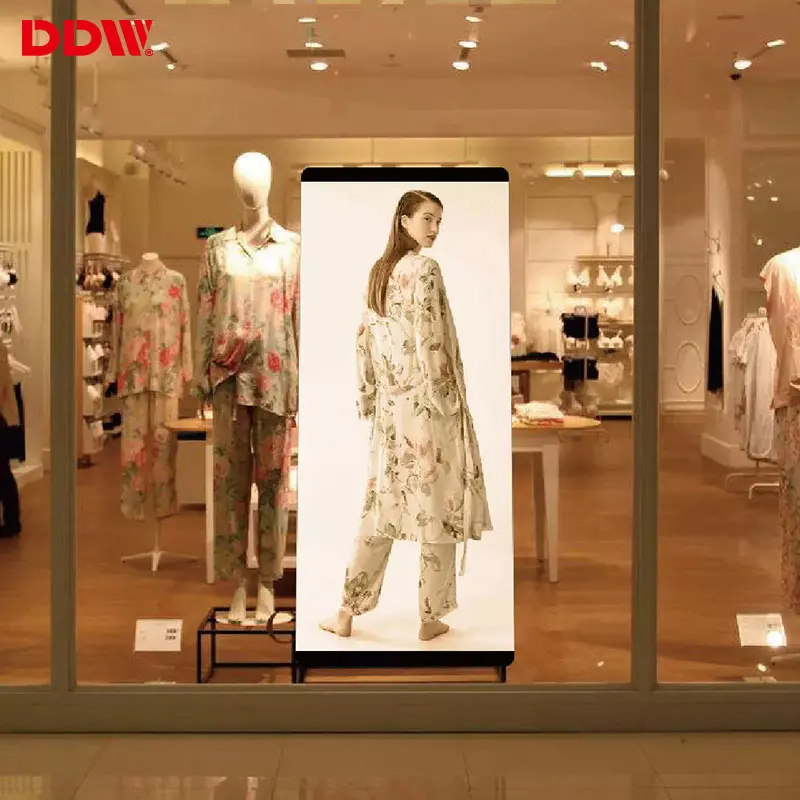

Application Areas
