Strong foam Profile Cutting The most advanced vertical eva polyurethane waste sponge memory semi automatic foam cutting machine

Share on (62454511799):


Price:

Quantity:


Product Overview

Description


Product Description
\t
EPS Foam CNC Cutting Machine
\t
Model
\t
SPQ3000A
\t
SPQ3000B
\t
Max. Product Size
\t
3600*1250*650
\t
3600*1250*650
\t
Axes(X.Y.Z)
\t
2(X.Y)
\t
2(X.Y)
\t
Computer System
\t
English AutoCad
\t
English AutoCad
\t
Driving System
\t
Stepping motor
\t
Stepping motor
\t
Sum of hot wire
\t
1-20
\t
1-20
\t
Spec. of hot wire
\t
0.4-0.8
\t
0.4-0.8
\t
Cutting Speed
\t
0-1.3m/min
\t
0-1.3m/min
\t
Connected Load
\t
7.3Kw
\t
7.3Kw
\t
Weight
\t
800Kg
\t
1000Kg
\t
Contour size
\t
4370*2400*2500
\t
4370*2400*2500
\t
Difference
\t
Aluminum Frame
\t
Steel Frame
\t
These specification can be customized.

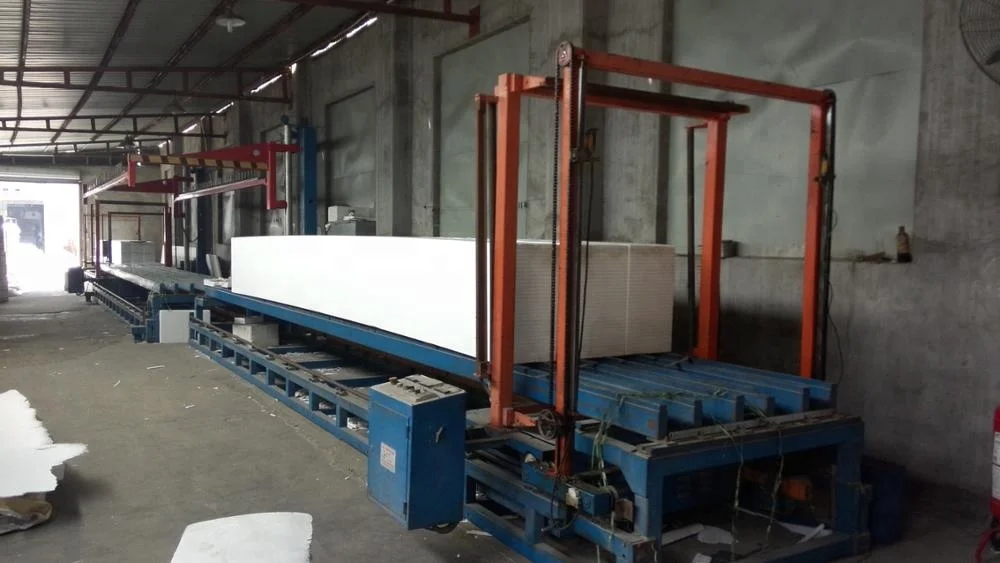

Detailed Images
\t

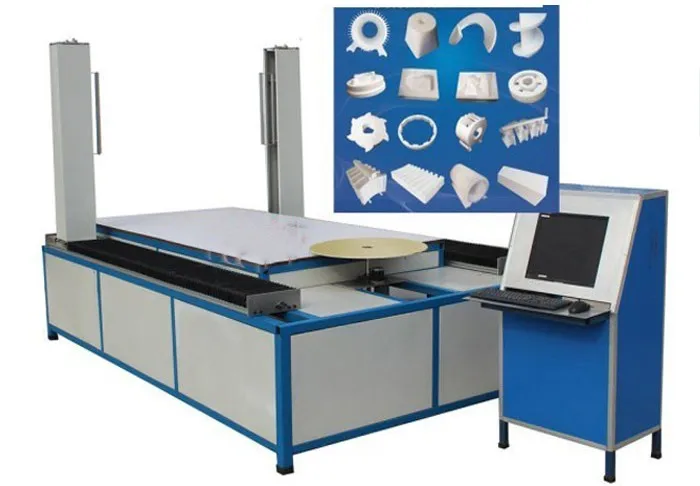

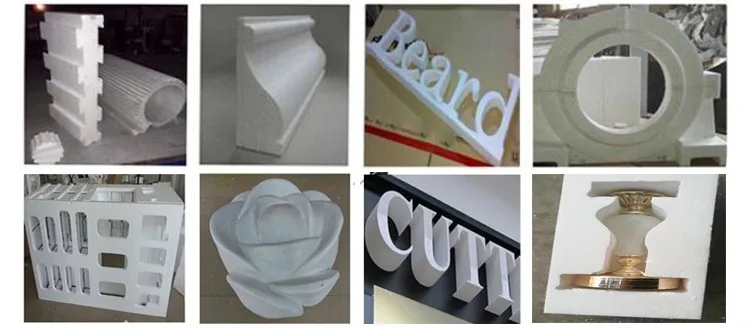

The Application of EPS Foam Cutting Machine

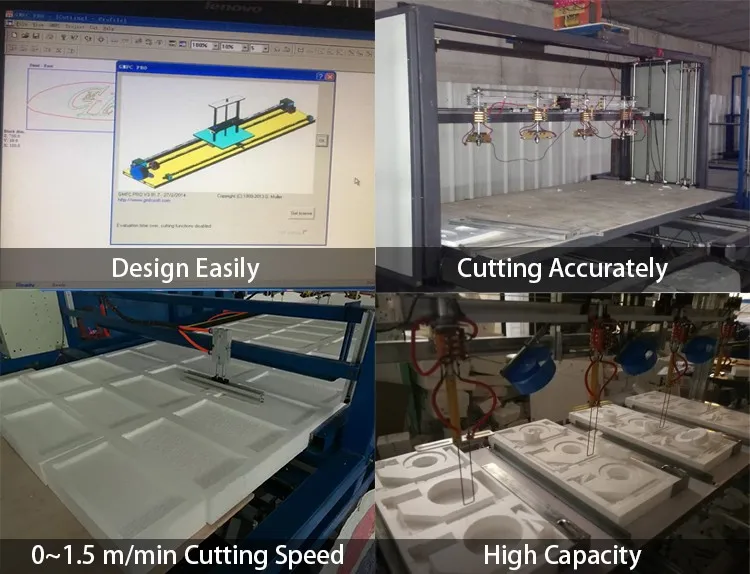

The Advantages of CNC EPS Foam Cutting Machine

1.Three-direction cutting: horizontal, vertical and cross cutting.
2.Suit for cutting different density block.
3.Max 100 cutting wire can be set manually in horizontal and vertical direction.
4.Horizontal cutting Minimum size: 5 mm./Vertical cutting minimum size: 50 mm.
5.Cutting speed:1~1.8 m/min.
6.Capacity for block on 15 kg/m3, 6000x1300x1300 mm, cutting time : 10~12 min.
7. It has the special design parts to speed up the working efficiency.
8.It can cut in horizontal and portrait at the same time.
9. It can fix many hot wires and cutting the block into many sheets at one time.

\t

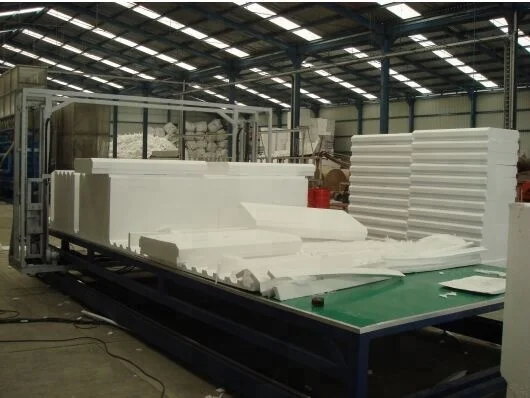

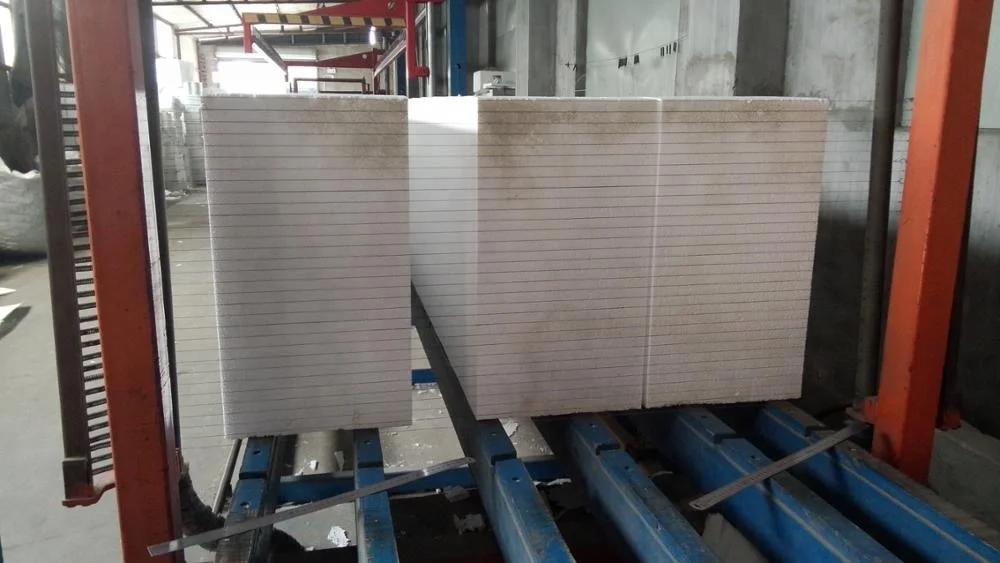

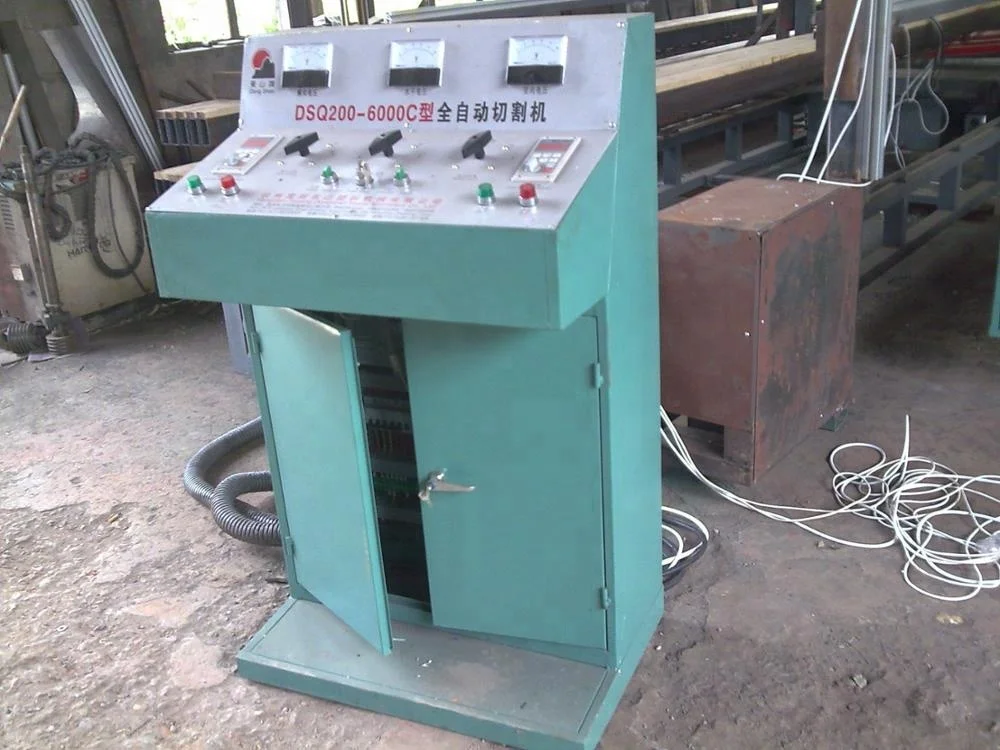

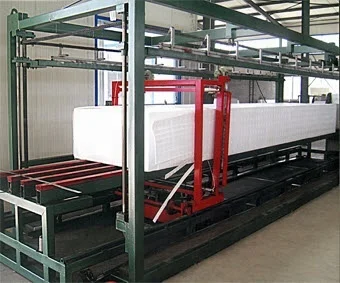

The Details of EPS Foam Cutting Machine
Related Products

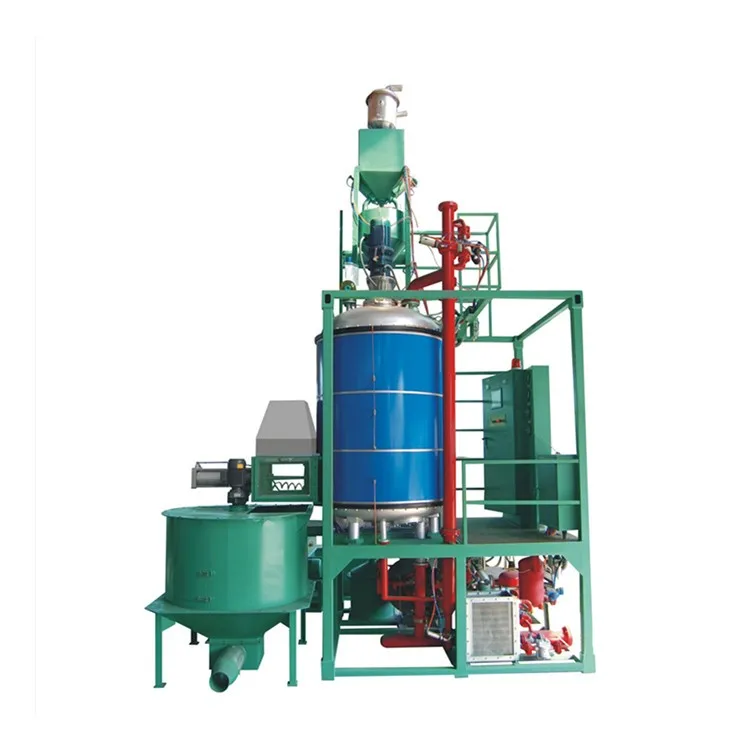

EPS Pre-expander

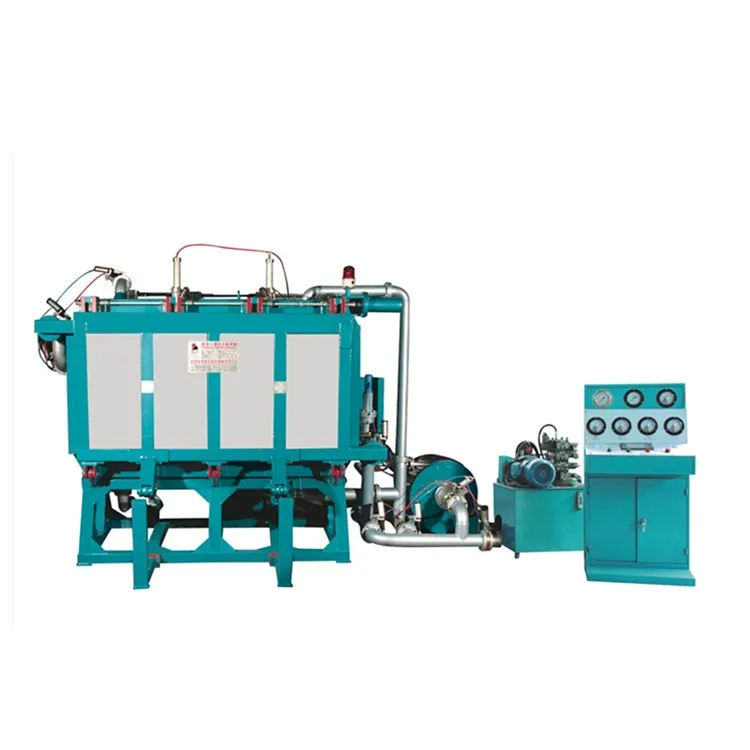

EPS Block Molding Machine


EPS Recycling Machine

Company Information
\t
Welcome to learn us more, please to click: Hangzhou Milon Machinery Co., Ltd.

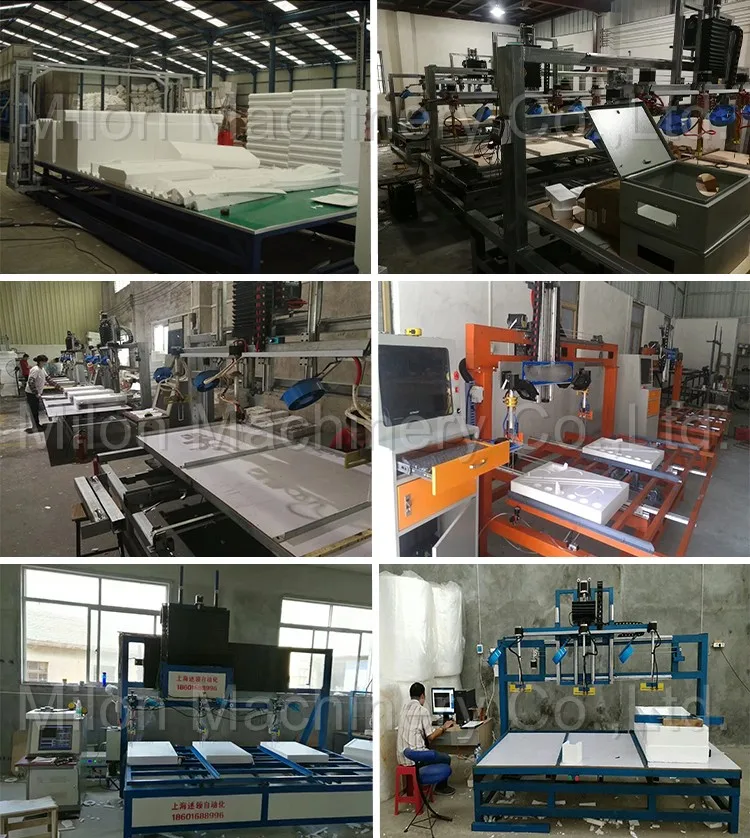

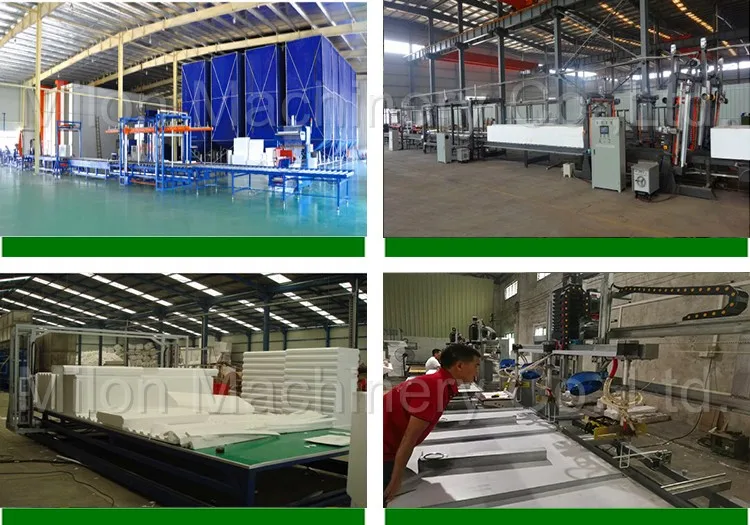

Our Workshop
Successful Projects

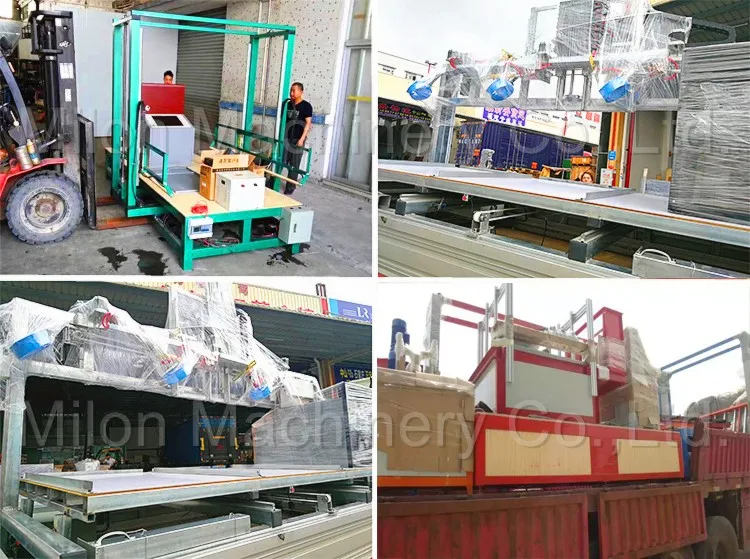

Packing & Delivery
