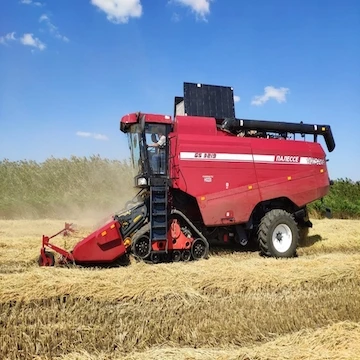

Wheat Combine Harvester for cheap price
- Category: Harvesters >>>
- Supplier: EL KARMA TRADING
Share on (62454679682):
Product Overview
Description
| Engine | ||
| Manufacturer/model | JaMZ-238DE-22 | |
| Nominal engine power | kW / hp | 243 / 330 |
| Fuel tank capacity | l | 600 |
| Headers | ||
| Grain header | m | 6,0 / 7,0 / 9,2 |
| Swath grain header | m | 9,0 |
| Conveyer header | m | 9,0 / 12,0 |
| Soybean header | m | 6,0 / 7,0 / 9,0 |
| Maize header | row/m | 6; 8 / 4,2; 5,6 |
| Sunflower header | row/m | 8; 12 / 5,6; 8,4 |
| Rapeseed cutterbar table | m | 6,0 / 7,0 |
| Grain pick-up | m | 3,4 / 4,4 |
| Threshing system | ||
| Threshing unit type | drum-type | |
| Threshing drum width | mm | 1500 |
| Threshing drum diameter | mm | 800 |
| Accelerating drum diameter | mm | 600 |
| Threshing drum speed range | rpm | 440...875 |
| Concave area | m2 | 2,39 |
| Concave wrap angle | degrees | 213 |
| Separation and cleaning system | ||
| Separation type | straw walker | |
| Straw walker | number | 5 |
| Straw walker length | mm | 4100 |
| Separation area | m2 | 6,15 |
| Total sieve area | m2 | 5,0 |
| Cleaning fun speed range | rpm | 318...960 |
| Grain tank | ||
| Grain tank capacity | m3 | 8 |
| Unloading height | mm | 4000 |
| Unloading rate | l/s | 70 |
| Straw chopper blades | number | 80 |
| Running gear | ||
| Working speed | km/h | 8 |
| Road speed | km/h | 20 |
| Road clearance | mm | 330 |
| Dimensions and weights | ||
| Length/Width/Height in working position | mm | 11200 / 7600 / 4650 |
| Length/Width/Height in transport position | mm | 18100 / 3900 / 4000 |
| Thresher weight | kg | 14450 |
