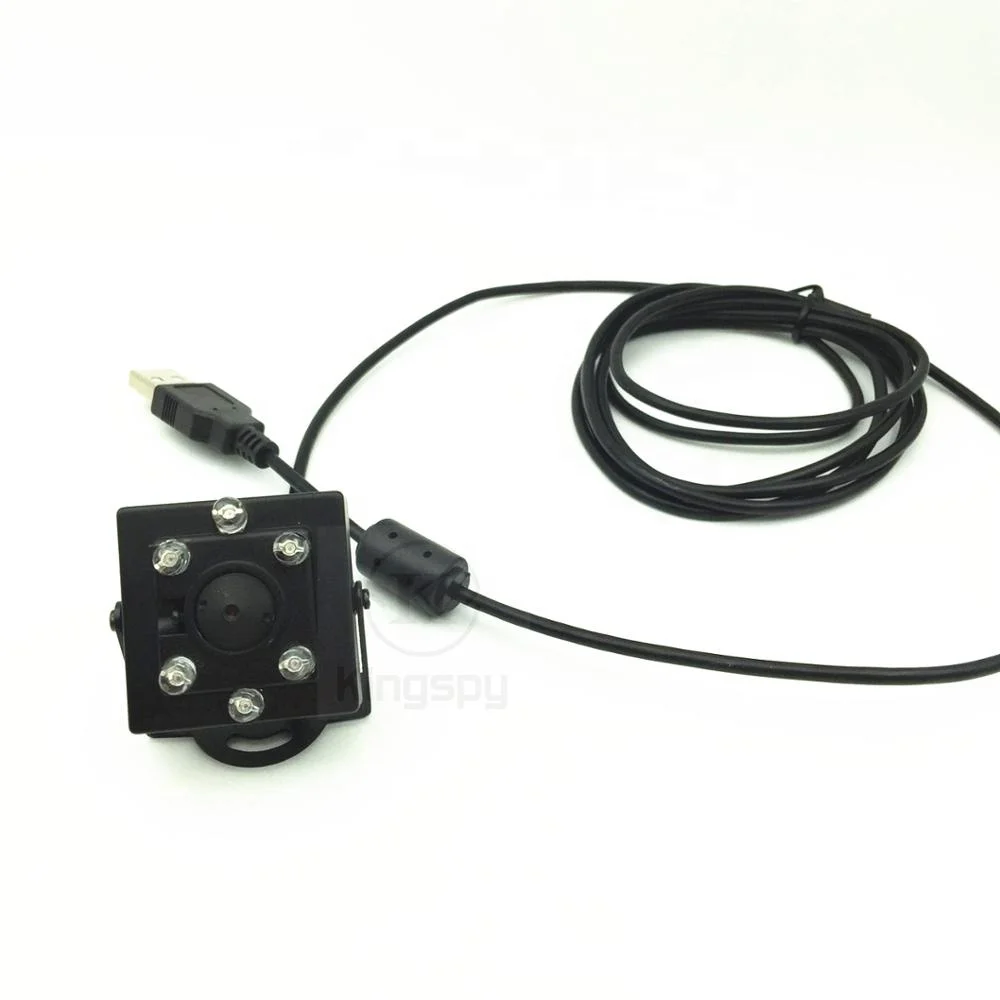

OV2710 IR infrared SMALL SQUARE Mini USB Camera Module support ATM LINUX WINDOWS ANDROID VENDING ADVERTISE
- Category: >>>
- Supplier: Shenzhen Kingspy Technology Co. Ltd.
Share on (62454890505):
Product Overview
Description
Certifications
Product Description

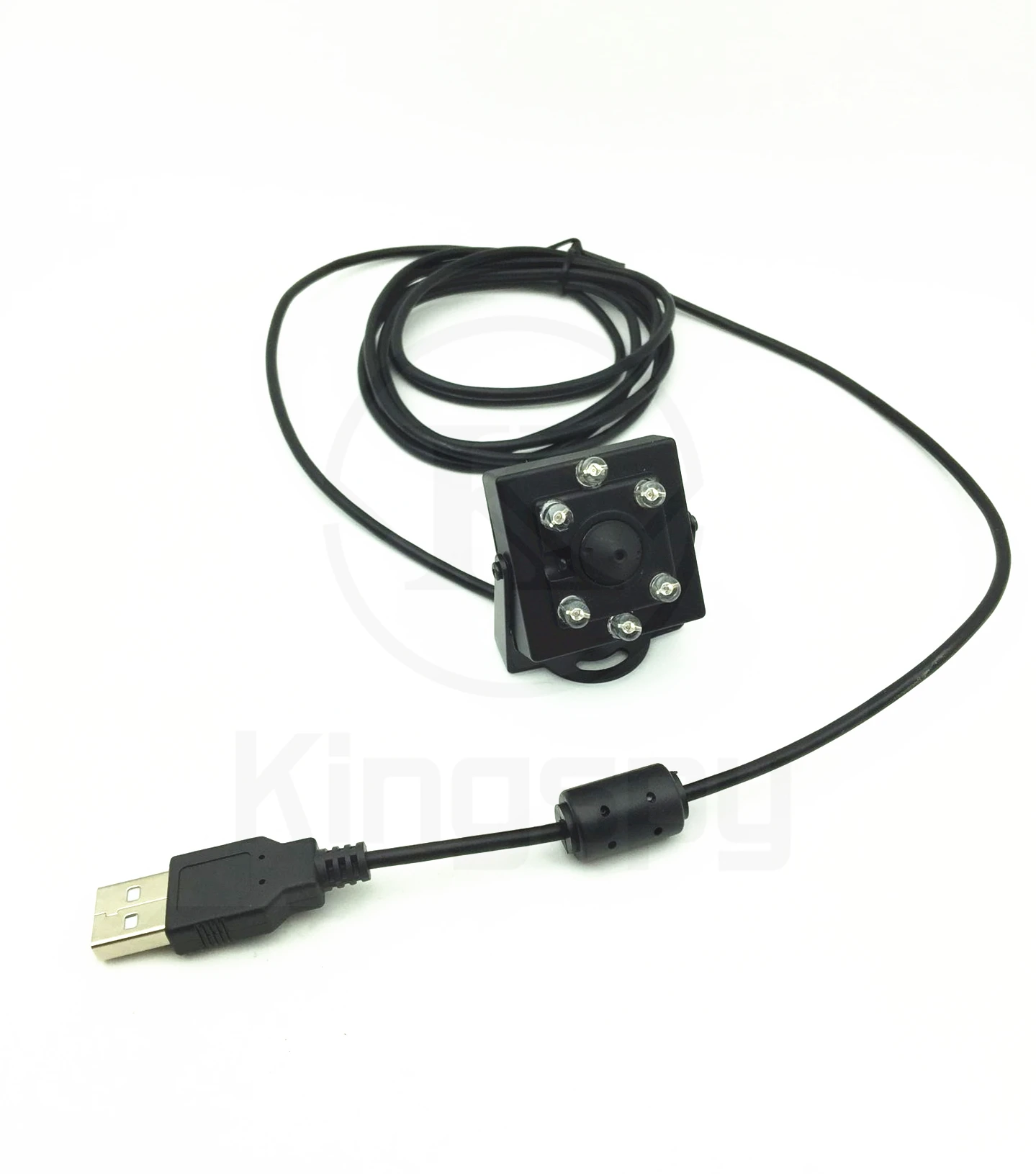

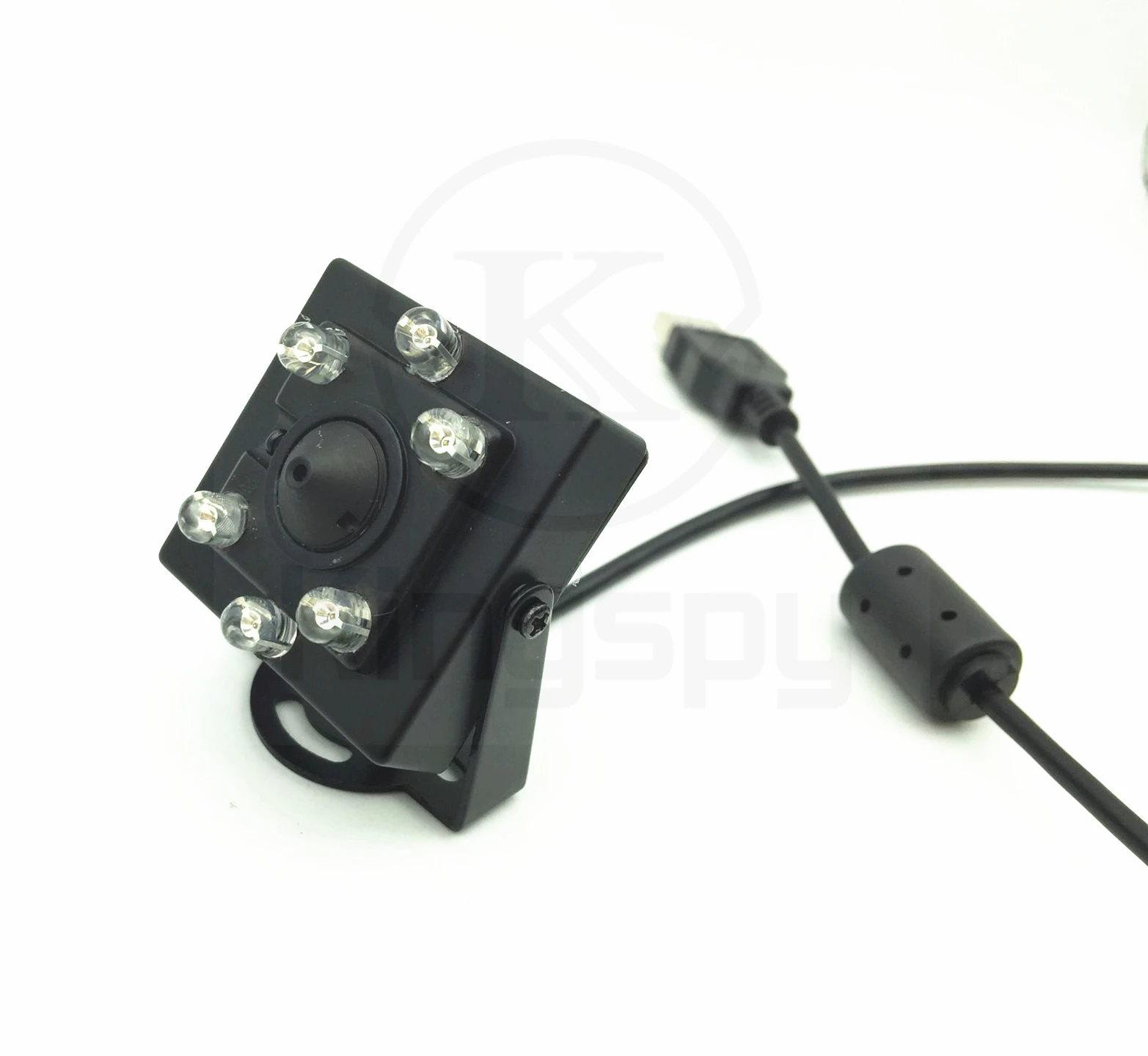

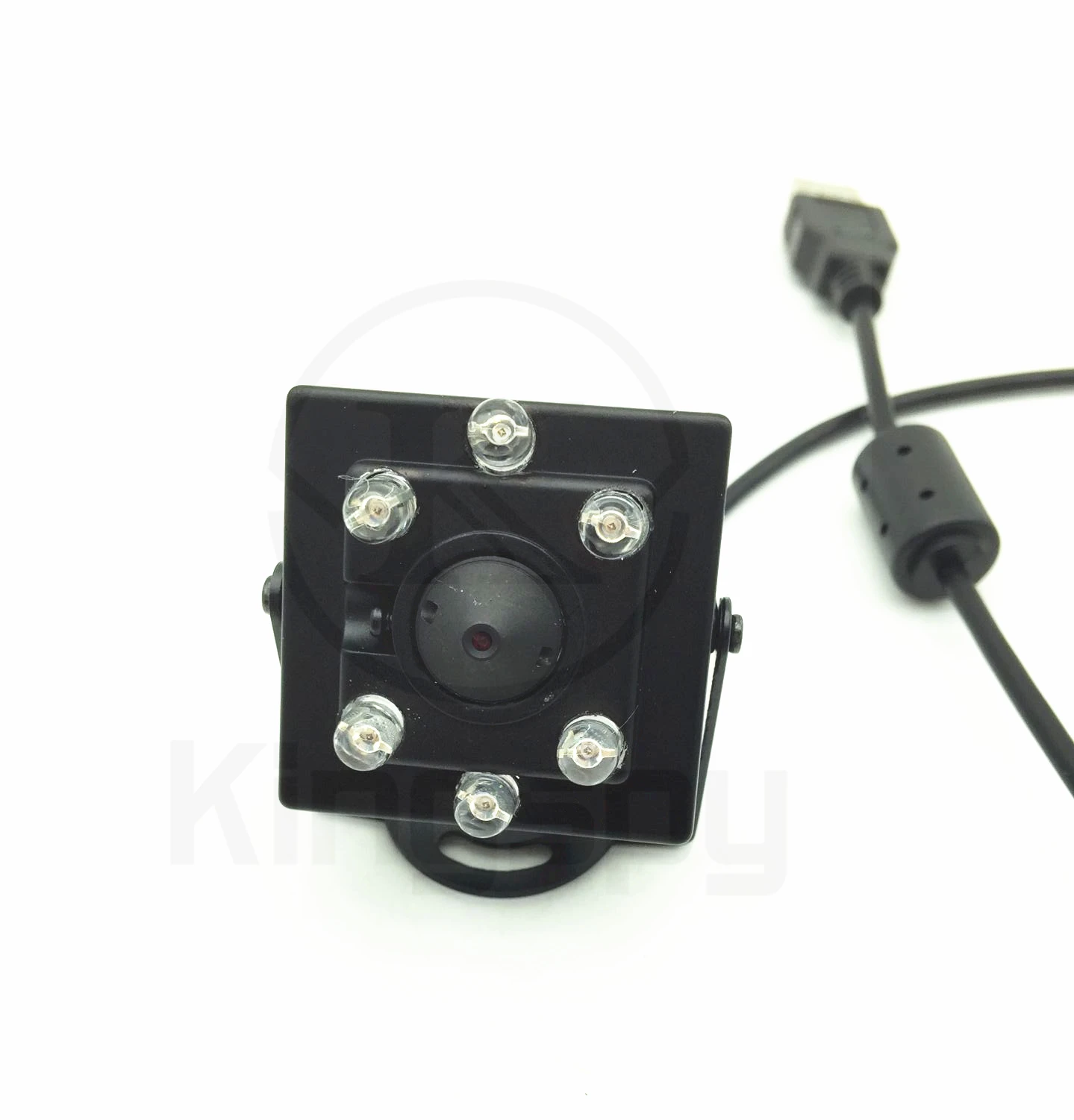

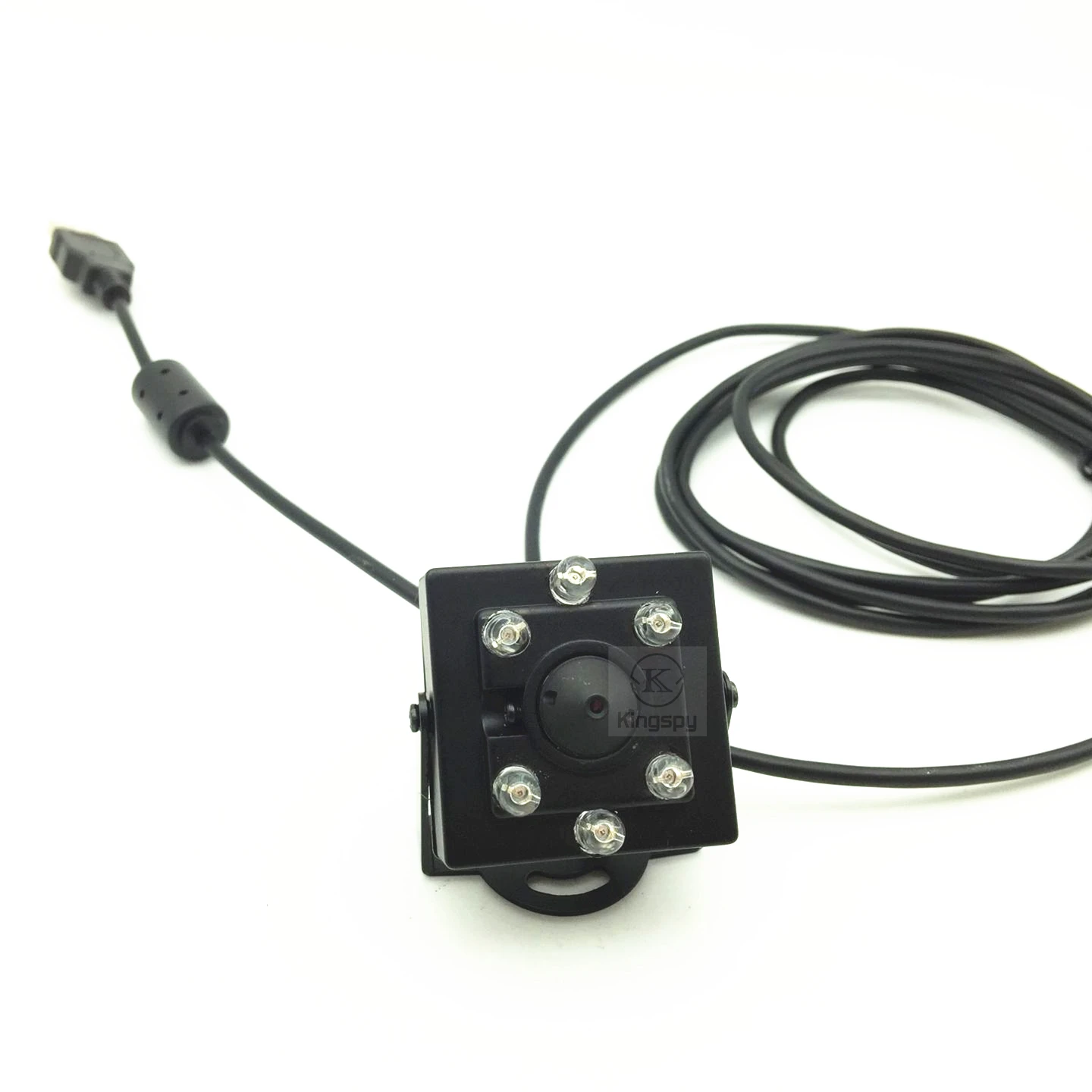

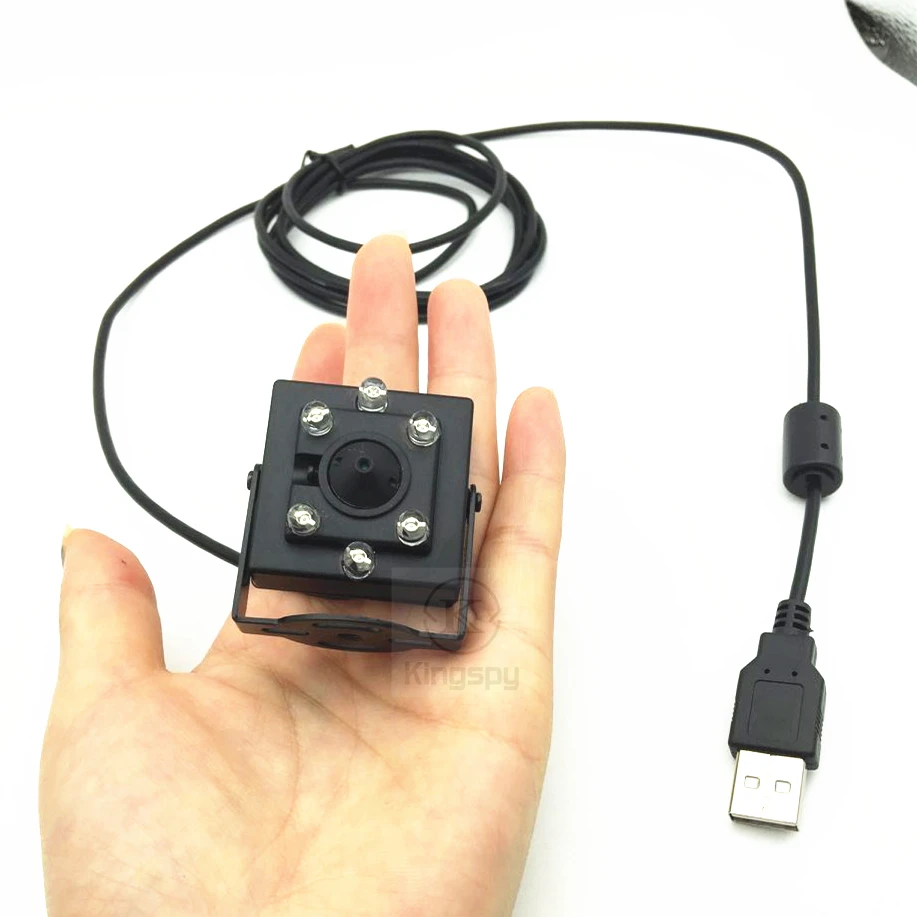

SMALL SQUARE 2MP Pixels OV2710 IR infrared USB Camera Module support ATM LINUX WINDOWS ANDROID VENDING ADVERTISE
Features:
1.Easy to install and operation.
2.Low lllumination, high quality image.with 10pcs 850nm ir leds(default)
,if you need 940nm ir leds ,pls contact with us
the difference between 850nm and 940nm below:
1:850nm 's ir idistance will be longer than 940nm ir leds,but it will turn red when it work!
2.940nm 's ir distance is shorter,but it is invisable !
3.Full TV System, used worldwide.
4.1.3MP CMOS sensor can prolong the work life of camera.
5. 3.7mm pinhole lens or other lens optional
6. Excellent night vision.
7. With minimum lllumination, view clearly in almost complete darkness.
8. Low power consumption and low maintenance.
Models | KS-U6L2MP4037-940NM |
Sensor | OV2710 |
Lens Size | 1/2.7 inch |
Pixel Size | 3μm x 3μm |
image area | 5856 μm x 3276 μm |
Effective resolution | FULL HD 1920(H)X1080(V) |
Video output formate | MJPEG / YUV2(YUYV) |
Support resolution | 320X240 QVGA MJPEG / 352X288 CIF MJPEG 640X480 VGA MJPEG / 800X600 SVGA MJPEG 1024X768 XGA MJPEG@30fps/ 1280X720 HD MJPEG@30fps 1280X1024 SXGA MJPEG@30fps/ 1920X1080 FHD MJPEG@30fps |
Special function | Lens correction/ Defective pixel correction/ Black sun cancellation |
lux | 0. 051lux |
shutter type | Electronic rolling shutter / Frame exposure |
USB interface | USB2.0 HS/FS |
Usb type | USB2.0 High Speed |
Support OTG TYPE | USB2.0 OTG |
Support free driver | USB Video Class(UVC) |
AEC | support |
AEB | support |
AGC | support |
Adjustable parameter | Brightness contrast color hue definition White balance light exposure compared with gamma |
lens | 3.7mm lens default |
Night vision function | Support design with ir leds &850nm&940nm ir filter |
Ir led interface | support 2P-2.0mmplug |
power | USB BUS POWER 4P-2.0mmplug |
Working power | DC5V |
Working current | 120mA~220mA |
working temperature | 0~60℃ |
Storage temperature | -20~75℃ |
Size of camera | / |
Cable length | 1.5meters default / can be custom made |
System | WinXP/Vista/Win7/Win8 Linux with UVC(above linux-2.6.26) MAC-OS X 10.4.8 or later Wince with UVC Android 4.0 or above with UVC |

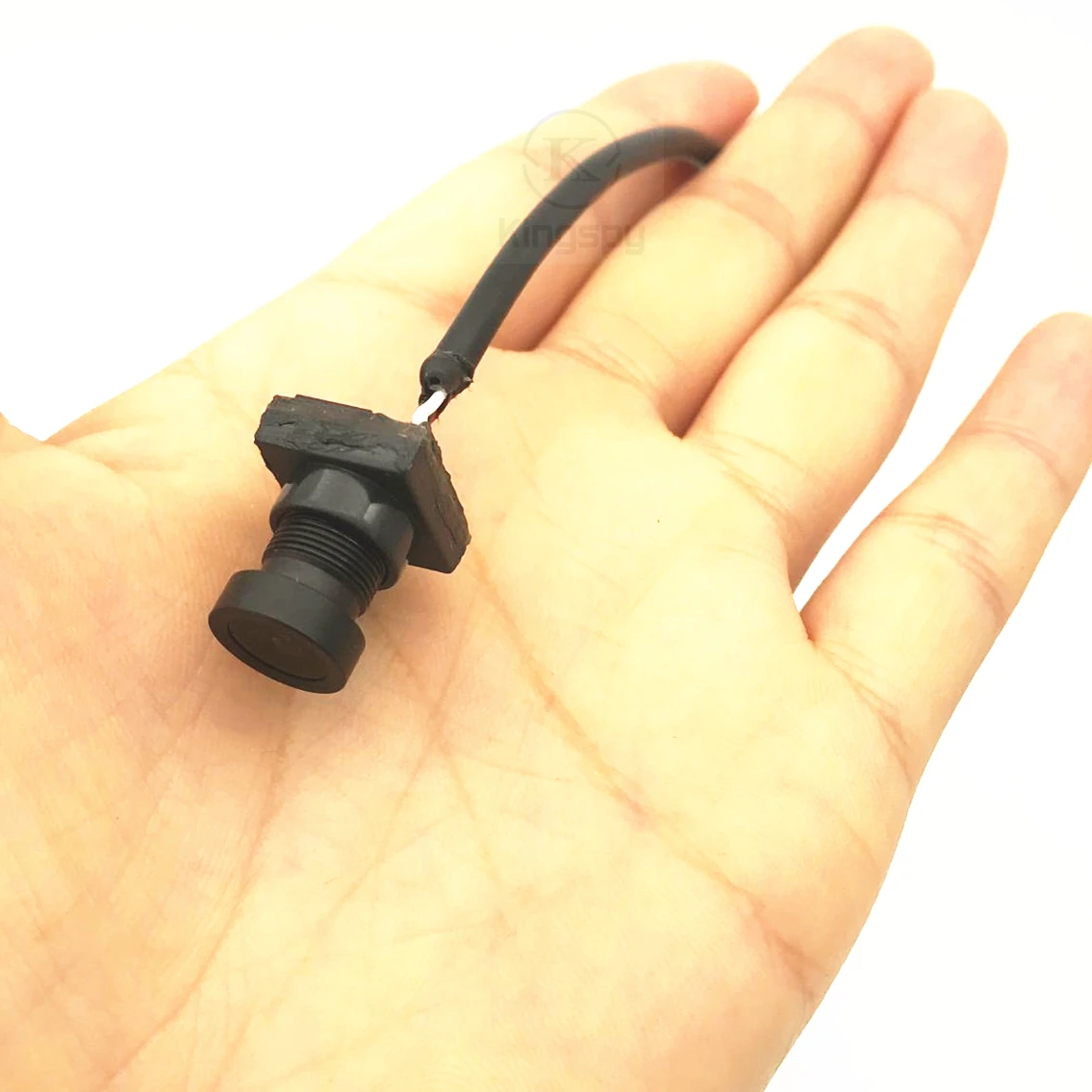

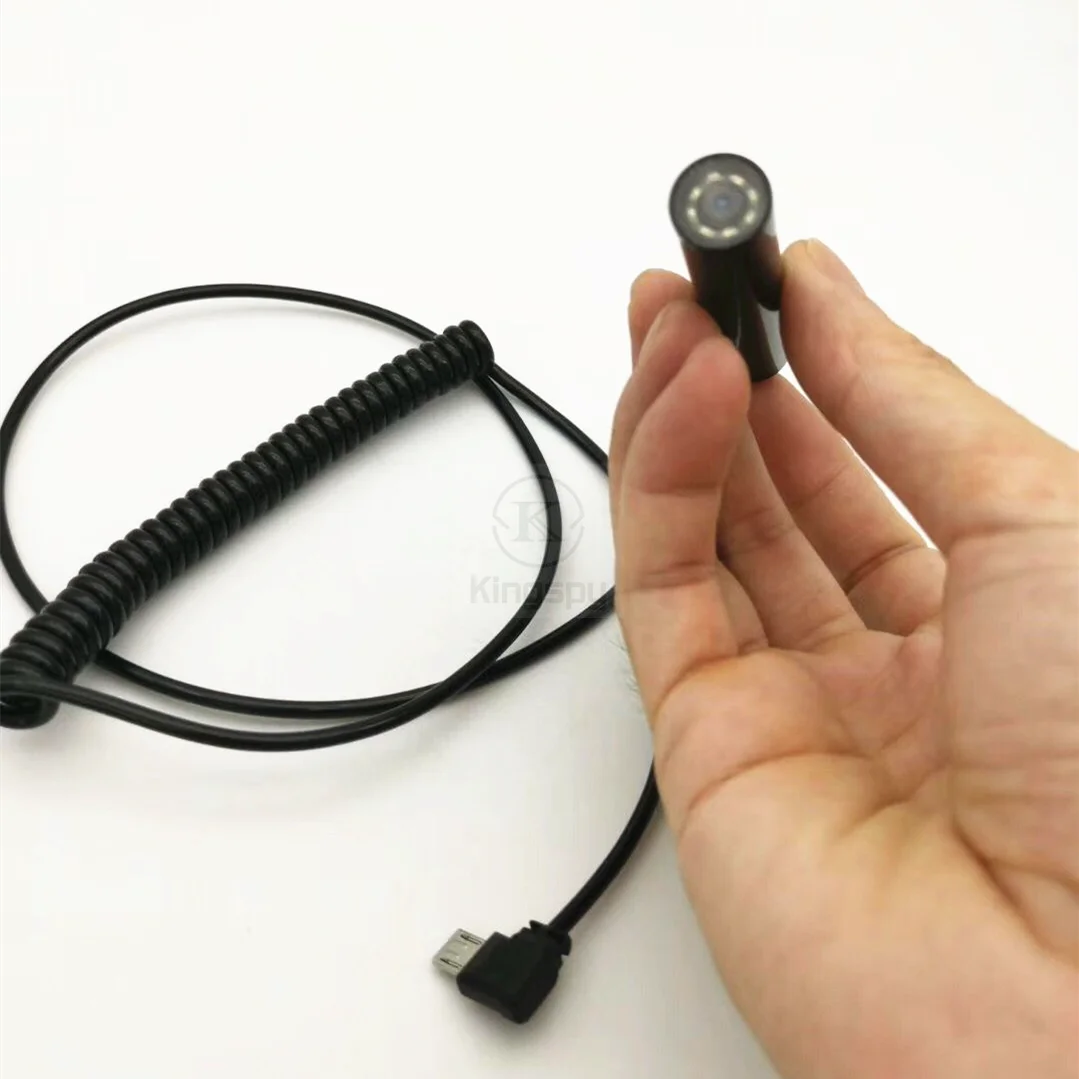

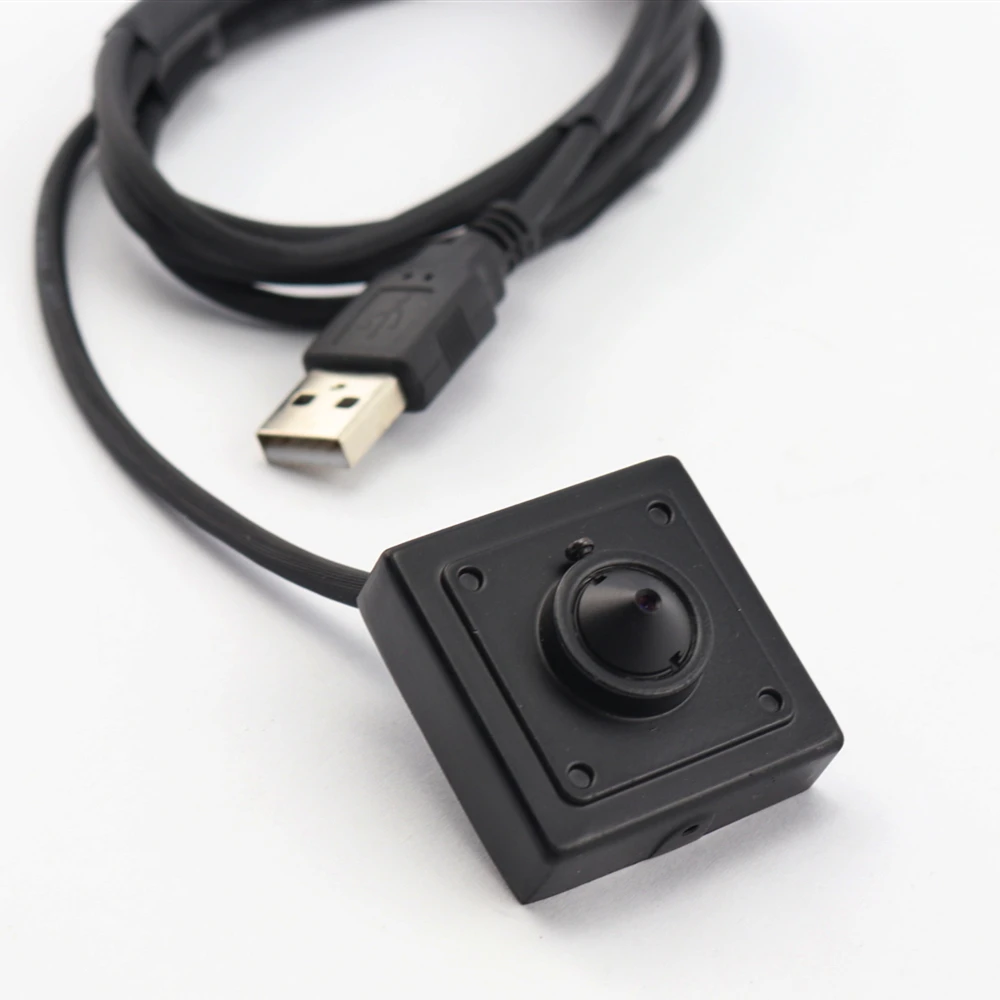

SIMILAR USB CAMERAS AS BELOW :
