Automatic Steel Sheet Shearing and Flattening Machine
- Category: >>>
- Supplier: Wincoo Engineering Co. Ltd.
Share on (62454924775):
Product Overview
Description
Product Description
The production line just makes cold-rolled steel coil plates, stainless steels,galvanized steel plate, color steel plates and etc into all specifications of length-gauged plates,via uncoil level and cut to length.
The standard configuration is composed of loading cars, uncoilers, pallet pressure devices, leveling mainframe, storage silos,limited device, servo length-gauged machines, peritoneal devices, shearing machines, transmission platforms, pneumatic nesting racks, hydraulic lifting stations, unloading platforms, hydraulic systems, electrical control systems and etc.
Main components of the production line's hydraulic system adopt Taiwan high-precision components, length-gauged system adopts overall position-fixed servo control system from Japan Yasukawa or Germany Lerue to control.Electrical control adopts controller with imported PLC and touch screen to achieve fully controlling. It has many characteristics, just like, high degree of automation, high quality of leveling,high precision, high efficiency, steady and reliable performance, simple operation, easy maintenance and etc.
Size Information
Project | Unit | Rangers |
Thickness | mm | 0.2-1.5 0.5-3 |
Standard board’s width | mm | 1250,1500,1900 |
Uncoiler bearing | t | 12,20 |
Leveling precision | mm/㎡ | ≦1.5(Standard) |
Length accuracy | mm | ≦＋0.50 |
Max line-speed | m/min | 0-60,100 |
Total power | kw | -65,-95 |
Detailed Images
Main components of the line:

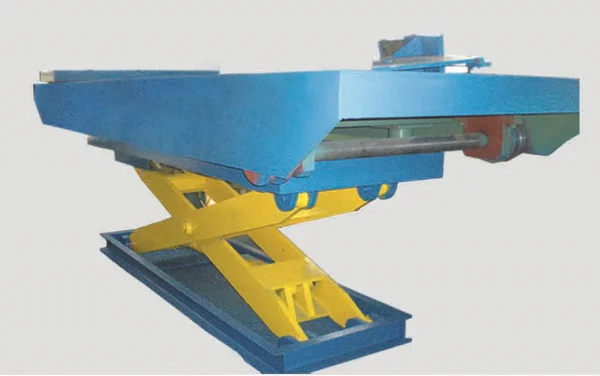

1. Hydraulic lifting&output station

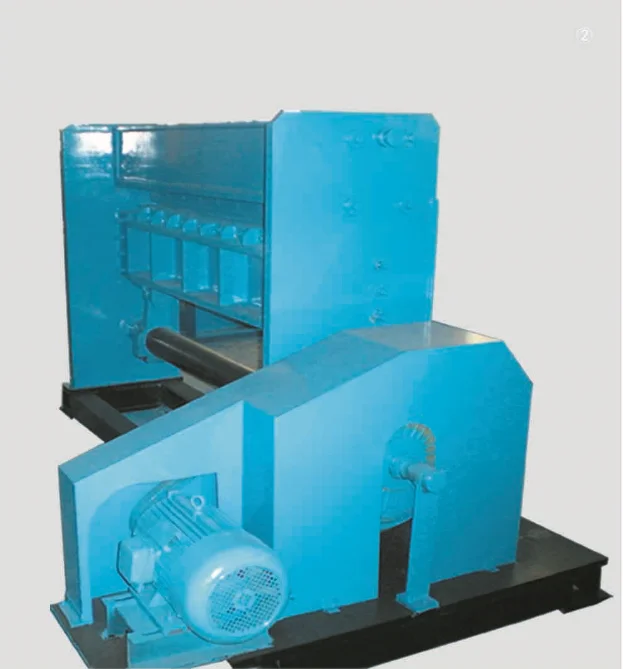

2. High-speed shear

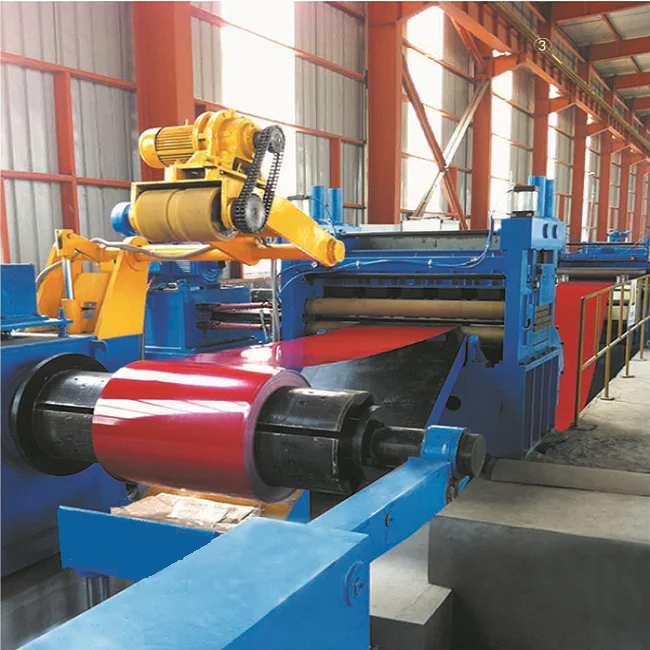

3. Partial view
1. Hydraulic lifting&output station
2. High-speed shear
3. Partial view

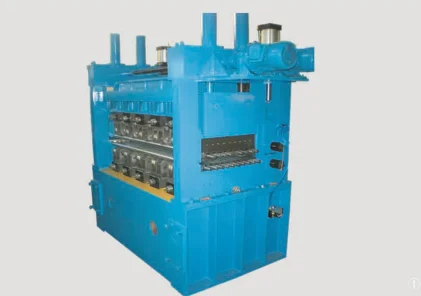

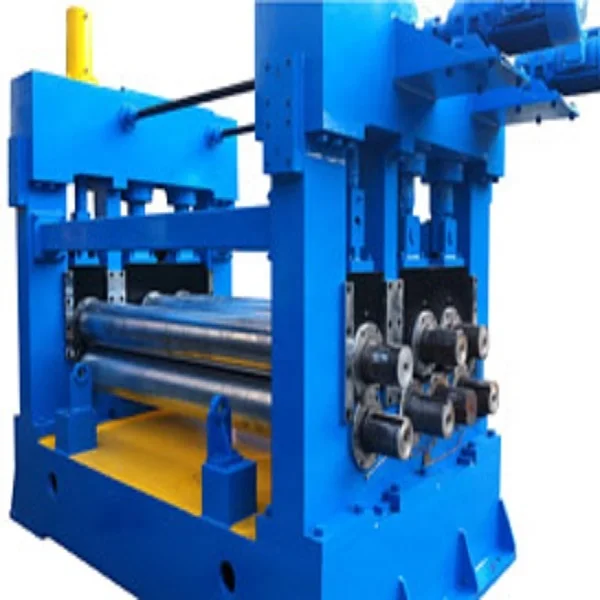

4. Mainframe leveler

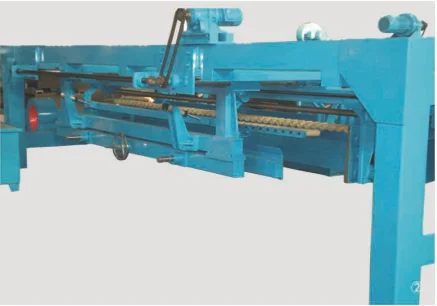

5. Pneumatic piling-up station

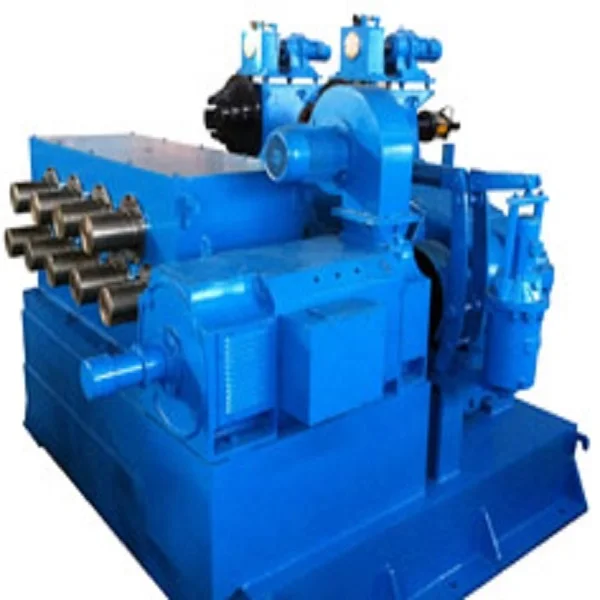

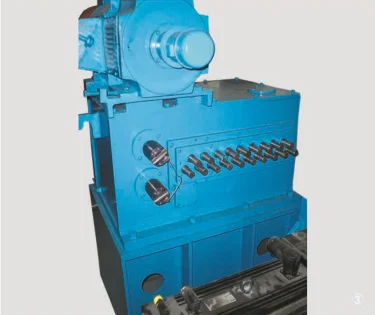

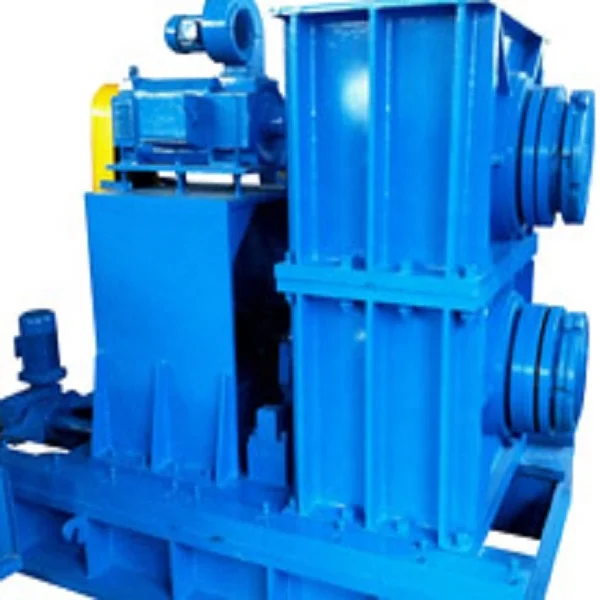

6. Transmission case&servo motor

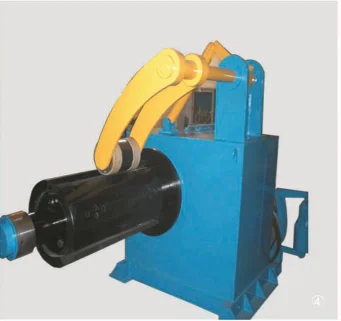

7. De-coiling
5. Pneumatic piling-up station
6. Transmission case&servo motor
7. De-coiling
