OEM 5 axis cad cam wet milling machine dental for zirconia wax PMMA Titanium
- Category: Cleaning & Filling Teeth Equipments >>>
- Supplier: CCFT Shenzhen Limited
Share on (62455030172):
Product Overview
Description
Product Description

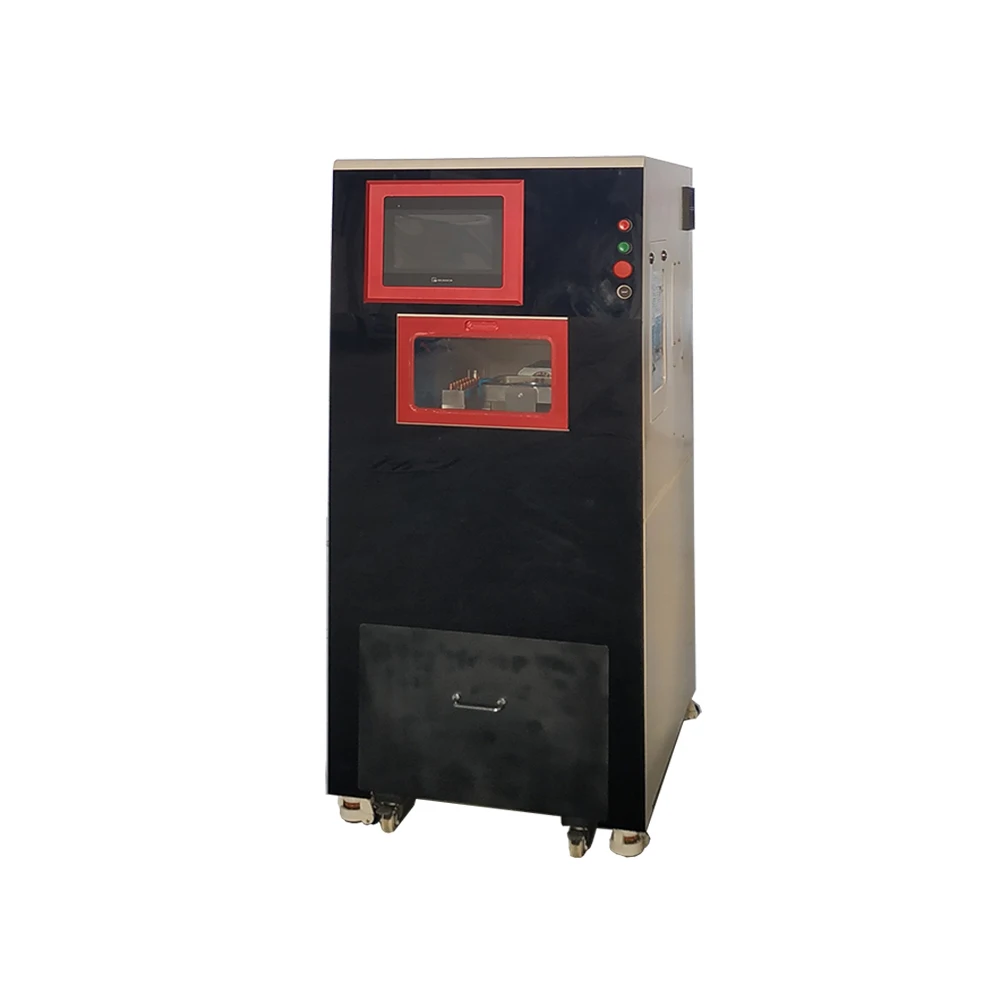

Name | 5 Axis dental CAD/CAM milling machine | |
Model | SDM5T | |
CNC controller | KY-100 5 axis dental system with touch screen | |
Milling mode | Dry/Wet | |
Millable material | Titanium,Zirconia,Wax,PMMA | |
Product type | Crown/coping, Bridge, Inlay/onlay | |
Spindle power | 1500KW | |
Speed of spindel | 3000-60000rpm/min | |
Spindle cooling | Water-cooled | |
X/Y/Z axis motor | 400W servo motor | |
A/B axis motor | 100W with High precision slope gear reducer | |
Rotation range | A axis | ±360° |
B axis | ±25° | |
Number of burs(Tools) housed | 14 pcs | |
Attachable bur(tool) | shank diameter | 3.175mm or 3mm |
Length | 45mm | |
Tool change and check | Fully automatic | |
Compatible compressed air | 0.6MPa | |
Loadable workpiece shape | External Diameter | 98mm |
Max Height | 25mm | |
Min. Height | 10mm | |
External dimensions | Length | 890mm |
Weight(Depth) | 700mm | |
Height | 1590mm | |
Packing dimension | 1100*900*1800mm | |
Weight | 280kg | |
G.weight | 320kg | |
Input Voltage | Single-phase 220V 50Hz/60Hz | |
Control command set | NC code | |
Positioning accuracy | 0.02mm | |
Average milling time(dental crown) | Zirconia | 8-15 min |
Wax | 3-6 min | |
PMMA | 8-10 min | |
Titanium | 10-15 min | |

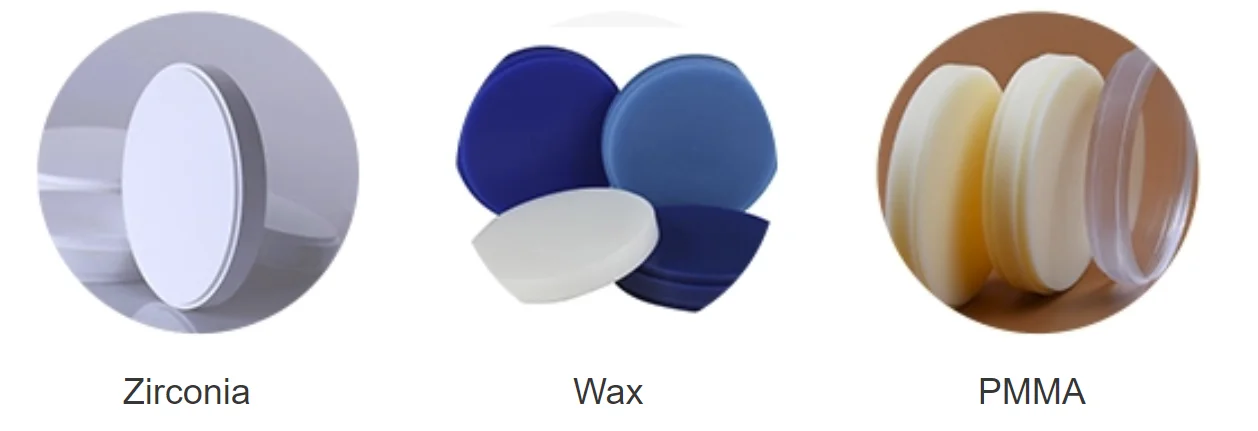

Millable Materials

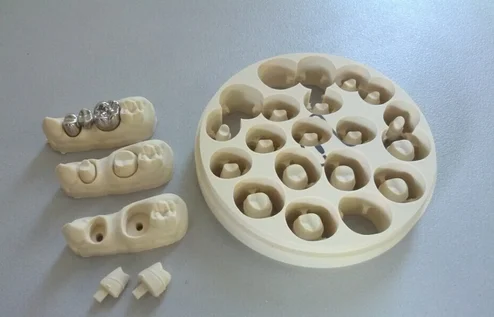

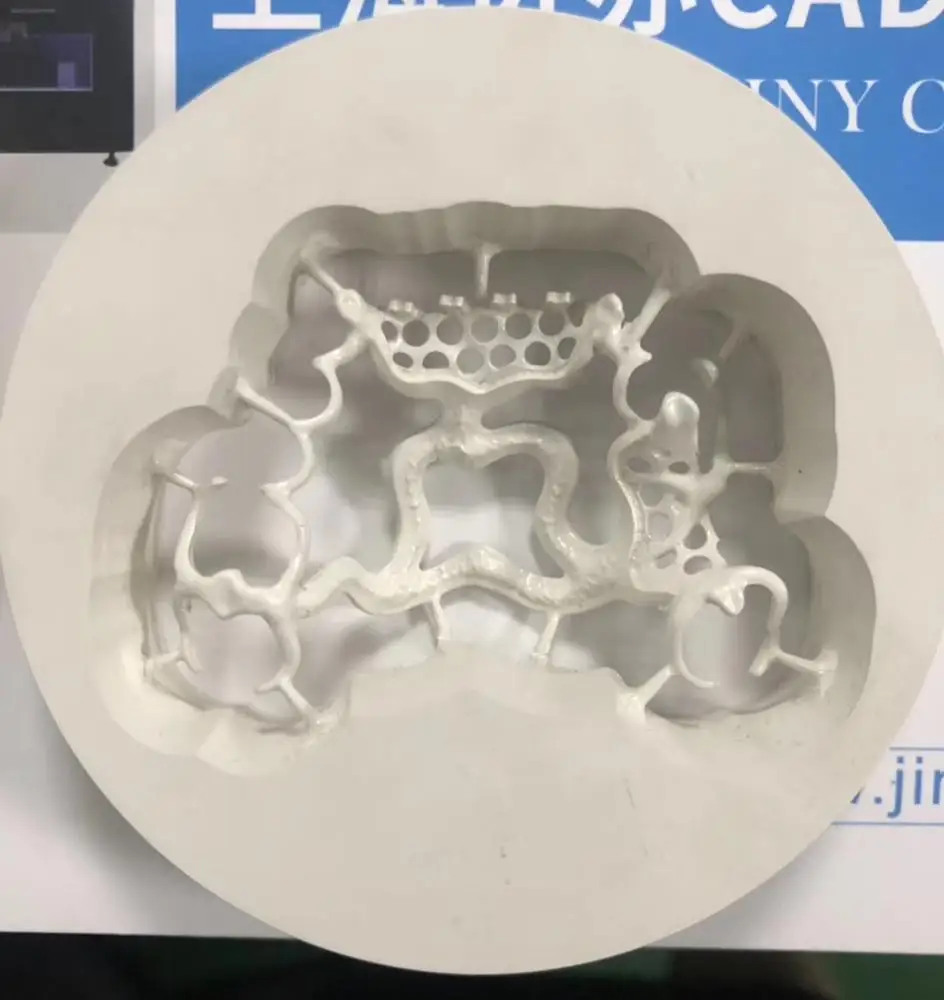

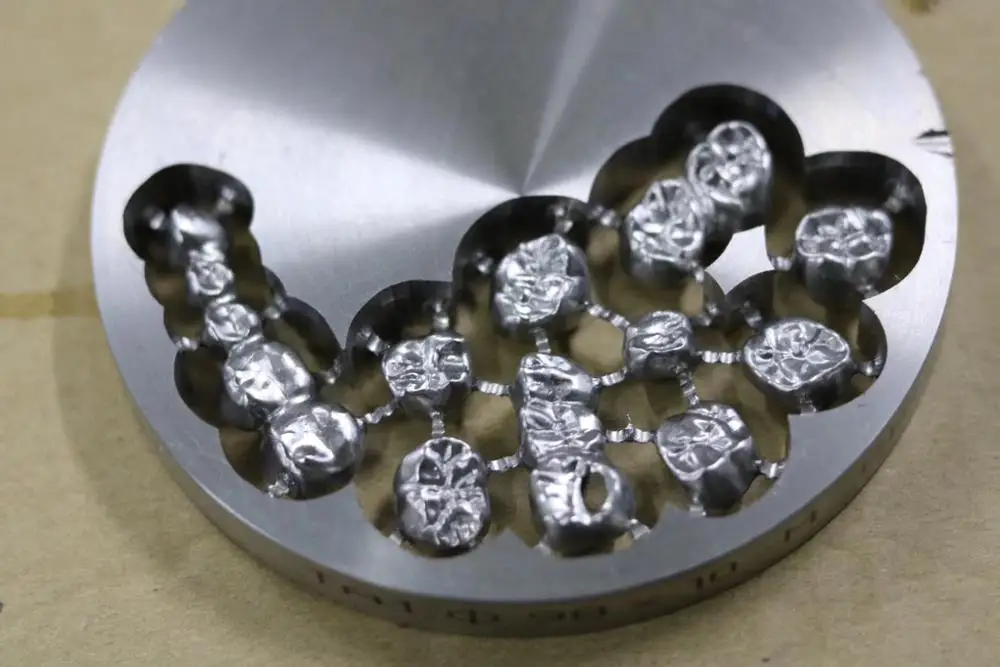

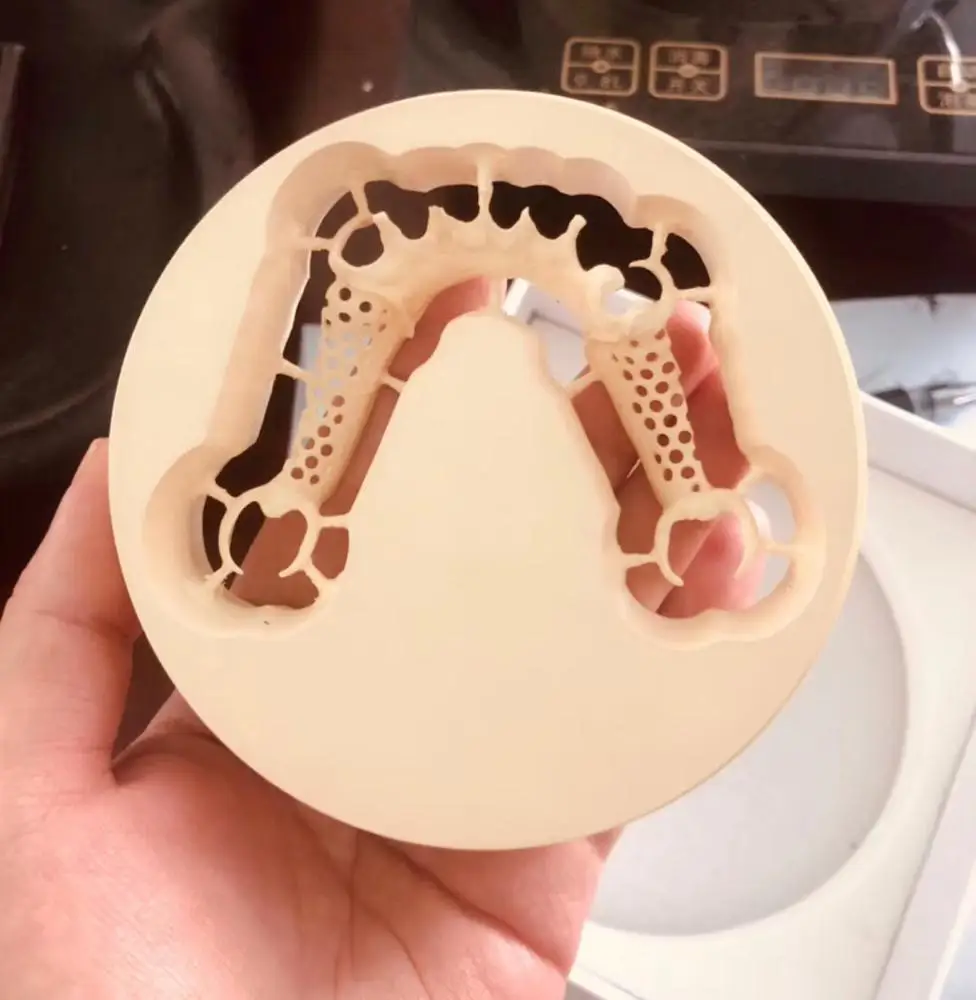

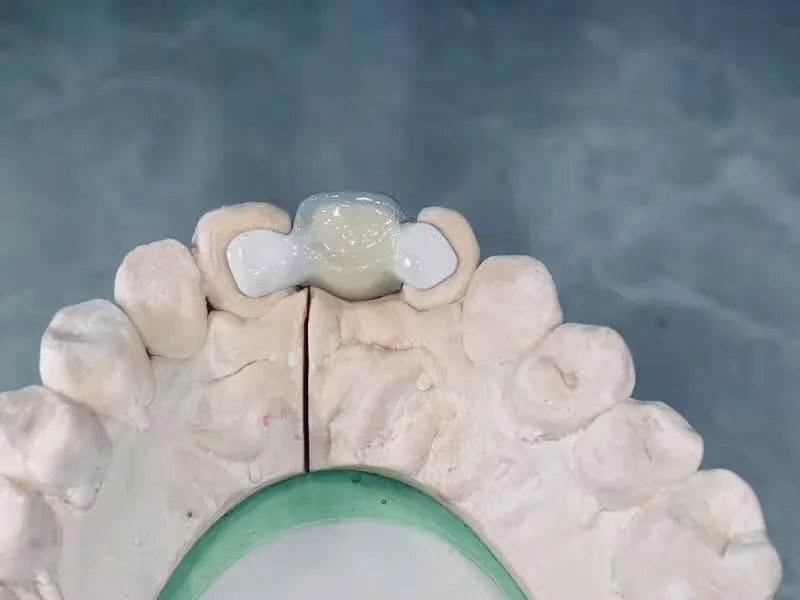

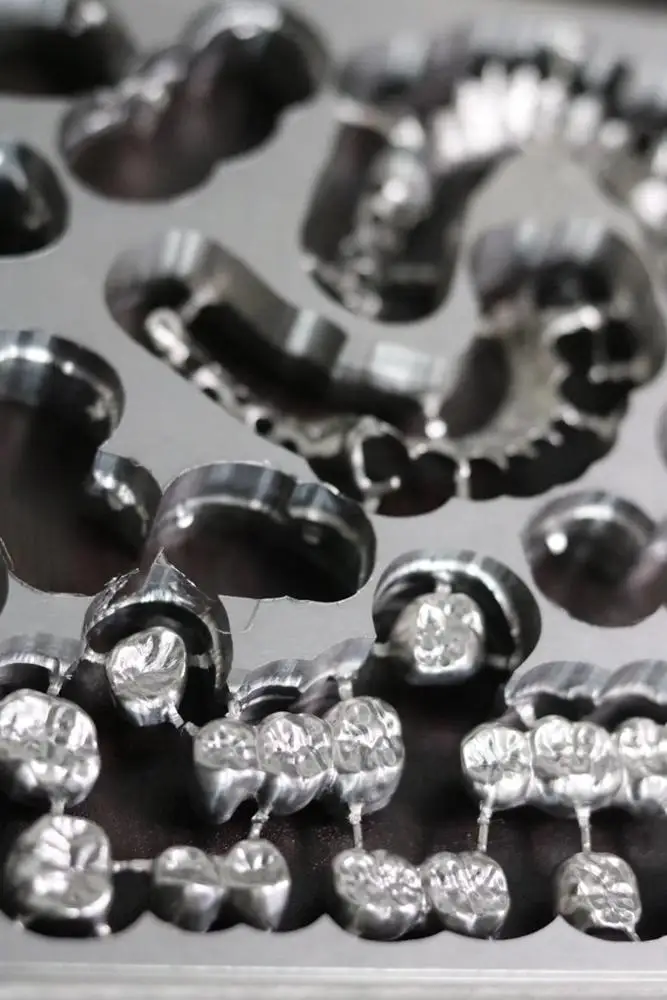

Sample Show
Packaging & Shipping
- Selling Units:
- Single item
- Single package size:
- 80X80X80 cm
- Single gross weight:
- 280.0 kg
- Package Type:
- 1. Outer packaging: standard seaborne export plywood box. 2. Inner packaging: waterproof stretch film and plastic film.
- Lead Time :
-
Quantity(Set) 1 - 2 >2 Est. Time(days) 15 To be negotiated
FAQ
1. I want to buy this machine. What do you suggest?
Please tell me: what materials do you process? What are the heights and lengths? You'd better show me your product pictures
2. How about your delivery time?
Usually 15 days after your deposit, we have the stardard model in stock. If you are in a hurry, we will arrange the delivery as soon as possible.
3.This is my first time to use this kind of machine. Is it easy to operate?
There is an English manual or guide on how to use the machine. If you have any questions, please contact us via email/skype/ phone/tradelink online service.
4.What is the warranty period for the machine and accessories?
Warranty period: spindle motor half a year, other one year.
