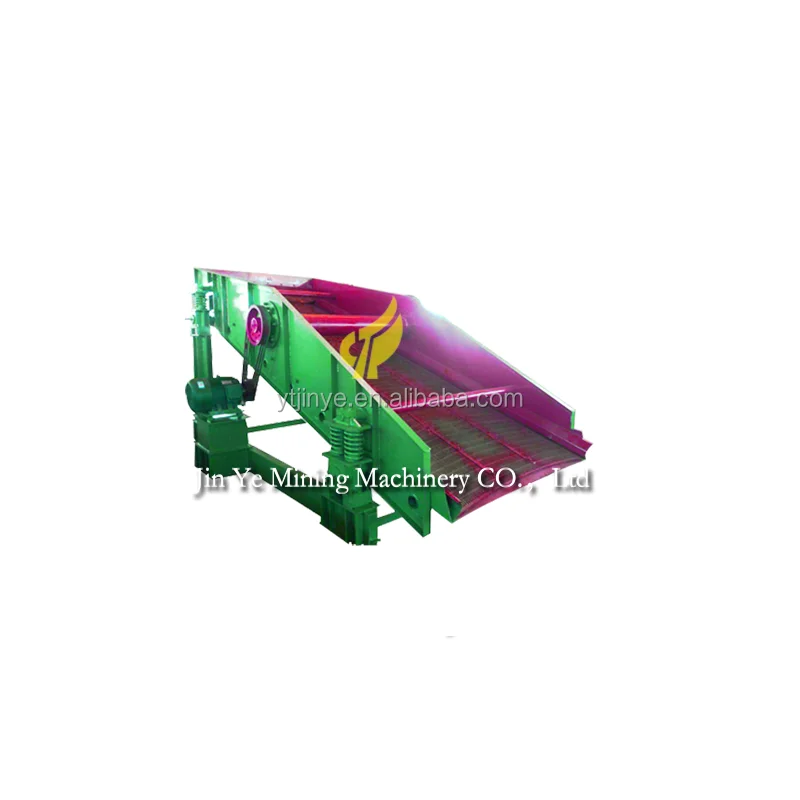

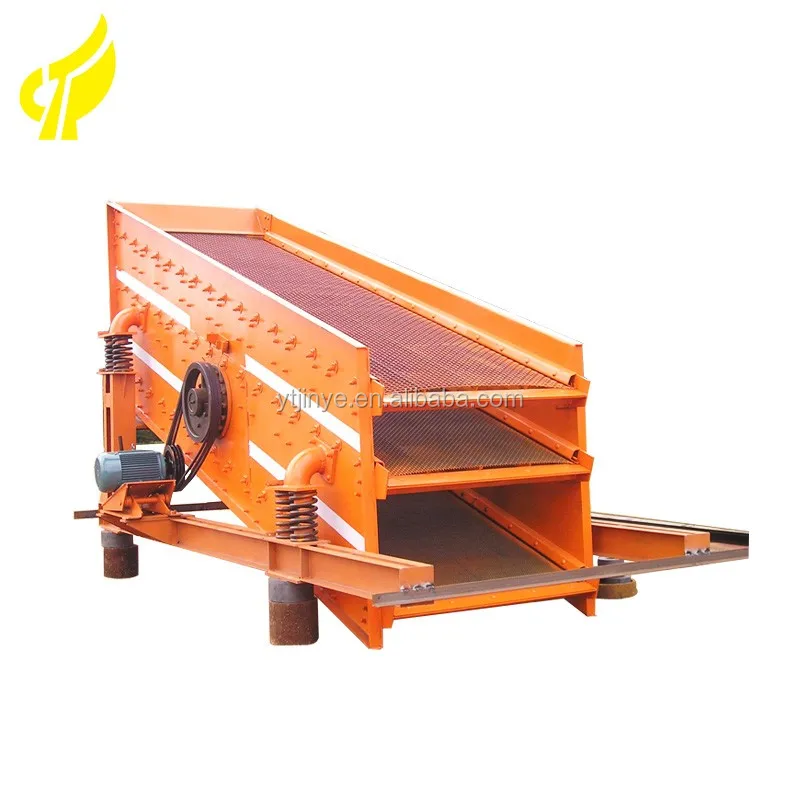

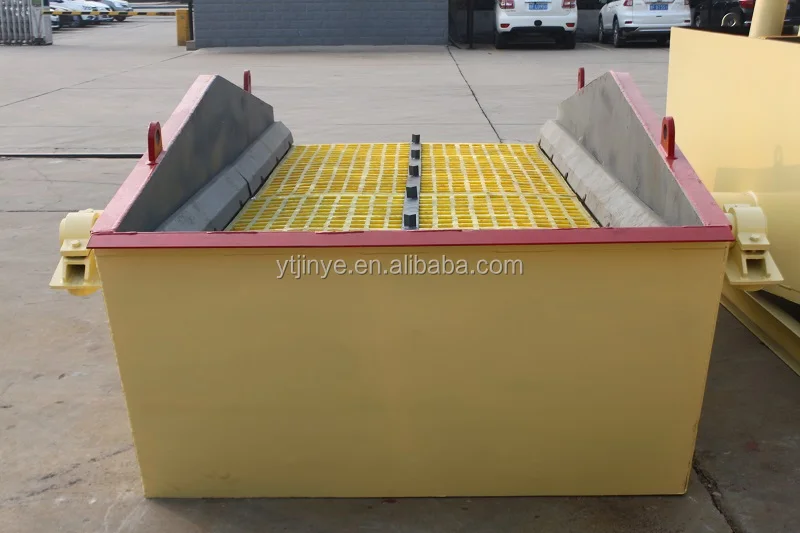

Circular vibrating screen (round vibrating screen) is a new type of vibrating screen with multi-layers and high efficiency. Cylindrical vibrating screen uses cylindrical eccentric shaft exciter and partial block to adjust amplitude, material sieve has long running line and many sieving specifications. It has the characteristics of reliable structure, strong exciting force, high sieving efficiency, low vibration noise, durability, convenient maintenance and safe use. Cylindrical vibrating screen is widely used in product classification of mining, building materials, transportation, energy and chemical industries.
Main Features
1. Because of the strong vibration of the sieve box, the phenomenon of material blocking the sieve hole is reduced, and the sieve has higher screening efficiency and productivity.
2. Simple structure and convenient removal of screen surface.
3. Screening consumes less electricity per ton of material.
Advantage
1.The circular vibrating screen(round vibrating screen) is a circular motion and is a muti-layer,high-efficiency new vibrating screen.
2.The circular vibrating screen adpots the barrel type eccentric shaft vibration exciter and the partial block to adjust the amplitude,the material sieve line length and the screening apecification are many.

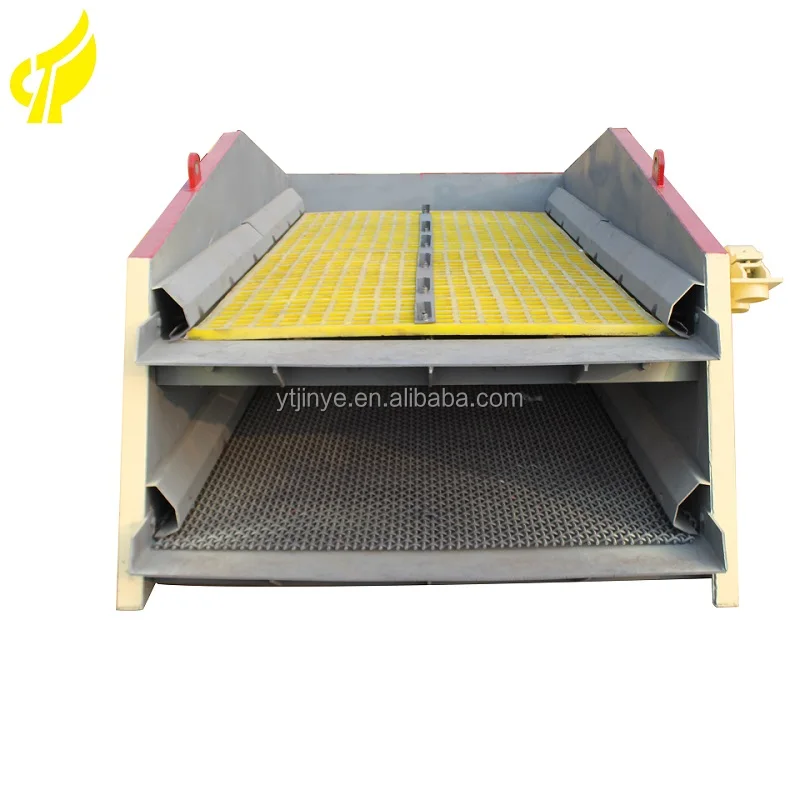

3.High-manganese steel woven mesh,puched sieve plate and rubber sieve plate can be used.The sieve plate can be sesigned into mutiple layers,and all kinds of sieve plates can meet the different requirementsof screening effect.

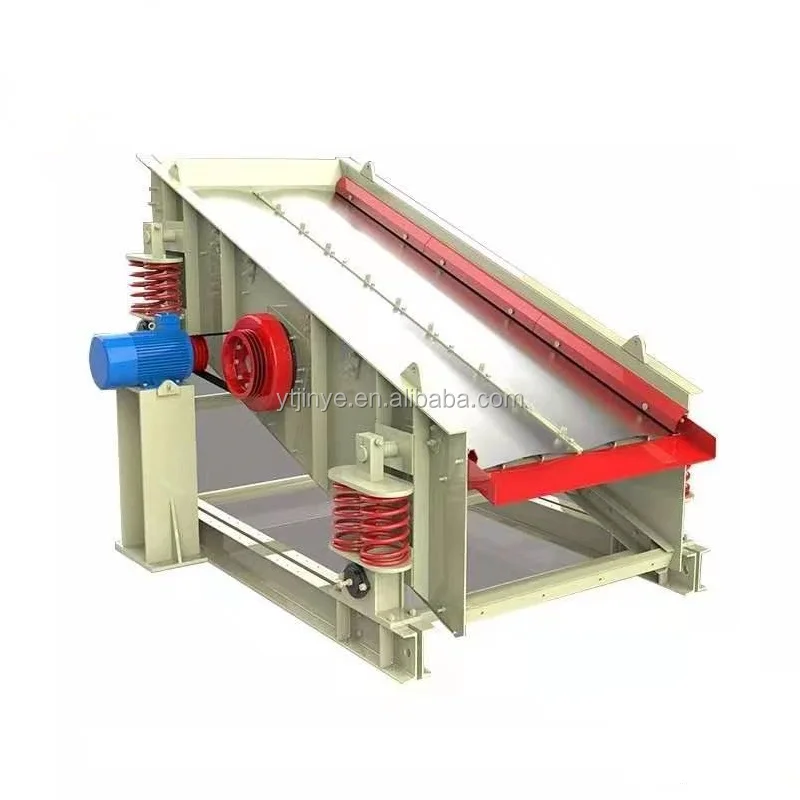

4.This series of circular vibrating screens is mounted in a seat.The adjustment of the screen inclination can be achieved by changing the height of the spring support.
Technical parameters
Model
Screen layer
screen surface area
(㎡)
Mesh size
Max feed particle size
(mm)
Capacity
(t/h)
Motor Power
(kw)
YA1230
1
3.6
5-50
200
0-80
5.5
2YA1230
2
3.6
5-50
200
0-80
5.5
3YA1230
3
3.6
5-50
200
0-80
7.5
YA1536
1
5.4
6-50
200
100-350
11
2YA1536
2
5.4
6-50
200
100-350
15
3YA1536
3
5.4
6-50
400
100-350
15
YA1548
1
7.2
6-50
400
120-420
15
2YA1548
2
7.2
6-50
400
120-420
15
3YA1548
3
7.2
6-50
400
120-420
15
YA1848
1
8.6
6-50
200
150-525
15
2YA1848
2
8.6
6-50
200
150-525
15
3YA1848
3
8.6
6-50
200
150-525
15
YA2148
1
10
6-50
210
180-630
22
2YA2148
2
10
6-50
210
180-630
22
3YA2148
3
10
6-50
210
180-630
22
YA2160
1
12.6
3-80
200
230-800
18.5
2YA2160
2
12.6
6-50
200
230-800
22
3YA2160
3
12.6
6-50
200
230-800
22
YA2460
1
14.4
6-50
200
260-780
30
2YA2460
2
14.4
6-50
200
260-780
30
3YA2460
3
14.4
6-50
200
260-780
30

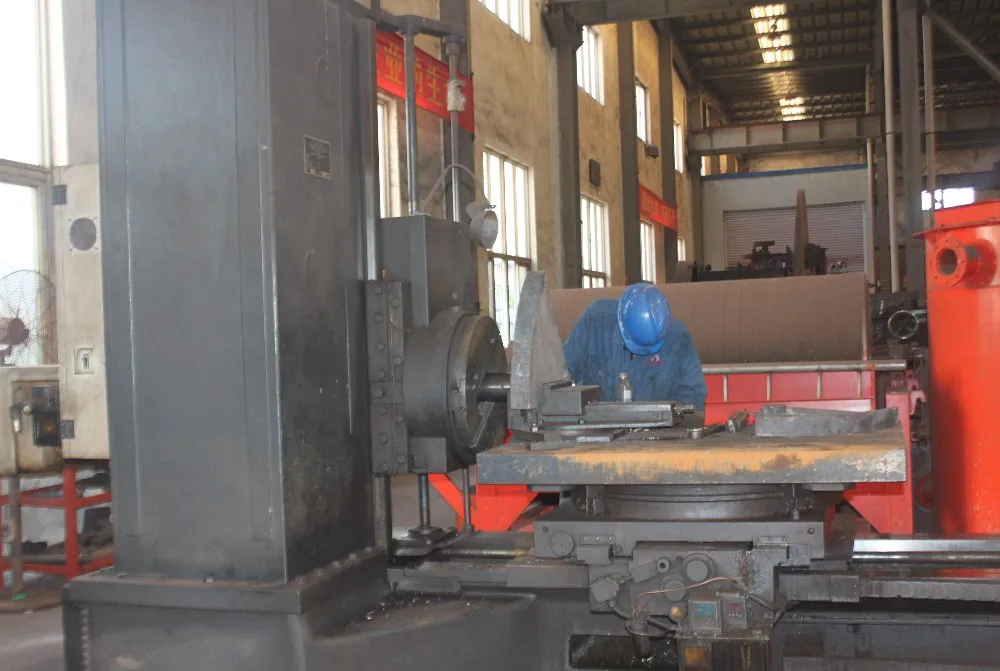

Our Company
Yantai Jinye Mining Machinery Co., Ltd is a director mining equipment researcher & producer with export licence,which is located in the beautiful coastal city of Yantai.We have superior geographical location, convenient transportation and abundant resources. In recent years, relying on the advanced technology management and flexible marketing strategy, it has become one of strongest comprehensive power and biggest scale among the mining machinery factories.
Process Flow Cart
Our Certification
Our company has passed ISO9001:2000 Certificate.The quality management system is precise and the quality consciousness of workers is strong.Workers of next procedure is the quality controller of last procedure.The consciousness of service for customers carry throughout.The workers not only attend the equipment manufacture,but also join the installation and debug,so they are familiar with the structure performance and the using status.

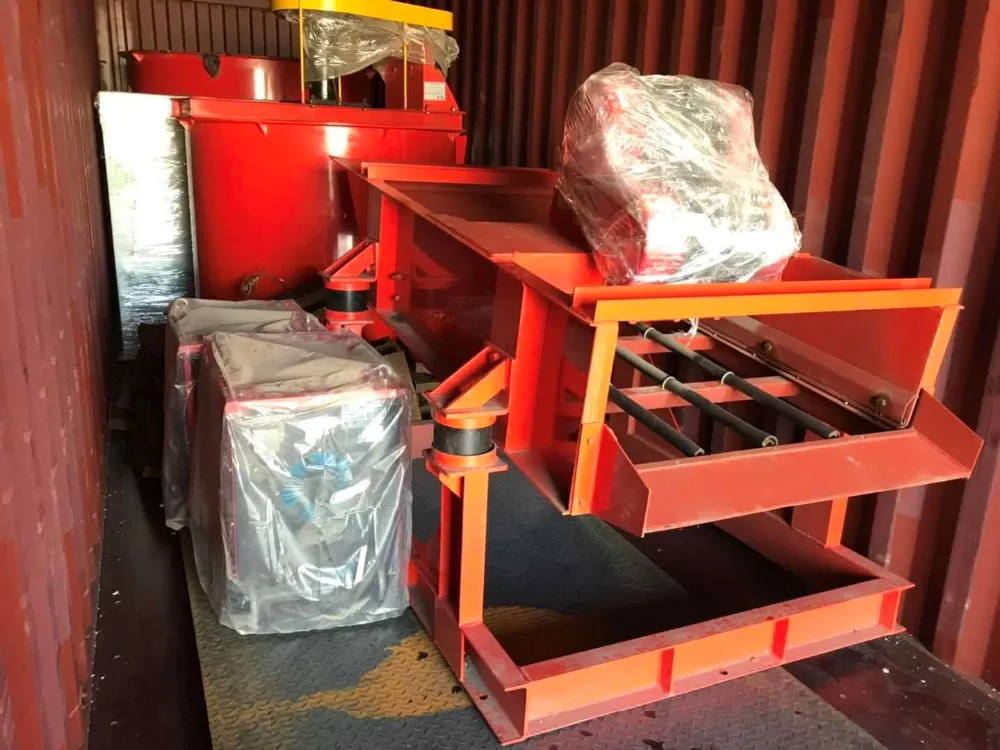

Packing & Delivery
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine. * 24hours for technical Operation Guide and 4hours offer technical proposal for problem shooting.
