Промышленный мини пылесборник с циклонным порошком
- Category: Dust Collector >>>
- Supplier: Botou Ever Lucky Environmental Protection Machinery Co. Ltd.
Share on (62455836010):
Product Overview
Description
Automatic Cyclone Industrial Dust Collector for Laser Machine
Product Description
cyclone dust collector

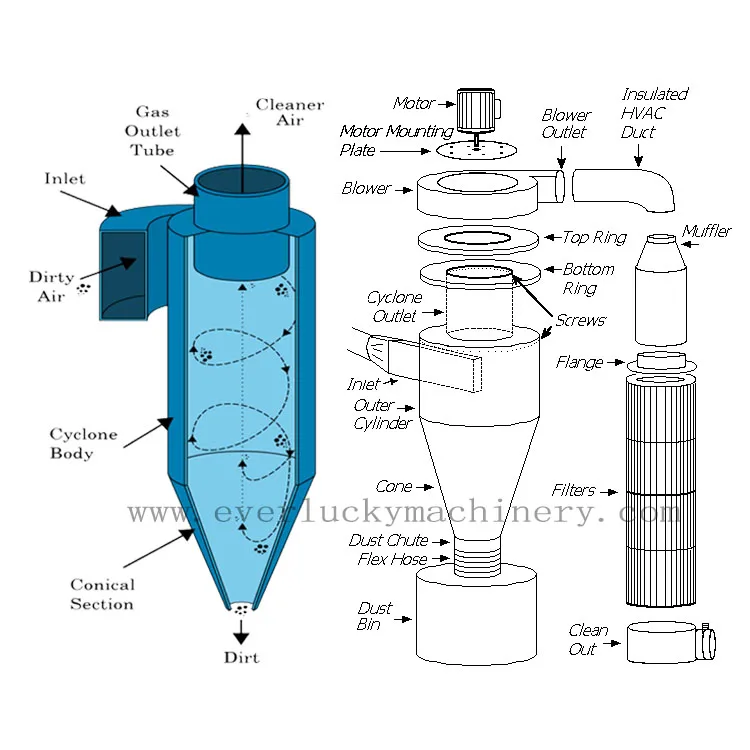

The XLP type cyclone dust collector is a high-efficiency cyclone dust collector with a bypass channel on the outside of the cyclone cylinder body. It can make a part of the gas containing more dust near the inner wall of the cylinder pass through the bypass into the lower part of the cyclone barrel to reduce the dust from being discharged , especially for dusts larger than 5μm, has a higher dust removal efficiency. It is used to remove dense non-fibrous and cohesive dust from industrial exhaust gases. It can effectively separate tobacco ash, talcum powder, quartz powder, limestone powder, slag cement, cement raw material, etc. It has the characteristics of simple structure, convenient operation, high temperature resistance, low resistance and high dust removal efficiency. It is suitable for mining, metallurgy and fire-resistant Gas purification in industrial sectors such as materials, coal, chemicals, building materials and electricity.
Model number | Air flow m3/h | Resistance kg/m2 | Efficiency % | Dimension(L×W×H)mm | Weight kg | |||
X | Y | X | Y | X | Y | |||
XLP/A-3.0 | 750-1060 | 45-90 | 39-79 | 85-99 | 406×390×6125 | 460×390×1380 | 57 | 43 |
XLP/A-4.2 | 1460-2060 | 556×545×2177 | 556×545×1880 | 99 | 80 | |||
XLP/A-5.2 | 2280-3230 | 711×700×2701 | 771×700×2701 | 165 | 128 | |||
XLP/A-7.0 | 4020-5700 | 911×910×3489 | 911×910×3040 | 265 | 213 | |||
XLP/A-8.2 | 5500-7790 | 1071×1605×4050 | 1071×1605×3540 | 364 | 293 | |||
XLP/A-9.4 | 7520-10650 | 1226×1222×4616 | 1226×1222×4050 | 473 | 384 | |||
XLP/A-10.6 | 9520-13500 | 1376×1337×5157 | 1376×1337×4545 | 631 | 483 | |||

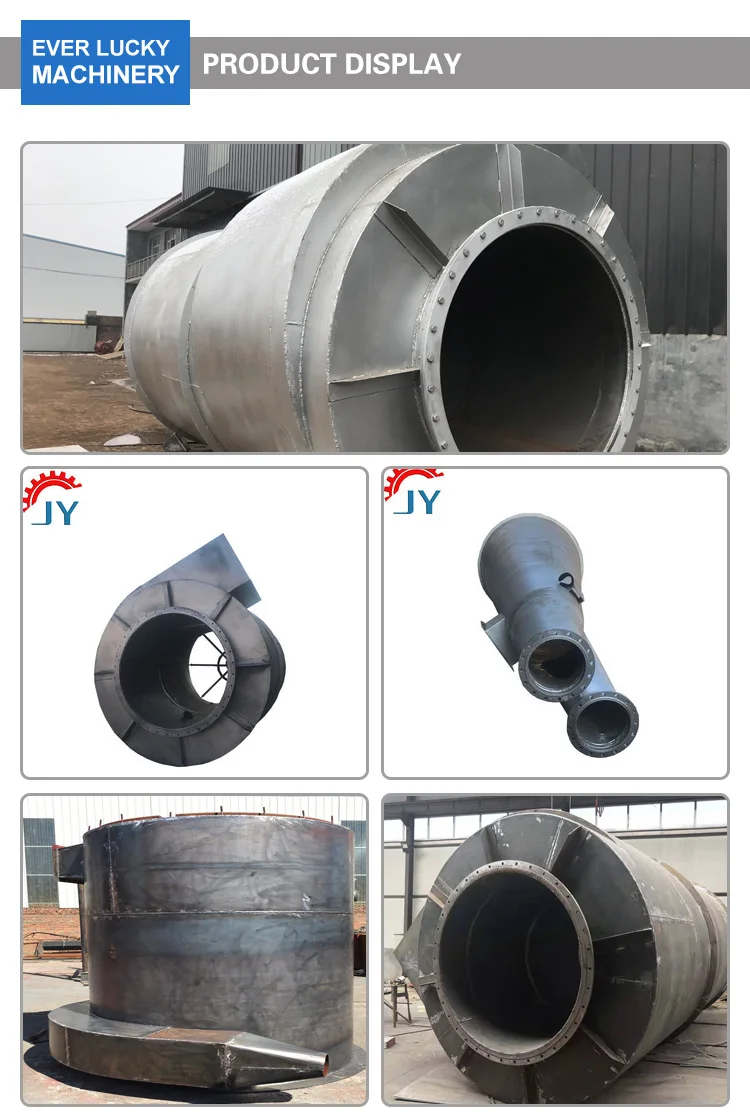

Product Display
Product Application
Related Product

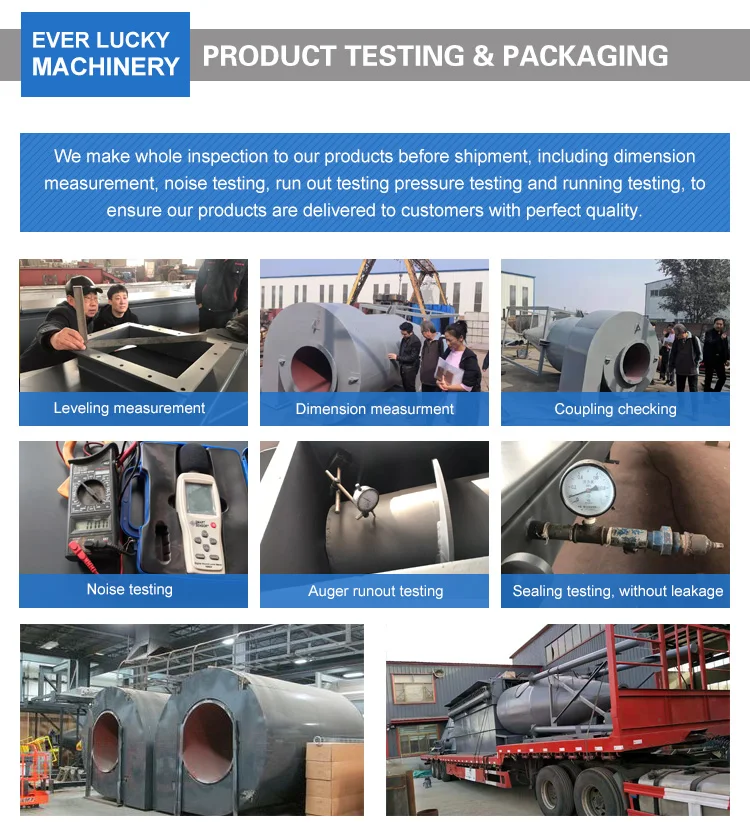

Product testing & packaging
About us
FAQ
1.How about your machine quality?
We have own research and development team,rich experiences technicians,and professional workers. We pay attention to every detail in manufacturing to ensure machines with high quality.
2.What is the status of After-sale Services for customers and machineries?
We provide the technical support for the whole life for free. Also, Engineers available to service machinery overseas. But the customers/buyer should pay for engineer salary 100$/day.
3. How to visit our company?
1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi(1hour),then we can pick up you.
2.Fly to Shanghai Airport:By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3.Fly to Guangzhou aiport:By air From Guangzhou to Beijing airpot:By high speed train From Beijing Nan to Cangzhou Xi(1 hour), then we can pick up you.
4.How many years since you have been in this field?
Our company has been in this field for almost 20years. We have rich experience for manufacturing and designing the machines.
5.How can I contact you ?
Please look at my contact card. You can talk to me anytime.Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you.
