Metal Cl21 220nf 400v224 P=10mm 224pf 0.22uf Metallized P15mm Cbb21 400v 224j Polypropylene Film Capacitor
- Category: >>>
- Supplier: Guangzhou Zhongzheng Electronic Development Co. Ltd.
Share on (62455913175):
Product Overview
Description
Metal Cl21 220nf 400v224 P=10mm 224pf 0.22uf Metallized P15mm Cbb21 400v 224j Washing Machine Polypropylene Film Capacitor
Metal Cl21 220nf 400v224 P=10mm 224pf 0.22uf Metallized P15mm Cbb21 400v 224j Washing Machine Polypropylene Film Capacitor
Our Services
The largest manufacturer of ultra small size film capacitors inchina
Company Information
Product Description

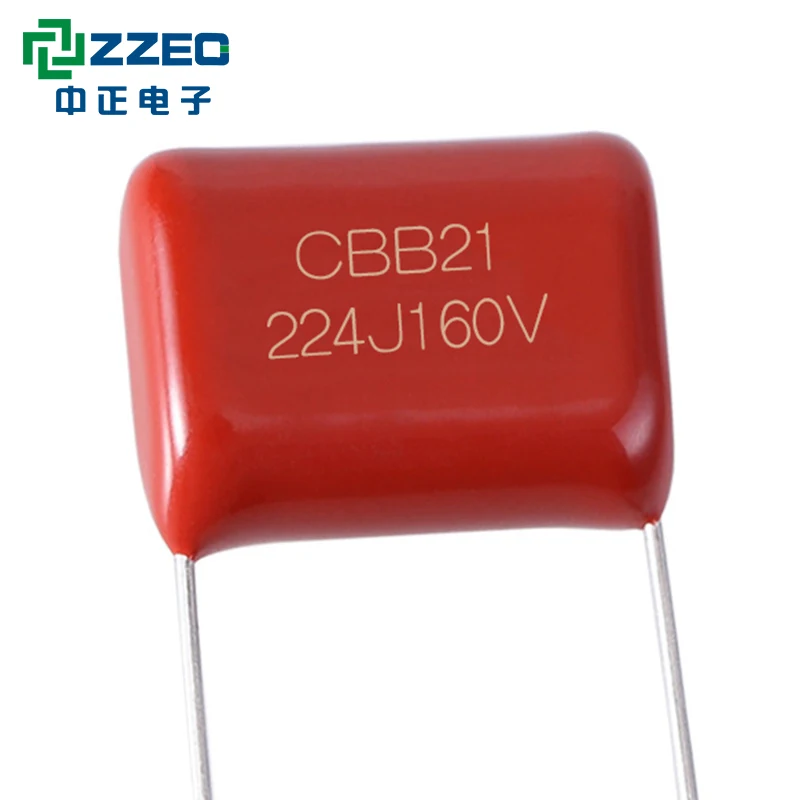

CBB21(MPP)FEATURES
- High quality super polypropylene film ,non-inductive,epoxy resin coating
- Very low dissipation,suitable for high frequency application
- Negative temperature coefficient
- Good stability and reliability, high insulation resistance

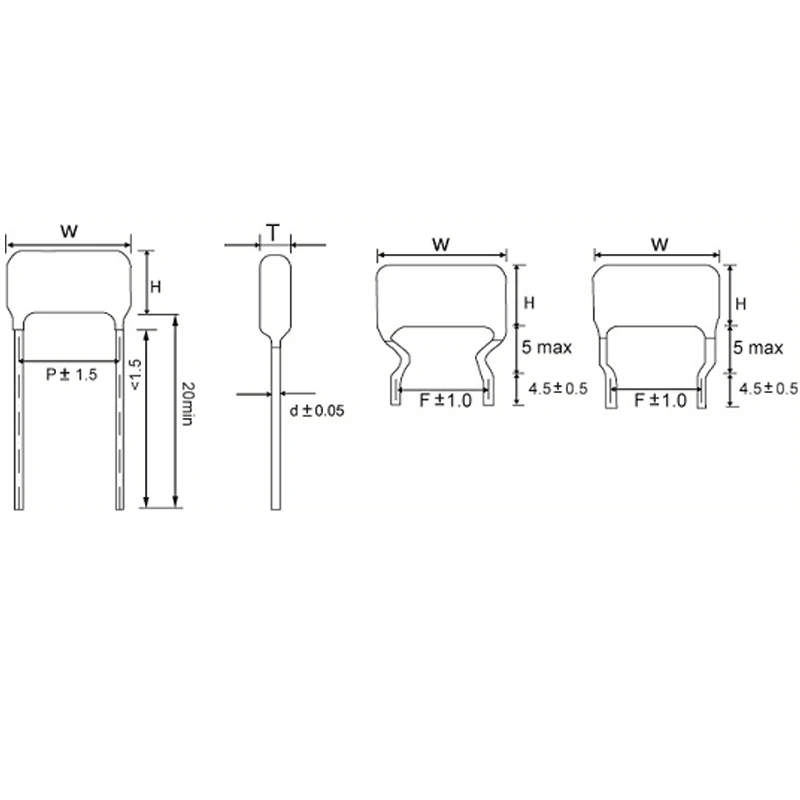

* Outline Drawing:
* Specification:
Climatic Category | 55/085/21 |
Rated Voltage | 160v 250v 400v 630V |
Capacitance Range | 0.0010uf~3.3uf |
Voltage Proof | 1.6 UR |
Insulation Resistance | ≥15000MΩ, CR≤0.33μF |
≥5000S, CR>0.33μF | |
(20℃, 1min) | |
Disspation Factor | ≤0.0008(20℃, 1kHz) |
Capacitance Tolerance | ±5%(J), ±10%(K) |
* Usage:
- Widely used in humidifier , fragrance lamp, high frequency, high voltage,DC and pulse circuits
- Widely used in high frequency oscillating circuit
- Supersmall size of the products
- The frequency can reach 2.7hz
CBB21(MPP) Capacitor STANDARD SIZE
Dimensions(mm) and special specifications can product according to your demand.
FAQ
Q:Are you a trading company or a manufacturer?
A:This's GUANGZHOU ZZEC Electronic. It's a professional manufacturer in the field of Subminiature Metalized Polyester & Polypropylene Film Capacitor
Q;Materials of products?
A;A metallized film for A + grade capacitors. Besides we accept customization
Q;Samples are free?
A:yes!
Q;Quality Control?
A;Quality is first,We has passed ISO9001and ROHS REACH certification,As an important part of quality management, quality control is the key to proving the effectiveness of quality certification.
Q:Delivery time?
A;7-15 working days
A:This's GUANGZHOU ZZEC Electronic. It's a professional manufacturer in the field of Subminiature Metalized Polyester & Polypropylene Film Capacitor
Q;Materials of products?
A;A metallized film for A + grade capacitors. Besides we accept customization
Q;Samples are free?
A:yes!
Q;Quality Control?
A;Quality is first,We has passed ISO9001and ROHS REACH certification,As an important part of quality management, quality control is the key to proving the effectiveness of quality certification.
Q:Delivery time?
A;7-15 working days
