PBB1020/2A TTMC 40 дюймов ширина гибочный пресс, складально мерильная машина, Pan & коробка ручной тормоз тип
- Category: Sheet Folding Machine >>>
- Supplier: Tengzhou Tri-Union Machinery Co. Ltd.
Share on (62456014048):
Product Overview
Description
Product Overview

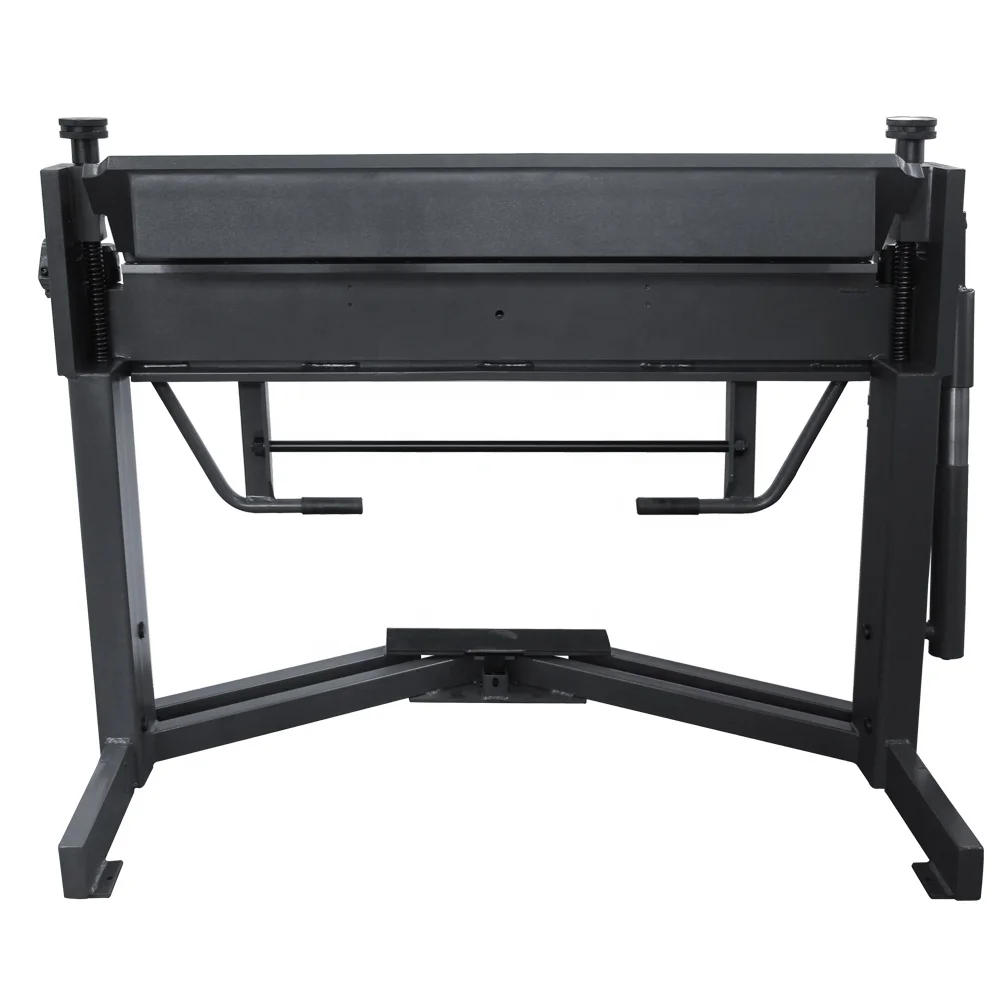

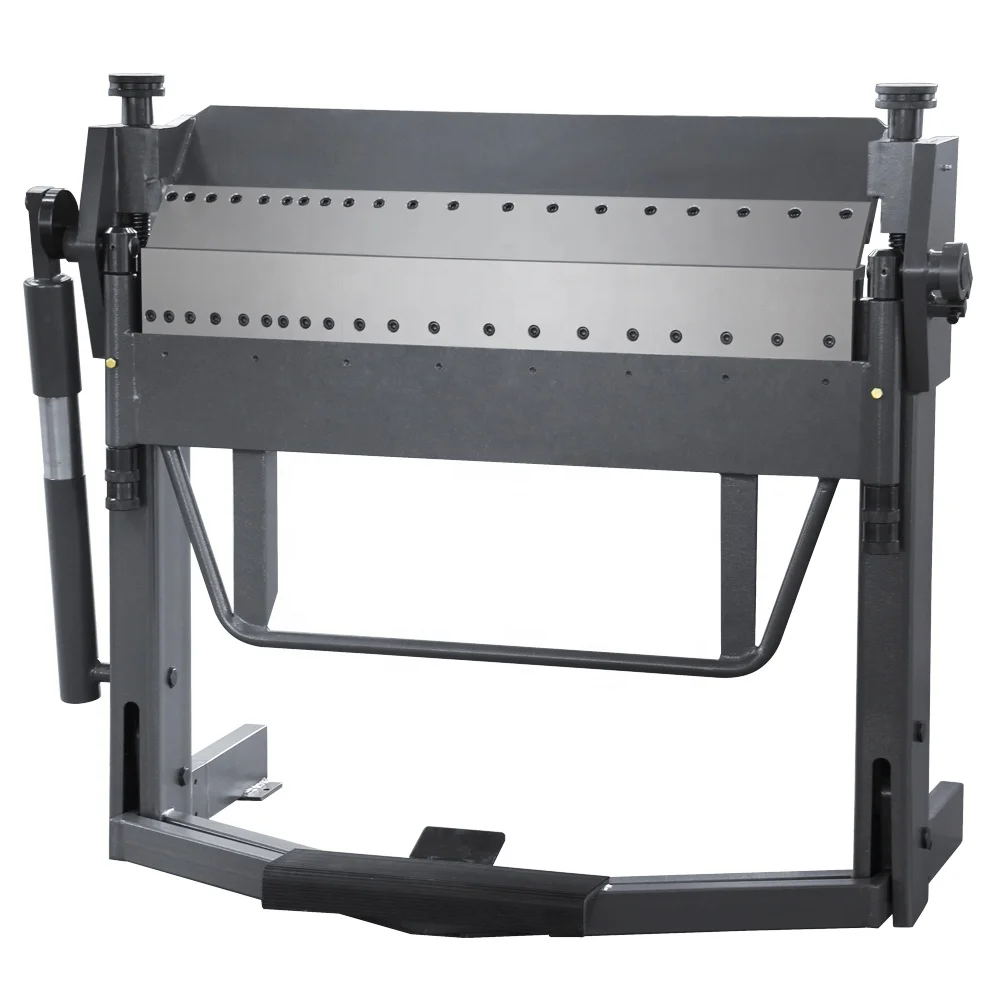

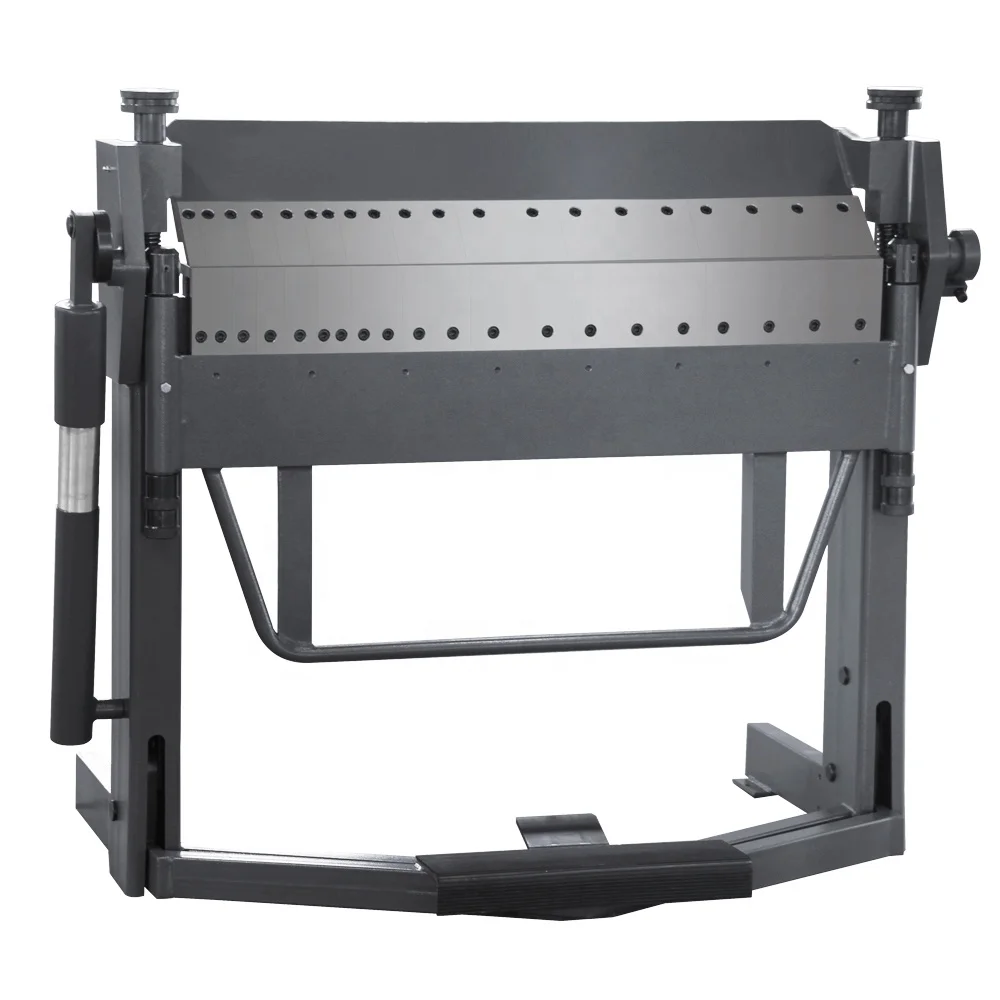

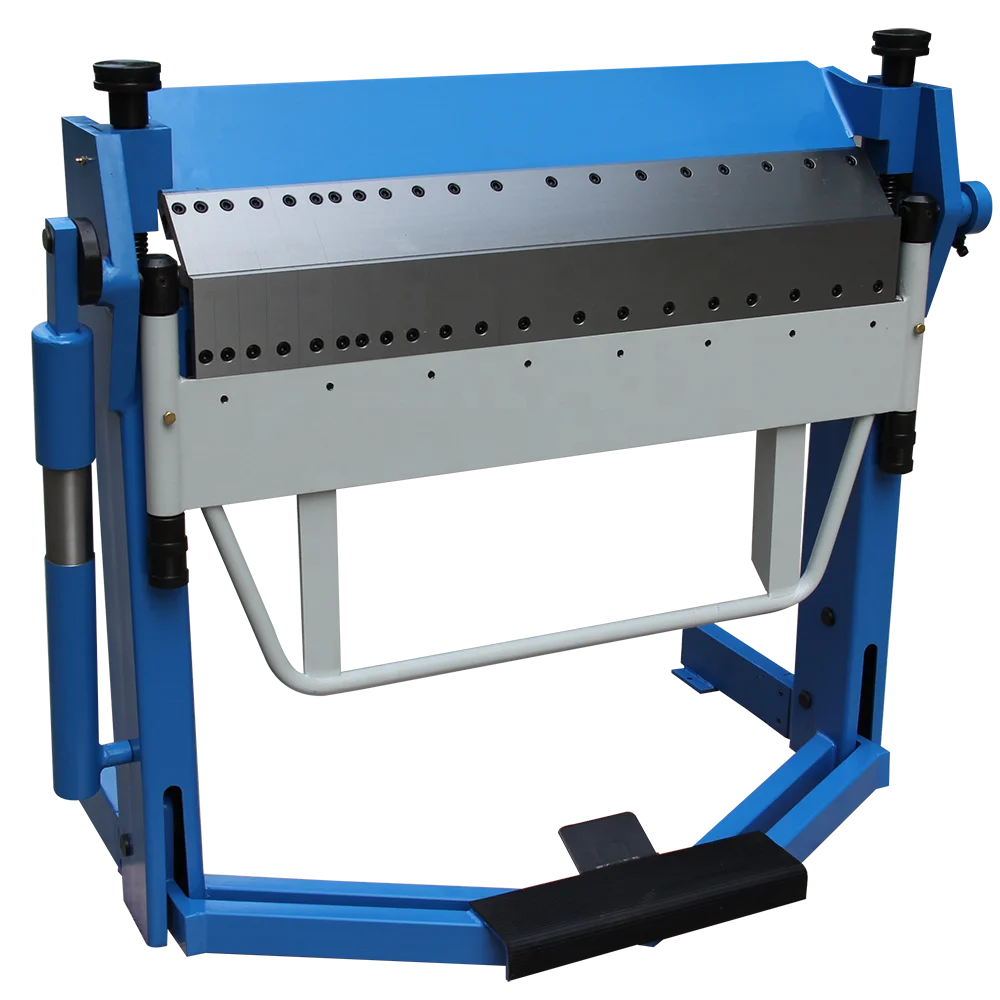

TTMC Segment Finger Pan Box Brake PBB1020/2A
The PBB1020/2A sheet metal bending brake incorporates segmented fingers on the top and lower lifting beams to make unusual bends that a standard box brake can’t do
FEATURES AT A GLANCE
Bend 2.0mm mild steel at full width 1020mm
You can clamp the material with the foot pedal, so that both hands are free for positioning the sheet metal.

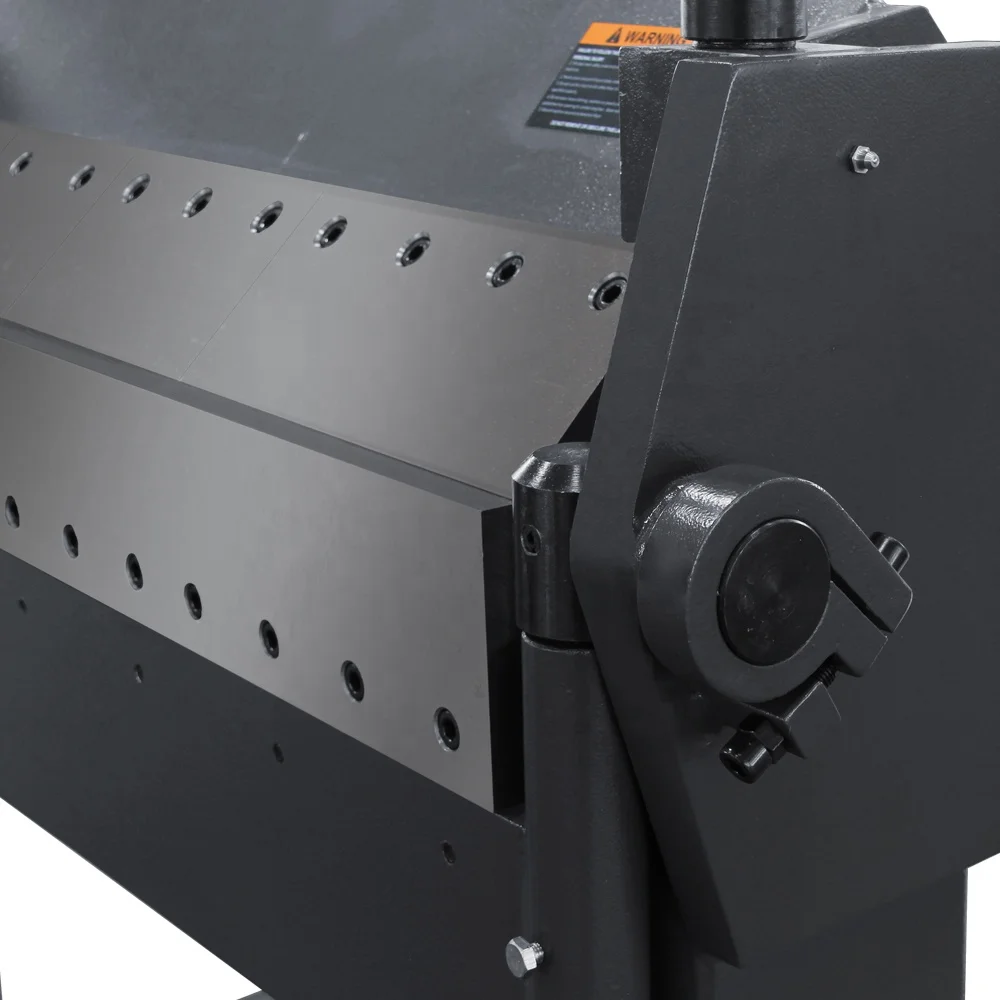

Segmented fingers on the lower lifting beam let flanges and flaps hang down while still allowing you to get close to the bend line.
Adjustable stop rod helps you make repeatable parts for production runs without difficulty.
Simple blade gap adjustment lets you work on various gauges of sheet metal.
Spring-loaded cylinder assists in lifting the apron, saving effort for the operator.
You can clamp the material with the foot pedal, so that both hands are free for positioning the sheet metal.
Segmented fingers on the lower lifting beam let flanges and flaps hang down while still allowing you to get close to the bend line.
Adjustable stop rod helps you make repeatable parts for production runs without difficulty.
Simple blade gap adjustment lets you work on various gauges of sheet metal.
Spring-loaded cylinder assists in lifting the apron, saving effort for the operator.
PRODUCT SPECIFICATIONS
TTMC Pan Box Brake, upper finger segment, lower beam segment
Item No. | 373161 | 373162 | 373165 |
Model | PBB1020/2A | PBB1270/2A | PBB1520/1.5A |
Max. working length (mm) | 1020 | 1270 | 1520 |
Max. sheet thickness (mm) | 2.0 | 2.0 | 1.5 |
Max. clamping bar lift (mm) | 47 | 47 | 47 |
Folding angle | 135° | 135° | 135° |
Packing size (cm) | 146x64x131 | 171x71x131 | 196x71x130 |
N.W./G.W. (kg) | 325/390 | 370/450 | 395/466 |
