LinYi manufacture four shuttle circle circular loom weaving machine for PP Woven bag fabric Sack production line making machine

Product Overview

Description

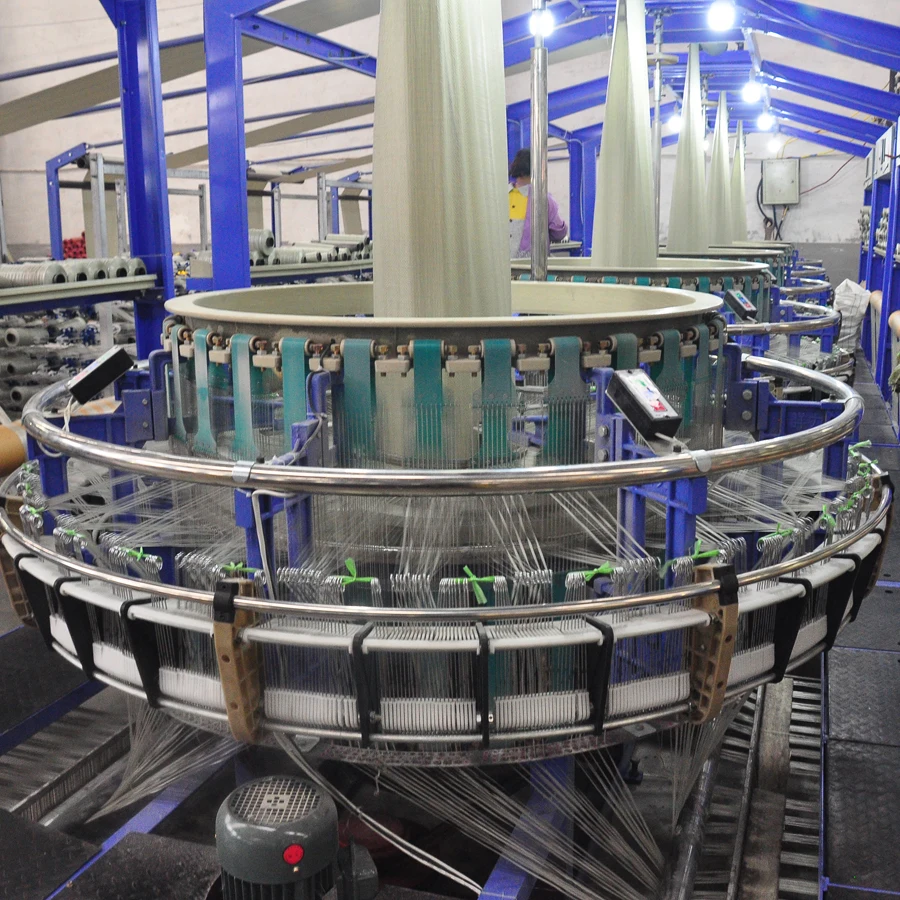

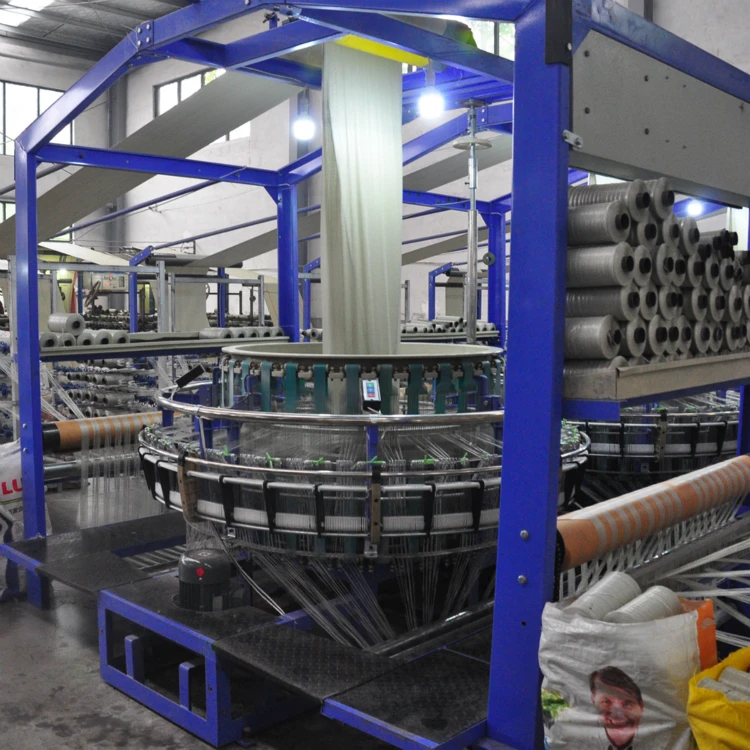

circle loom machine



Introduction:

This circle loom weaving machine can make pp flat yarn to woven rolls for woven bags or Jumbo bags .

With the scroll transmission by little cam and sewing-arm wheel, the machine runs easily and stable.

Rolling transmission is adopted in entire structure instead of slide block and slide rod, which doesn’t need lubricant and decreases the wearing part.

With the detector for warp-breaking, weft-breaking and weft-ending, the sensibility for automatic stop becomes reliable.

It adopts the latest energy saving synchronous motor and the intelligent micro-computer controlling system can be instead if required. It can adjust the weft density and compensate the weft density in case of weft-braking, which can improve the evenness of woven fabrics.

Main Technical Parameters  :

Model	YZJ-4/1000
Number of shuttle	4
Finished cloth width	550-950mm
Max warps	768/896 pcs
Rotational speed of main motor	140-180 r/min
Main motor power	2.2 KW
Total power	3.5 KW
Out put	1.4-1.8m/min
Mounting dimension	8400*2200*2650mm
Weight	1800kg
