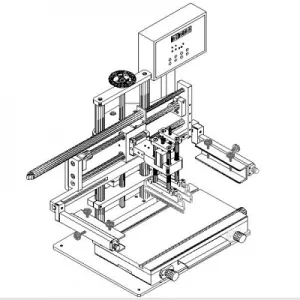

Semi Automatic 3050 Screen Printing Machine Desktop SMTsolder paste Stencil Printer
- Category: >>>
- Supplier: Jugetek Co. Ltd.
Share on (62456604256):
Product Overview
Description
Product Description
Desktop solder paste stencil printer
Characteristics
1.Using precision guide rail and the import motor to drive the blade seat conversion, printing, and high accuracy.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.PLC Control System to ensure working stabilized & reliable; Touch screen is easy to operate.
7.Can be set to one-way and two-way, a variety of printing methods.
8.With the automatic counting function to facilitate the production of output statistics.
9.Adjustable blade angle, steel blade, rubber scraper are suitable.
10.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
11.Printing speed display, can be adjusted.
2.Printing scraper can rotate 45 degrees fixed up, easy printing stencil and squeegee cleaning and replacement.
3.Block can be adjusted before and after the blade, to choose the right printing position.
4.Combined with a fixed groove printing platen and PIN, easy installation and adjustment, for single, double sided printing.
5.School Edition way to move a steel mesh, combined with printed (PCB), X, Y, Z. Convenient fine adjustment.
6.PLC Control System to ensure working stabilized & reliable; Touch screen is easy to operate.
7.Can be set to one-way and two-way, a variety of printing methods.
8.With the automatic counting function to facilitate the production of output statistics.
9.Adjustable blade angle, steel blade, rubber scraper are suitable.
10.Touch screen with a screen saver function, the time can be adjusted to protect the touch-screen life.
11.Printing speed display, can be adjusted.
Item | YX3050 | ||||||
print-table size | 250*350mm | ||||||
frame size | 400*800mm | ||||||
substrate size | 300*500mm | ||||||
substrate thickness | 80mm | ||||||
Positioning | PCB Outer Or Pin Positioning | ||||||
minimum adjustment | Front/Back±10mm R/L±10mm | ||||||
printing accuracy | ±0.02mm | ||||||
repeated accuracy | ±0.08mm | ||||||
minimum distance | 0.25mm | ||||||
air pressure | 4-6Kgf/Cm2 | ||||||
power | 110V/220V 50HZ/60HZ | ||||||
size | 650 x 5700 x 850mm | ||||||
weight | 100kg | ||||||
