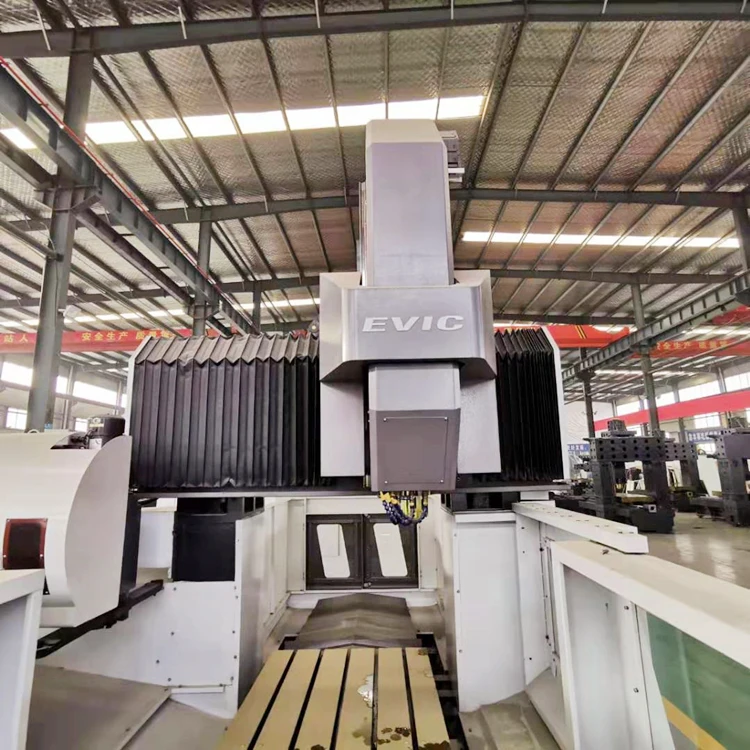

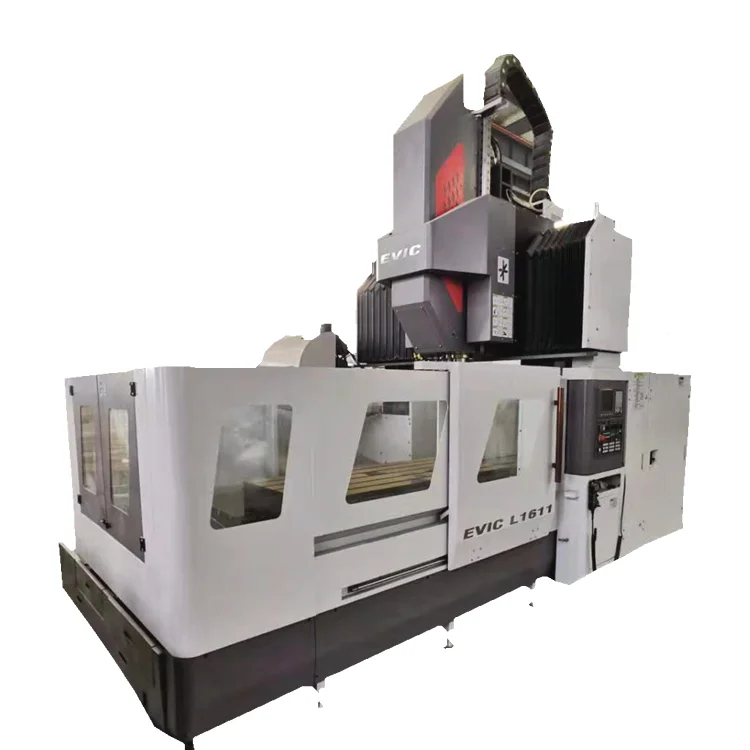

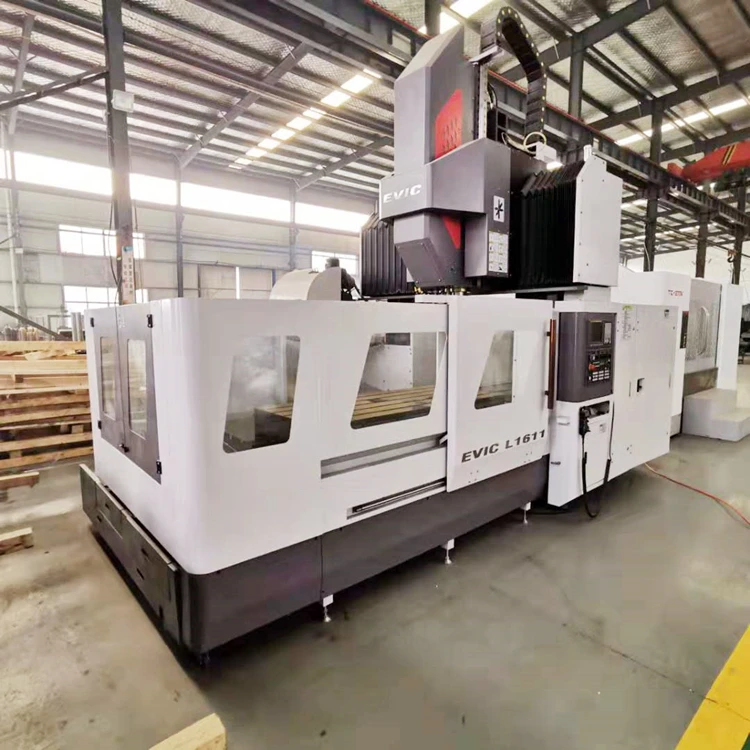

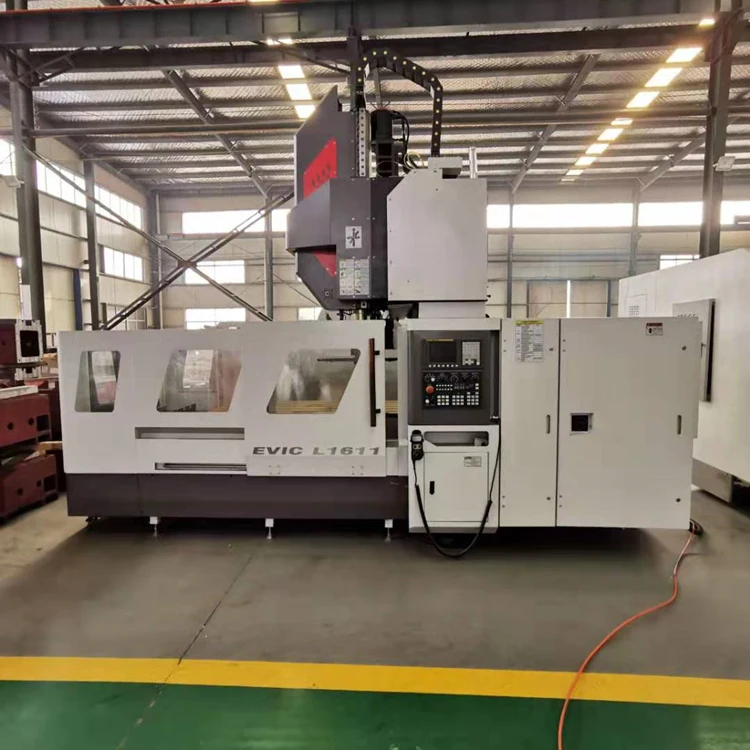

L1611 двустоечный обрабатывающий центр с ЧПУ, козловой фрезерный станок

Product Overview

Description







  L1611 double column machining center cnc gantry milling machine:





Specifications	Units	GMC1611
Table size	mm	1800x800
X axis travel	mm	1600
Y axis travel	mm	1100
Z axis travel	mm	600
Max. worktable load	kg	2500
T slot(number-width-pitch)		5-18x140
Max. spindle speed	rpm	8000
Spindle taper	mm	BT40 (Optional:BT50 )
Main motor power	kw	15/18.5
X/Y/Z rapid traverse speed	m/min	12/12/12
Cutting feed speed	mm/min	1-10000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	406.5
Distance between spindle nose and worktable surface	mm	140-740
Positioning accuracy	mm	±0.005
Repeat positioning accuracy	mm	±0.004
Tool magazine		Arm 24
Max. tool diameter	mm	φ78 (Adjacent)/ φ120(Apart)   Optional: φ112 (Adjacent)/ φ200(Apart)
Max.tool weight	kg	8 (Optional: 18)
Machine weight	kg	16000
Overall dimension	mm	4500x3000x3600

Main Specification:











Warranty period:

one year During warranty period, if you have any parts broken because of qulity problem,we will supply to you free of charge by express. Out of warranty period, if you have any question, you can contact with us, we will supply our best service to you as usual.

\\
