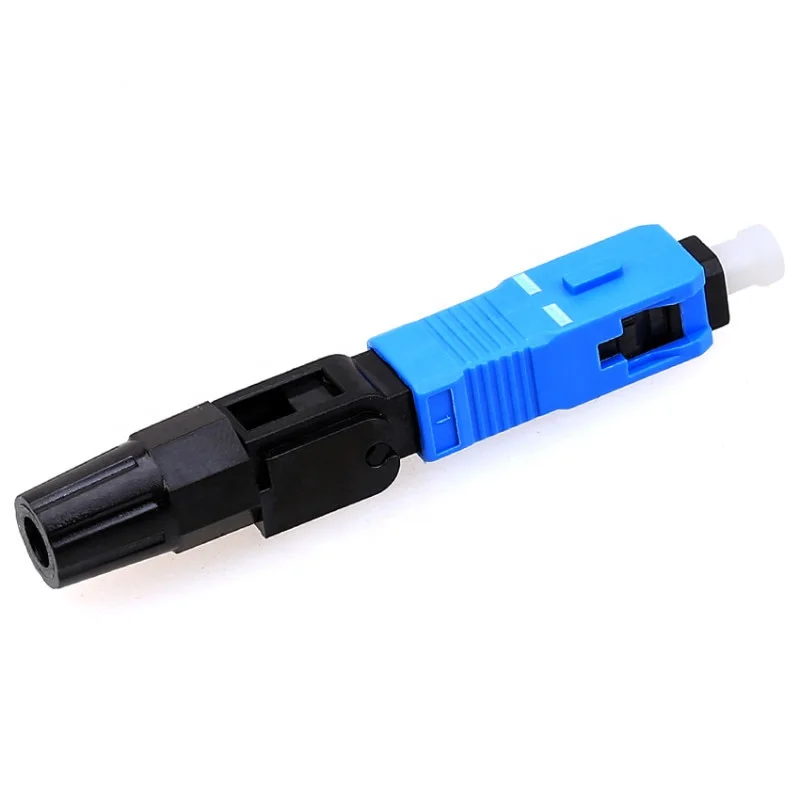

best price for fiber cable quick connector ftth sc upc /sc apc fast connector

Product Overview

Description

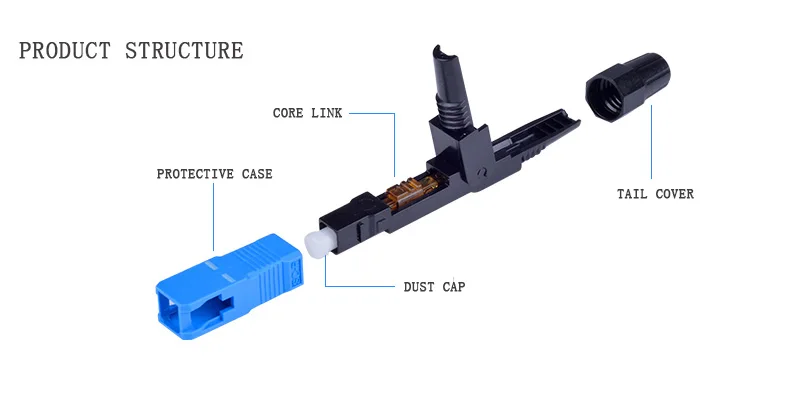

The fast connector is embedded optical fiber, to ensure a controlled factory ceramic polishing face, the radius of
curvature, apex offset, optical fiber end surface polishing projection height and the ceramic mass

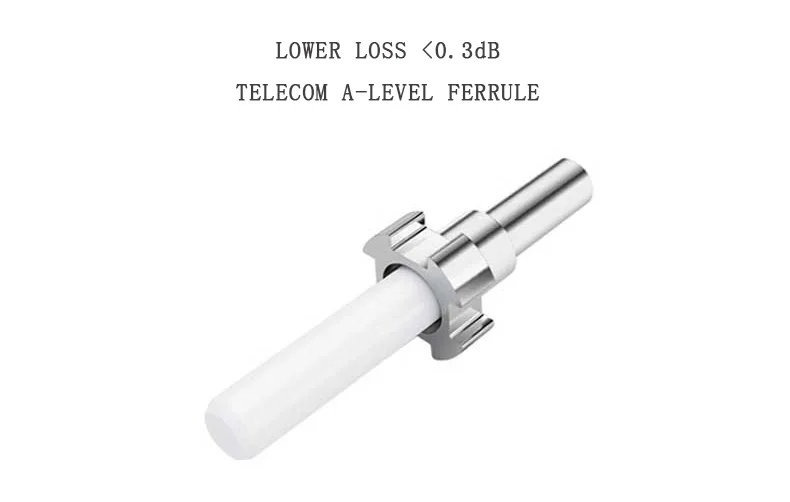

The use of high concentricity of the ceramic ferrule embedded fiber ensures a low insertion loss and high return loss

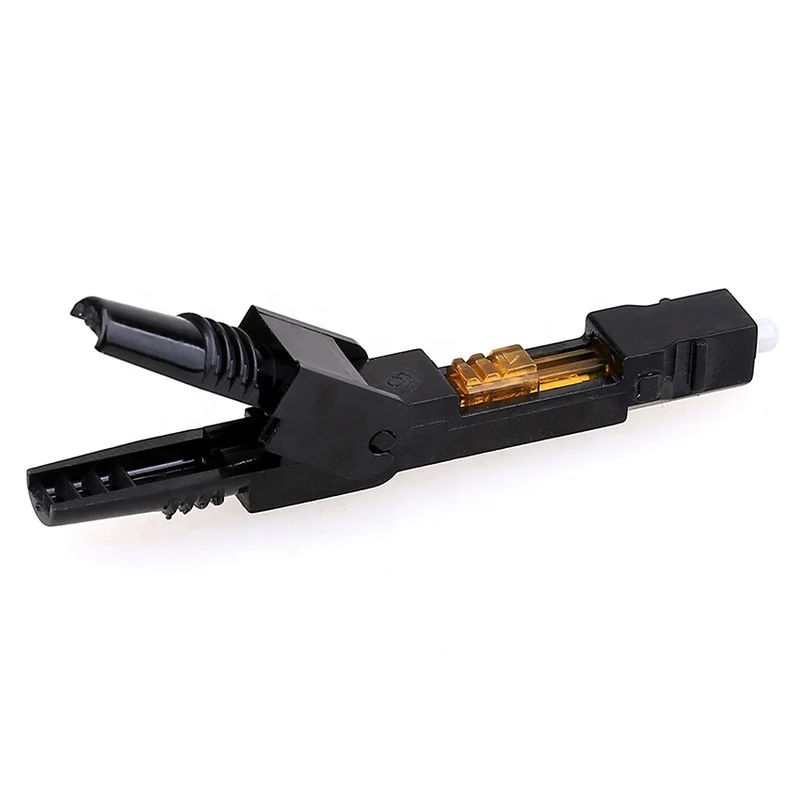

optical performance accuracy of the V-groove to be cut on site slide locking mechanism fixed to the fibers have the
V-groove of the fiber core center the combination of precise fiber core with matching refractive index matching cream
can guarantee quick connectors with high stability and high performance bare fiber, coating, pigtails, skin quadruple
cable clamp, special assembly fixtures to meet the requirements, the operator simple and quick.

Features

Standards of IEC, Telcordia

60 seconds installation time

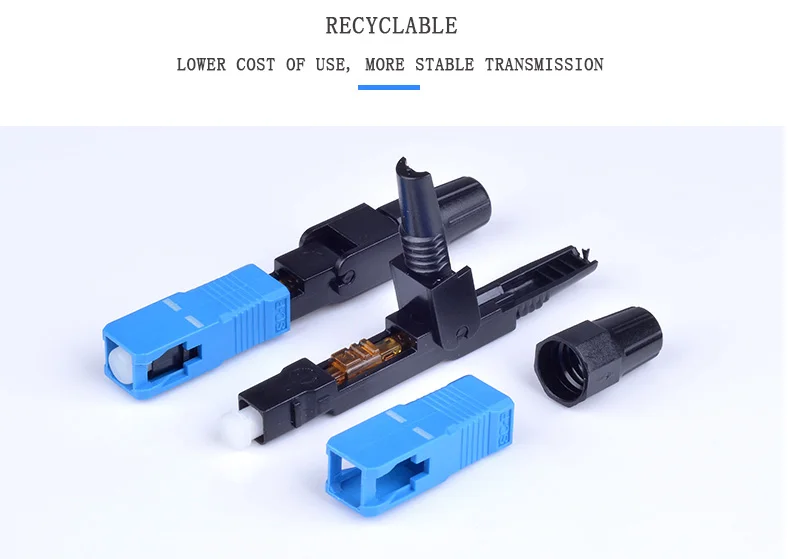

Can be used 10 times

Low insertion loss

Compatible with standard SC connectors;

Field installable, cost effective, user friendly;

UPC, APC polishing optional;

No electricity required;

FTTH cable, fiber optic cable optional;

Reliable durable and superior optical performance.



Specifications

Fiber Type	SM/MM
Surface polishing	SC/UPC
Color	Blue
insertion loss	Lower than 0.3dB
return loss	≥60dB
joint endurance	10 Times
Material of shell	ABS
Applications	2.0/3.0 or FTTH patch cord
Fiber Diameter	125um
Tensile Strength	>20N
Lock Strength	0.2dB
Temperature Cycle	0.3dB
Virbration	0.2dB
Temperature	-40℃~+80℃

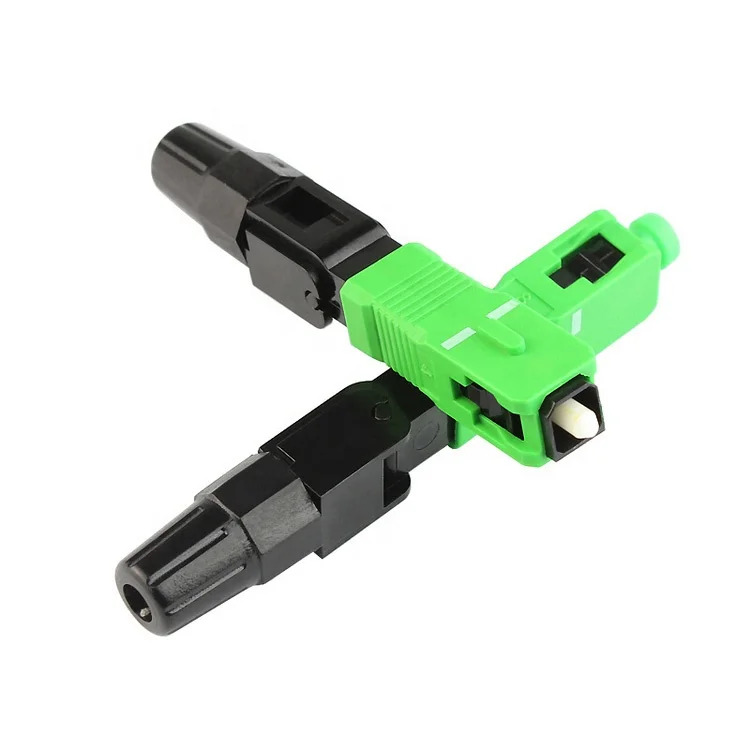

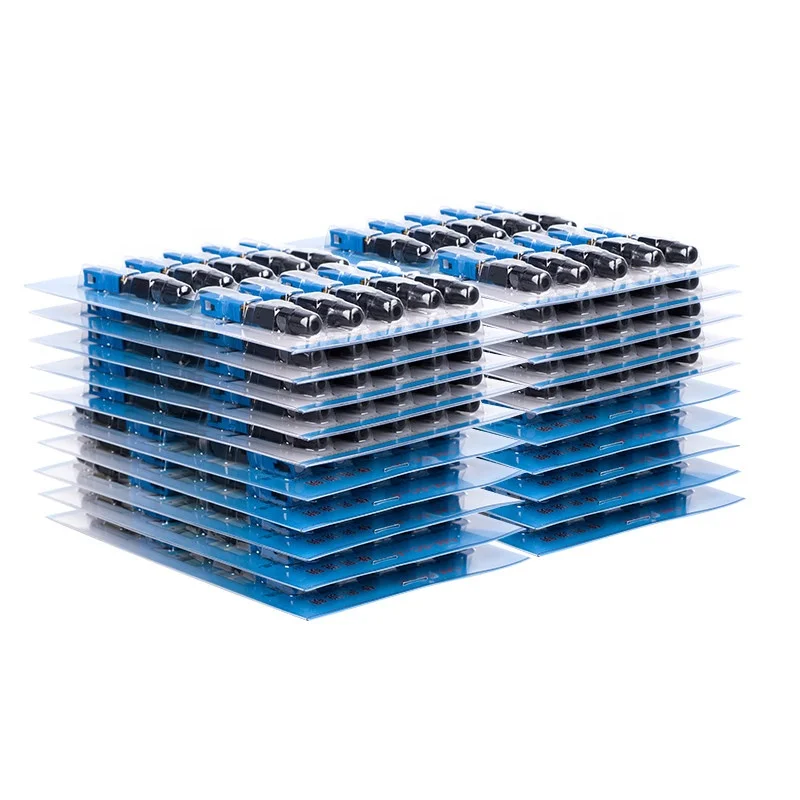

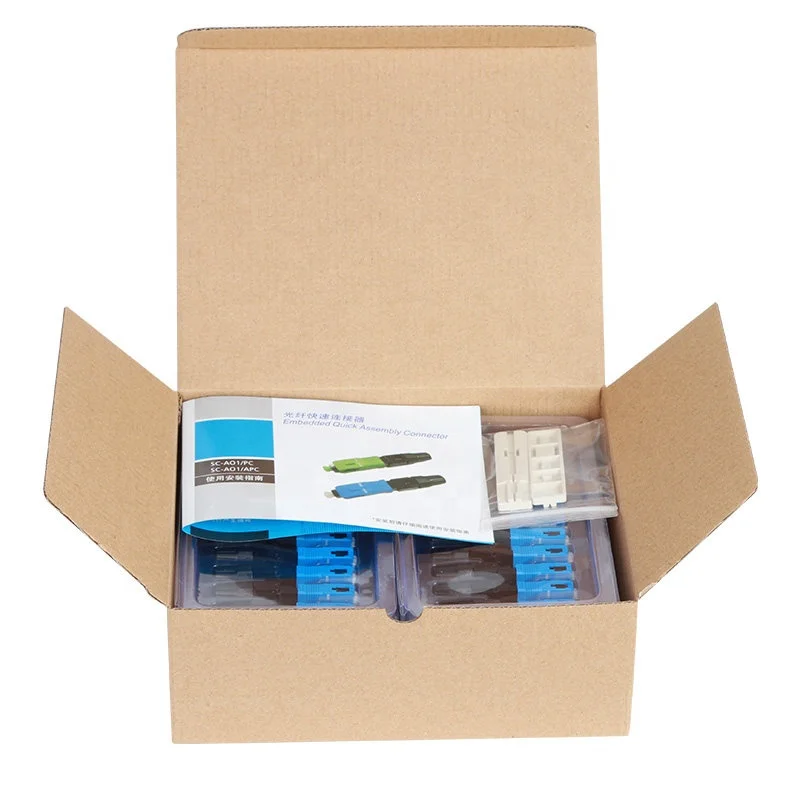

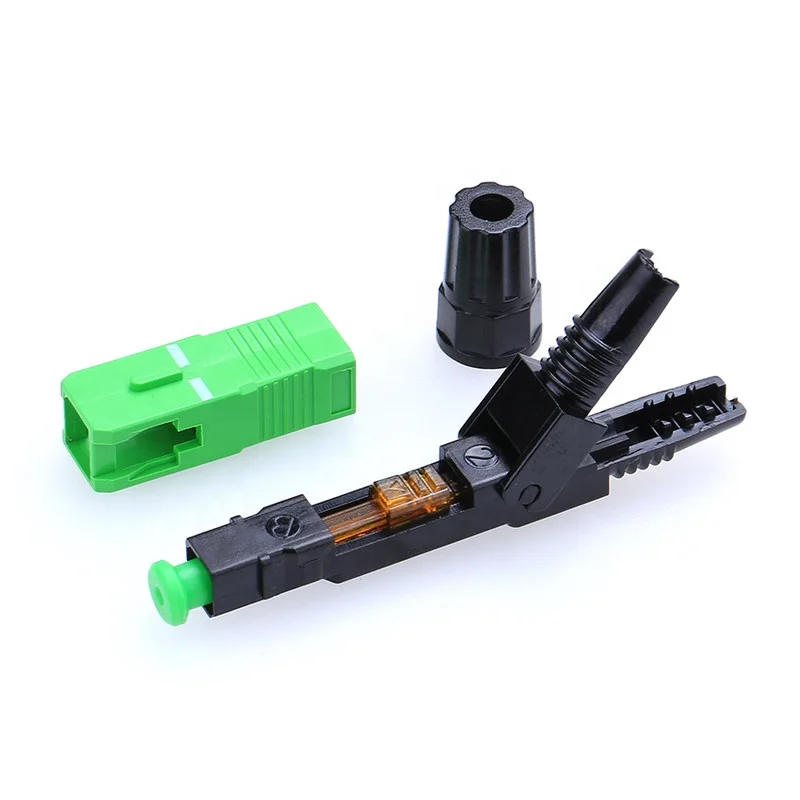

Products Picture
