Glazed sheet roof ridge cap roll forming machine
- Category: >>>
- Supplier: Zhangjiagang Gihua Machinery Co. Ltd.
Share on (62456949959):
Product Overview
Description
Product Description

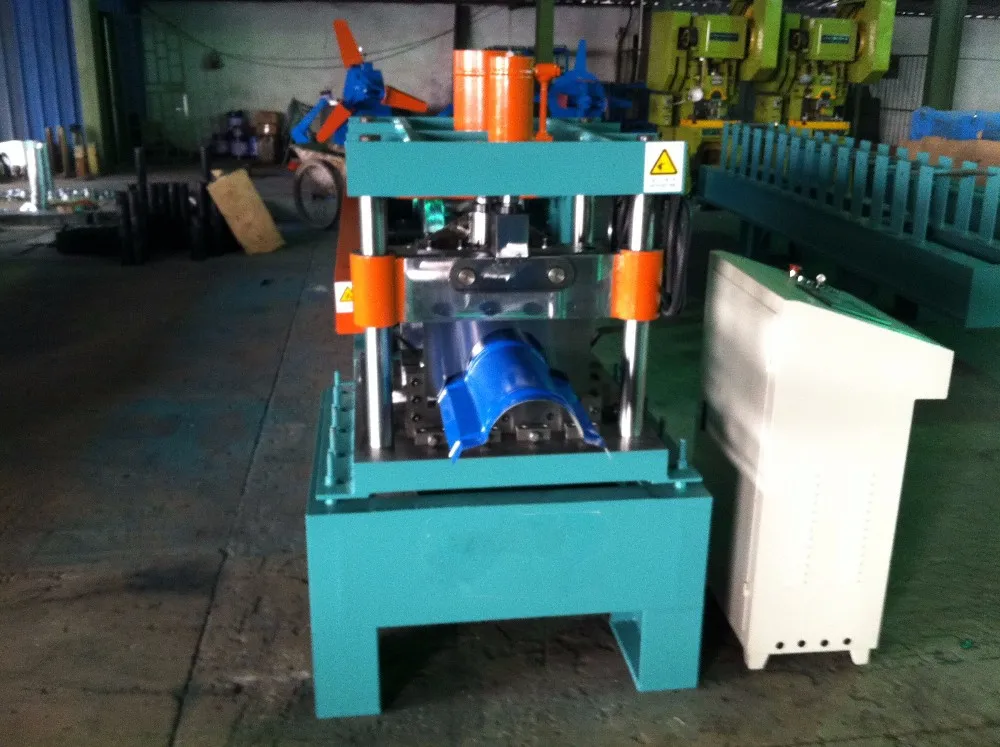

YX25-205-820 panel roll forming machine（Only for reference）
Maximum roll forming speed: not less than 15meters per minuteBending precision: the maximum profile deviations (dimensions and shape) shall not exceed the tolerances specified as following data (or equivalent tolerances);
Bending quality: ability to bend the profiles of the specified configuration at the specified maximum steel thickness; cracking of the steel or metal coating is not permitted for all required steel grades.
If you have your own special requirements,our machine can be also customized.

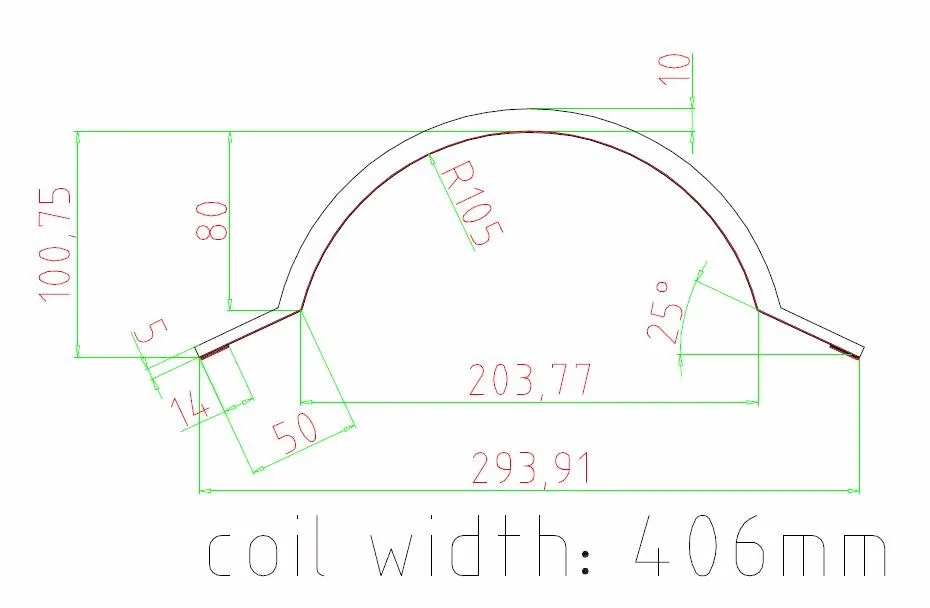

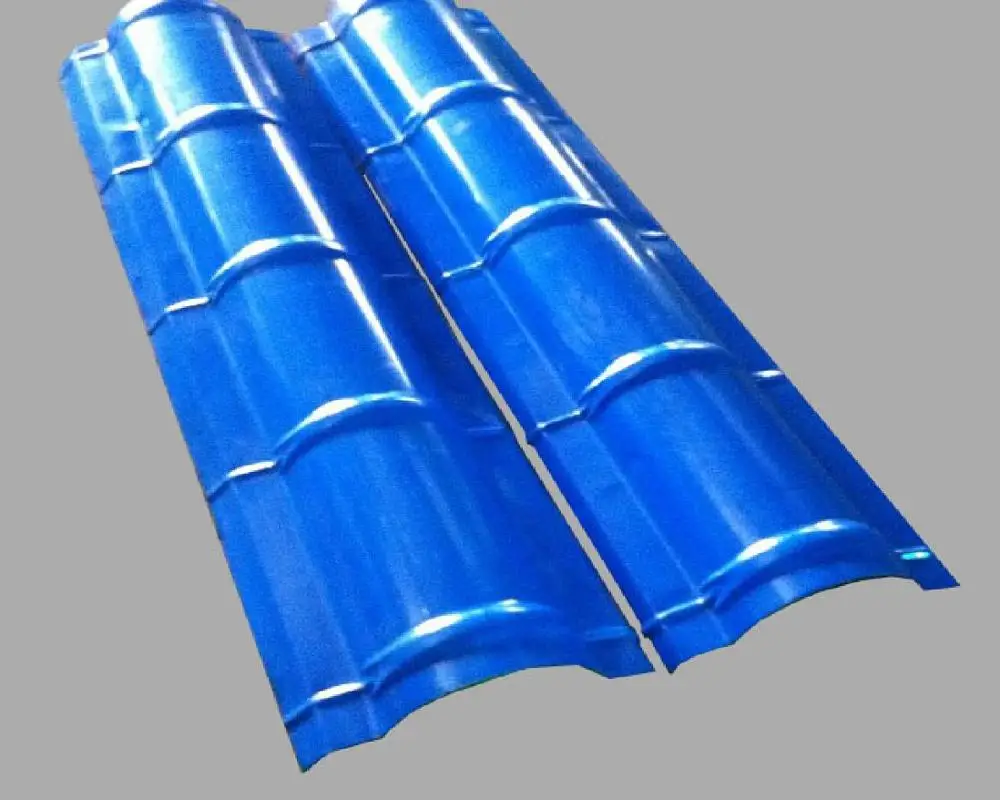

profile as following:

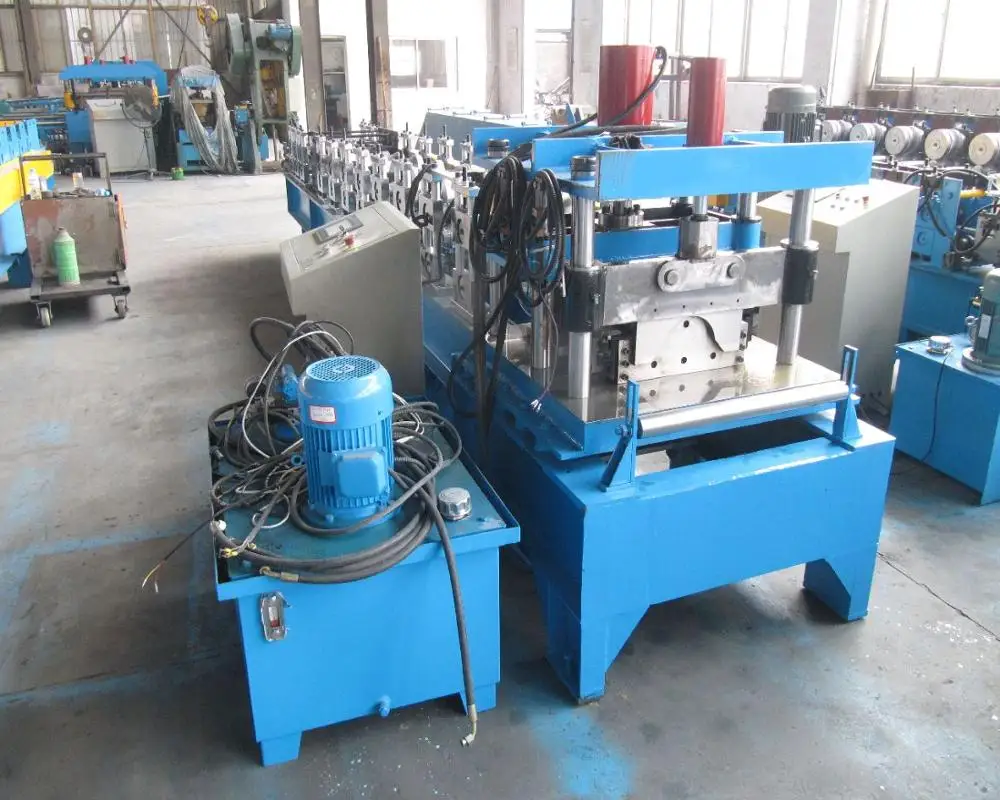

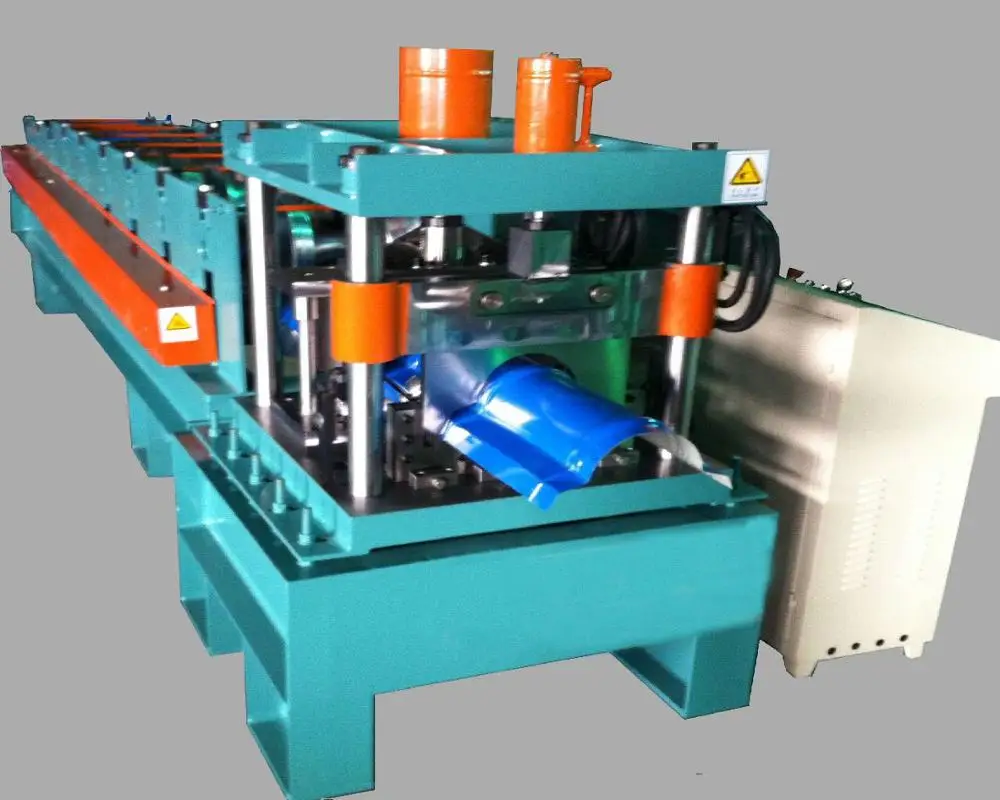

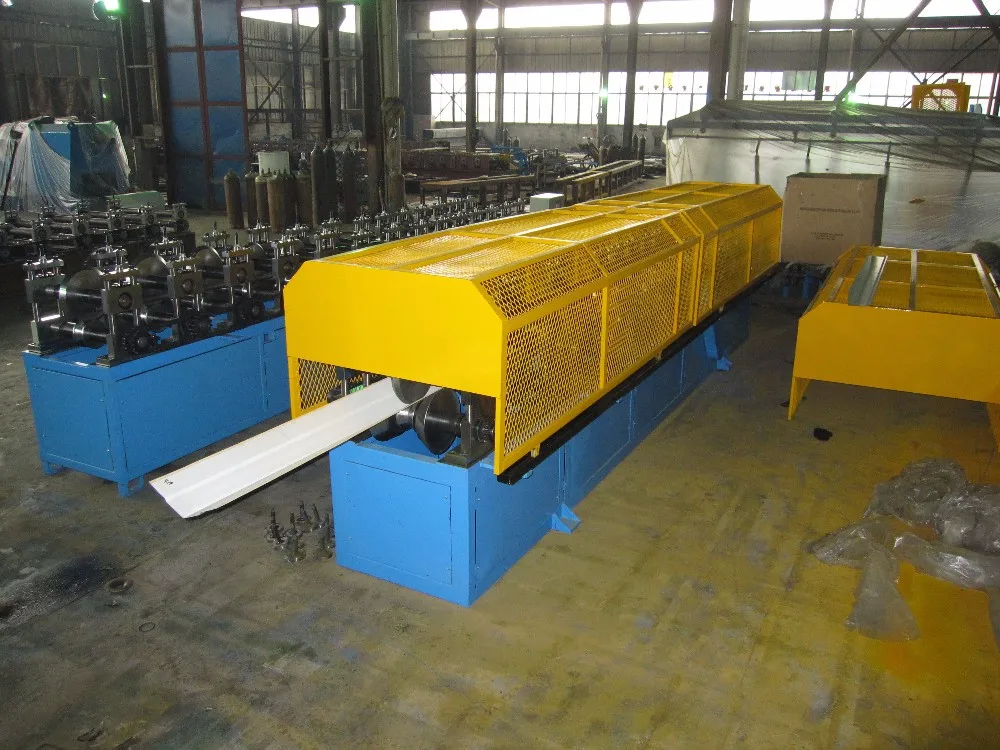

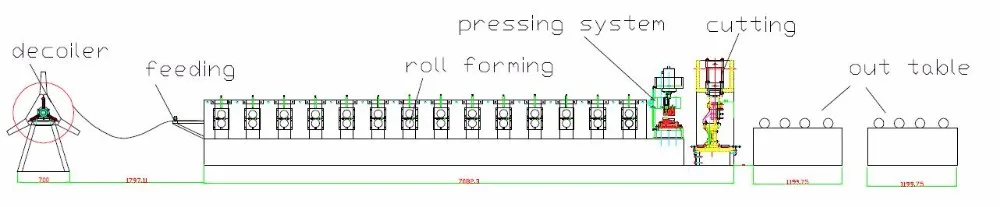

Whole machine:
Main Features
Profile thickness between 0.4mm and 0.7mm
Effective width: base on profile 406mm (final is base on testing result)
Following profile in only for customer reference, the exactly can be provide by customer
This machine adopt post-cutting.
Length tolerance: ±1.5mm per each pieces
Certifications

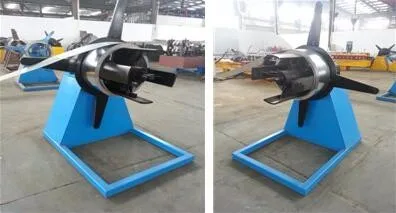

Manual decoiler:
Dimensions: 1700mm*1000mm*800mm
Width of feeding: 300mm
Capability: 3Ton
Range of expand(by manual): 420mm—510mm
Mode of expand &fight: inner expand &fight by manual
Way of feeding: manual
Color: blue

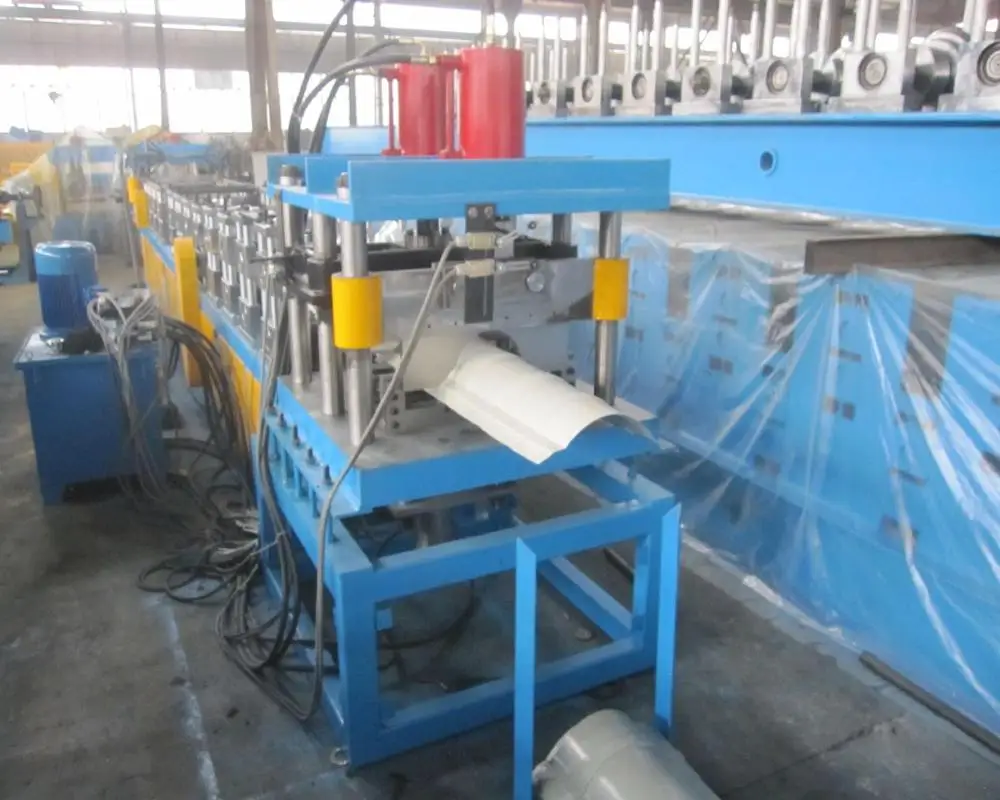

Detailed Images

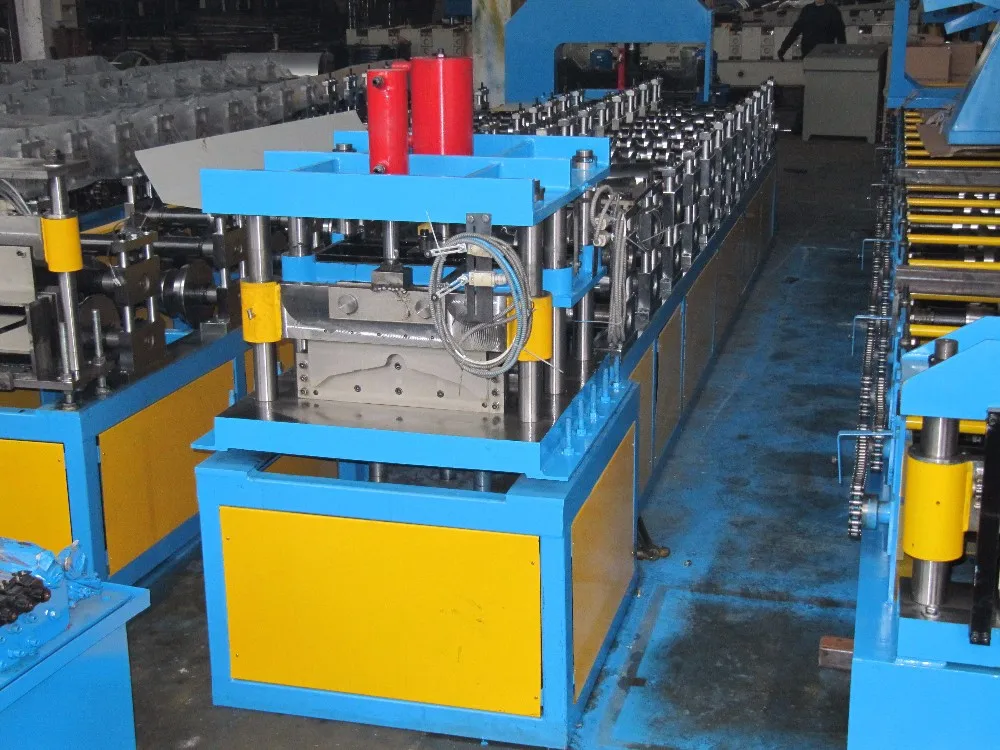

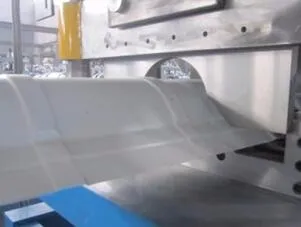

Forming section
Profile steel thickness between 0.4mm and 0.7mm
Main motor power:4kw, AC motor, side motor to save space (Brand: guomao which made in China)
Machine Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
Roll station:7stations+4 station of side roller (base on final design)
Roller material:SAE1045, chrome plated surface
Shaft diameter: ￠65mm material: SAE1045
Working type: up shaft is initiative, down shaft is passive
Machine roll forming speed: not less than 15m/min
Cutting :
Machine adopt hydraulic press and post-cutting
Press distance is adjustable by PLC system
Cutting after forming: Cut the sheet after roll forming to required length
Cutting motion: The main machine is will stop when cutting, after this motion will start again automatically.
Material of blade:Cr12 with heat treatment 58-60°1 sets cutter
Length measuring: Automatic encoder length measuring, brand: Omron
Tolerance of length: 3000mm+/- 1.0mm
Cutting table length: 2m
out table:
Frame: welding by tube
Size: about 2.0m long*0.3mwide*0.9mhigh
One out table with support roller
Supporter roller: ASTM 1045 with chrome
Diameter of rollers: 55mm
Color: Blue
Quantity: 2units
Size: about 2.0m long*0.3mwide*0.9mhigh
One out table with support roller
Supporter roller: ASTM 1045 with chrome
Diameter of rollers: 55mm
Color: Blue
Quantity: 2units
Hydraulic station:
Hydraulic power: 3kW
Working pressure: 10Mpa adjustable
Solenoid valve: 2 group
Hydraulic oil: 46# hydraulic oil
Color: Blue (or base on customer request)

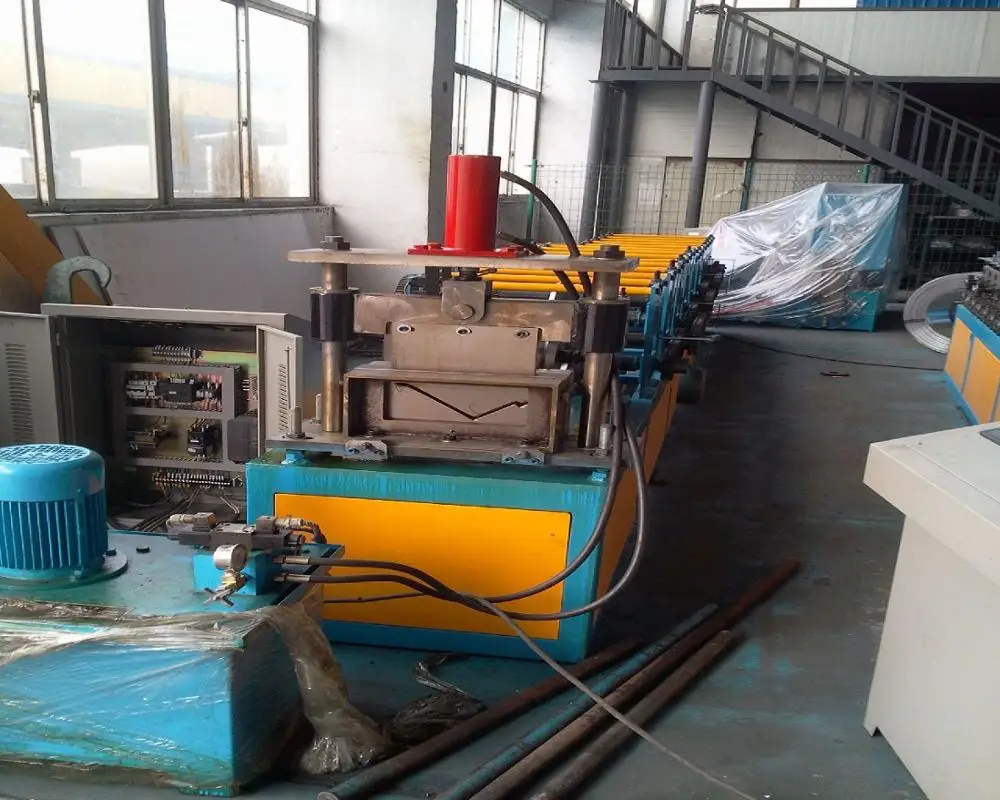

Control carbinet:
1)Programmable setting of profile length and quantity
2)Automatic stopping of the equipment after completion of the cutting programme.
2)Automatic stopping of the equipment after completion of the cutting programme.
3)Operating system language: English and Chinese
4)Computer used to control length & quantity. Machine will automatically cut tolength and stop when required quantity is achieved
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview
5)PLC brand: Panasonic
6)Frequency converter brand: Yaskawa, quantity: 1
7)Touch screen: Taiwan Weinview
loading machine
Our Service
Enginer to test machine for clients.
Clents learning to check the products.
Packing & Delivery
FAQ
If any needs or questions, feel free to contact me please.
We would like to design the machine for you
Mob/WhatsApp: 008618551231440
