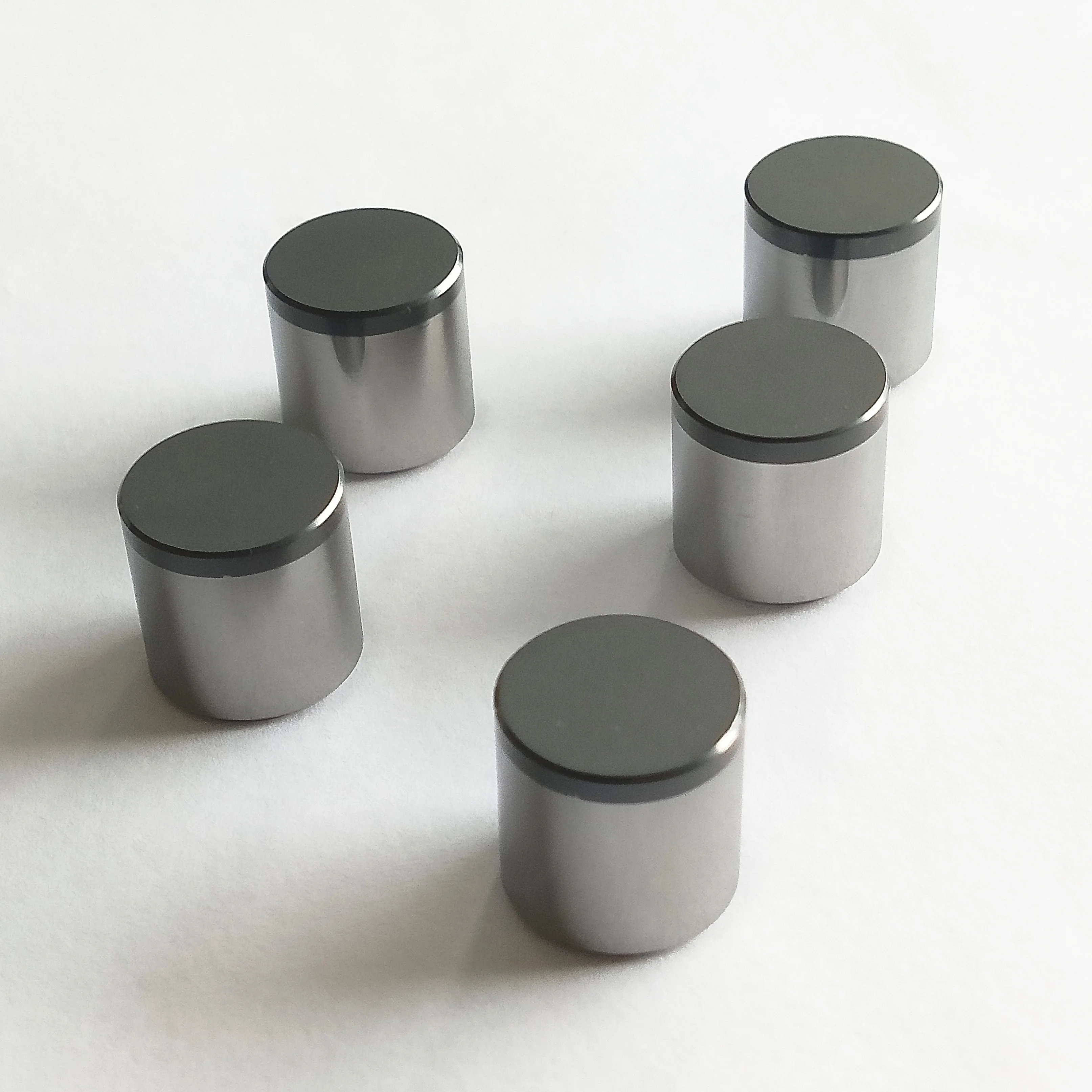

Sanmeul Factory Directly 1616 PDC Carbide Inserts for Water Well and Oil Drill Bit Diamond Products
- Category: >>>
- Supplier: Sanmeul Drilling Tools Co. Ltd. (Bozhou)
Share on (62456974318):
Product Overview
Description
Product Description

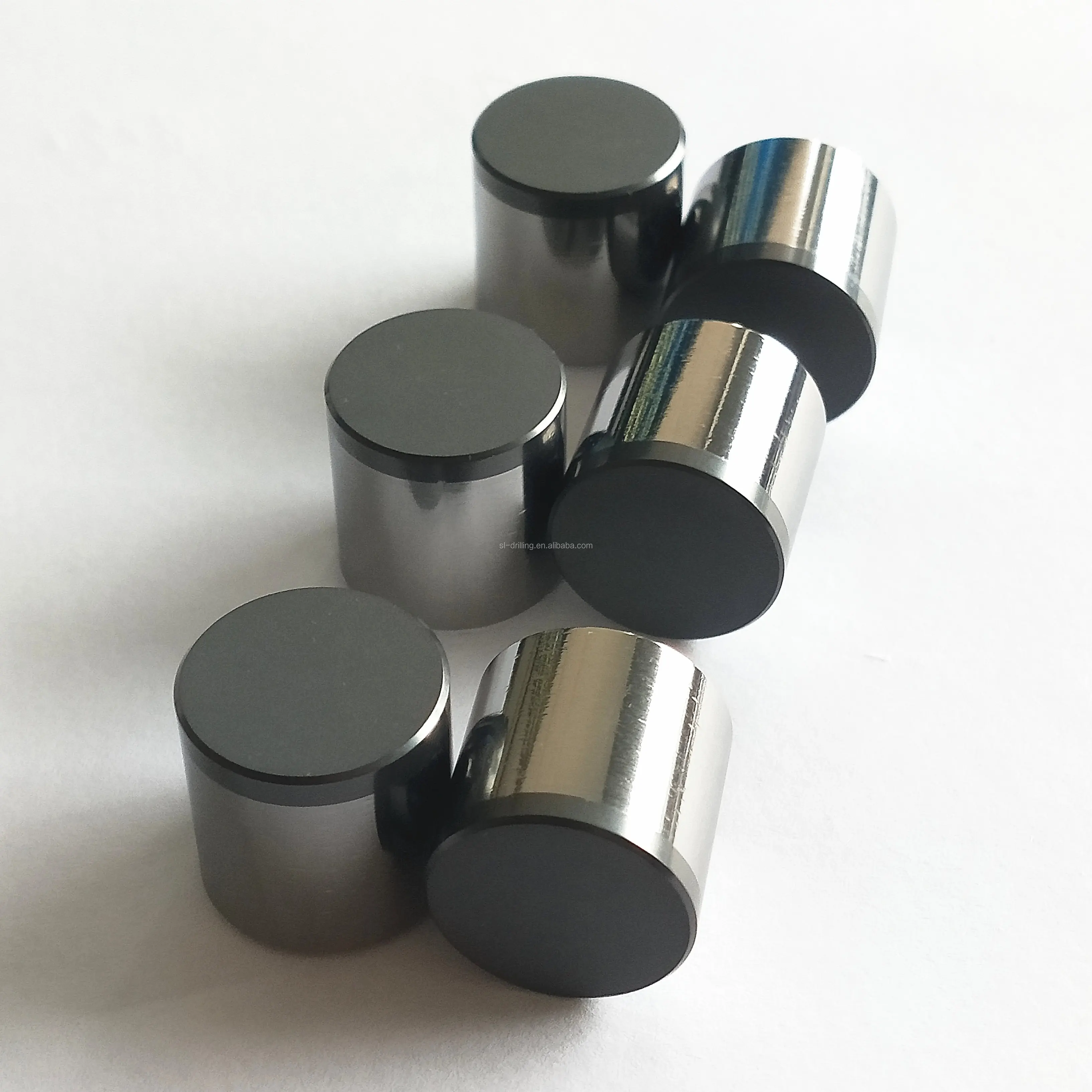

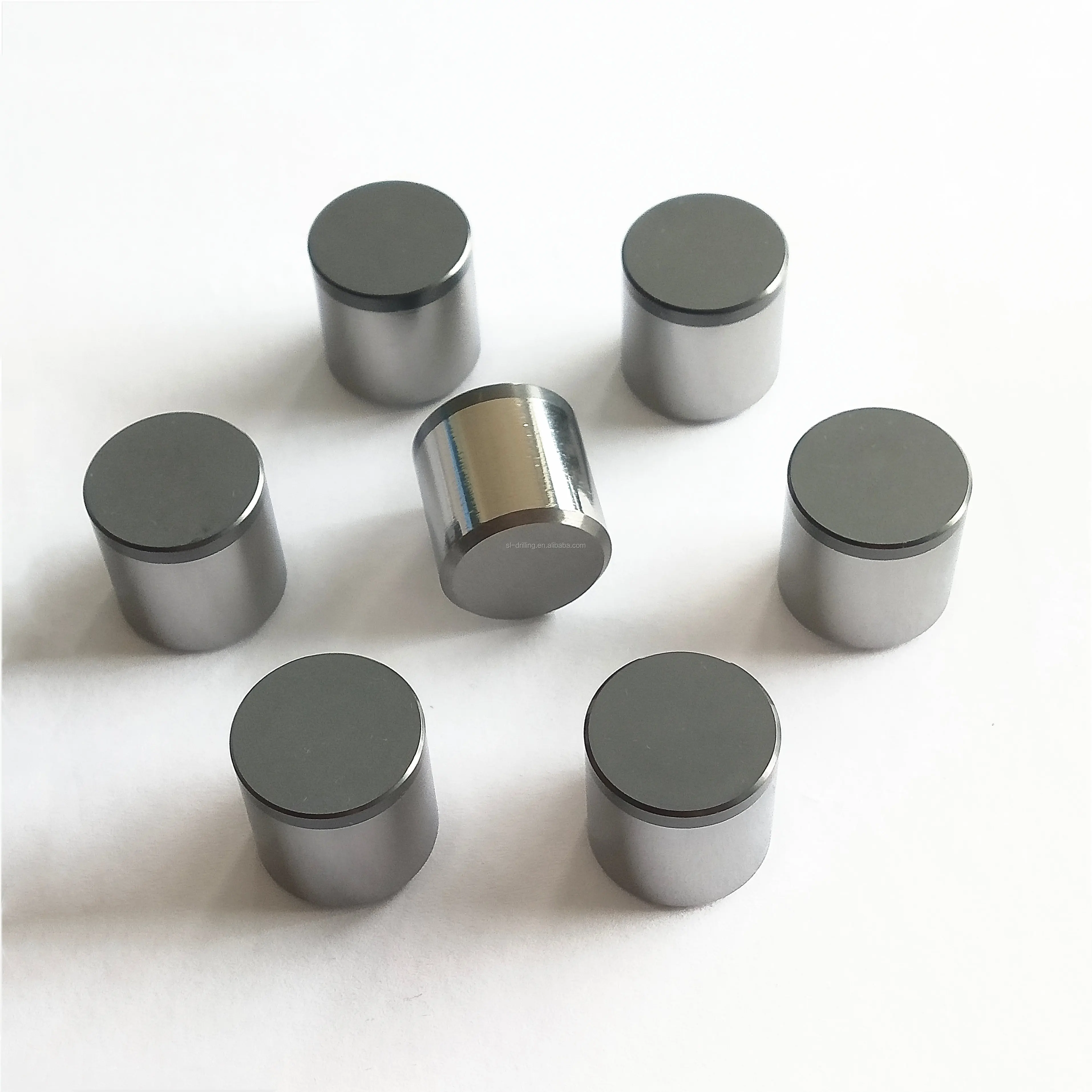

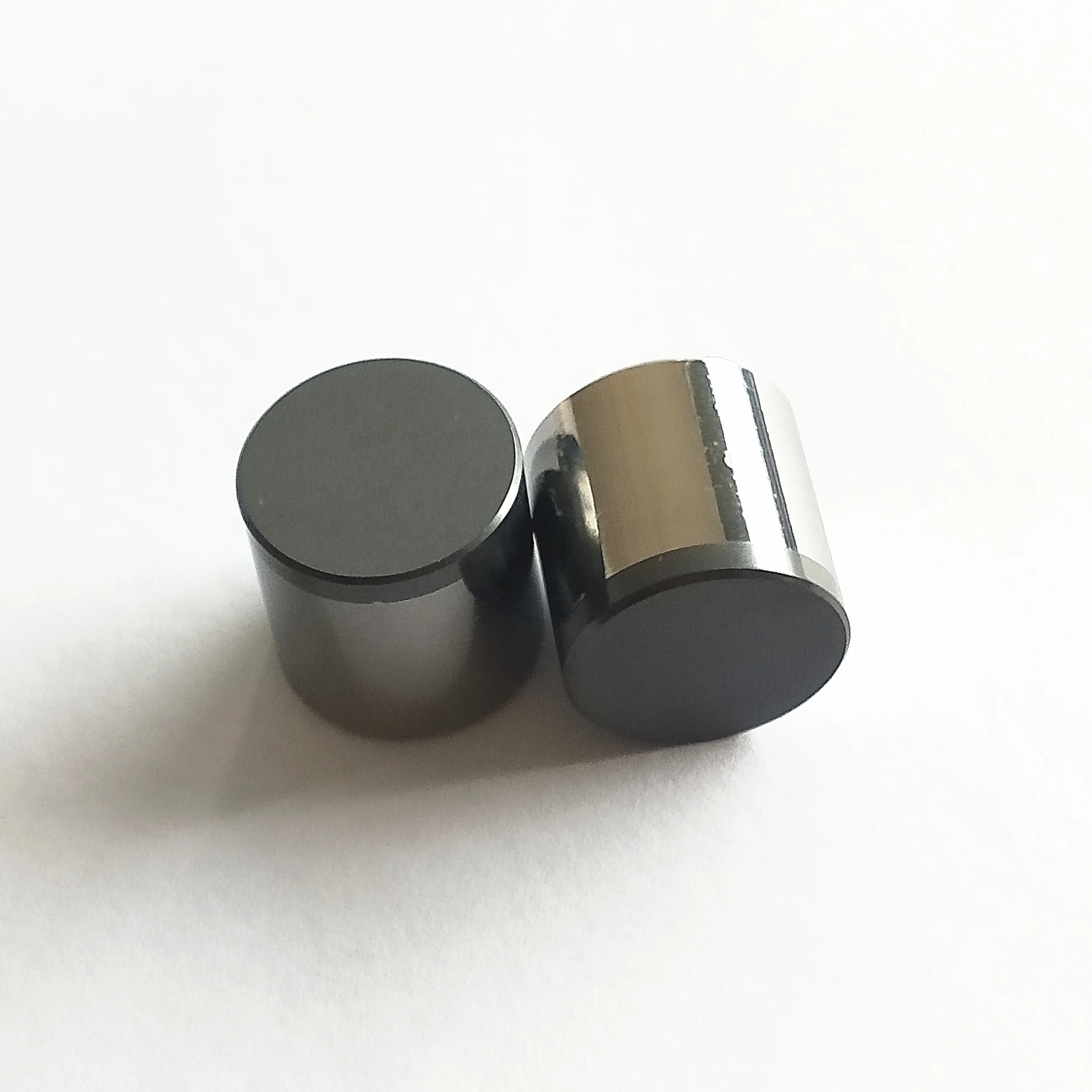

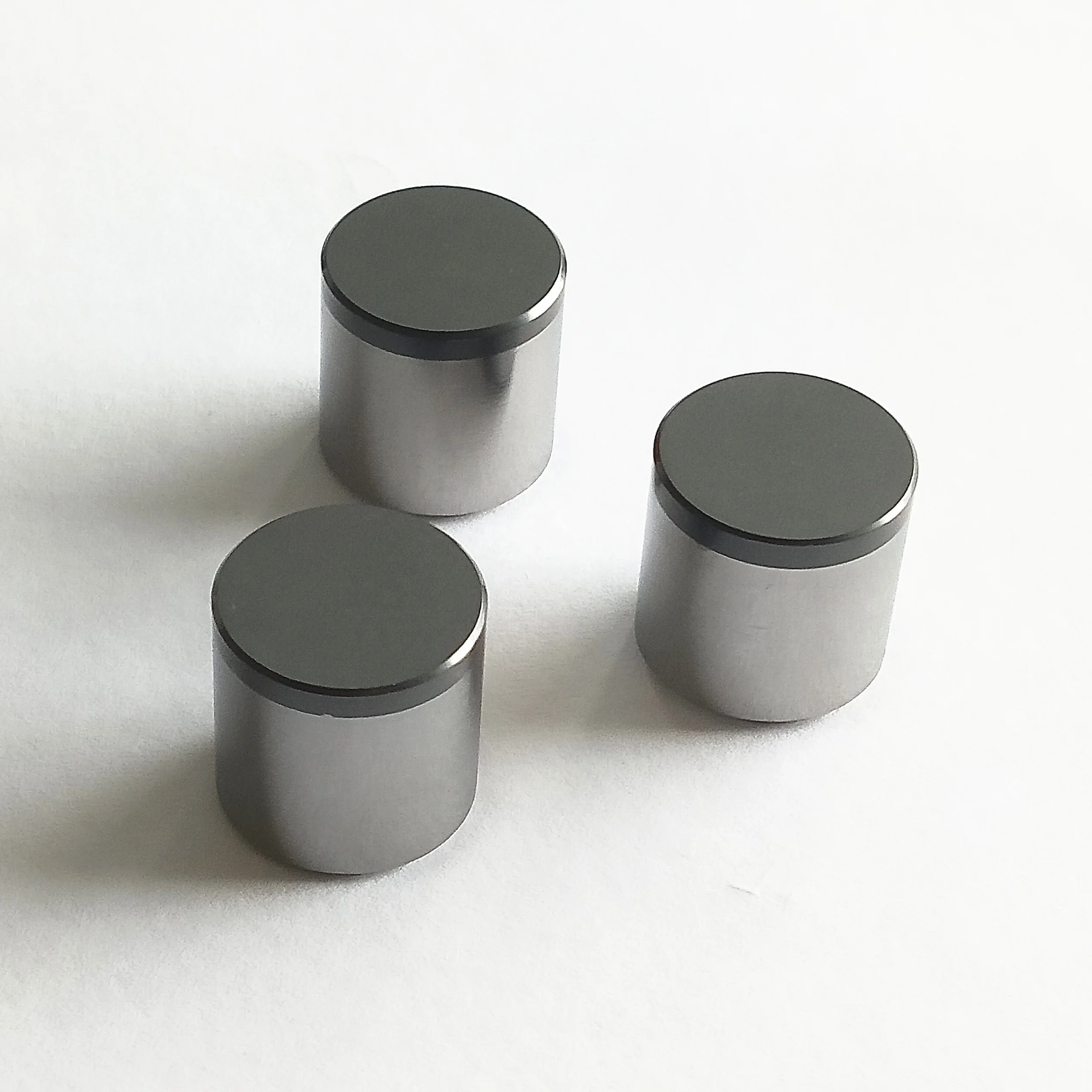

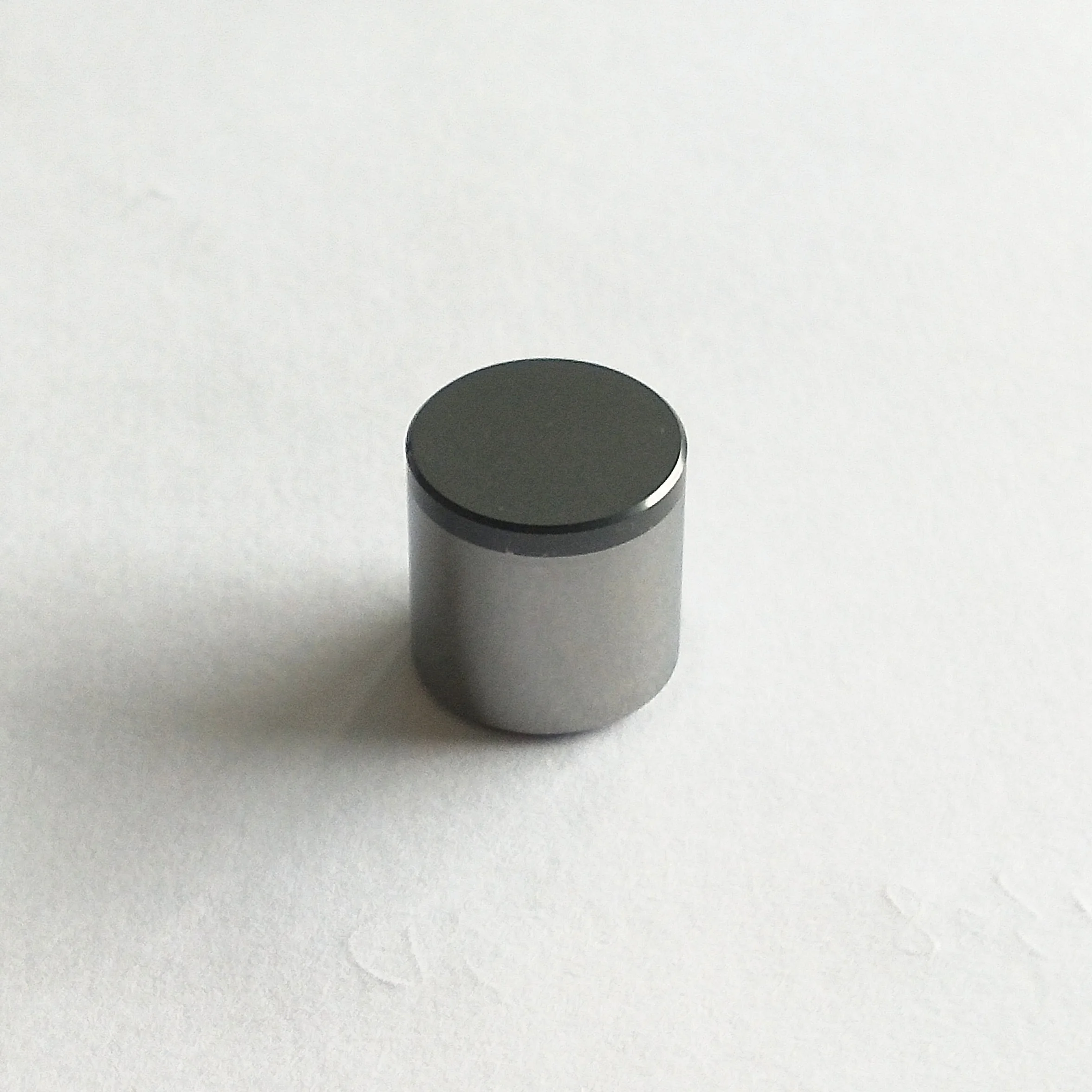

PDC (Polycrystalline Diamond Compact) Cutters are made from tungsten carbide substrate and synthetic diamond grit. They are widely used in geothermal energy drilling, mining, water well and natural gas drilling and oil well drilling.
We have been offering PDC cutters with different grade of quality for over 10 years, and the pricing is most favorable throughout China. Our PDC cutters are very popular in USA, UK, Germany, Poland, Australia, Russia, Kazakhstan and Ukraine etc.. They work perfectly as feedback.
We are very glad to offer you suitable PDC cutters to meet your drilling needs in different formations. We are looking forward to your inquiry.
Specifications:
Available Size:
Description | Diameter(mm) | Height(mm) | PCD Layer Thickness |
0804 | 8.20 | 4.5 | 1.8±0.2 |
0808 | 8.20 | 8.00 | 2.0±0.2 |
1008 | 10.00 | 8.00 | 2.0±0.2 |
1304 | 13.30 | 4.50 | 2.0±0.2 |
1308 | 13.30 | 8.00 | 2.0±0.2 |
1313 | 13.30 | 13.20 | 2.0±0.2 |
1613 | 16.00 | 13.20 | 2.0±0.2 |
1616 | 16.00 | 16.00 | 2.0±0.2 |
1908 | 19.05 | 8.00 | 2.0±0.2 |
1913 | 19.05 | 13.20 | 2.0±0.2 |
1916 | 19.05 | 16.00 | 2.0±0.2 |
1919 | 19.05 | 19.00 | 2.0±0.2 |
Successful
Customer Visit
FAQ
The information you may like to know before order:
1. Products we provide
Sanmeul research and produce the following range of drilling tools:
* PDC cutter/insert 1304, 1305, 1306, 1308, 1310, 1313, 1613, 1616, 1916...oil or mining type.
* PDC non-core bit, PDC coring bit of diameter 46mm, 50mm, 55mm, 60mm, 65mm, 75mm, 89mm, 94mm, 98mm, 113mm, 124mm, 127mm, 132mm, 146mm, 153mm...190mm, 216mm…
* PDC anchor bit for roof bolting diameter 25mm, 27mm, 28mm, 29mm, 30mm, 32mm, 35mm, 42mm, 43mm...
* Tungsten carbide drill bit: twin-wing coal bit, chisel bit, cross bit, button bit, hammer bit...
* Drill rods – hex, twist, spiral…
* Other drill tools.
2. Payment methods
T/T (Telegraphic Transfer), Western Union, MoneyGram or Credit Card…
3. Lead time
Based on order quantity, it ranges from 3 to 20 days to finish production.
4. Shipping
Express: DHL, TNT, UPS, FedEx and Special lines…
Carrier: by air or sea.
They all apply to a very economic cost.
5. Services:
We will respond to your inquires in one hour (holidays as well).
We provide free replacement once the failure is confirmed to be caused by our product quality.
