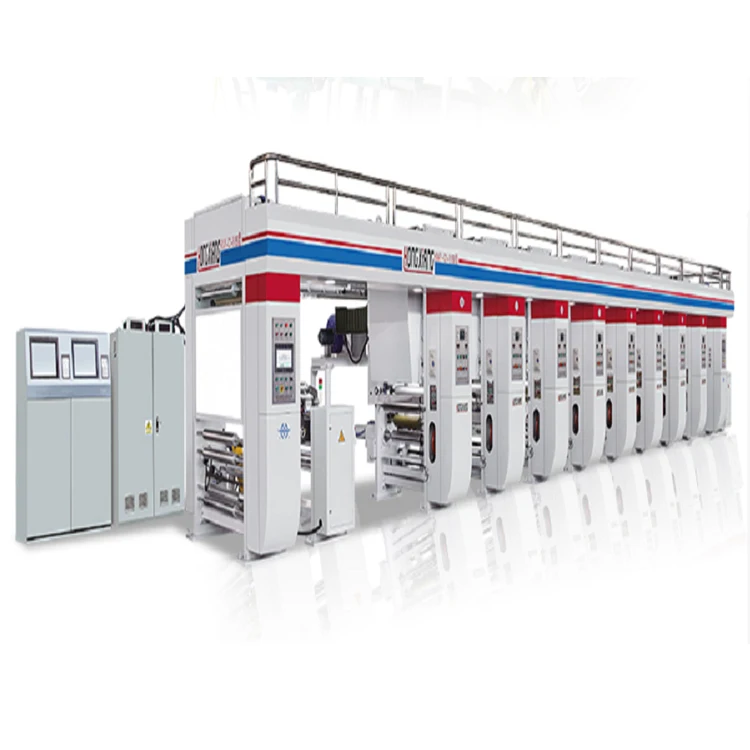

YS600~1600 Durable High Quality Plastic Bag Rotogravure Printing Machine
S-AF1300type rotogravure printing machine MAIN PARAMETERS:
Type
YA-1300
Printing width
1300mm
Printing color group
1-4color
Roller specificationφ
φ100-φ300mm
Print speed
10-60m/min
Machinery speed
80m/min
Printing precisionLongitudinal
±0.20mm
Landscape orientation
±0.20mm
Color distance
1400mm
Total power
60kw
Total weight
6.5T
Overall size
4800*2700*2600mm
1. Main drive system, speed control motor, speed control speed.
2. Combined use, a single continuous two-sided multicolor printing.
3. Recoiler double-torque motor, and discharge using magnetic brake.
4. Mexican ink used automatic pump cycle-Expansion of handling axis.
5. Drying System dual-drying Road, enclosed from top to bottom using axial flow fan, hot
temperature and the wind cooling of each 50 m / min drying oven temperature regulation automatic temperature control, a function meters.
6. Blade can be arbitrary regulation, pressure roller pressure of the implementation of a pneumatic, pneumatic arbitrary regulation, and Mexico was the use of machinery manual lifting.
7. High accuracy gear transmission box, adopting patented technique
8. Separated Rewinding & unwinding double work station, non-stop carrying material
REQUIREMENT:
1.Printing color and back-printing can be adjusted according to specification.
