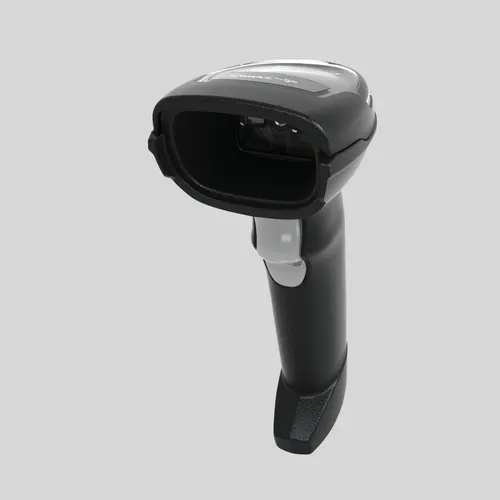

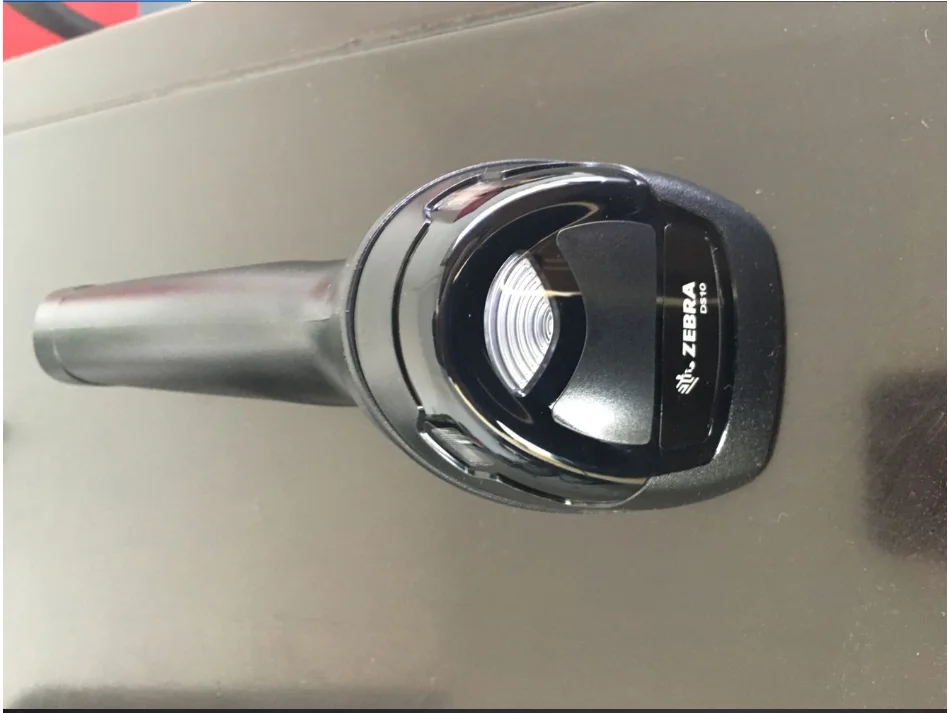

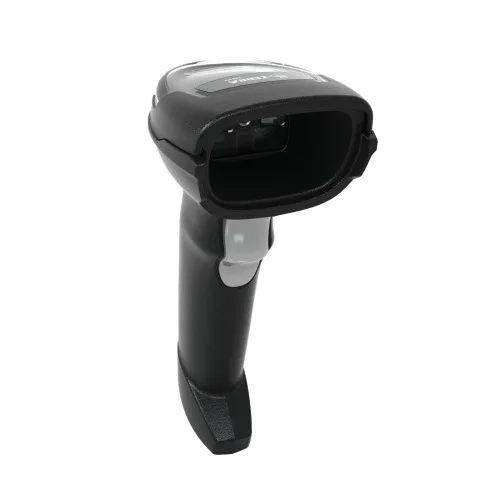

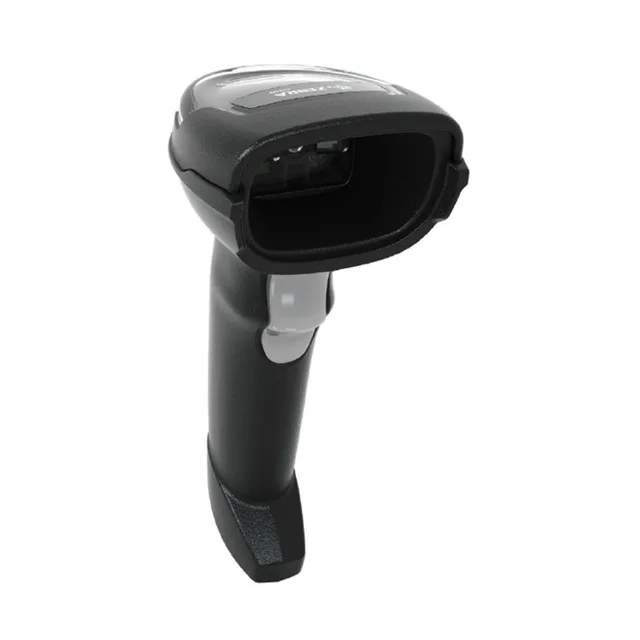

Zebra DS1001 General Scanner 2D Imager Handheld Barcode Scanner Black Wireless Red Light 1D and 2D USB Interface

Product Overview

Description

Zebra DS1000 series General Scanner 2D Imager Handheld Barcode Scanner used in government, retail and services



 The DS1000 is Zebra's production of a universal 2D image handheld barcode scanner.
It can be used in government bookkeeping and administration;Cash registers, membership CARDS and e-coupons in the retail industry;Hotel check-in, ticketing activities and membership CARDS in the service industry.



Product introduction:

Fast and stable 1D/2D barcode acquisition

  Rom government authorization to the necessary universal scanning app, you can capture all this information with the DS1000 cable handheld imager.Your staff from printing labels and
The screen displays 1D and 2D barcodes to coupons and membership CARDS to enable point-and-click ease of use.Lightweight and compact design allows the DS1000 to ensure all-day relaxation Comfortable to use.With Zebra's traditional industry's best performance, ease of use and reliability, you can expect the DS1000 to be available for your daily 1D and 2D scanning requirements Great value.

Meet each of your scanning needs
The DS1000 offers practical barcode scanning performance, so workers can capture the 1D and 2D codes you encounter each day.By omnidirectional scanning, the point-and-sweep feature does not require the imager to be aligned with the bar code, which improves the ease of use.

Simplify record keeping and meet daily scanning requirements
Whether you need to scan a bar code on an invoice or a QR code on a mobile device, the DS1000 can be easily implemented.Easy to set up and always reliable, you can rely on the DS1000 to help you do all the record keeping.
Simplified scanning of DNA by DataCapture
Addressing today's most serious corporate challenges requires more than just hardware.It needs smart software to meet the needs of each stakeholder.That's why the Zebra imager contains DataCapture DNA, which simplifies the whole scanning experience.Each DS1000 has a free management tool that provides the industry's most intuitive configuration wizard, so even first-time users can easily set up scanners.In addition, setting up and forgetting its remote management tools greatly simplifies the deployment of a variety of imagers.Our imager software development kit (SDK) provides everything you need, including documentation, drivers, test tools, and sample source code for Windows, Android, lOS, and Linux.
You can trust proven quality







Specification:

Physical properties

Dimensions :6.5 inches (high)x 2.6 inches (wide)x 3.9 inches (deep)

16.5 cm (height)x 6.6 cm (width)x 9.9 cm (depth)

Weight :4.69 ounces /133.0 grams

current: Input voltage range from 4.5 to 5.5 VDC power supply;4.5 to 5.5 VDC external power supply

              Nominal voltage working current (5.0V):200mA(typical).(note: automatic aim is enabled when image is acquired Quasi-sum lighting)

Nominal voltage standby current (idle):150mA(typical).(hint:Automatic aiming open

 color :Dark

To support the:Host interface USB

User cue :        Direct decoding indicator ;Normal decoding LED;Rear view LED;bee buzzer (adjustable for tone and volume)

Performance characteristics

Mobile fault tolerance(handheld mode)  :up to 5 inches /13 centimeters per second, 13mil UPC

Mobile fault tolerance(hands-free mode): up to 30.0 inches /76.2 centimeters per second, 13mil UPC

Light source :aiming mode: linear 624nm amber LED

Lighting :645nm super red LED

Imager horizon:  32.8 °(horizontal) x 24.8 ° (vertical)

Image sensor : 640 x 480 pixels

The smallest printContrast: 25% minimum reflectance difference

Angle of deflection/elevation / Roll Angle tolerance :+ / - 65 °;+ / - 65 °;0-360 °

The smallest unit resolution :

Code 39-4.0 mil;Code 128-4.0 mil;Data Matrix - 6.0 mil;QR code-6.7 mil

User environment

Operating temperature :32.0 ° and 32.0 ° F / 0.0 ° and 40.0 ° C

Storage temperature : 40.0 ° and 158.0 ° F / 40.0 ° and 70.0 ° C

Humidity :5% to 95% relative humidity, no condensation

Drop Specification: can withstand multiple drops from 4 feet /1.2 meters to the concrete floor

The rolling feature :can withstand 250 tumbles at 1.5ft / 0.5m

Environment seal :IP40

Electrostatic discharge (ESD)

The ESD conforms to en61000-4-2, +/ -15kv air putb electric, +/-8 direct discharge, +/ -8kv brief discharge

Ambient light :0 to 10,000 ft candle /0 to 107,600 Lux

The relevant standard

Electrical safety: EN 60950-1 2ed + A11 + A1 + A12 + A2:2013, iec60950-1 2ed + A1 + A2, UL 60950-1, CAN/ csa-c22.2 No. 60950-1-07

Environmental parameters: RoHS EN 50581

LED safety: IEC 62471

IT radiation: EN 55032 (Class B)

IT interference: EN 55024

Harmonic current and interference: EN 61000-3-2

Voltage fluctuation and flicker: EN 61,000-3-3

Radio frequency devices: 47 CFR Part 15, Subpart B, Class B

Digital equipment: ICES-003 Issue 6, Class B

Decoding ability: 1D

                             Code 39, Code 128, Code 93, Codabar/NW7,Code 11,MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1, DataBar, Base 32 (Italian Pharma)

                              2 d

                            PDF417, Composite Codes, TLC - 39, Aztec, DataMatrix, MaxiCode, QR Code, Micro QR, Han Xin, Postal Codes



DATACAPTURE DNA

123 scan:scanner parameter Settings, programming, firmware updates, providing scan barcode data and printing reports.www.zebra.com/123Scan

Software development suite (SDK) : generation of fully functional scanner applications, including documentation, drivers, test utility and routine source code.www.zebra.com/scannersdkforwindows

Remote management

Use the Zebra imager management service (SMS) or Windows console to access asset information and status, set parameters and update solids

A www.zebra.com/sms

Decoding range (typical)

Coding                     resolution                 near                                     distance

Code 39                       5 mil                 0.2in / 0.5cm                      6.0in / 15.2cm

Code 128                     5 mil                 0.8 in /2.0 cm                     4.0 in /10.2 cm

PDF 417                      6.7mil               0.8in / 2.0cm                       5.7in / 14.5cm

UPC                   13 mil (100%)            0.6 in /1.5 cm                     12.0 in /30.5 cm

Data Matrix                  10 mil               0.3in / 0.8cm                       6.2in / 15.7cm

QR                               20 mil               0.4 in /1.0 ccm                    10.0 in /25.4 cm



*Color dark black
*Supported host interface USB
*Mobile fault tolerance
(Handheld mode) Up to 5 inches/13 cm per second, 13mil UPC
Mobile fault tolerance
(Hand-free mode) Up to 30.0 inches/76.2 cm per second, 13mil UPC
*Light source Aiming mode: linear 624nm amber LED
*Illumination 645nm super red LED
*Imager field of view 32.8° (horizontal) x 24.8° (vertical)
*Image sensor 640 x 480 pixels
*Minimum print contrast 25%, minimum reflection difference
*Operating temperature 32.0° to 104.0°F/0.0° to 40.0°C
*Storage temperature -40.0° to 158.0°F/-40.0° to 70.0°C
*Drop specifications can withstand multiple drops from 4 feet/1.2 meters to the concrete floor
*Rolling characteristics can withstand 250 rolls at 1.5 feet/0.5 meters
* Decoding ability 2
1D
Code 39, Code 128, Code 93, Codabar/NW7,
Code 11,
MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of
5, GS1
DataBar, Base 32 (Italian Pharma)
2D
PDF417, Composite Codes, TLC-39, Aztec,
DataMatrix,
MaxiCode, QR Code, Micro QR, Han Xin,
Postal Codes
*Current
Nominal voltage working current (5.0V):
200mA (typical). (Note: Enable automatic sighting when acquiring images
Standard and lighting)
Nominal voltage standby current (idle): 150mA (typical). (prompt:
Automatic aiming on)

Our Services

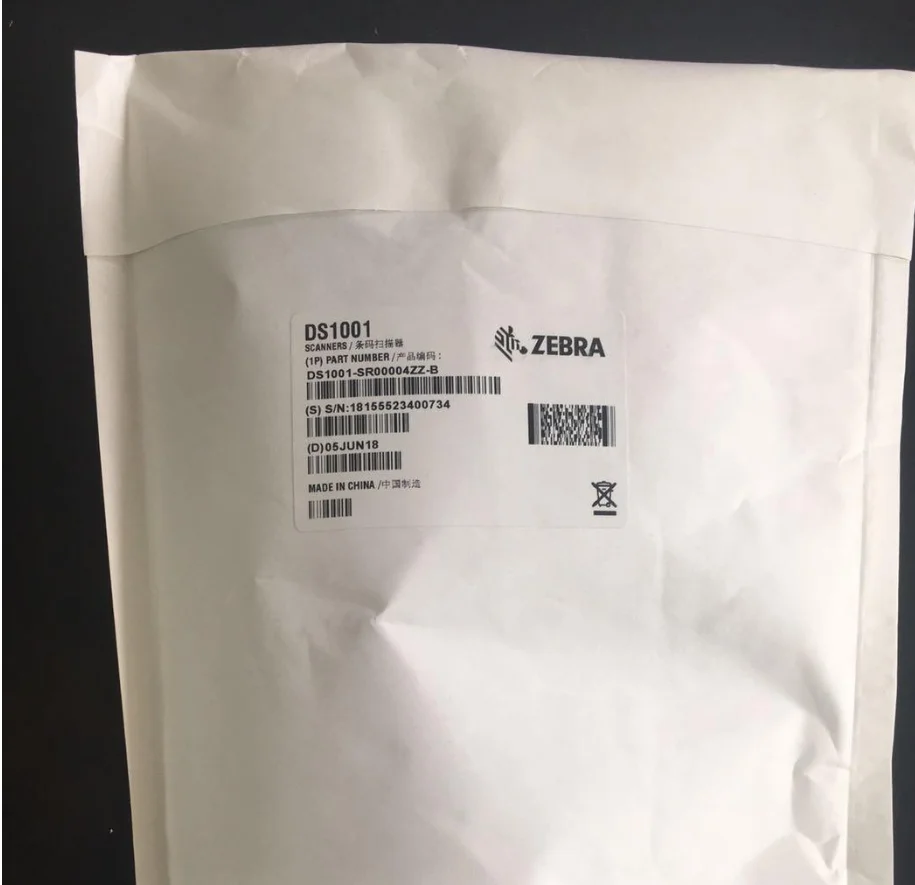

Packing: Paper bag
