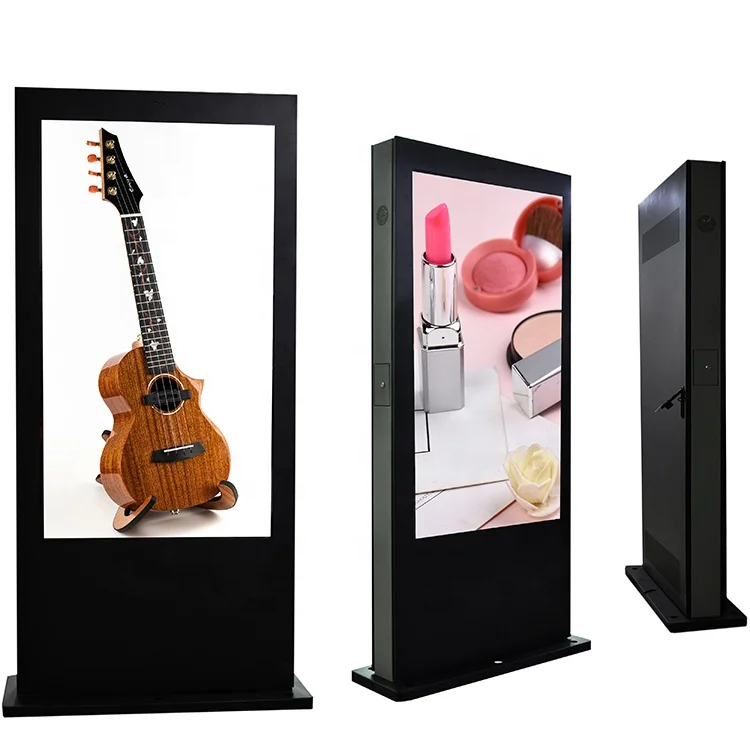

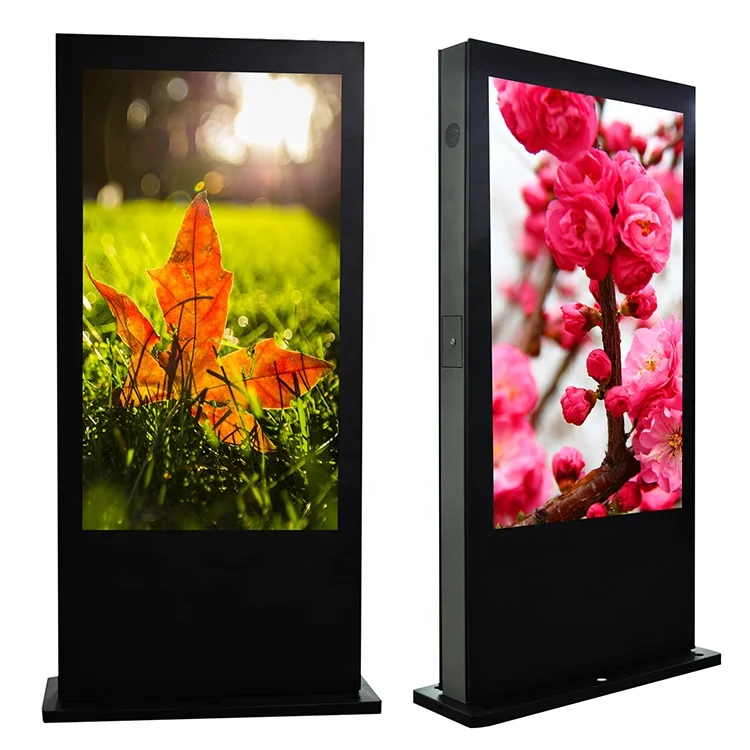

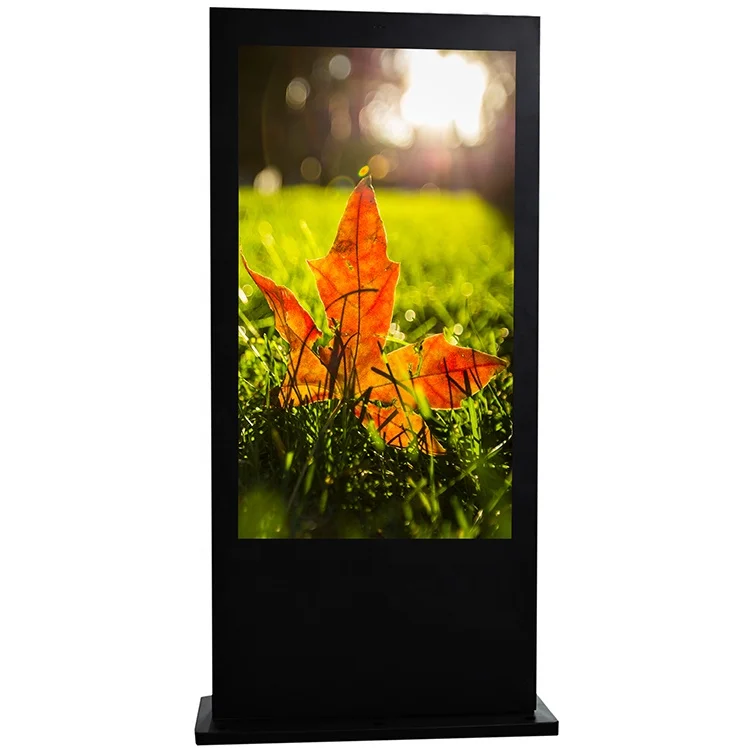

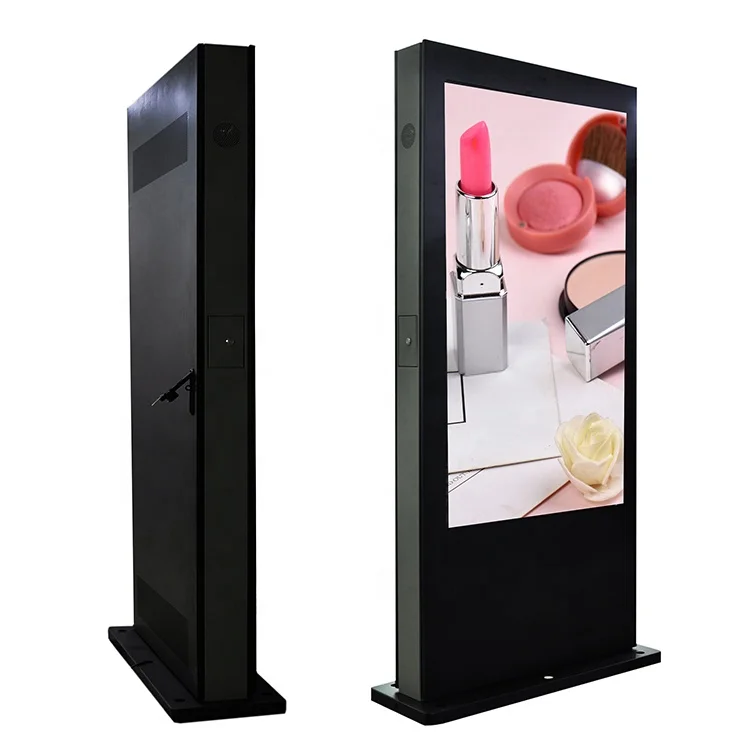

43 55 65 optional size smart advertising display outdoor LCD digital signage
- Category: >>>
- Supplier: Shenzhen CSXT Multimedia Technology Co. Ltd.
Share on (62457310342):
Product Overview
Description
Hot Sales
Product Description

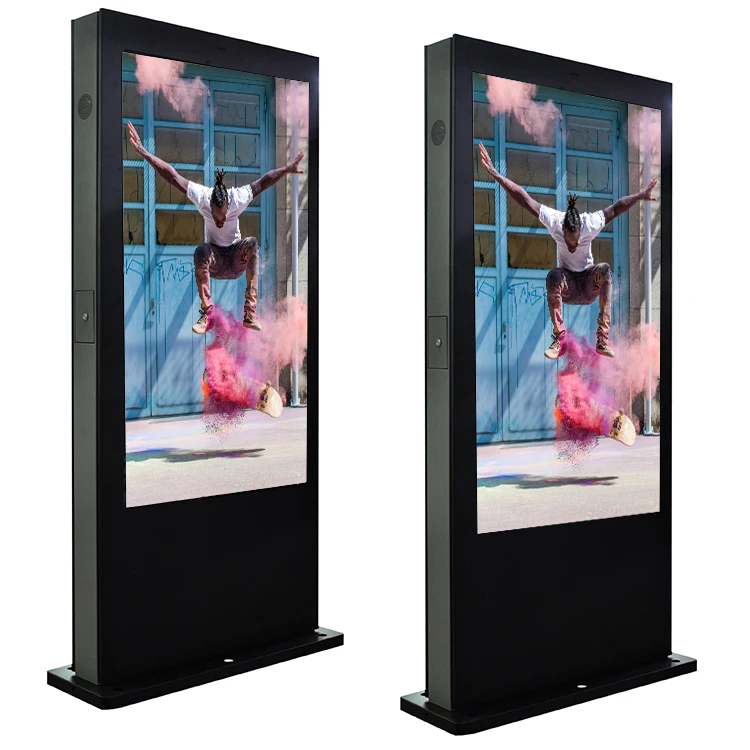

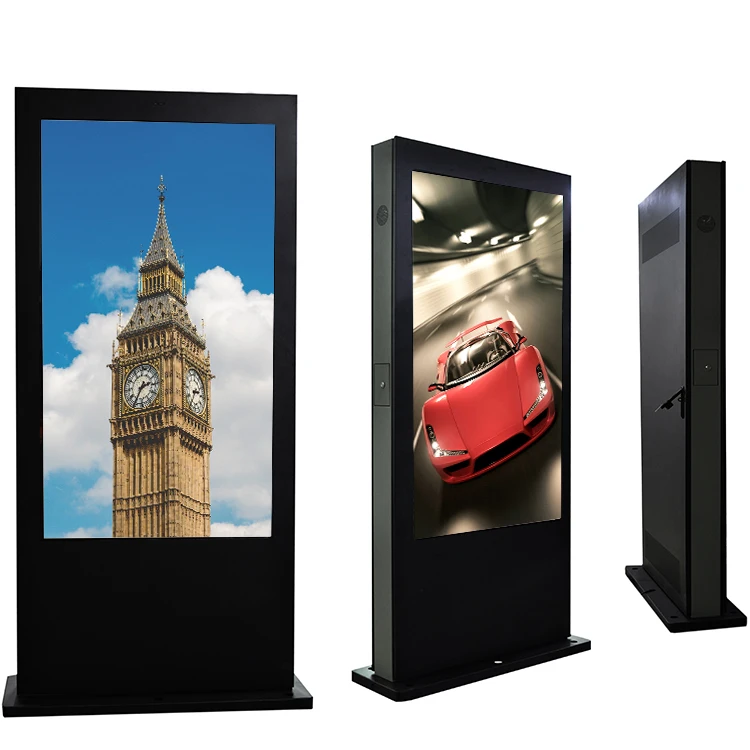

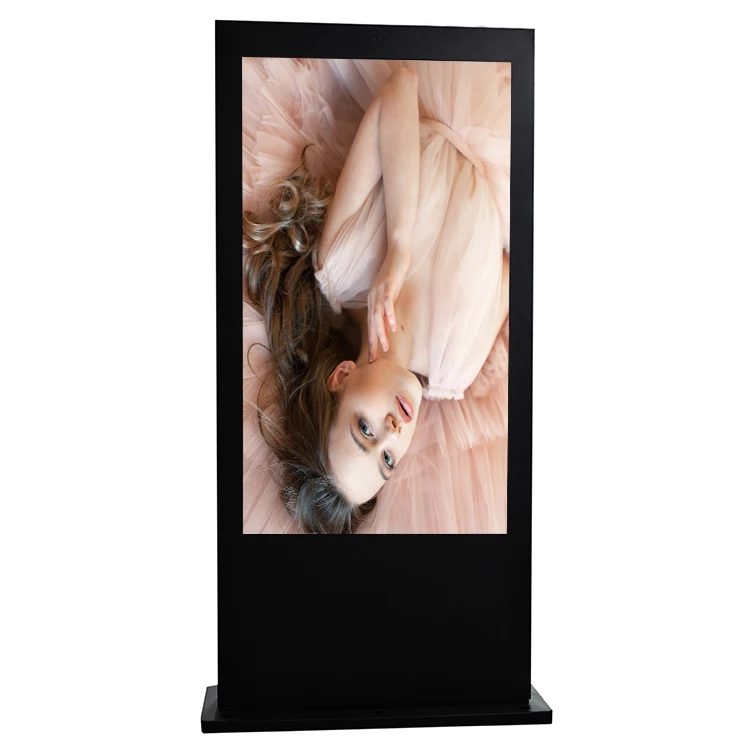

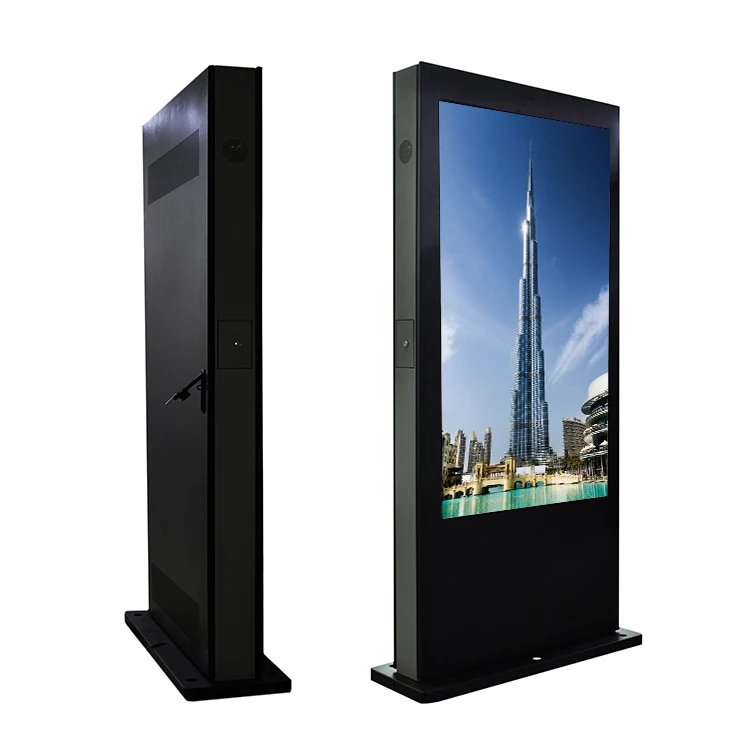

43 55 65 optional inch outdoor stand alone digital signage LCD advertising display
| CSXT-OS112 | 43 55 65 optional inch outdoor stand alone digital signage | |||||
| Quick View | Water Proof Level | IP65 | ||||
| Camera | With | |||||
| Screen Direction | Horizontal | |||||
| Touch Screen | W/O (can be customized) | |||||
| System | Windows/Android Optional | |||||

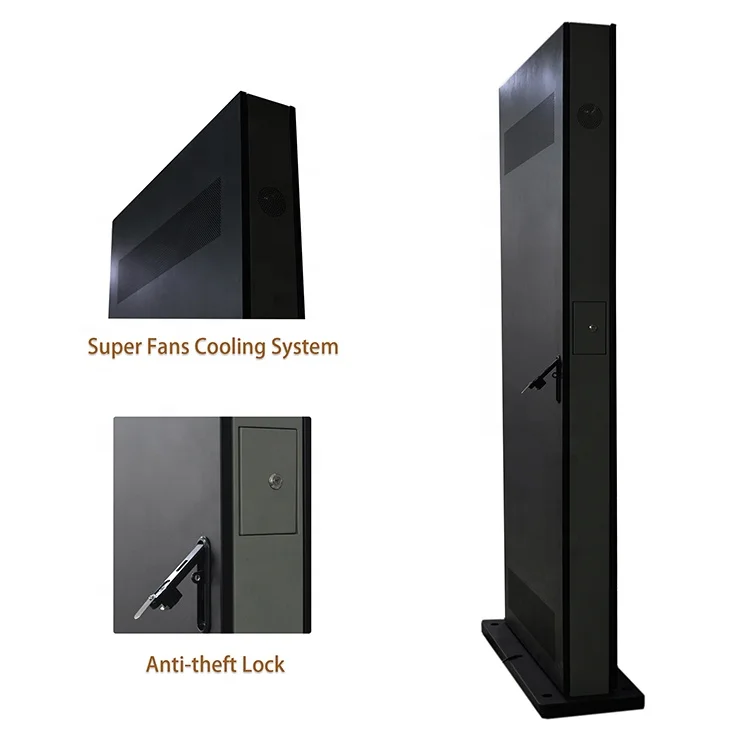

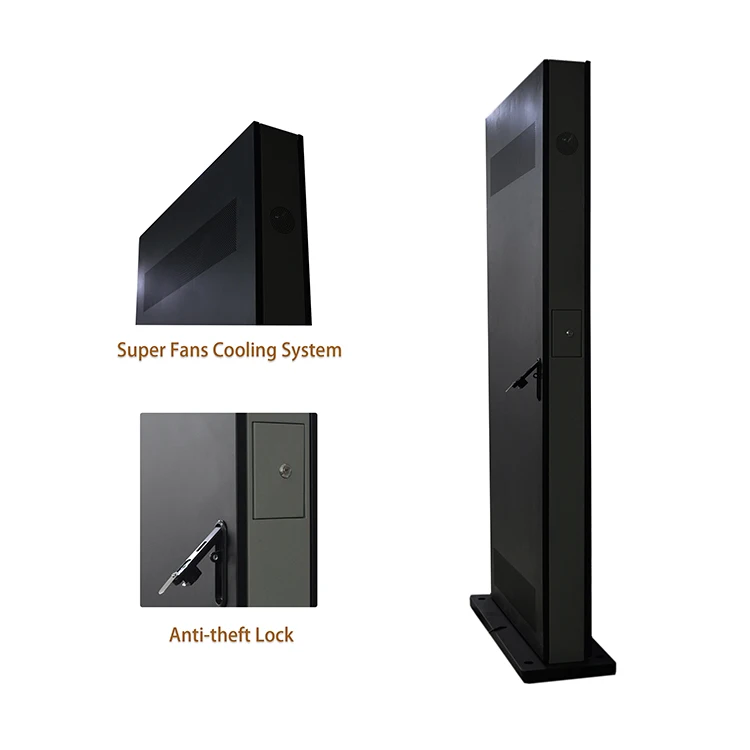

| Heat Dissipating Method | Fan intelligent temperature controlling system - automatically sensing the temperature and controling the fan |
|||||
| High Brightness | 1000-2000 cd/m2, - intelligent brightness sensor, adjusting brightness automatically |
|||||
| Power Supply | Industrial level power supply - support 7*24 hours continuously working, super long life time up to 60000 hours |
|||||
| Outdoor Protection | waterproof, dustproof, anti-corrosion, anti-theft, lightningproof and leakage protection | |||||
| Optional Functions | 3G/4G, camera, card reader(ID/NFC/IC card), printer, scanner(QR code/biomini), microwave inductor, microphone, keyboard or customized | |||||
| Available Size | 21.5"/ 27"/ 32"/ 43"/ 49"/ 55"/ 65"/ 75"/ 86" or customized | |||||
| Materials | Shell: 1.5mm cold-rolled steel with outdoor antirust paint Display: anti-explosion laminated glass |
|||||
| Long Range Remote Control | Remote publishing and managing system | |||||
| Splitting Screen Play | Arbitrarily splitting screen display | |||||
| Screen | Panel Brand | Brand new original A+ grade brand panel | ||||
| Panel Size | 55" (19" to 100" optional) | |||||
| Display Size | 1209.6mm(H) x 680.4mm(V) | |||||
| Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) | |||||
| Compatible HD input | 480P/576P/720P/1080I/1080P | |||||
| Backlits | High brightness LED | |||||
| Display Ratio | 16:9 | |||||
| Response Time | <8ms | |||||
| Field Rate | 60HZ | |||||
| Color | 16.7M | |||||
| Contrast Ratio | 4000:1 | |||||
| Resolution | 1920*1080 | |||||
| Brightness Nits | 2000 cd/m2 | |||||
| Pixel Pitch | 0.282x 0.282 | |||||
| Theory Lifetime | 50000 hours | |||||
| Operation System | PC Version | Android Version | ||||
| Main Board: | J1900/Windows I3/Windows I5 optional | A20/RK3188/RK3288 | ||||
| Operating System | Win7/win8/win10 optional | Android 4.4 (Android4.4.4/4.2.2/5.1.1/6.0.1/7.1.2 optional) |
||||
| CPU | J1900/I3-3217U/I5-3317U | A20 Cortex-A7 dual-core RK3188 Cortex-A9 quad-core RK3288 Cortex-A17 quad-core |
||||
| RAM | DDR3 1G/2G/4G/8G/16G optional | DDR3 1G/2G(optional) | ||||
| Storage | SSD:64G/128G NAND FLASH 500GB / 1T optional |
NAND FLASH 4GB / 8G/32G optional | ||||
| OSD Language | English or customized | English or customized | ||||
| Connection to Network | RJ45/4G(optional)/WIFI (optional) | RJ45/4G(optional)/WIFI | ||||
| Interface | USB2.0*4, HDMI, VGA, RJ45, LAN, 4G/wifi(optional), audio |
USB2.0*2, SD card, HDMI, RJ45, 4G(optional),wifi,audio |
||||
| System Upgrade | Support SD card upgrade | |||||
| File Formats | Video | 720P/1080P/H265/264/MPEG4/ AVI/WMV/3GP/MP4/MOV/FLV |
Video | 720P/1080P/H263/264/MPEG4/ AVI/WMV/3GP/MP4/MOV/FLV |
||
| Picture | JPG/JPEG/BMP/GIF/PNG | Picture | JPG/JPEG/BMP/GIF/PNG | |||
| Music | MP3/WMA/AAC/AC3/DTS | Music | MP3/WMA/AAC/AC3/DTS | |||
| Power | Power | 1000W | ||||
| Power Supply | Industrial level power supply, AC100-240V 50/60HZ - support 7*24 hours working, super long life time up to 60000 hours |
|||||
| Working&Storage Requirement |
Working Temperature | -35 - 65°C | ||||
| Working/Storage Humidity |
10% - 90% | |||||
| Body | Material | Shell | 1.5mm cold-rolled steel with outdoor antirust paint | |||
| Display | Anti-explosion laminated glass | |||||
| Size | 2050*600*2160mm | |||||
| Color | White, black, silver or customized | |||||
| Heat Dissipating Method | Fan intelligent temperature controlling system - automatically sensing the temperature and control the fan |
|||||
| Other Instructions | Outdoor Protection | Waterproof, dustproof, anti-corrosion, anti-theft, lightningproof, leakage protection | ||||
| Play Mode | Support horizontal or vertical playing, automatically loop playing | |||||
| Splitting Screen Play | Support arbitrarily splitting screen display | |||||
| Scrolling Caption | Support over-long scrolling caption display | |||||
| Long Range Remote Control | Remote publishing and managing system | |||||
| Auto On/Off | Auto on/off according to the setting time | |||||
| Reset | With reset switch, easy to operation | |||||
| Input | LVDS directly drive | |||||
| Audio Mode | Hi-fi stereo audio | |||||
| Speaker | Waterproof speaker, 2 * 10W (8 ohm) | |||||
| Video Reduction Noise | Yes | |||||
| Optional Functions | 3G/4G, camera, card reader(ID/NFC/IC card), printer, scanner(QR code/biomini), microwave inductor, microphone, keyboard or customized |
|||||
| Accessories | Power cable*1 + keys*2 + warranty card * 1 | |||||
| Packing | Thick plastic bag + fixed foam + thickened strong cardboard carton + wooden case(if needed) | |||||
Product Detail
Packing
Factory Details
Our Certificates
Our Advantages
- Direct factory - None middle man, you can get bottom price and quicker response.
- OEM and ODM service - customized exterior designs, functions, sizes( 7”- 100”), colors(silver, gold, white, black, etc.) and logo are welcome.
- Quick response - all inquiries will be replied within 1 day by our sales.
- Promotional activity every month - 4% to 15% off for the activity models.
- Original brand panel - Promise using original 100% A+ brand panels
- Quick delivery - within 15 days
- Worry-free quality assurance - 3 times full inspection (by our production QC, the 3rd party QC and our QC experts with 8 years experience) before shipment to ensure “0 defective rate”
- 2 years warranty - We’ll also support clients for the maintenance even after the warranty runs out.
- Trust of customers - 96% of customers who have worked with us once have maintained long term cooperation.
Quality Assurance
- Step 1. 100% inspection for all incoming materials by our IQC department, if the deficient rate is over our standard 2%, we will return the defective materials to our suppliers for rework, if less than 2%, we will change the defective parts by new qualified materials.
- Step 2. Before on-line production, all the appearance and functions of the boards must be 100% checked by our QC department.
- Step 3. Semi-finished goods must be 100% inspected by our QC department, if any defective part, we will repair it and then return it to the production line again.
- Step 4. IPQC(Input process quality control) must patrol inspecting during production process.
- Step 5. Completed sets must be 100% checked by the QC department, after that, all the goods start 24 hours aging testing
- Step 6. After aging testing, QC department will 100% check all goods again and then start packing.
- Step 7. After packing, QA department will start sampling inspection, then we will inform customers to arrange the inspection date of the goods.
