High Quality High speed PP Woven Bags Making Machine Plastic Flat Film Extruder Line HDPE LLDPE Yarn Extrusion Line

Product Overview

Description

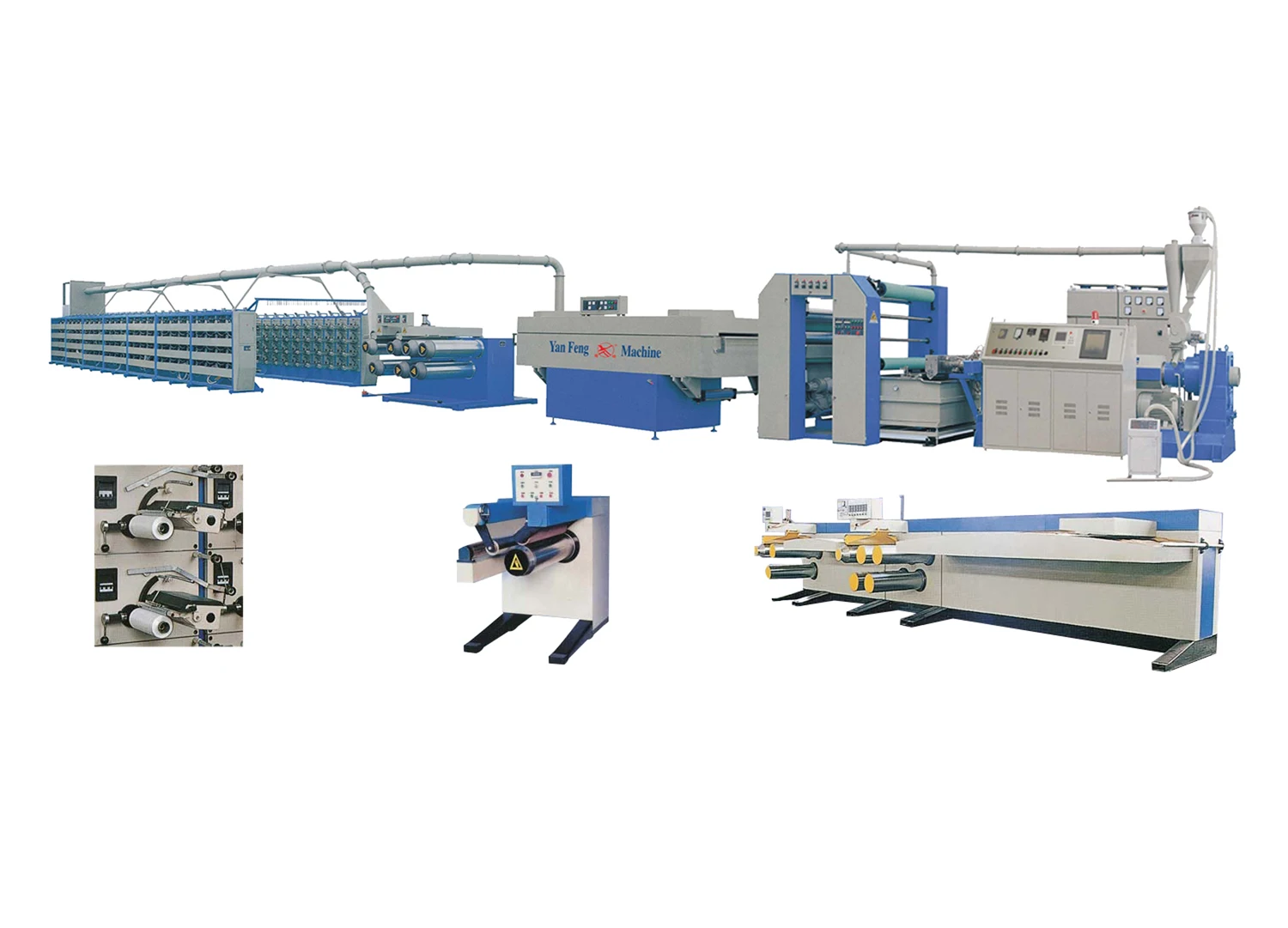

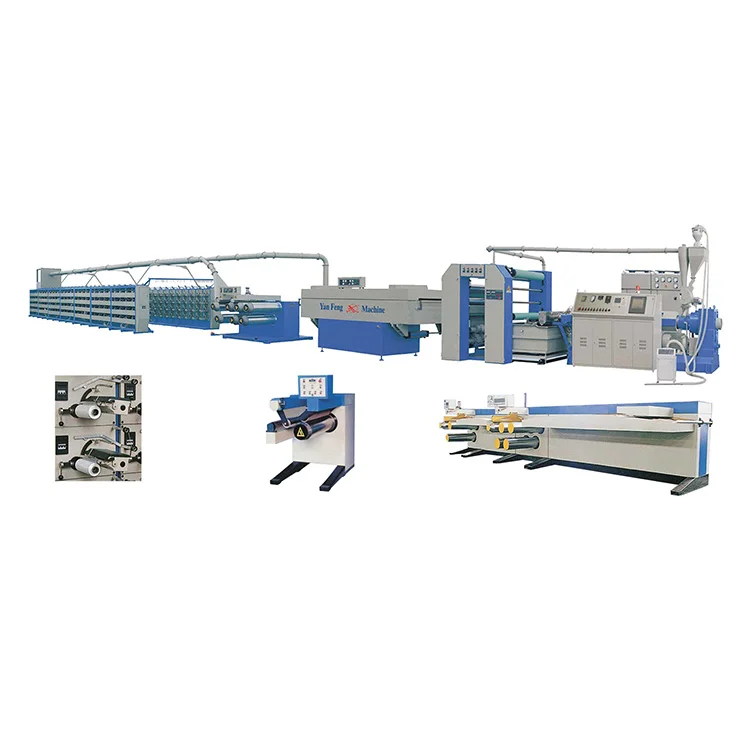

High Quality High-speed PP Woven Bags Making Machine Plastic Flat Film Extruder Line HDPE LLDPE Yarn Extrusion Line

This series flat yarn extrusion line is designed and developed on the base of introducing and assimilating the up-to-date technologies at home and abroad.

It adopts the international electric digital-simulation control technology such as computer-controlled frequency conversion speed regulation so as to make the main target reach the international advanced level.

Meanwhile, with high production efficiency and high quality of tape tube forming.

As required, this assembly can also be equipped with advanced filter change structure as well as fibrosis structure that is used for producing flexible packaging bags or fibrosis sewing thread.

This line has two kinds of stock thread heating structures, i. e. Hot-blast stretching oven and electric baking board for customers' alternatives.
Applied to a wide range, it can be used for the forming of PP, HDPE and LLDPE flat yarn.



Type	Max extrusion  output	Screw  diameter	Ratio of L/D	Rotational  speed of screw	Width of die lip	Max linear speed	Flat yarn  denier scope
YF-SPL-80/33/800	200kg/h	80mm	33: 1	20-120r/min	800mm	280m/min	60-200tex
YF-SPL-90/33/1000	280kg/h	90mm	33: 1	20-120r/min	1000mm	280m/min	60-200tex
YF-SPL-110/30/1200	380kg/h	110mm	30: 1	20-120r/min	1200mm	280m/min	60-200tex
YF-SPL-120/30/1500	500kg/h	120mm	30: 1	20-120r/min	1500mm	280m/min	60-200tex
YF-SPL-135/30/2000	630kg/h	135mm	30: 1	20-100r/min	2000mm	280m/min	60-200tex



Type	Drawing ratio	Number of winder (spindles)	Dimension of bobbin (D× L)(mm)	System installed power	Normal consumption power	Installing dimensions(L× W× H)	Weight (kg)
YF-SPL-80/33/800	4-10	136	38× 230	240kw	120kw	29000× 3600× 3200	21000
YF-SPL-90/33/1000	4-10	176	38× 230	290kw	160kw	32000× 3600× 3200	26000
YF-SPL-110/30/1200	4-10	208	38× 230	320kw	170kw	34000× 3800× 3200	30000
YF-SPL-120/30/1500	4-10	256	38× 230	380kw	210kw	37000× 3800× 3200	32000
YF-SPL-135/30/2000	4-10	344	38× 230	450kw	250kw	45000×3800×3200	40000
