Main Technical Specification | ||

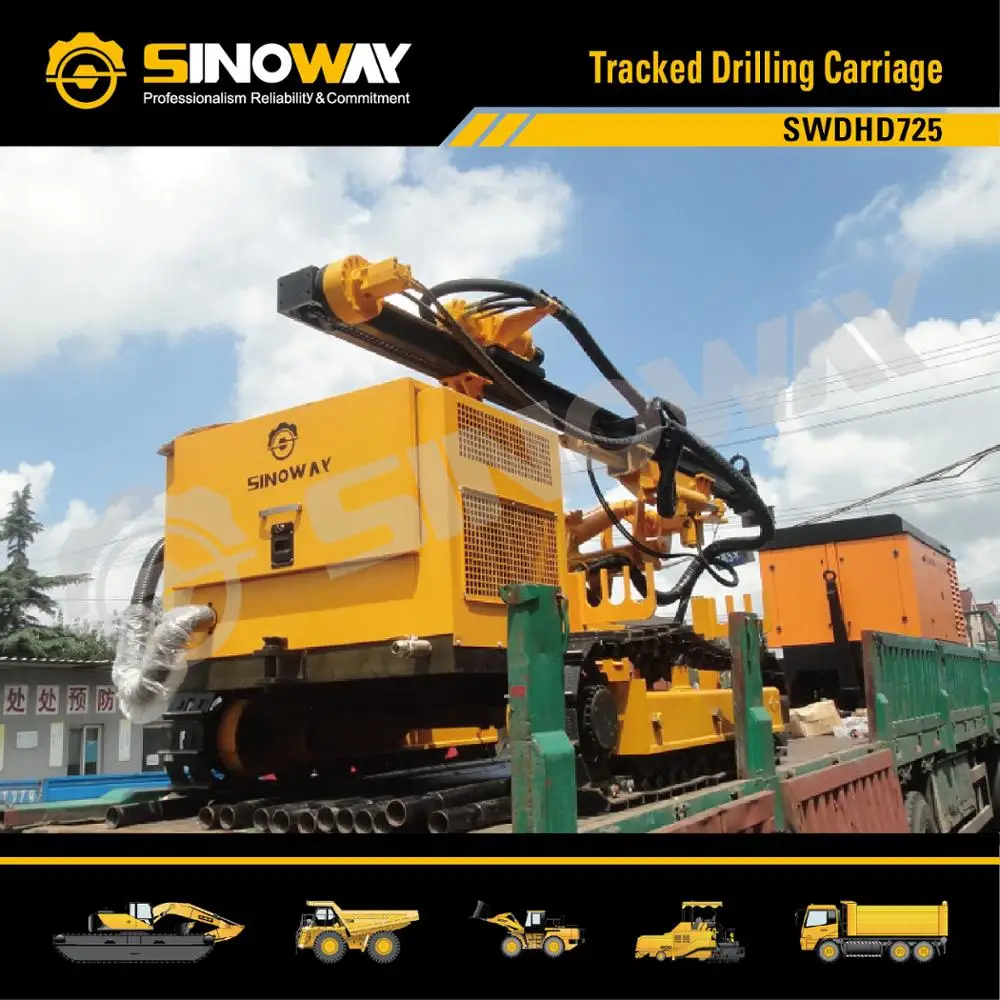

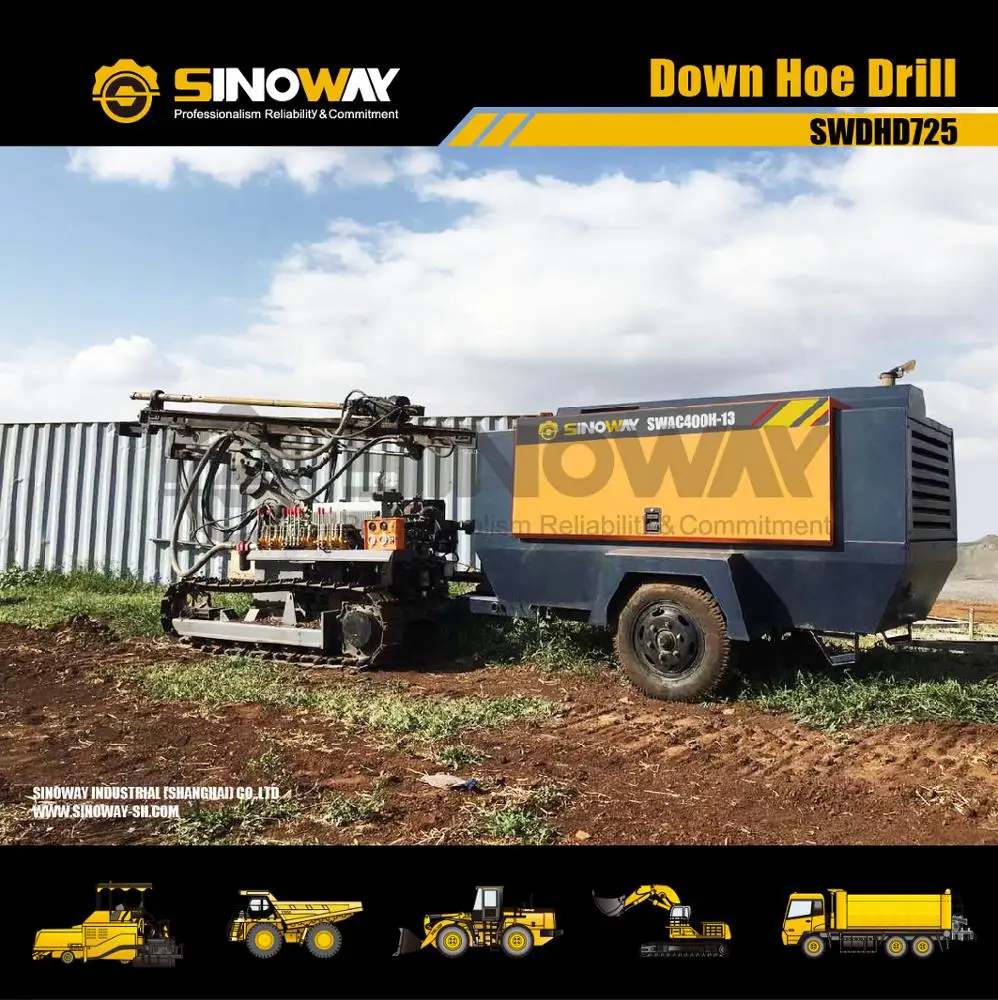

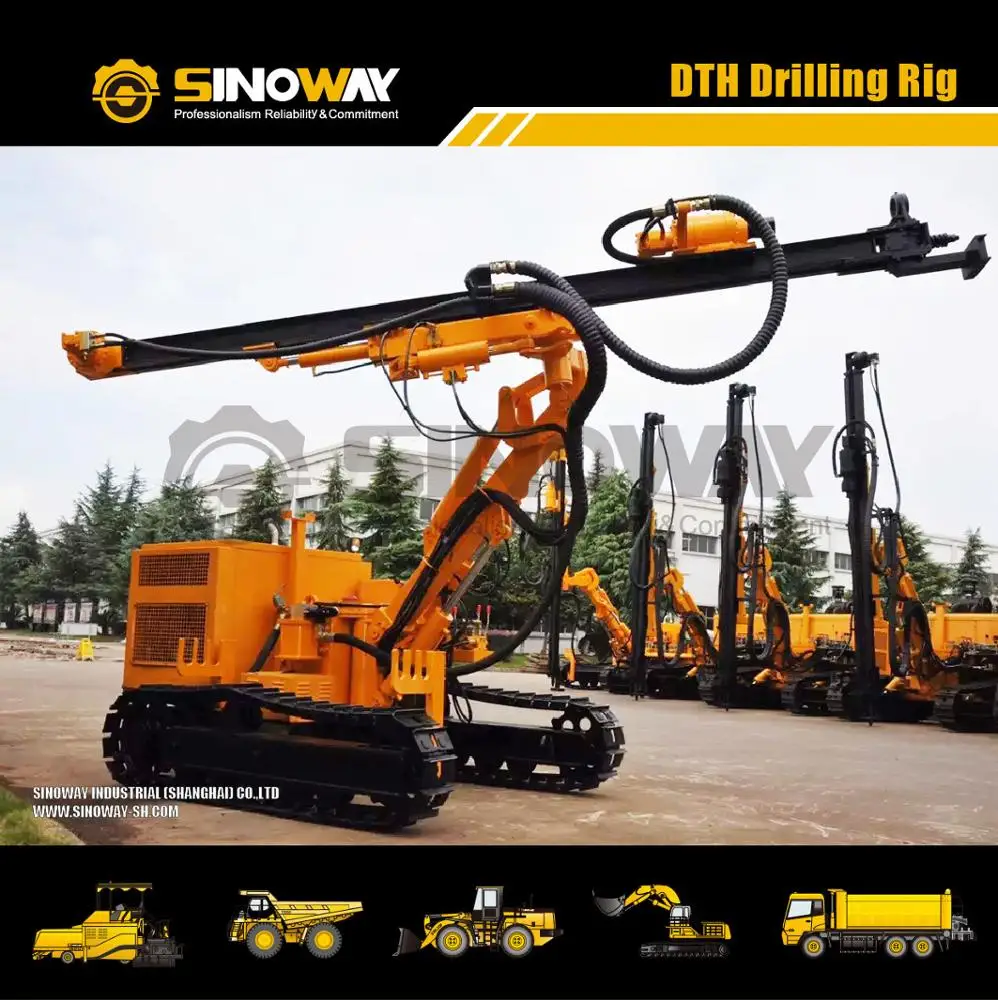

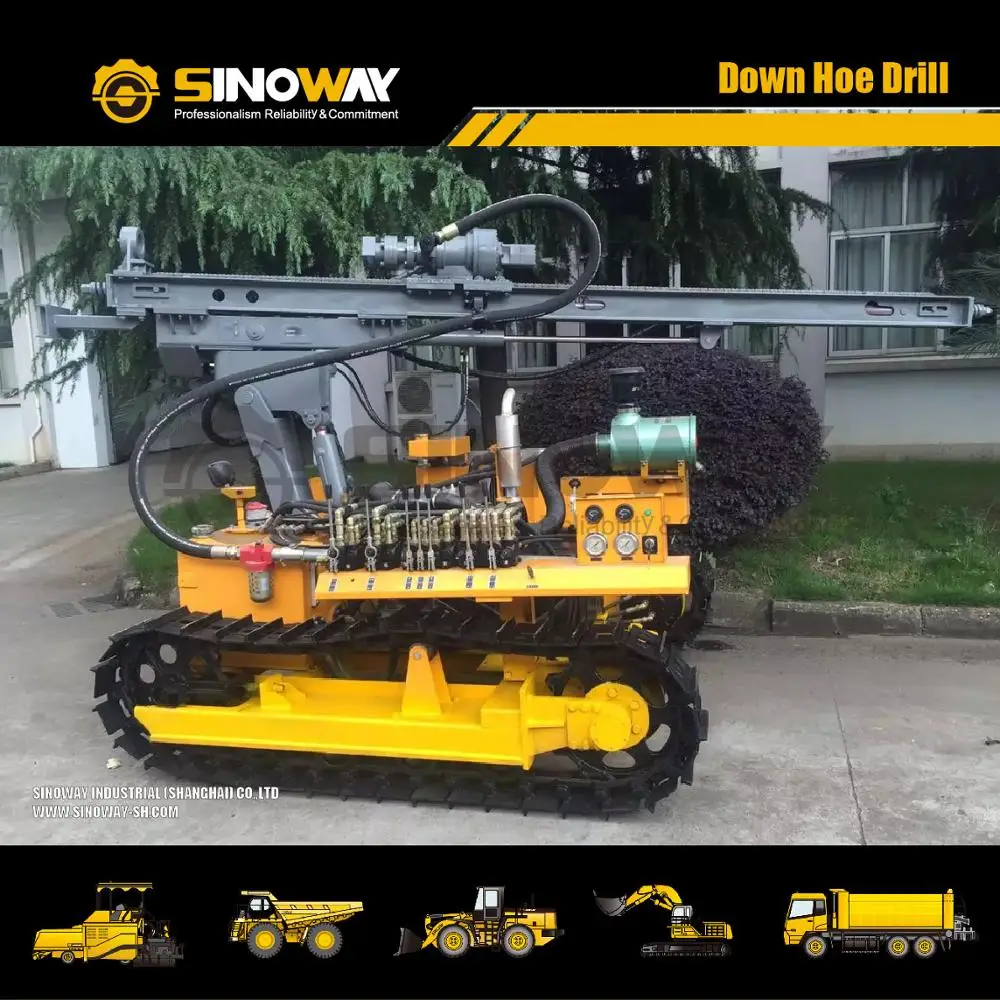

Tracked drilling Carriage | ||
Rock rigidity | f=6 - 20 | |
Diameter of drill hole | 60 - 130mm | |
Depth of drill hole | 25m | |
Travelling speed | 3km/h | |
Gradeability | 25° | |
Rotation speed | 0 - 70rpm | |
Working pressure | 0.5 - 1.4MPa | |
Air consumption | 7 - 12m³/min. | |
Compressor | ||
Type | Screw rotating one stage compression oil cooled | |
Displacement | 10.2m³/min. | |
Pressure | 0.7 - 1.0MPa | |
Lubricating mode | Forced lubricating according to lubricating compression | |
Drive mode | Coupler direct | |
Volume of lubricating oil | 60L | |
Chassis | ||
Compressor | ||
Tyre size | 6.5-16 | |
Tyre pressure | 0.6MPa | |
Tread | 1560mm | |
Dimensions | ||
Tracked drilling Carriage | ||
Overall length | 4250mm | |
Overall width | 1980mm | |
Overall height | 2260mm | |
Compressor | ||
Overall length | 3360mm | |
Overall width | 1850mm | |
Overall height | 1850mm | |
Connector size | R1.1/2"x1, R1"x2 | |
Max. working altitude | 3000m | |
Weight | ||
Tracked drilling Carriage | 3000kg | |
Compressor | 2100kg | |
Main Features | ||
Tracked drilling Carriage | ||
Self-powered high efficiency, energy saving, lower noise, less operation cost, wide range of usage, easy for maintenance, major components such as motor / control valve made in Germany and Japan, large scope amplitude modulation capacity. | ||
Compressor | ||
Advanced microprocessor monitoring all changes for compressed air demand, lowering air consumption, motor / mounted roller / ball bearing made in Germany; advanced separator and filter insuring residual oil content less than 3ppm, aluminium radiator easy for cleaning, anti-high temperature pipe and connector prevent oil leakage. | ||
Optional | ||
10 - 20m³/min. air delivery compressor series | ||
Depth of drill hole with 30m / 35m | ||
Drilling diameter | 90 - 130mm |
