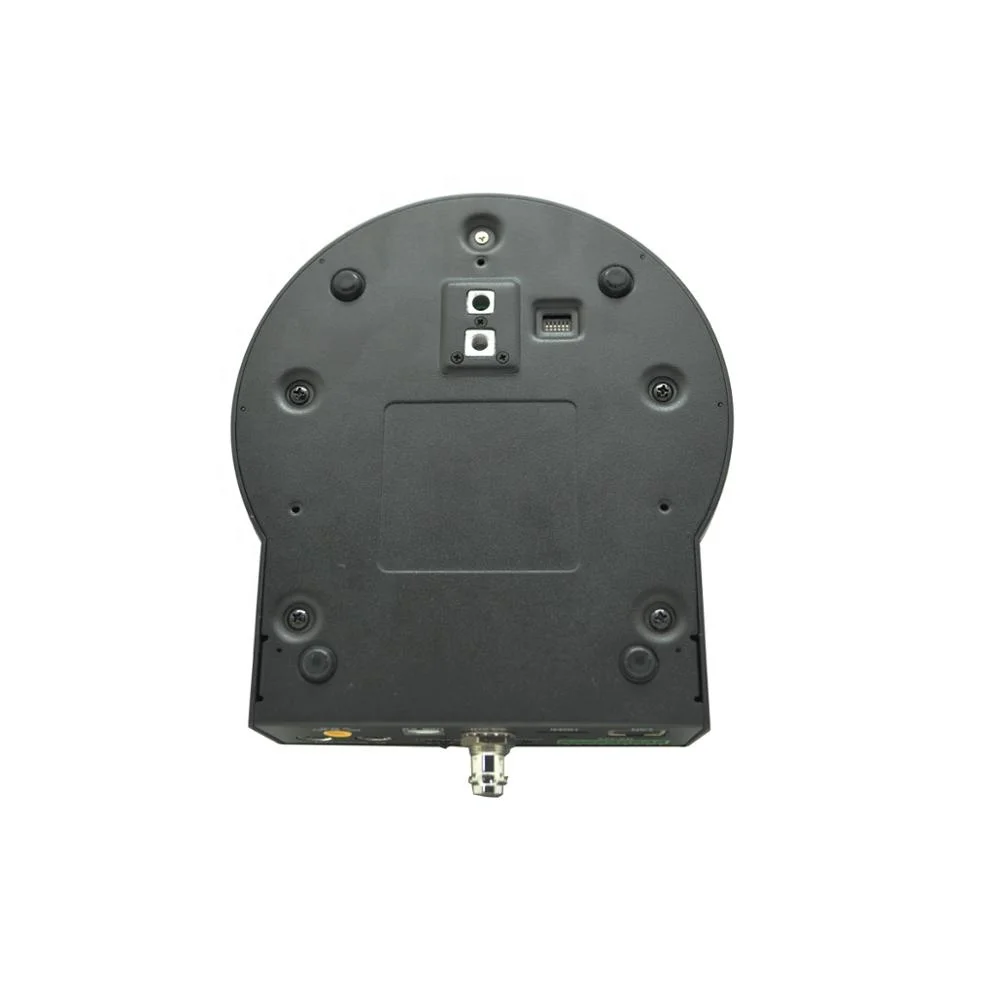

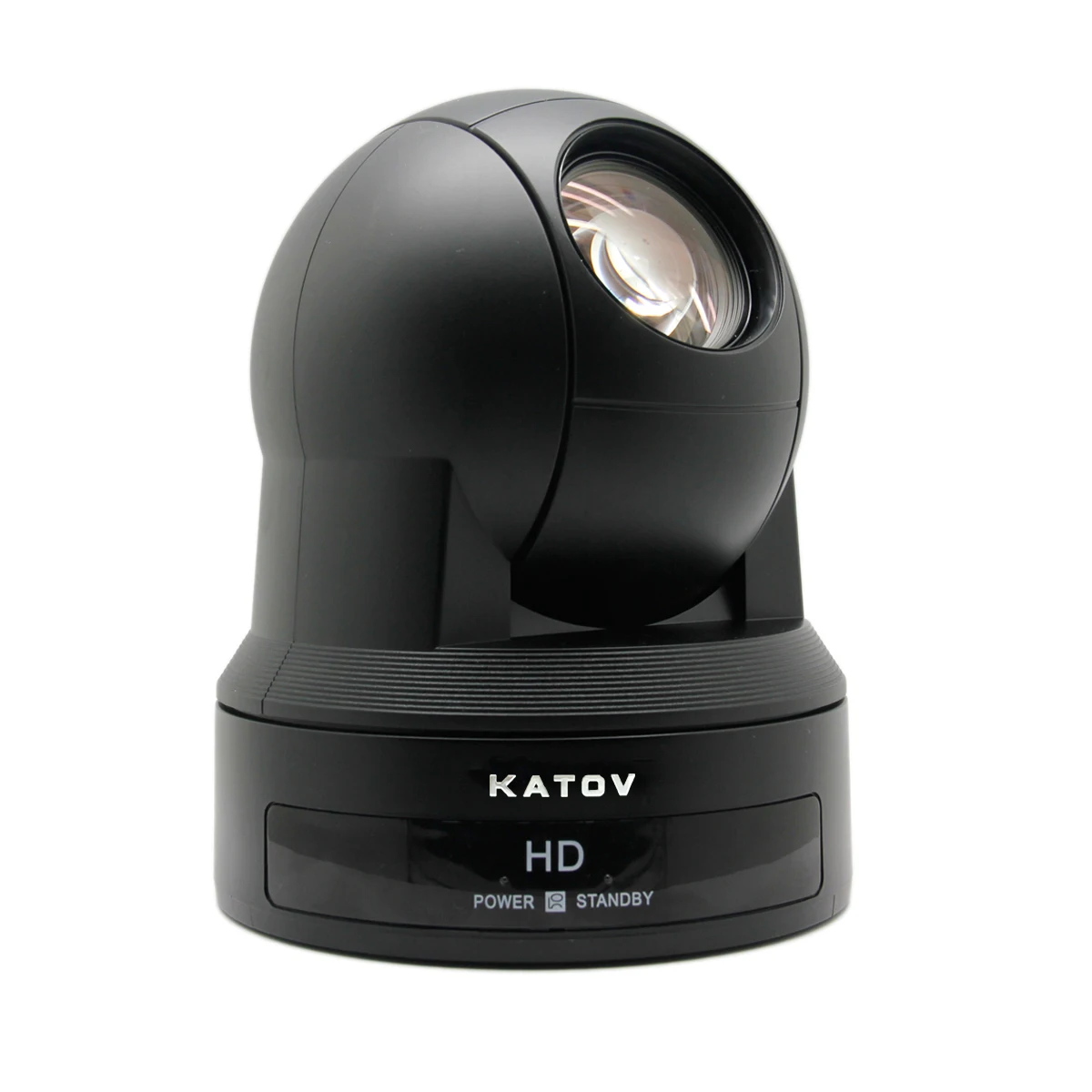

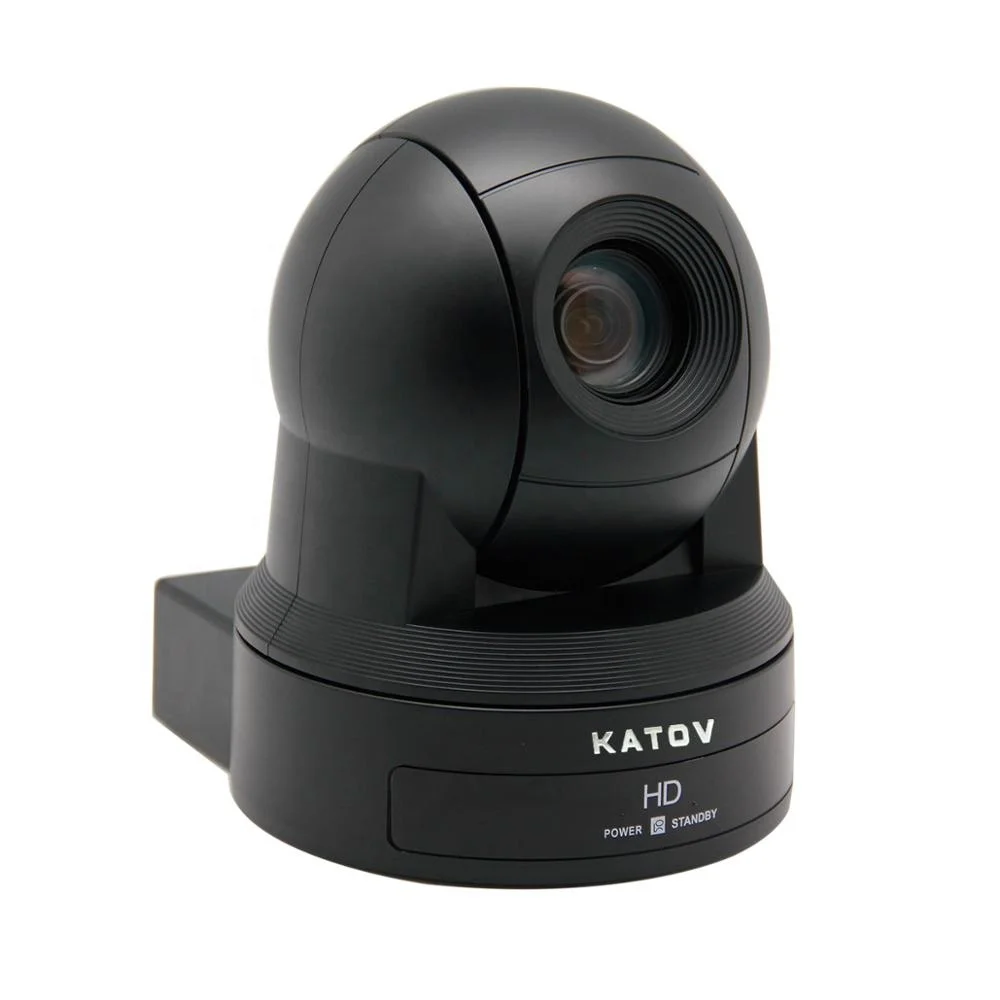

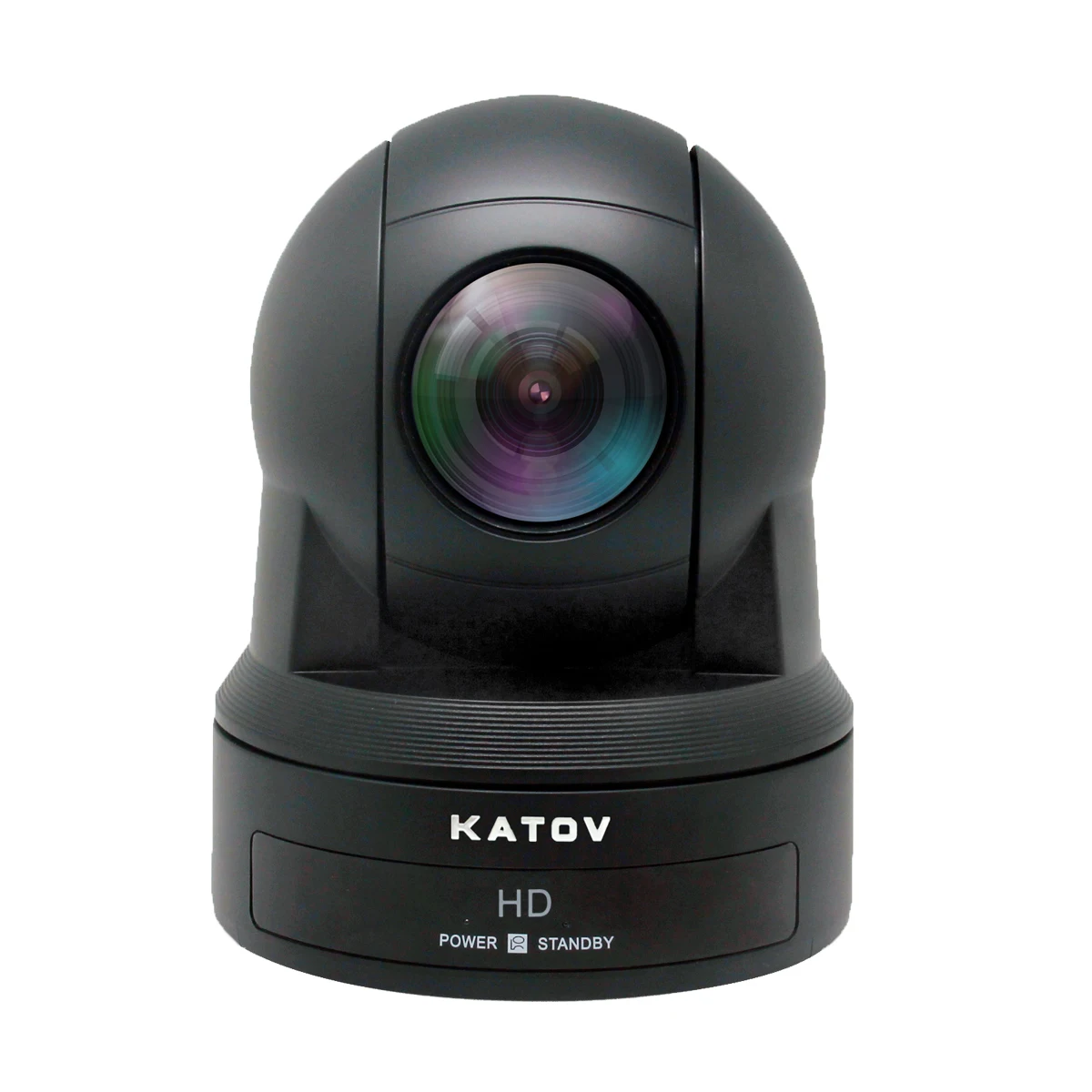

Camera model | KT-HD61A | KT-HD61R | |
Image Sensor | 1/2.8" Image Sensor | ||
Effective Pixels | 3.50 Megapixels | 3.10 Megapixels | |
Resolution | 1080p60/50, 1080i60/50,1080i59.94, 1080p/30, 1080p/25 | ||
Signal System | PAL/NTSC | ||
Lens | 20X optical zoom f=4.7mm(wide)~94.0 mm(far end) F1.6~F2.8 | 12X optical zoom f=3.9mm(wide)~46.8mm(far end) F1.8~F2.8 | |
Horizontal View Angle | 58.7°(W)~3.2°(T) | 72.5°(W)~6.55°(T) | |
Pan | 355°(max. speed:80°/s) | ||
Tilt | -30° to +90° (max. speed: 60°/s) | ||
Focus System | Auto/Manual | ||
S/N Ratio | ≥50db | ||
Preset Position | 9 preset positions by IR remote controller, 255 preset positions by Keyboard or PC | ||
Minimum Illumination | 0.35Lux | ||
Exposure Control | Auto/Manual/Priority AE/Exposure Compensation/Bright | ||
Shutter Speed | 1/1~1/10,00S | ||
Gain | Auto/Manual | ||
White Balance | Auto/Manual/ATW/One-click/Indoor/Outdoor | ||
Image Effect | Full color/black and white/Electronic flip | ||

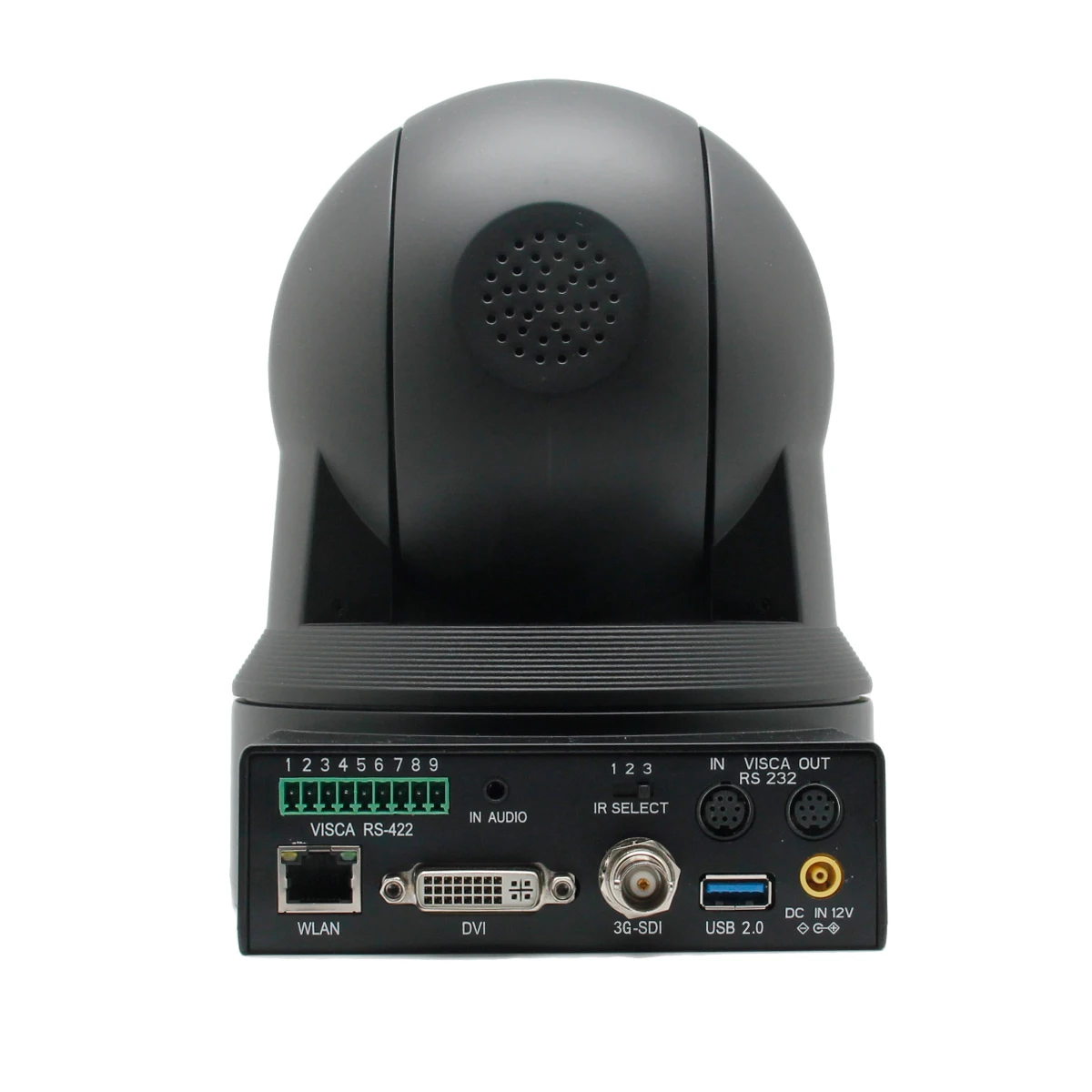

Video Output HD | HDMI, 3G-SDI,USB2.0, IP,POE(optional) ,Line in | ||
Control Protocol | SONY VISCA, PELCO P/D | ||
Control Mode | RS-232C, RS-422/485 | ||
Power | 12 DC(10.8~13.0DC) | ||
Power Consumption | Max. 30W(DC 12V) | ||
Operating Temperature | 0~40℃ | ||
Storage Temperature | -20-60℃ | ||
Camera Dimension | (L)170×(W)151×(H)190mm | ||
Weight | 1320g | ||
Color | Black/White | ||

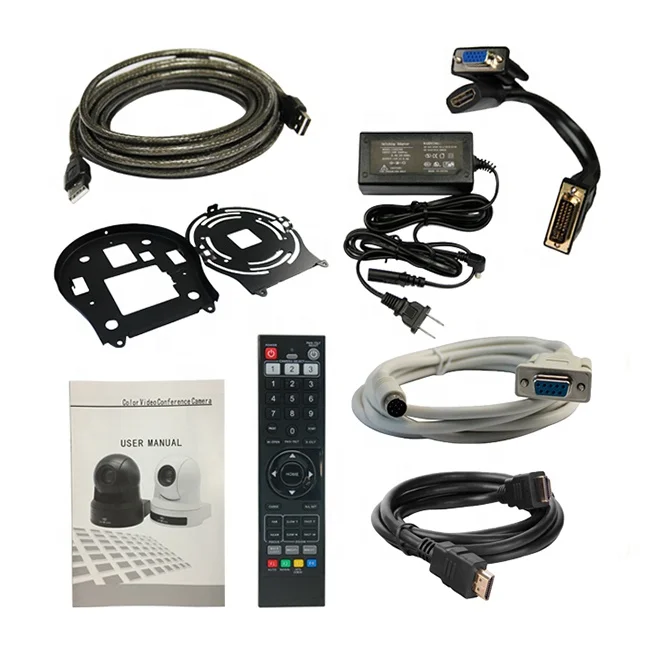

Accessories | DC 12V power adapter, IR Remote, Operation manual, RS-232C Cable,DVI converter HDMI cable, USB Cable , Ceiling bracket | ||
Carton | Each camera in a small carton, then 4pcs packaged in one large carton. | ||
Certificate | ISO/CE/FCC/ROSH | ||
Warranty | 3 years | ||
