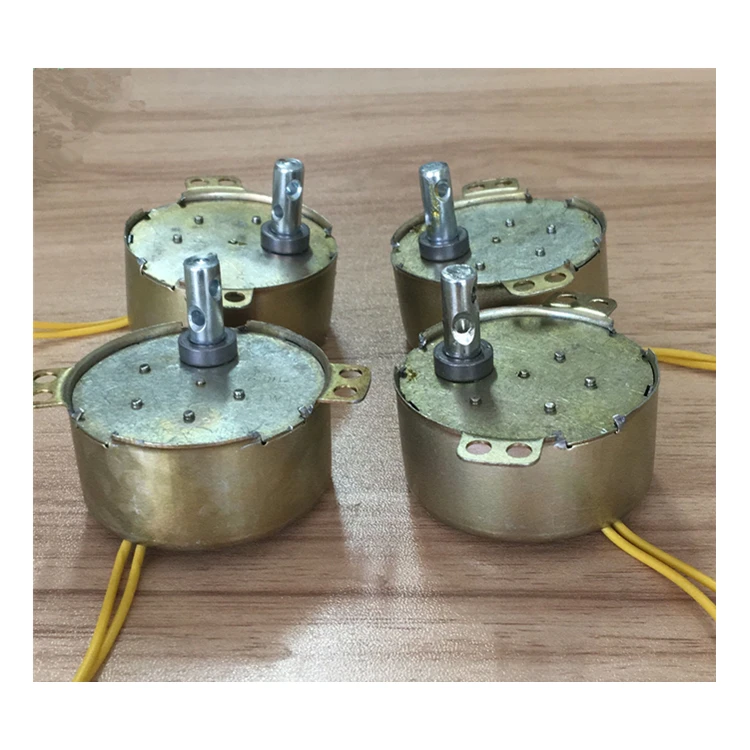

2020 New 4Watt Air cooler Swing Motor fans heater swing motor
Product Description
| Synchronous Grill Motor | ||||||
| ac Synchronous Motor | ||||||
| 1.Typical Applications: | ||||||
| 1) Home appliance:Electric fan,air conditioner turning leave,Microwave turing plate,Quartz heater,Dishwasher,Can opener,Knife sharpener,washing machine,citrus press,juicer,etc. | ||||||
| 2) Electric indoor and outdoor decorations:Rotating electric table,Stage curtain,recorder turing light,decoration lamp,Optical fiber turing lamp,Christmas tree,Rotating electric Advertisements and shelves,etc. | ||||||
| 3) Electric machinery:Vending machine,automatic electric instruments And meters,Rotating TV antenna,etc. | ||||||
| 4) Scientiific and teching devices:Rotating electric models,Electric curtains,etc. | ||||||
| 5) Medical equipments:Stirrer,pump,etc. | ||||||
| 6) Industrial area:Electric transit instrument,etc. | ||||||
| 2.Feature: | ||||||
| 1) Stable speed | ||||||
| 2) Long Lifespan | ||||||
| 3) High torque | ||||||
| 4) High efficiency | ||||||
| 5) Low noise | ||||||
| 6) Low vibration | ||||||
| 7) Rotation direction can be random,directional (CW or CCW) or reversible(controlled by wire connecting method) | ||||||
| 8) Lead out by wire or terminal are both available | ||||||
| 3. Electrical Specification: | ||||||
| 1) Rated Voltage: AC 12V,24V,48V,110V,220V | ||||||
| 2) Rated Frequency:50/60 Hz | ||||||
| 3) Rated Power Consumption:3.5 ± 0.5 Watts | ||||||
| 4) Current Consumption:30 ± 5 mA | ||||||
| 5) Withstand Voltage:1500 VAC / 1Min | ||||||
| 6) Insulation Resistance:Over 100 MΩ at 500 VDC | ||||||
| 7) Insulation Class E | ||||||
| 4.Mechanical Specification: | ||||||
| 1) Direction of Rotation:Single CW,Single CCW,and Free Direction | ||||||
| 2) Output Speed:0.1 ~ 60 rpm | ||||||
| 3) Working Torque: 1.5kg-cm ~ 20 kg-cm | ||||||
| 5.General Specification: | ||||||
| 1) Operating Temp.Range: -10~+60°C | ||||||
| 2) Temperature Rise Range: 60K MAX | ||||||
| 3) Expectant Lifespan:Approx.10,000 hours under normal load torque and normal operation | ||||||
| 4) Net Weight:150 grams | ||||||
| 5) Lead Wire:As UL standard,specific length or connector is available | ||||||
| 6) Operating Noise:Approx.40 db Max.form 30 cm distance | ||||||
| 7) Outline Size:Diametr:φ49.0 mm,Height:18.5mm,21mm, 24 mm | ||||||
| 8) Package:120pcs/Carton,380 x 280 x 320 mm,15kgs | ||||||
Packaging & Shipping
Packaging Details:Packing for Synchronous Motor 1RPM Synchronous Motor
1. Selling Units:Single item
2. Single package size: 53X25X25 cm
3. Single gross weight:12.0 KG
4. Package Type:100 PCS PER CARTON EXPORT CARTON
Delivery Details:49TYD500 shipped in 30 days after payment.
