China loader skid steer 700kg 1000kg 1050kg 1200kg 1500kg crawler skid steer loader with wood chipper
- Category: >>>
- Supplier: Xiamen LTMG Machinery Co. Ltd.Xiamen Ltd.
Share on (62457951179):
Product Overview
Description
Product Description

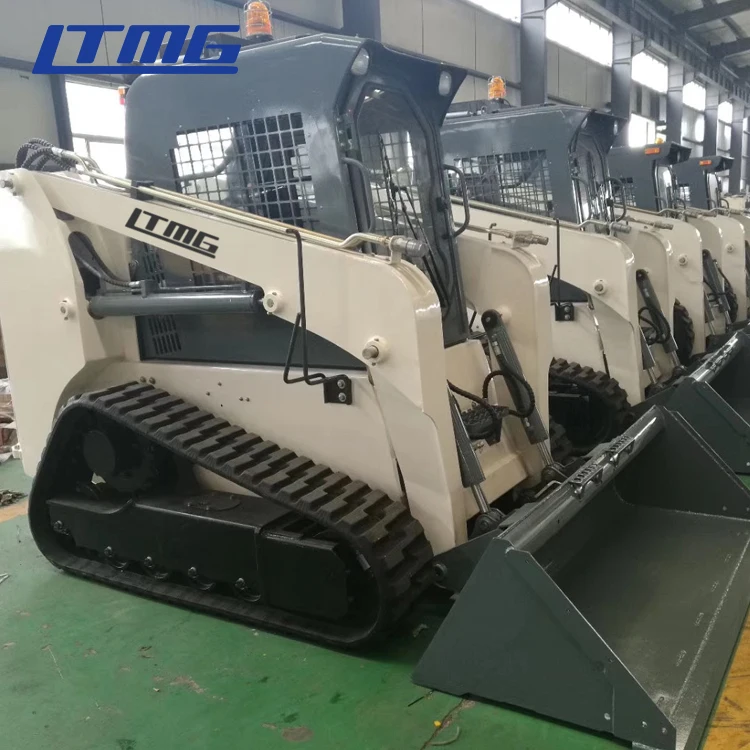

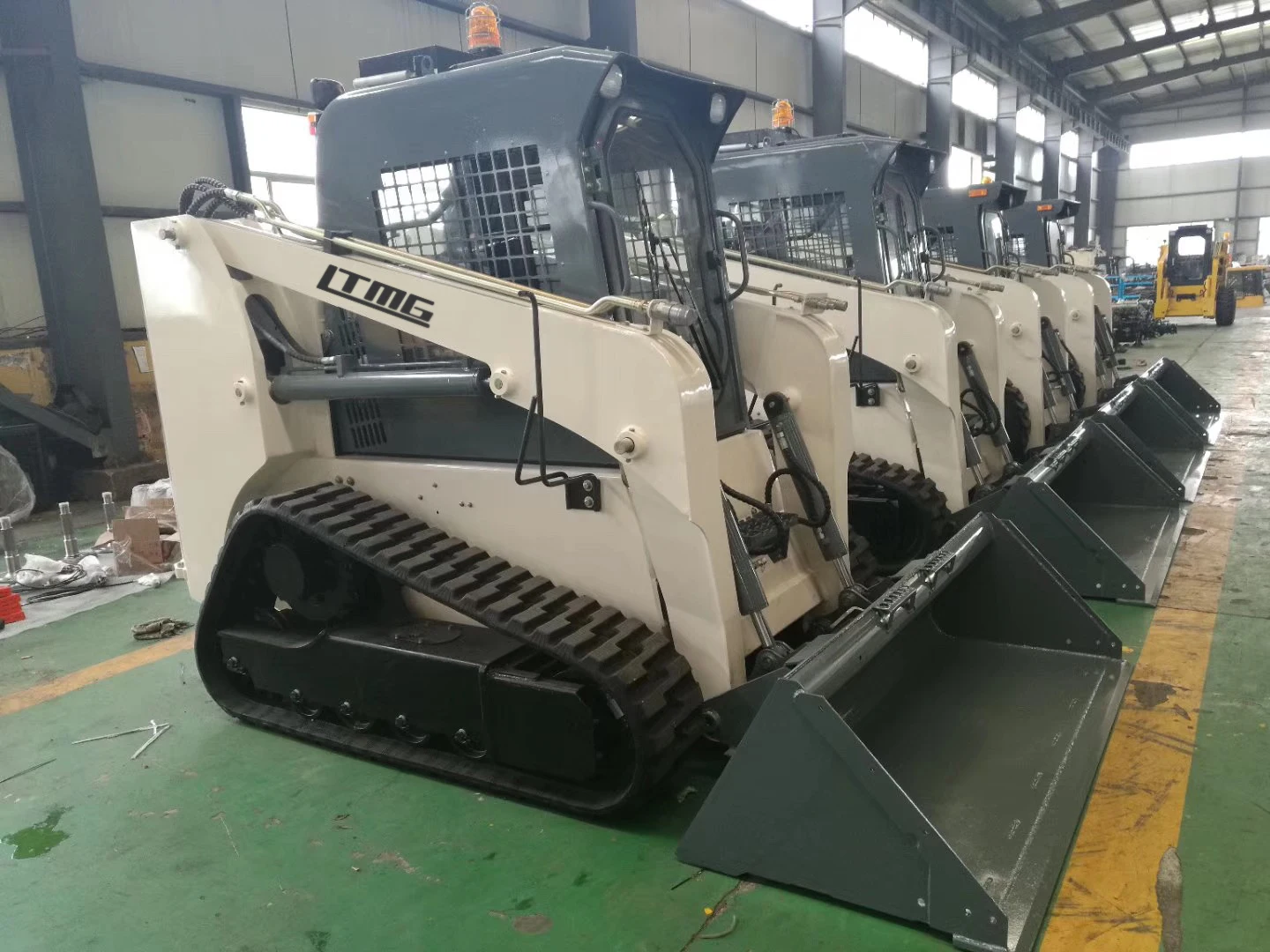

1.5 ton 1500kg skidsteer Crawler loader Specification
SPECIFICATIONS OF 1500KG CAPACITY CRAWLER SKID STEER LOADER | ||||||
Item | LTS100 | |||||
Engine model | 226B | |||||
Bore x stroke (mm) | 105X130 | |||||
Rated power (Kw) | 70 | |||||
Rpm | 2200 | |||||
Number of cylinders | 4 | |||||
Max. toque (N.m) | 380 | |||||
Displacement (L) | 4.5 | |||||
Max. Speed (kin/h) | 12/18 | |||||
Tire ( track ) model() | 320X84 | |||||
Loading Capacity (kg) | 1200 | |||||
Lifting | Arc-Shaped Lifting | |||||
Bucket capacity(m3) | 0.55 | |||||
Rated flow(L/min) | 88 | |||||
High Flow(L/min) | 122 | |||||
Tank capacity(L) F | 90 | |||||
Weight with bucket(kg) | 4280 | |||||
Height at Maximum Extension (mm) | 4070 | |||||
Hinge Pin Height (mm) | 3150 | |||||
Total Height (mm) | 2160 | |||||
Height to bottom of bucket(mm) | 2983 | |||||
Overall length without bucket ( mm ) | 3000 | |||||
Overall length with bucket(mm) | 3700 | |||||
Dumping angle at maximum height(°) | 40 | |||||
Dumping height(mm) | 2450 | |||||
Dumping reach(mm) | 700 | |||||
Rollback at ground position(°) | 30 | |||||
Rollback fully raised at max height(°) | 104 | |||||
Wheelbase(mm) | 1500 | |||||
Ground clearance(mm) | 200 | |||||
Angle of departure(° ) | 20 | |||||
Front turning radius without bucket mm | 1365 | |||||
Front tuning radius(mm) | 2200 | |||||
Rear tuning radius(mm) | 1742 | |||||
Rear length (mm) | 938 | |||||
Track width(mm) | 1654 | |||||
Width (mm) | 1994 | |||||
Bucket width (mm) | 2030 | |||||

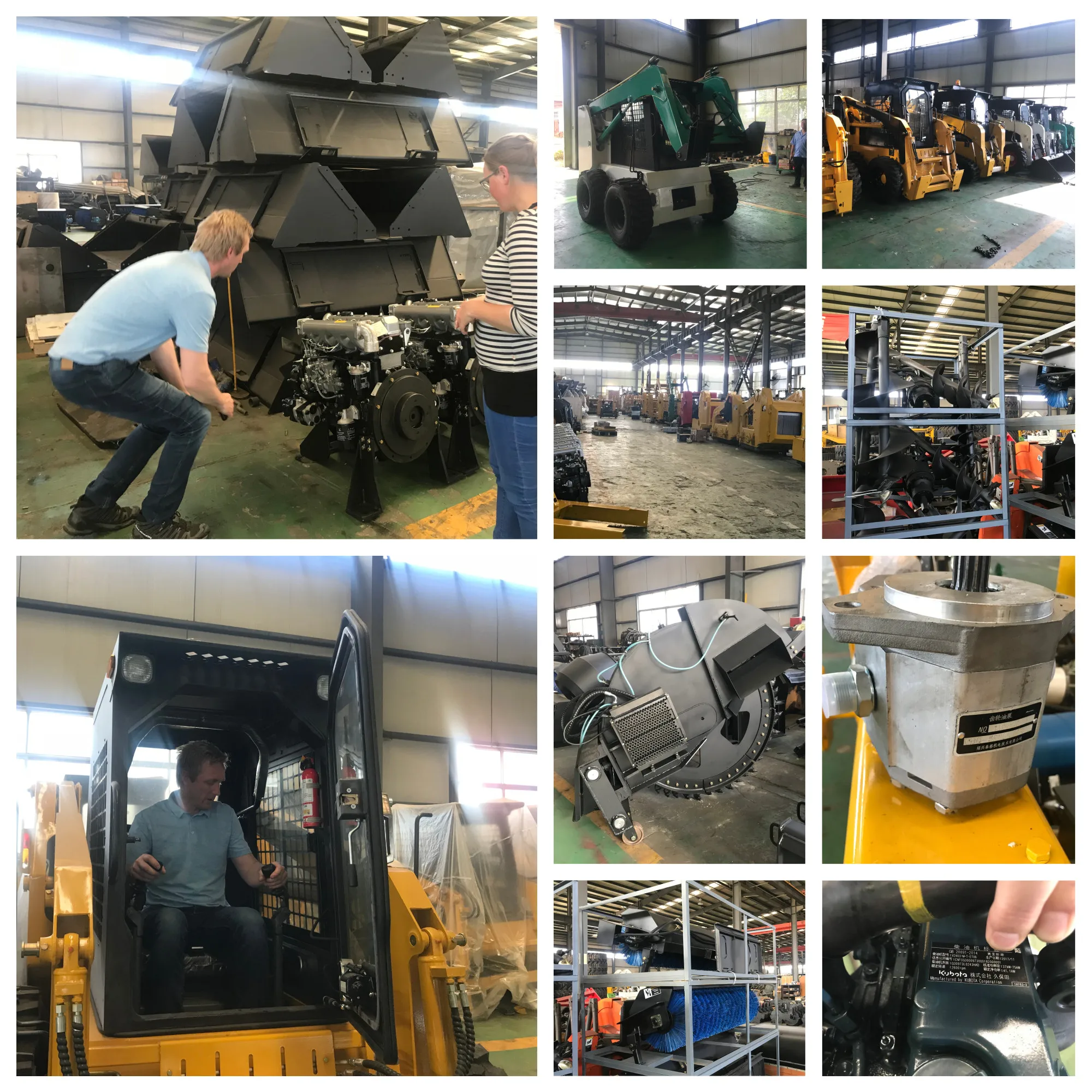

Our Factory
LTMG defines itself as the high cost-effective construction machine manufacturer. Beside meeting the demand of domestic market, over 50 LTMG overseas agents have been set up to provide global users with all-round marketing service, So far LTMG have exported to more than 110 countries and regions around the world.
Website:
//www.ltma-loader.com/ (Loader)
Product Features

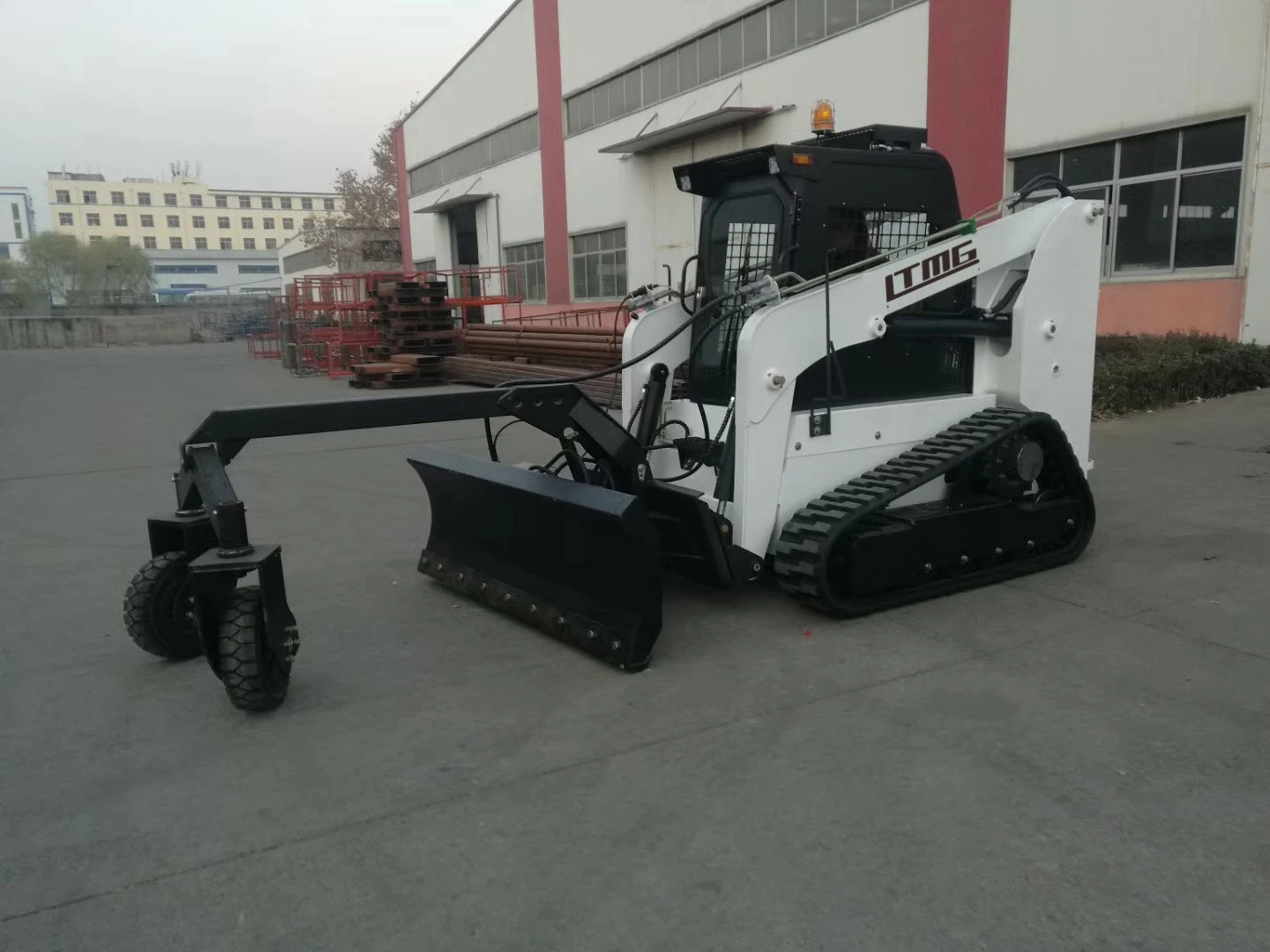

China loader skid steer 700kg 1000kg 1050kg 1200kg 1500kg crawler wheel skid steer loader with ce

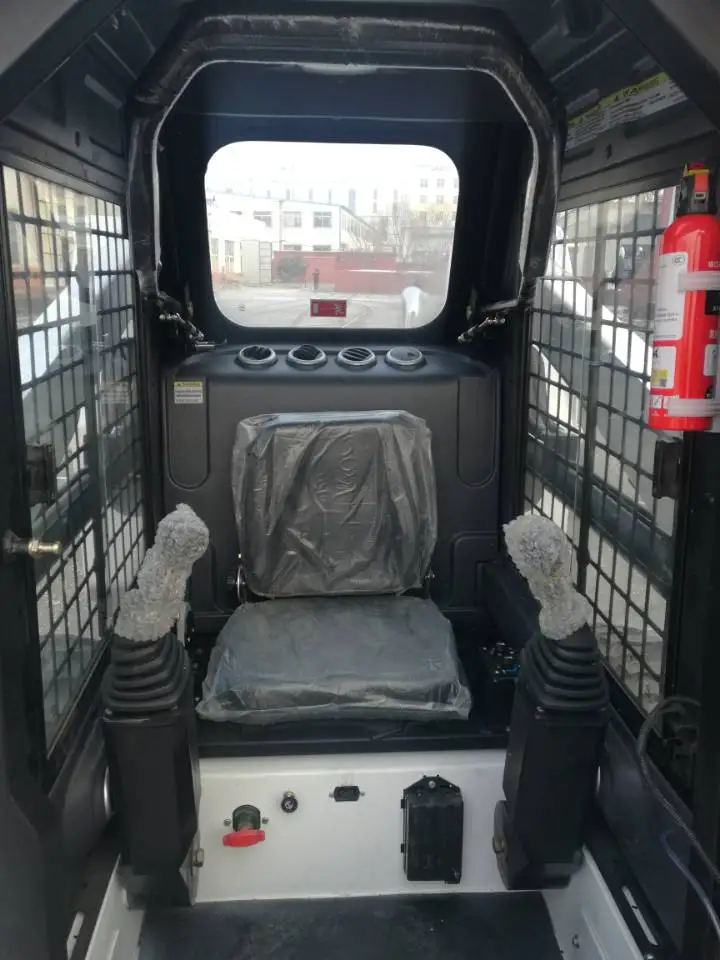

The product is equipped with a new type of plate-type welding work arm, which has high load-bearing capacity and overall rigidity and durability. Plunger cylinder can be equipped with 100/50 maximum,maximum breaking force at 3 tons. The luxurious cab features blow-molded interiors for aesthetic comfort.

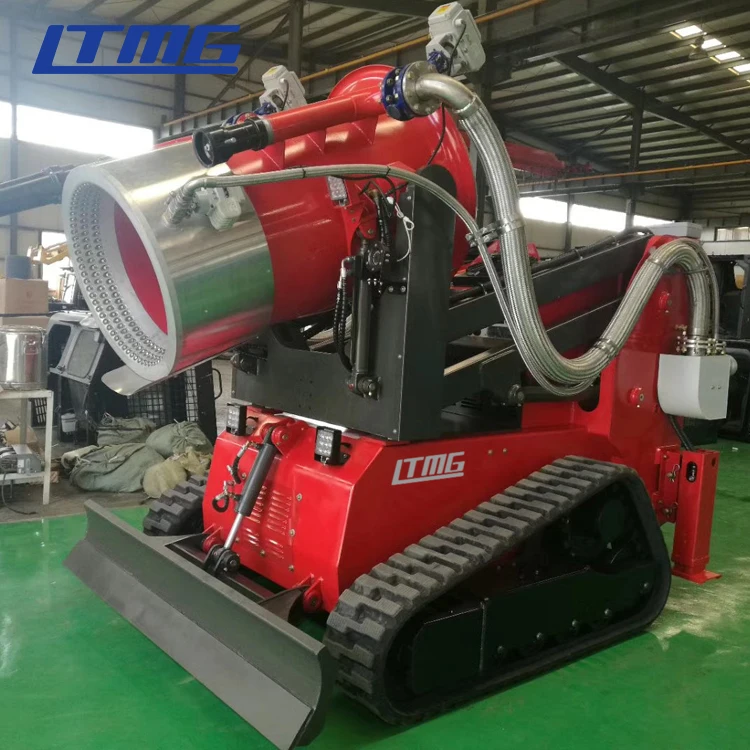

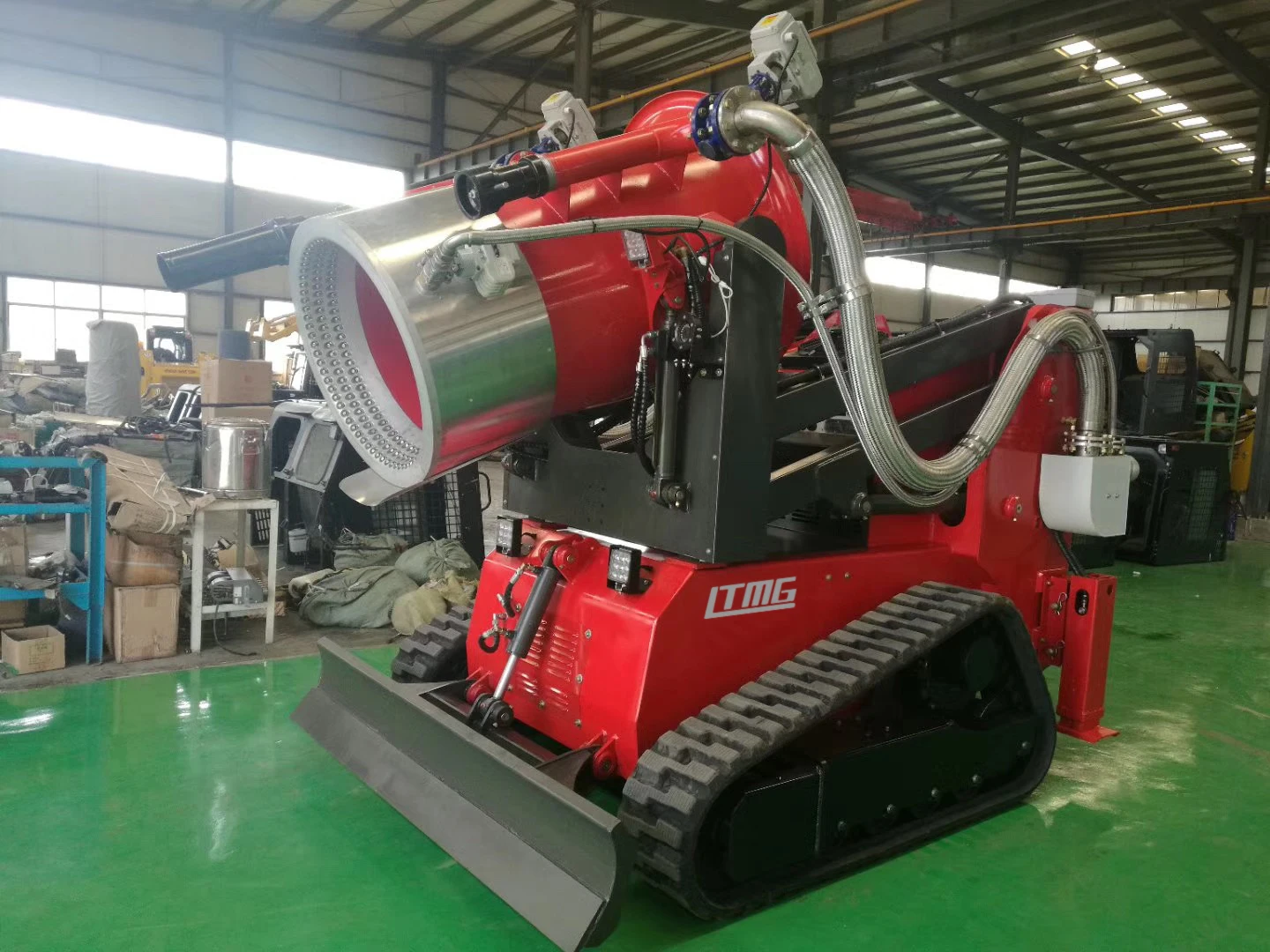

Detailed Images

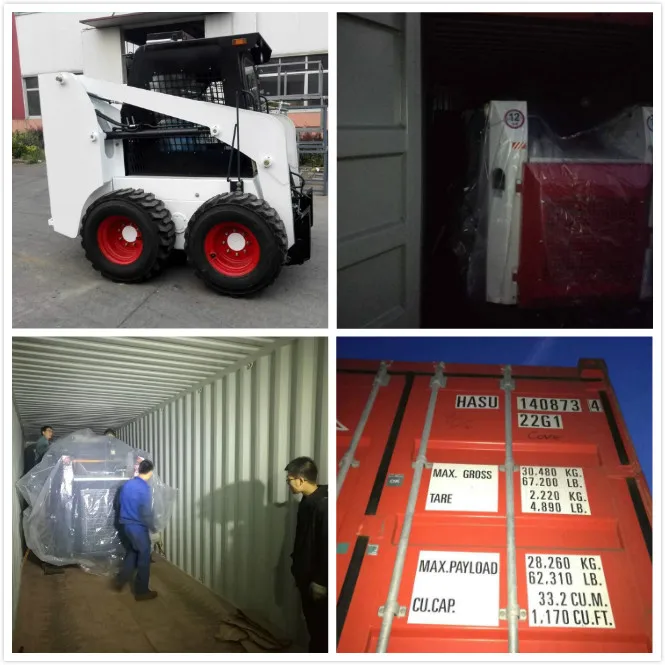

Packing & Delivery
Our Service
LTMG believes that after-sale service is as important as sale. And now we have more than 50 agents around the world to provide LTMG professional after-sale service.
All the product of LTMG supplied comes with one year or 2000 working hours (which occurs first) period quality warranty.
LTMG can also help clients coordinate with professional trained service engineer to provide you comprehensive knowledge about your machine. With our technical support, your machine service life can be significantly prolonged and sustained with high capacity.
Detail clauses and policies please check our website and product certificate.
