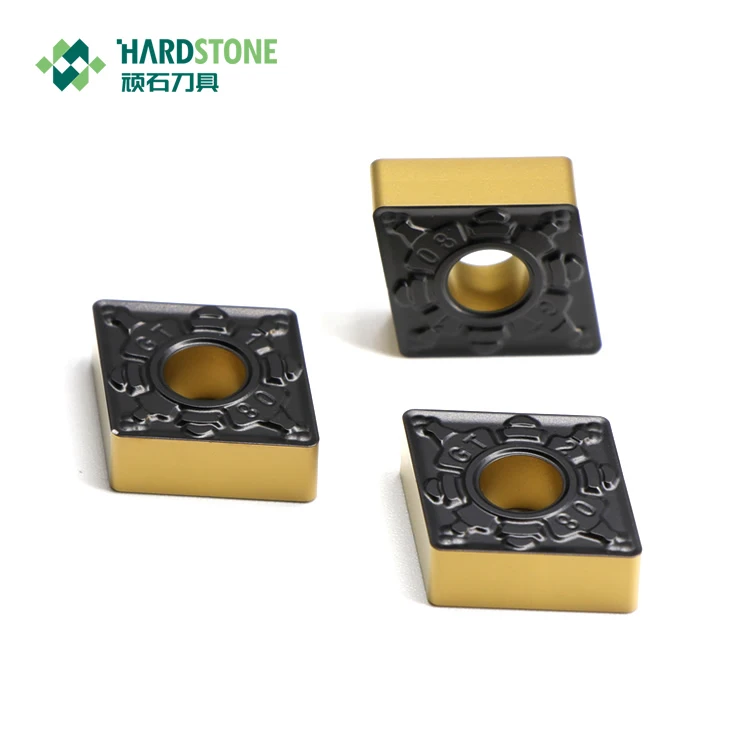

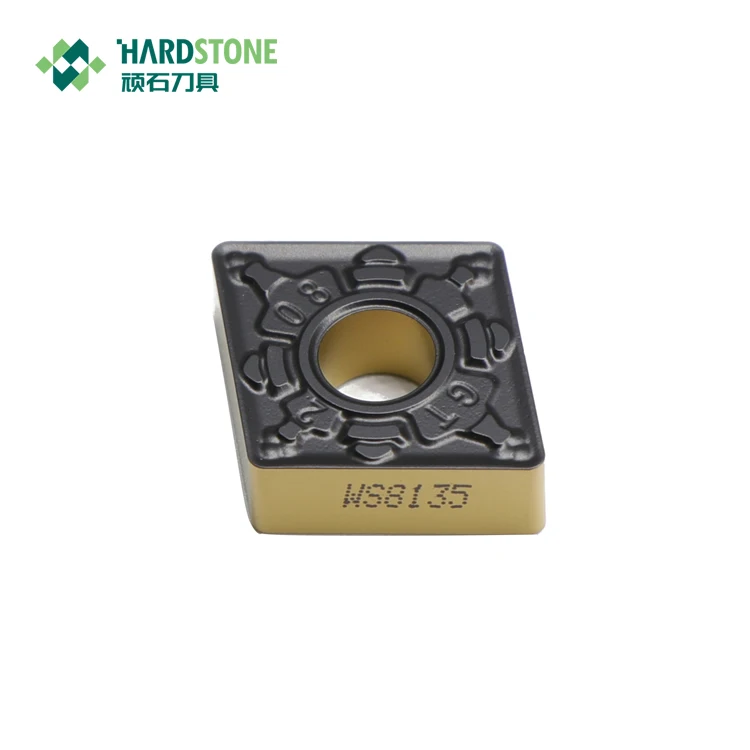

CNMG120408 GT WS8135 ISO Size CVD Coating CNC Metal Turning Carbide Inserts CNMG hardstone carbide insert
- Category: >>>
- Supplier: Zhuzhou Huarui Precision Cutting Tools Co. Ltd.
Share on (62458020253):
Product Overview
Description
CNMG120408-GT WS8135
ISO Size CVD Coating CNC Metal Turning Carbide Inserts CNMGG
pulcut CNMG
Product Description

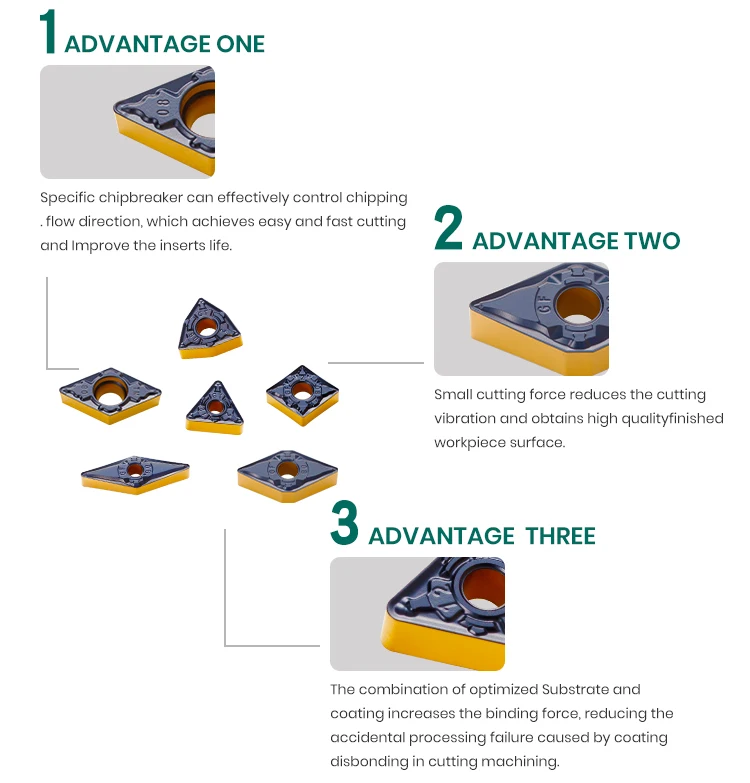

- Coating:Ultra-fine grain coating technology provides better wear resistance and toughness.
- Substrate:inserts shows a good capability against plastic deformation and good capability of red hardness.
- Application fields:Precise mould,automobile,aerospace,rail.
- Scope:Cemented carbide inserts for turning,milling,grooving,drilling, and aluminium machining.
Product Parameters
| Designation | Dimensions(mm) | Grade | Cutting parameters | Matched tools | ||||||
| L | IC | S | Φd | Re | CVD | |||||
| WS8215 | WS8125 | WS8135 | ||||||||
| CNMG120404-GF | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 | √ | √ | ap:0.15-2.00mm fn:0.08-0.18mm/rev | ISO tool holder | |
| CNMG120408-GF | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 | √ | √ | ap:0.25-2.00mm fn:0.08-0.25mm/rev | ISO tool holder | |
| CNMG120404-GT | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 | √ | ap:0.80-5.00mm fn:0.2-0.25mm/rev | ISO tool holder | ||
| CNMG120408-GT | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 | √ | ap:1.00-5.00mm fn:0.2-0.4mm/rev | ISO tool holder | ||
| CNMG120412-GT | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 | √ | ap:1.00-5.00mm fn:0.2-0.5mm/rev | ISO tool holder | ||
| CNMG120408-GR | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 | √ | ap:2.00-6.50mm fn:0.28-0.63mm/rev | ISO tool holder | ||
| CNMG120412-GR | 12.9 | 12.7 | 4.76 | 5.16 | 1.2 | √ | ap:2.00-6.50mm fn:0.28-0.63mm/rev | ISO tool holder | ||
| CNMG190608-GR | 19.3 | 19.05 | 6.35 | 7.94 | 0.8 | √ | ap:2-8mm fn:0.3-0.6mm/rev | ISO tool holder | ||
| CNMG190612-GR | 19.3 | 19.05 | 6.35 | 7.94 | 1.2 | √ | ap:2.00-7.0mm fn:0.32-0.7mm/rev | ISO tool holder | ||
| CNMG190616-GR | 19.3 | 19.05 | 6.35 | 7.94 | 1.6 | √ | ap:2-8mm fn:0.4-0.8mm/rev | ISO tool holder | ||
| CNMG160608-GM | 16.1 | 15.875 | 6.35 | 6.35 | 0.8 | √ | ap:1.0-5.0mm fn:0.25-0.4mm/rev | ISO tool holder | ||
| CNMG160612-GM | 16.1 | 15.875 | 6.35 | 6.35 | 1.2 | √ | ap:1.0-5.0mm fn:0.25-0.5mm/rev | ISO tool holder | ||
| CNMG120404R-M | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 | √ | ap:0.80-5.00mm fn:0.2-0.5mm/rev | ISO tool holder | ||
| CNMG120404L-M | 12.9 | 12.7 | 4.76 | 5.16 | 0.4 | √ | ap:0.80-5.00mm fn:0.2-0.5mm/rev | ISO tool holder | ||
| CNMG120408R-M | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 | √ | ap:1.00-5.00mm fn:0.2-0.5mm/rev | ISO tool holder | ||
| CNMG120408L-M | 12.9 | 12.7 | 4.76 | 5.16 | 0.8 | √ | ap:1.00-5.00mm fn:0.2-0.5mm/rev | ISO tool holder | ||
