Isuzu 4*2 5 Cbm/5000 Liter Fuel Oil Refueling Dispenser Tank Tanker Truck
- Category: Tanker Trucks >>>
- Supplier: Hubei Wanglong Special Purpose Vehicle Co. Ltd.
Share on (62458114307):
Product Overview
Description
Isuzu 4*2 5 Cbm/5000 Liter Fuel Oil Refueling Dispenser Tank Tanker Truck
Product Description
Isuzu 4*2 5 cbm/5000 Liter Fuel Oil Refueling Dispenser tank Tanker Truck
Product Description
Product Description
1. Purpose: It used for vehicles refueling and mobile transporting Fuel/Petrol/Diesel, etc.
2. Refueling System: Oil pump, Oil dispenser machine and Hose reel with filling gun, etc.
3. Advantage: High quality with competitive price.
Product Specification
Product Specification
General Technical Parameters | |||
| Overall Dimension | 5990×1960×2400 (mm) | ||
| Gross Vehicle Weight | 8000kg | ||
Chassis Specification | |||
| Chassis Brand | ISUZU 100P | ||
| Drive model | 4*2 | ||
| Cabin | Single row, Cab reversible, Left-hand Drive, with air condition. | ||
| Number of Passengers | 2. | ||
| Engine | Model | 4HK1-TCG40/98HP, with ABS. | |
| Power | 72KW/98HP | ||
| Emission standard | EURO 4 | ||
| Displacement | 2770(ml) | ||
| Fuel type | Diesel | ||
| Gearbox | 5Forwards & 1Reverse, manual operation, with power steering. | ||
| Brake System | Oil break, with vacuum booster pump. | ||
| Wheel Base | 3360mm | ||
| Front/Rear Axle Loading | 2500/4800(Kg) | ||
| Overhang | Mechanical Suspension, 8/10+6. | ||
| Tire | 7.00R16, steel wire tire, 6pc with 1 spare tire. | ||
| Max Driving Speed | 80 km/h | ||
Upperstructure Specification | |||
Fuel Tank | Tank Material | Q235B Carbon Steel (Stainless Steel and Aluminum Alloy for optional) | |
| Effective Volume | 5CBM | ||
| Medium Type | Fuel(Gasoline, Diesel, etc.) | ||
| Tank Thickness | 5mm | ||
| Manhole cover | 1 unit. with breath valves. | ||
| Emergency cut-off valve | 1 unit. | ||
| Discharging valve | 1 unit. | ||
| Lifting Ladder | 1 units. | ||
| Color | According to customer's requirements. | ||
Dispenser System | 1, Dispenser machine; | ||
| 2, Refueling retractable rubber hose reel and filling gun, 2 units; | |||
| 3, Pump. | |||
After-sales Service
1)Pre-sales Service: Communicate with customers, analyze their needs.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.
2)Sales Service: Provide professional technical solutions, recommend the right models accordingly.
3)After-sales Service: For different products, we can quote the EXW, FOB, CFR or CIF price accordingly.

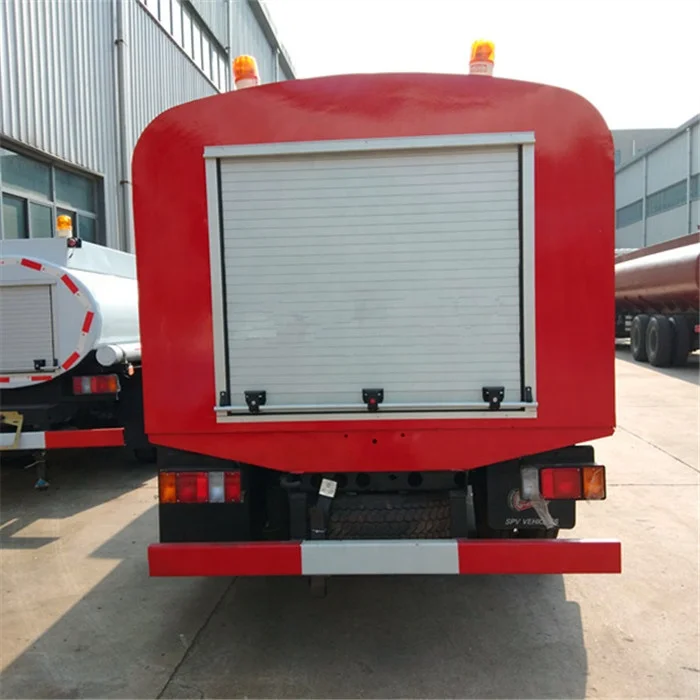

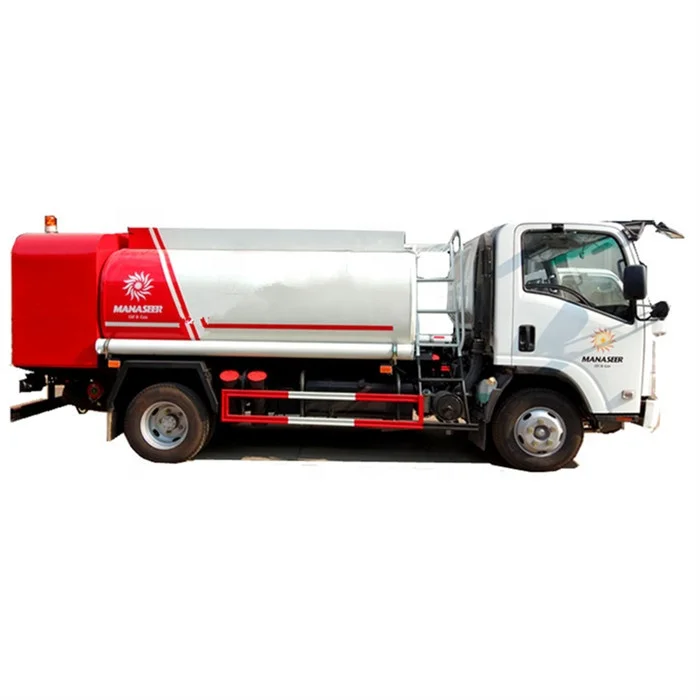

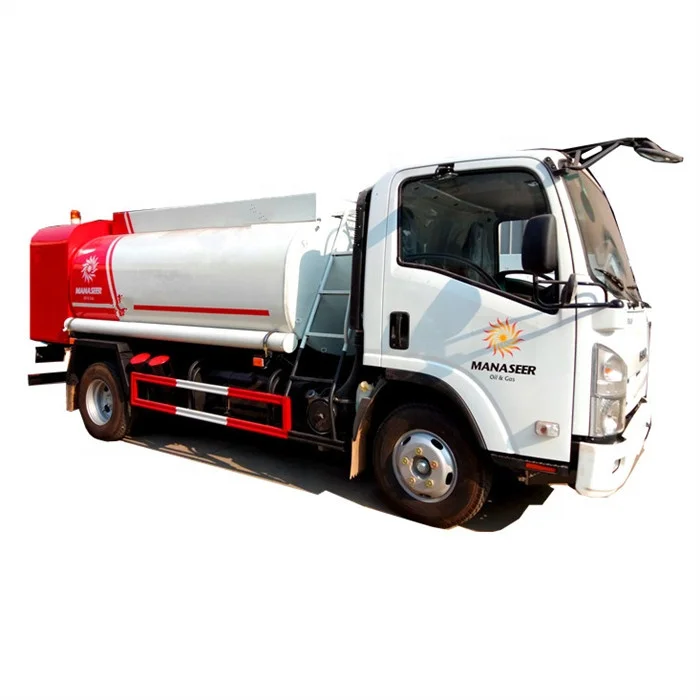

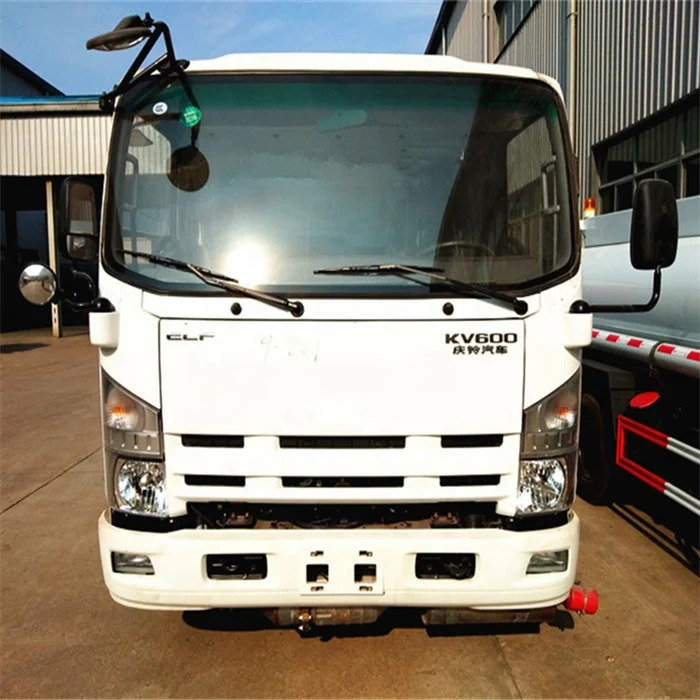

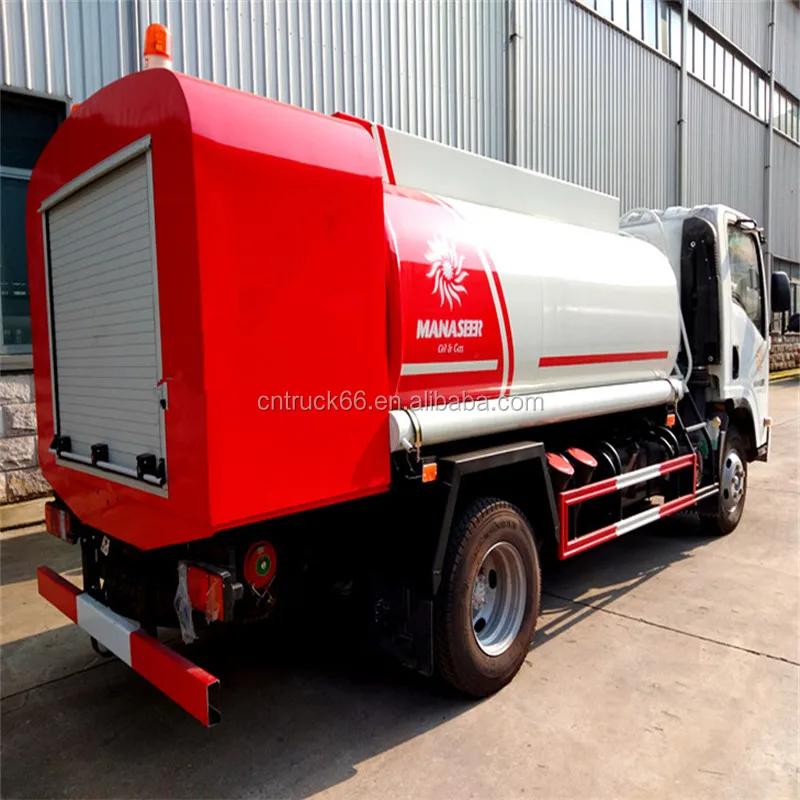

Product Pictures
Detailed Images
Our Services
1, 12 months whole vehicle warranty
We could support you original spare parts. Besides, we can give assistance in the following days by email or telephone. If necessary, our outwork engineer could go for technical assistance.
2,We will provide customers with the mos economical design according to the loading equipment and the payload.ODM & OEM customize, professional and technical team provide you the best design , free logo print.Trailer assembled under strict quality control, any process is inspected .
3,With years of export experience along with excellent quality, advanced services and competitive prices, Chengli truck has won numerous customers' trust and support.
4,Packaging Details : nude , covered with wax, small type can be put into 20'GP OR 40'GP container , over sized can be carried by bulk carriers or ro-ro ship , or according to your requirements.
5. Drive model: 4*2, 4*4, 6*2, 6*4, 6*6,8*4;4wd , 6wd,off-road , 10 wheel , 12 wheeler , 18 wheel;
6. Tank volume :1000L-20000 liters
7. Product type :Water tank fire truck,Foam fire truck,Dry powder fire truck,Dry powder foam fire truck,Water tank foam fire truck,Fire water tanker truck.etc
8. Right/Left hand drive, with A/C, single row or one and a half rows with sleeper.
9.Brand:Foton.JAC. FAW .JMC .Dongfeng.Chery.HOWO.Sintruk.Shacman.I-SUZU.I-VECO or other imported brands of new truck
10.Engine emission standard:Euro 3,Euro 4,Euro 5,Euro 6
