Product Overview
Description
Products Description

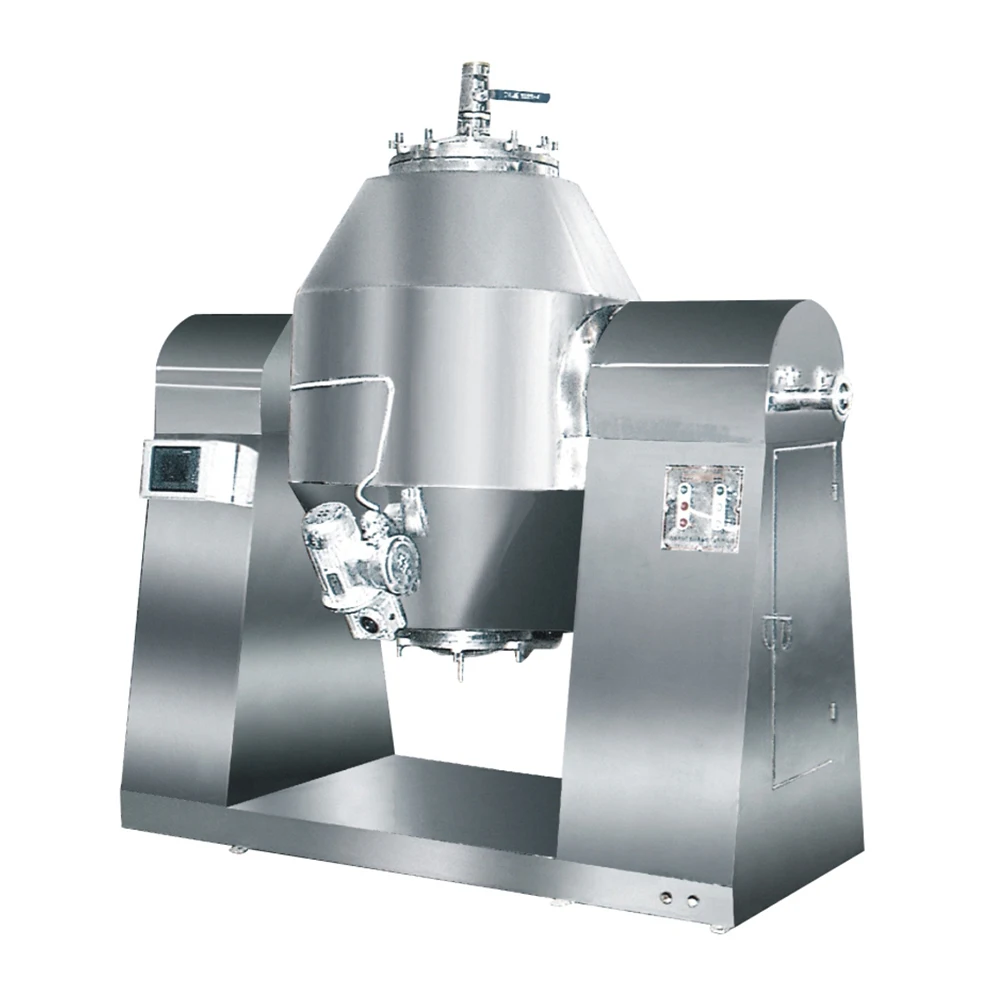

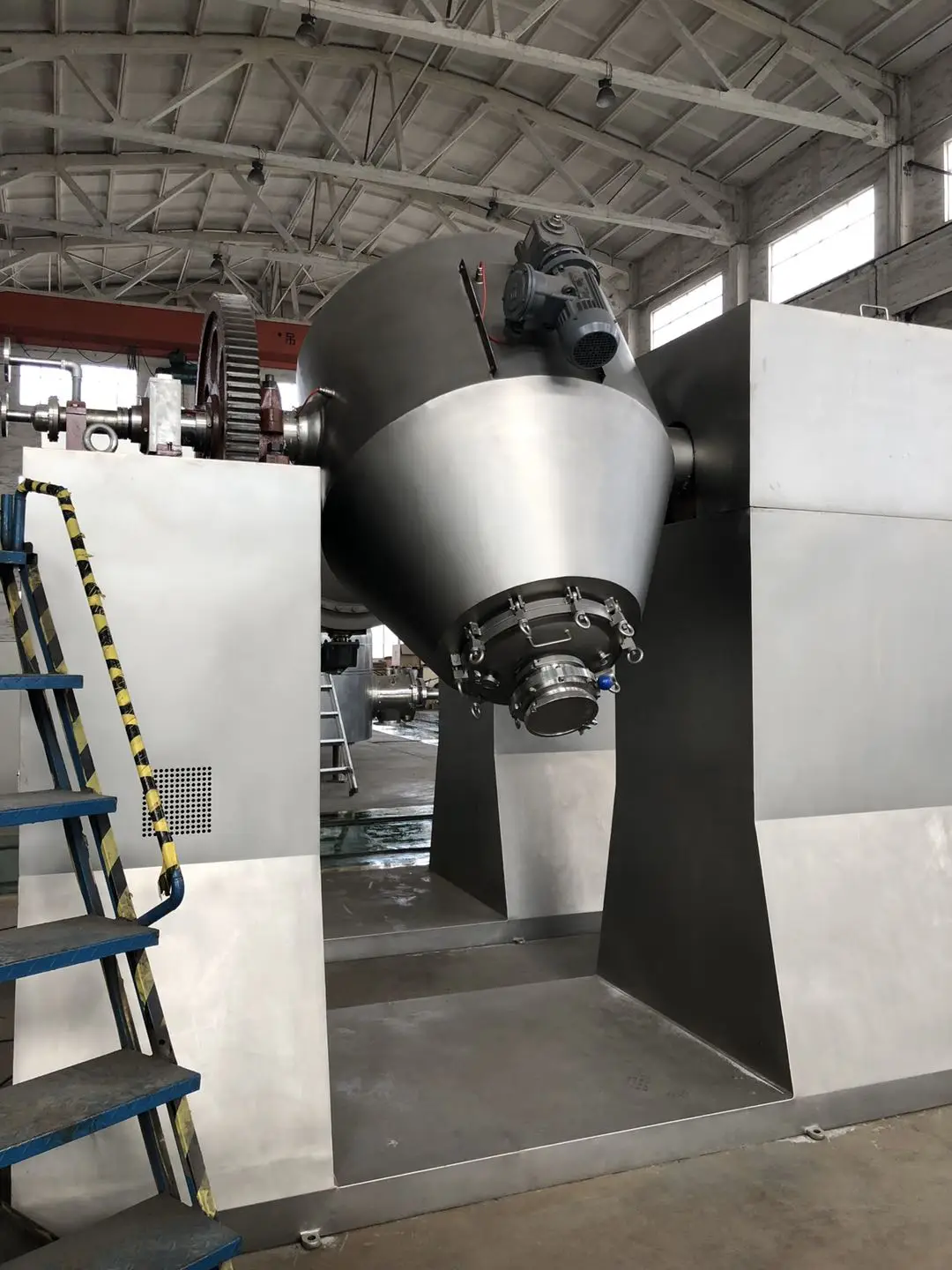

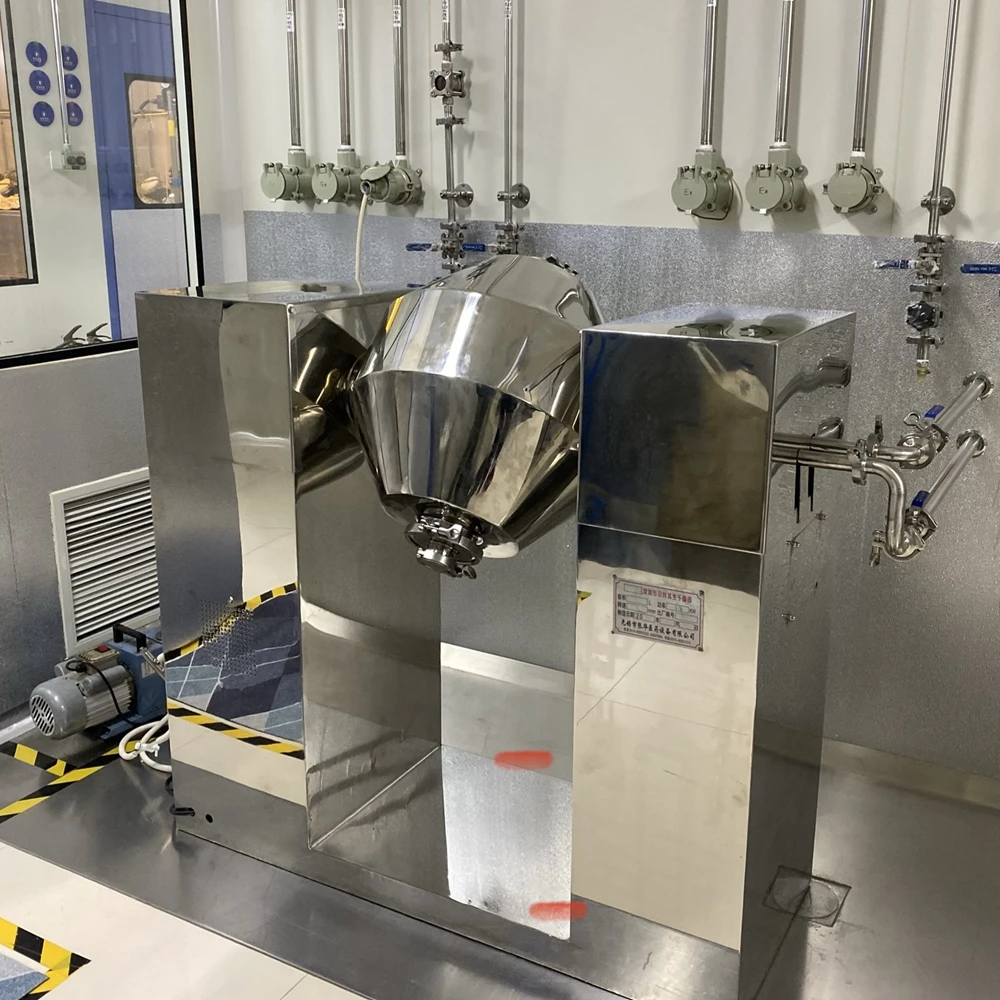

Double-Cone Vacuum Dryer
Material: SS304, SS316L, Titanium, Hastelloy, PTFE lined
Application: mainly applicable for drying all kinds of granular materials, such as antibiotics,crystal, in the pharmaceutical, chemical and other industries.
Main Characteristics
➤Good sealing performance: concentric degree of shaft are controlled well, both ends use mechanical sealing.
➤ Good rigidity: Both ends of the cone are welded together with the cone vessel as a whole. It is not easy to be deformed.
➤Steady transmission: The whole unit is driven by the electrical motor, reducer, big and small gears, which enables the unit run
more stably and reliably.
➤Mounted with CIP and SIP device.
➤ Design with SIP, CIP dedicated device
➤Steady transmission: The whole unit is driven by the electrical motor, reducer, big and small gears, which enables the unit run
more stably and reliably.
➤Mounted with CIP and SIP device.
➤ Design with SIP, CIP dedicated device
➤The cone angle is designed as 60° which prevents materials from pilling during rotary process, and avoids powder retention
during discharging.
during discharging.
➤The special design of vacuum pipes and vacuum filter increase the loading coefficient, which can even reach 65%.
➤The device includes three layers. The parts touching with materials Jacket in the middle is for hot water circulation. To prevent stainless steel and carbon steel from producing static corrosion, the jacket must be made from stainless steel, and the outer layer uses fiberglass cotton for heat preservation.

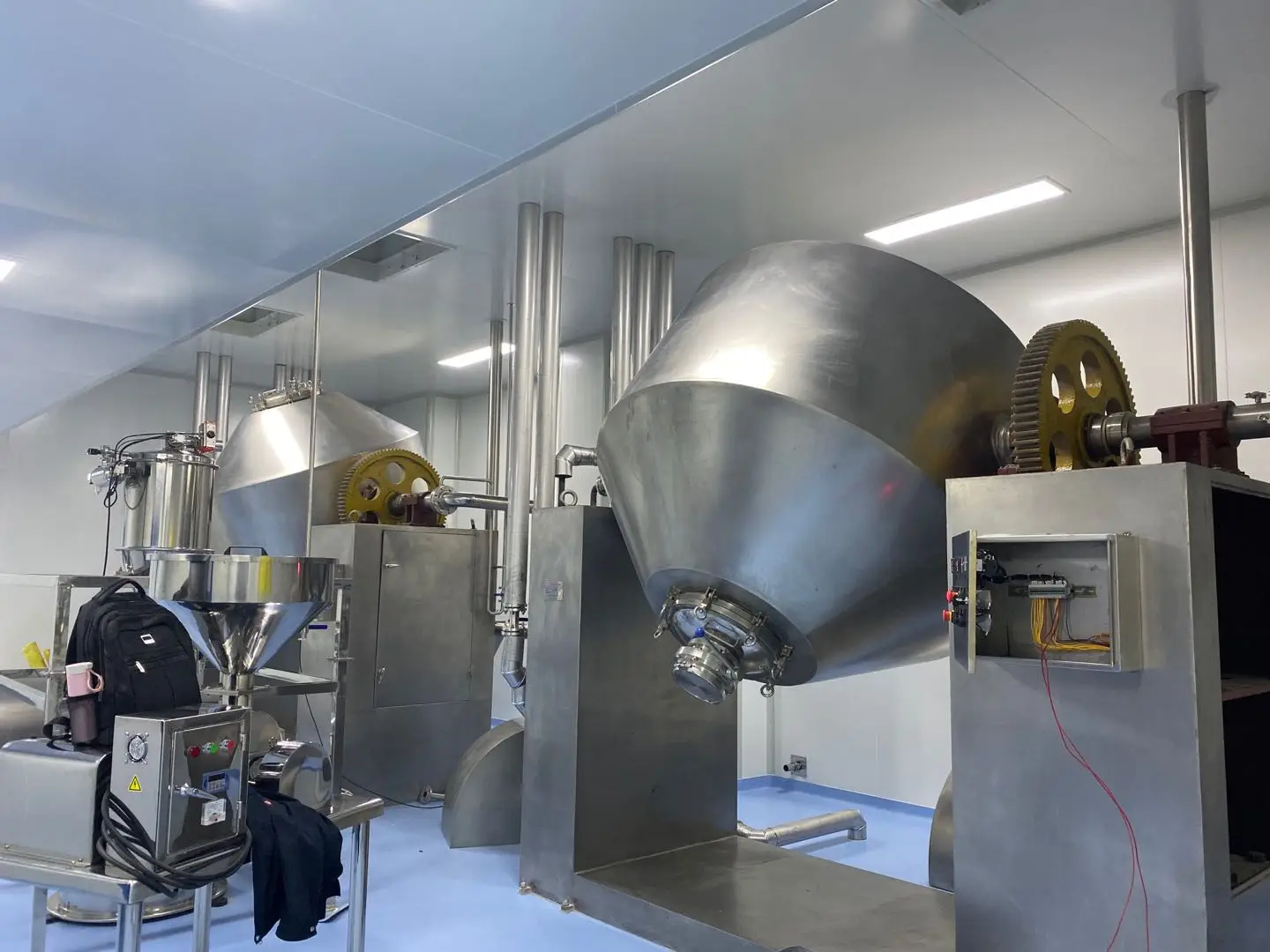

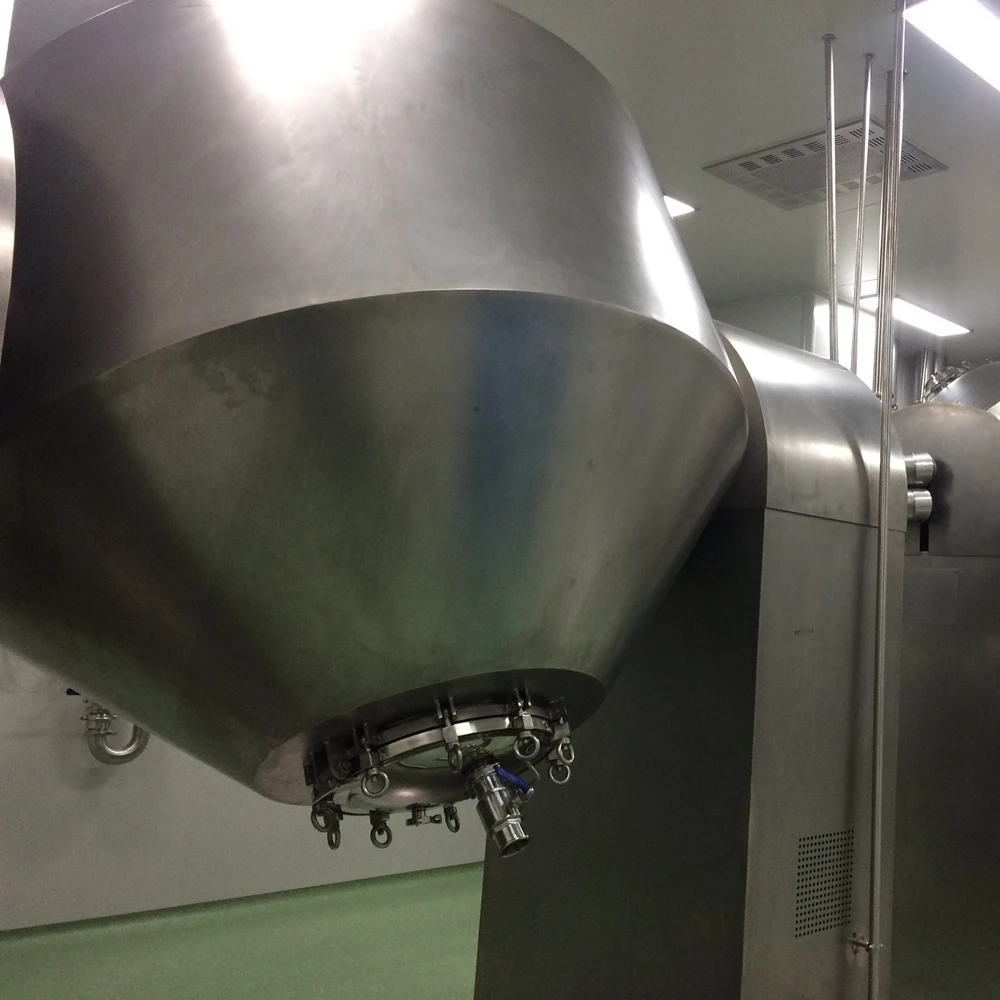

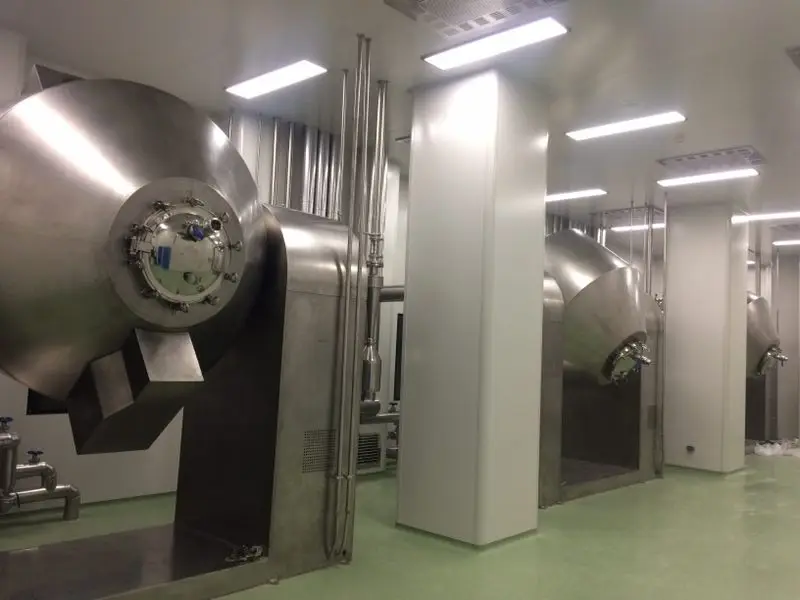

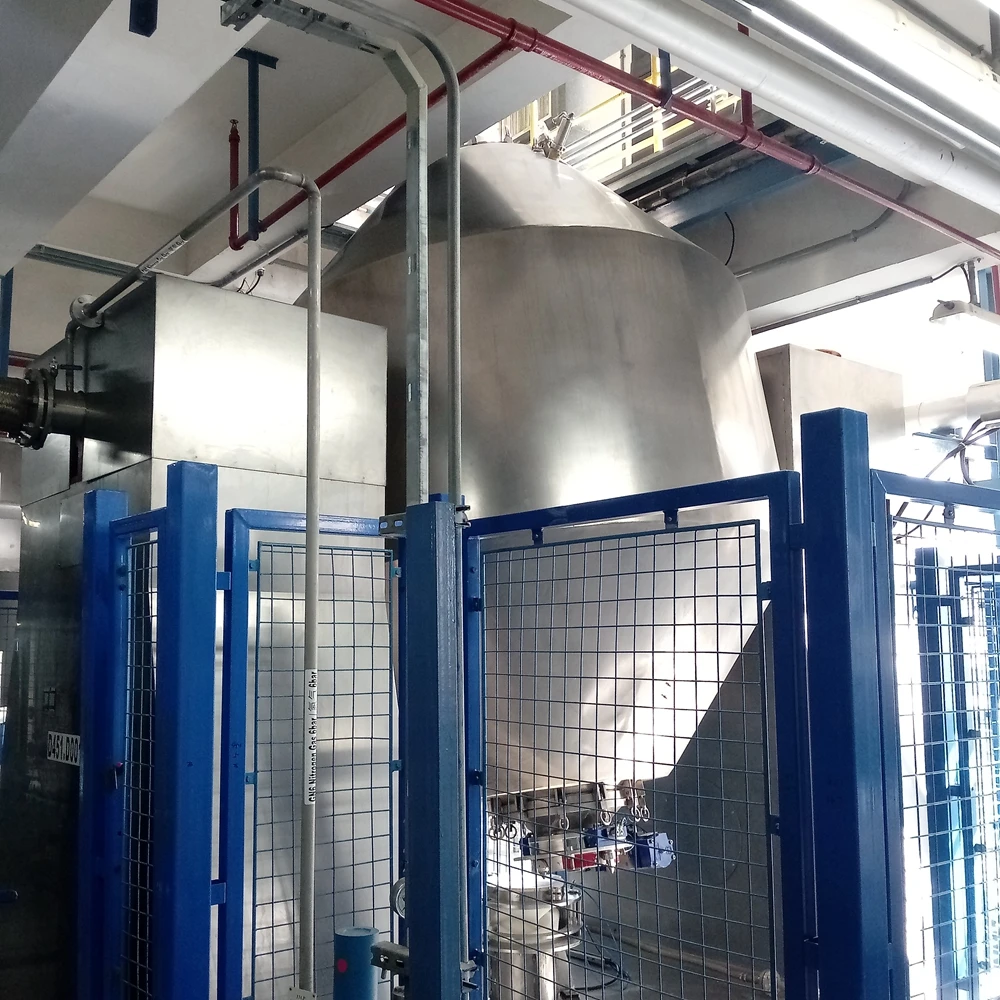

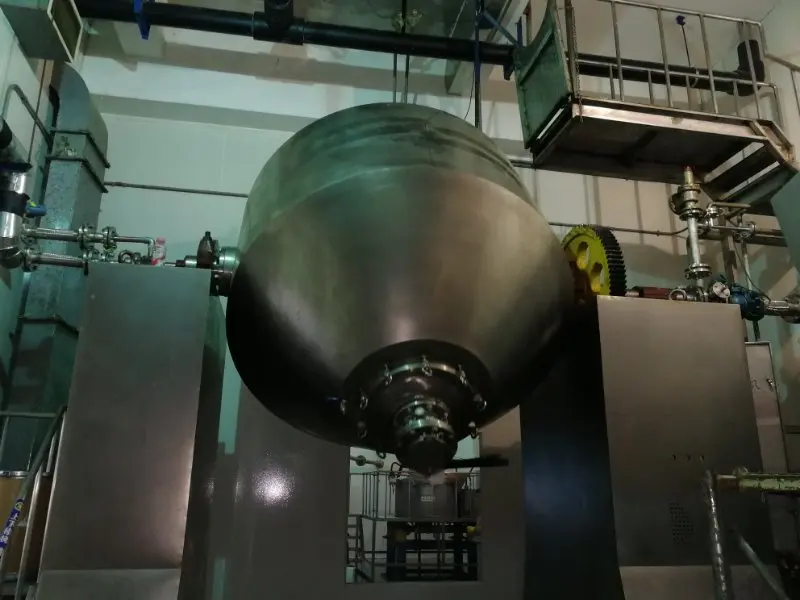

Customer Site

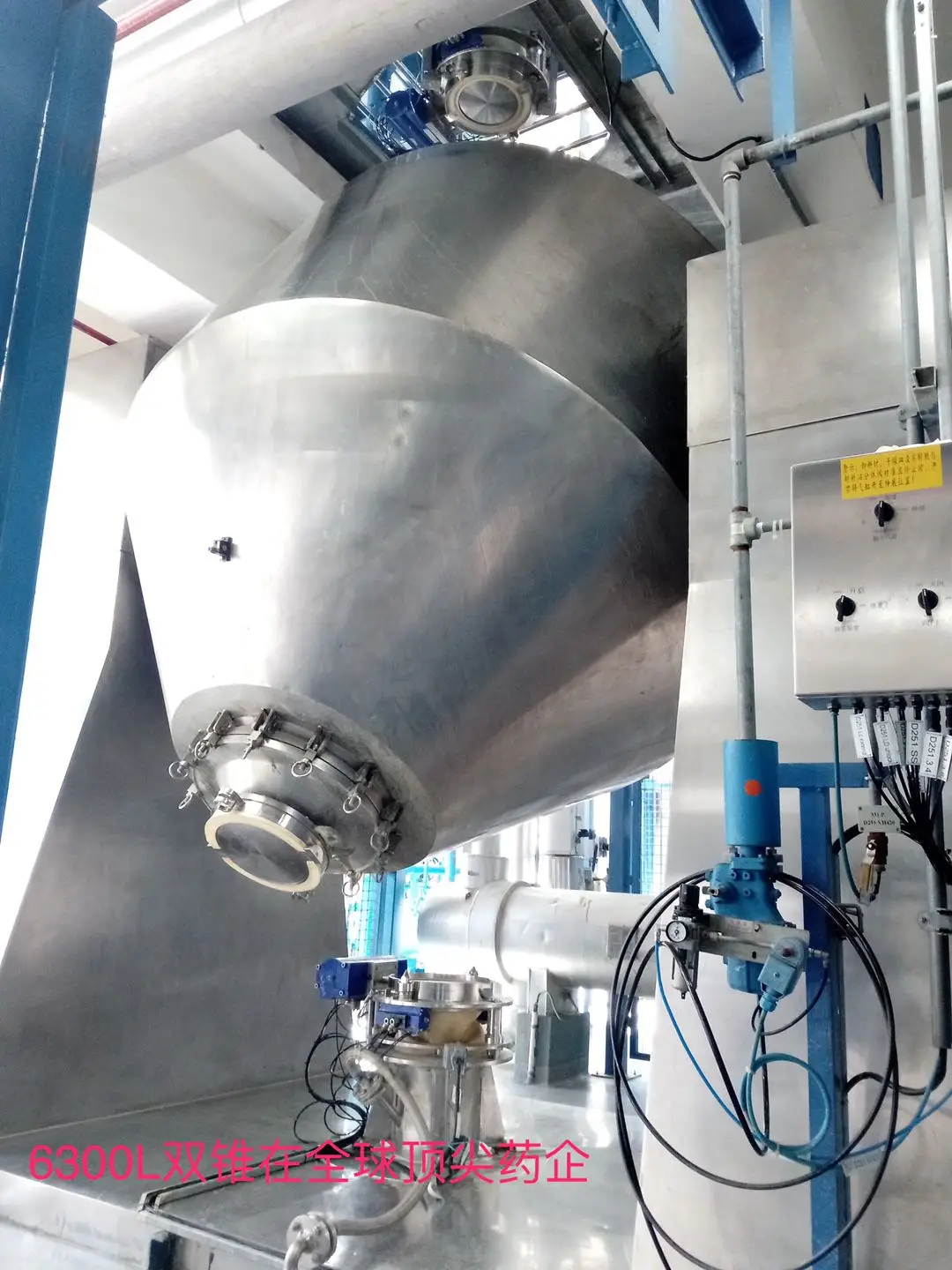

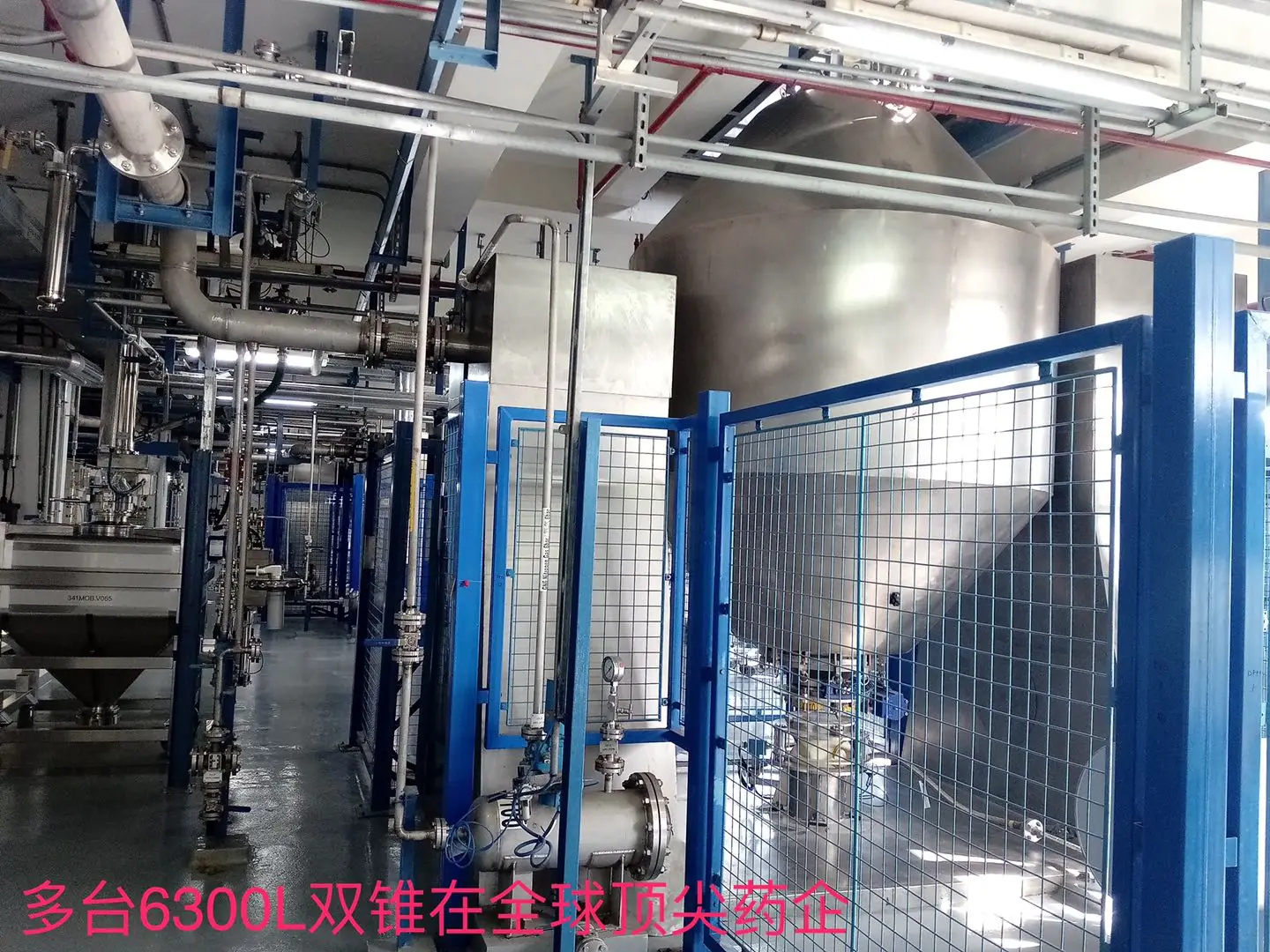

Pharmaceutical Industry
Technical Parameter
Specification （L） | Capacity （L） | Drive power （kw） | Rotate speed （rpm/min） | Host weight （kg） | Diathermanous area of condensator （㎡） |
20 | ≤10 | 0.55 | 6 | 300 | 3 |
50 | ≤25 | 0.55 | 6 | 450 | 3 |
100 | ≤50 | 0.75 | 6 | 820 | 3 |
... | ... | ... | ... | ... | ... |
18000 | ≤9000 | 30 | 2.2 | 20150 | 200 |
Our Advantage
Zhanghua VS Other | High concentricity of two axes of equipment， 20L-3000L with the concentric degree ≤ 0.16mm, 3000L-5000Lconcentricity ≤ 0.20mm,5000L - 18000L concentricity ≤0.25 mm. More stable operation, better sealing performance, longer service life |
Zhanghua VS Other | New advanced airtight technology, vacuum ≤ 030Pa, improve product quality, can be used for aseptic grade product production |
Zhanghua VS Other | Clean CIP online (if configured) to reduce labor and equipment pollution |
Zhanghua VS Other | Online sterilized SIP (if configured), capable of producing sterile products |
Online weighing system (if configured) eliminates the need for weighing after secondary material transfer to reduce labor force and improve measuring accuracy | |
Polishing precision up to 0.014μm, (if configured), easy to clean equipment, prevent material sticking to the wall | |
Double taper with knife (if available) to prevent pilling of sticky materials during drying | |
The first in China, the double cone produced in 1978, is still in use by users, with reliable performance. With nearly 40 years of experience, it has produced no less than 1000 sets |
Design / Calculation Software
You May Like
ANFD ROTARY VACUUM DRYER PADDLE DYRER VACUUM OVER
Custom Service
➤Our Products for pharmaceutical and chemical industries
1. Multifunctional “Three in One” (filtering, washing and drying)
1. Multifunctional “Three in One” (filtering, washing and drying)
2. Crystallizing Tank, Reaction Kettle
3. Sterile double-cone dryer
4. Rake Vacuum Dryer/Paddle Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
3. Sterile double-cone dryer
4. Rake Vacuum Dryer/Paddle Dryer
5. Plate-fin Heat Exchanger
➤Our advantage
1. Special Equipment: Pressure Equipment, Equipment made of anti-corrosion materials, Sterile Equipment
Equipment made of anti-corrosion materials includes: anti-corrosion lining plastic/ PTFE/ enamel,
Ti/HC22/Mone11
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤scope of business
1. On-site Inspection
2. Technical Innovation Plan for Equipment
Technical Improvement Plan for Equipment’s Structure Optimization
Fast and Effective Solution to Equipment Malfunctions
Highly Efficient and Precise On-site Construction Service
Commitment to a Deadline in Customization
A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
2.Customized Design: Double-Cone in 20L-20m³
Rake Dryer (with mechanical seal) in 16 m³
DN300-DN600 “Three in One”
3.Design/Calculation Software
➤scope of business
1. On-site Inspection
2. Technical Innovation Plan for Equipment
Technical Improvement Plan for Equipment’s Structure Optimization
Fast and Effective Solution to Equipment Malfunctions
Highly Efficient and Precise On-site Construction Service
Commitment to a Deadline in Customization
A Full Range of long-term on-site technical maintenance service
3. Maintenance
4. Technical Solutions
5.On-site Testing and Training
6. Spare Parts
