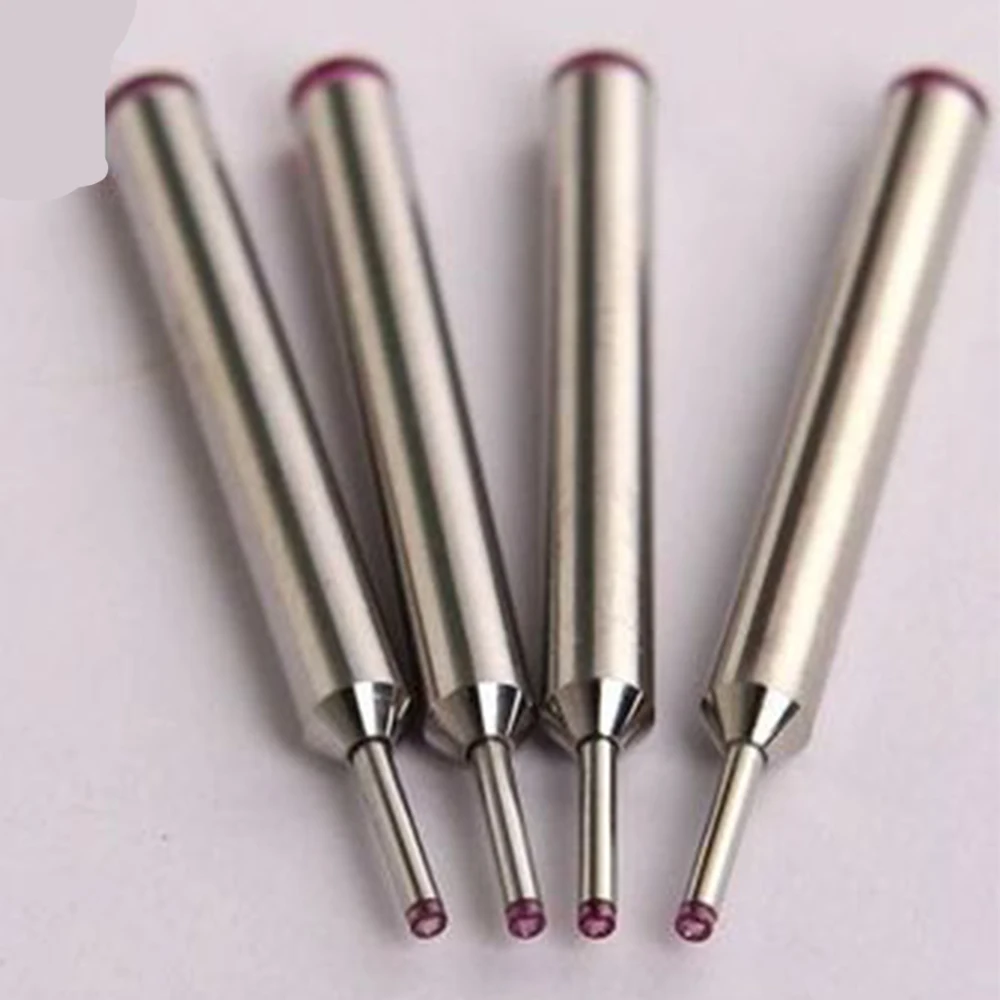

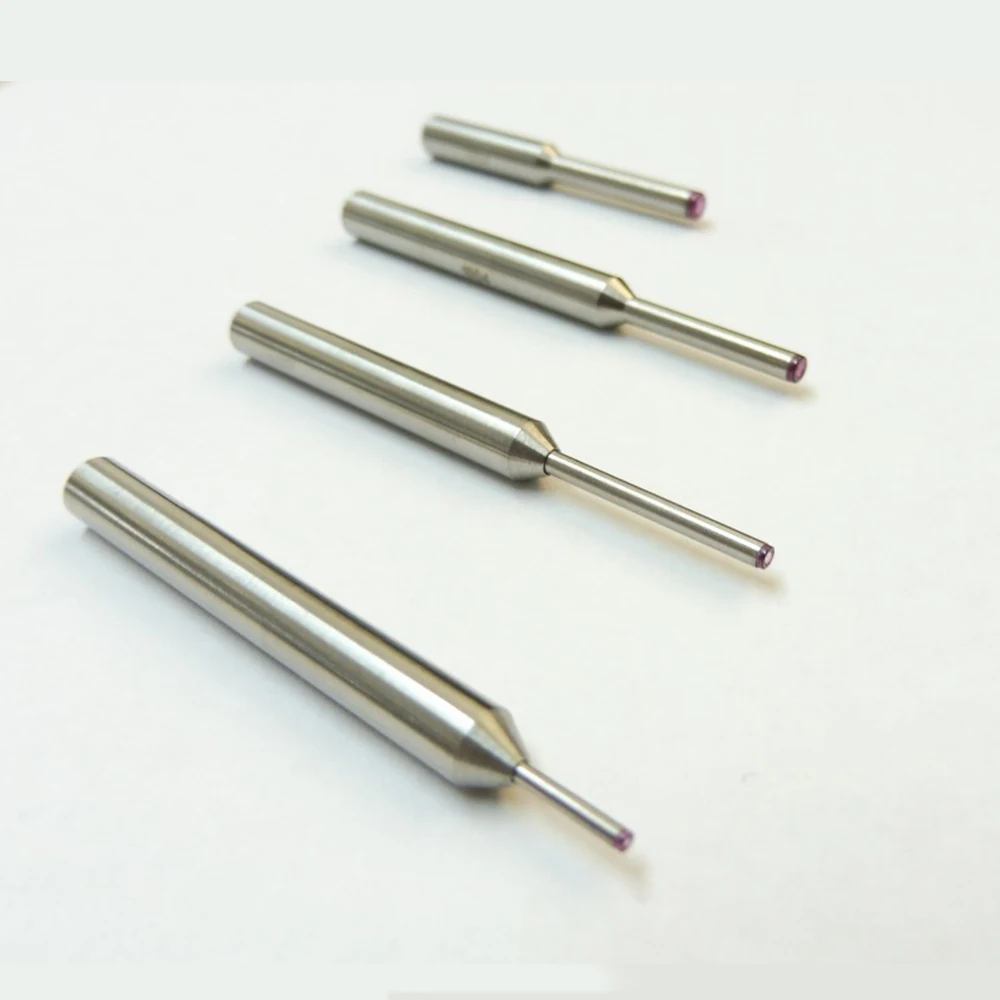

Textile Copper Machine Ra0.025 Diamond Polished Mirror Surface Hard Alloy Ruby Tipped Tube Winder Needle Ruby nozzle

Product Overview

Description

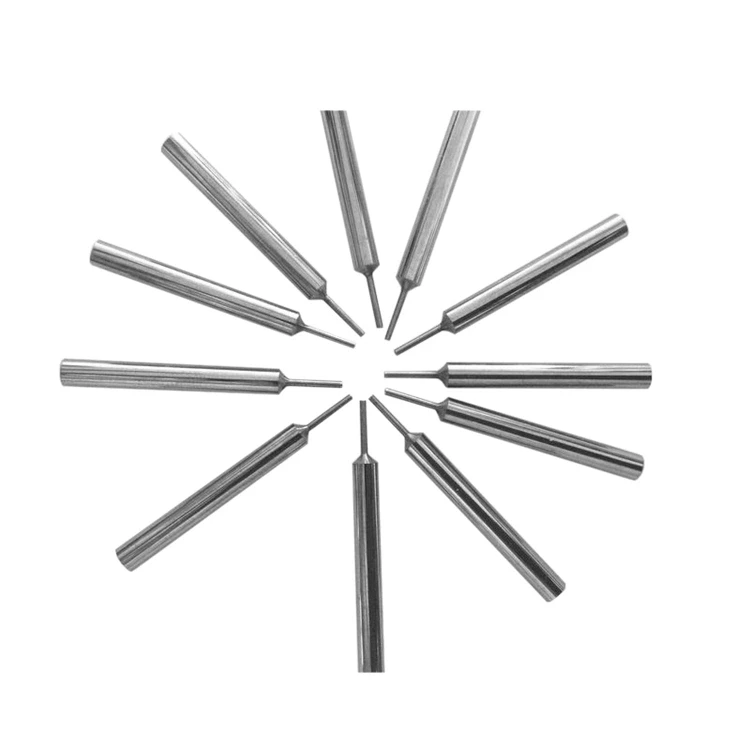

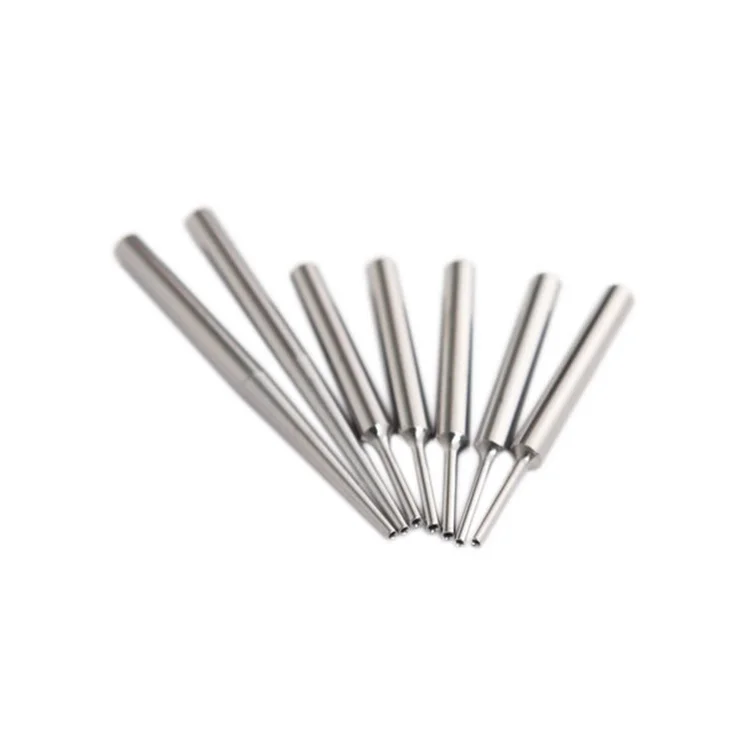

Coil Winding Motor Nozzle/Wire Guide Needles for Coil Winding Machine



Coil winding wire guide nozzles(Hard alloy nozzle)Tungste carbide nozzle Features:
1. High Wear Resistance
This is assured by the choice of materials for wear elements possessing a minimum hardness in excess of Vickers 1, 000 (HRC 70).
2. Scratch-Proofing

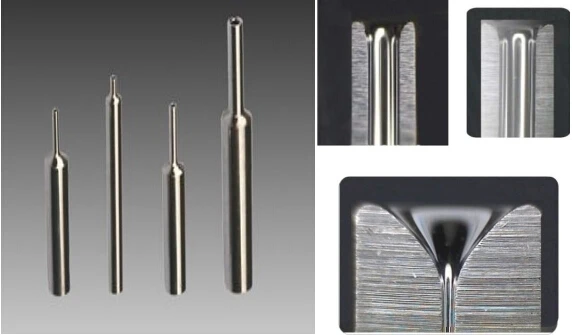

Eliminate wire insulation film damage, low friction resistance, stable wire tension. The wire-guiding surfaces are mirror finished by diamond lapping to a surface roughness of 2 -4 micro inches Ra or better, material permit.
3. Straightness and Stiffness

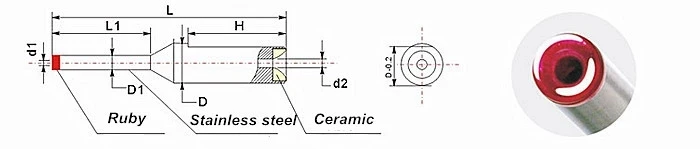

Straightness and Stiffness are defined by the wire exit being concentric and inflexible with respect to the nozzle locating? . In plain terms, the wire should exit from the nozzle concentric to the locating? To within 0.02 mm, with or without load. A geometric characteristic presentation is shown at upper left. Concentricity to within 0.01mm.
4. Precise Exit Radii
Because the coil winding nozzle's Exit Radii governs the angle of the wire exit from one coil to the next, it should be monitored to + / - 0.025 mm. This is done by digital measurement, shown at upper right.

The coil winding nozzle(tungsten carbide nozzle) is the one of our featured product at competitive price.

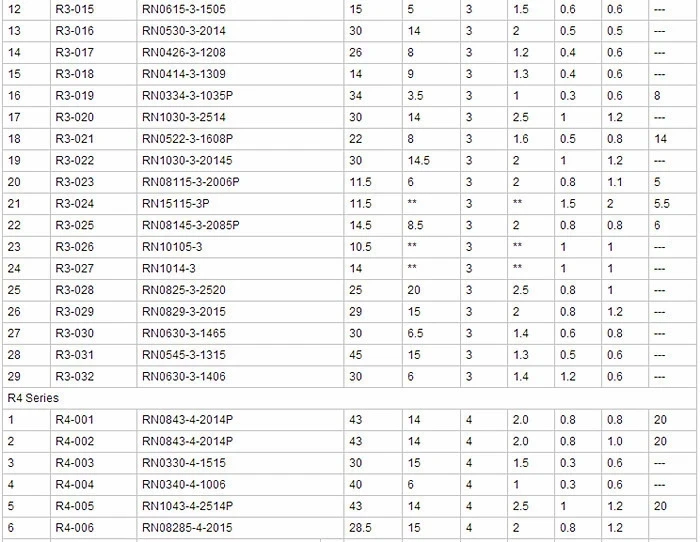

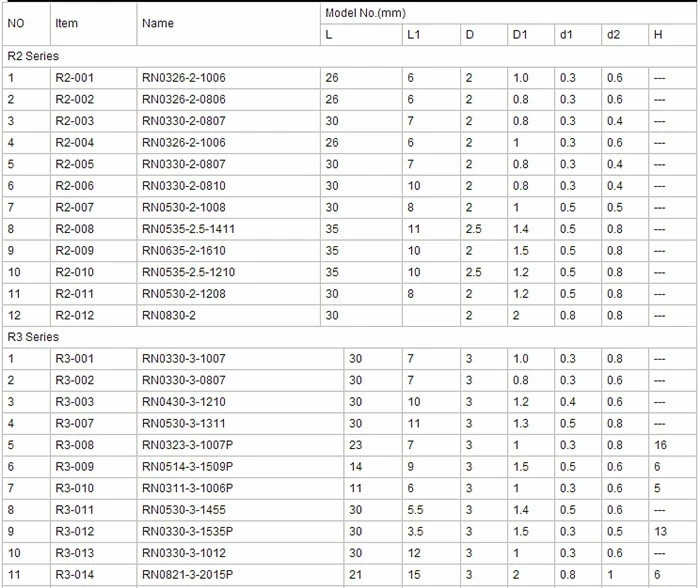

Detailed specifications

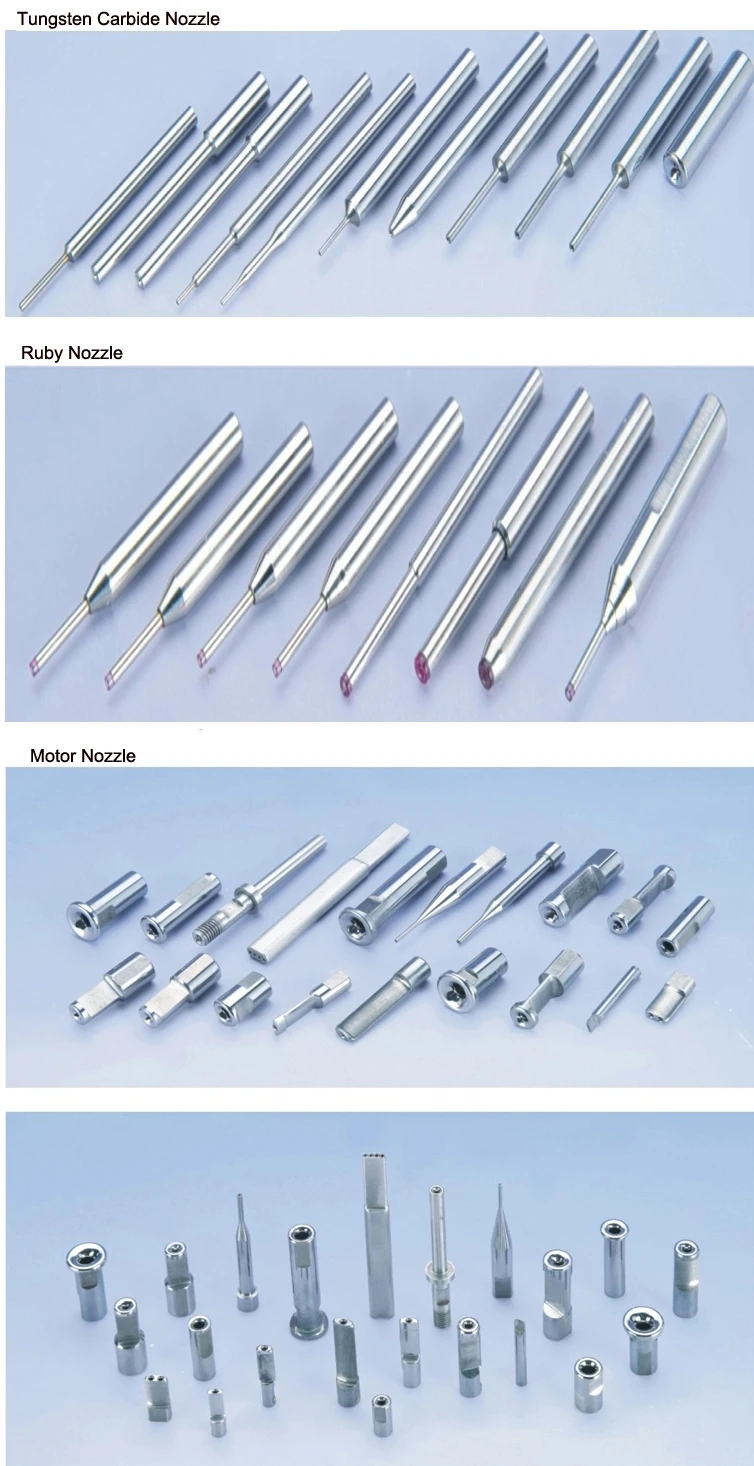

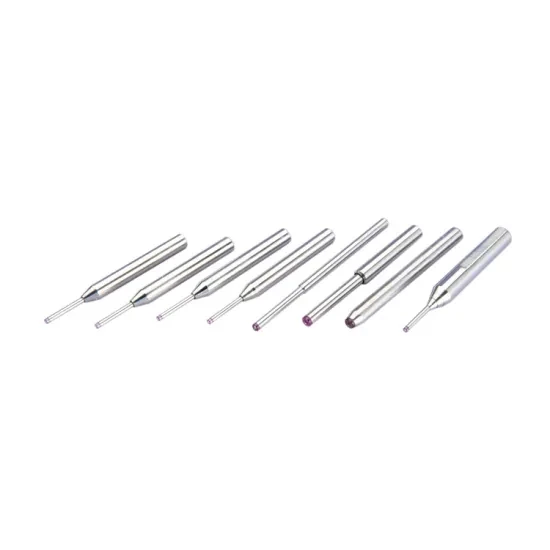

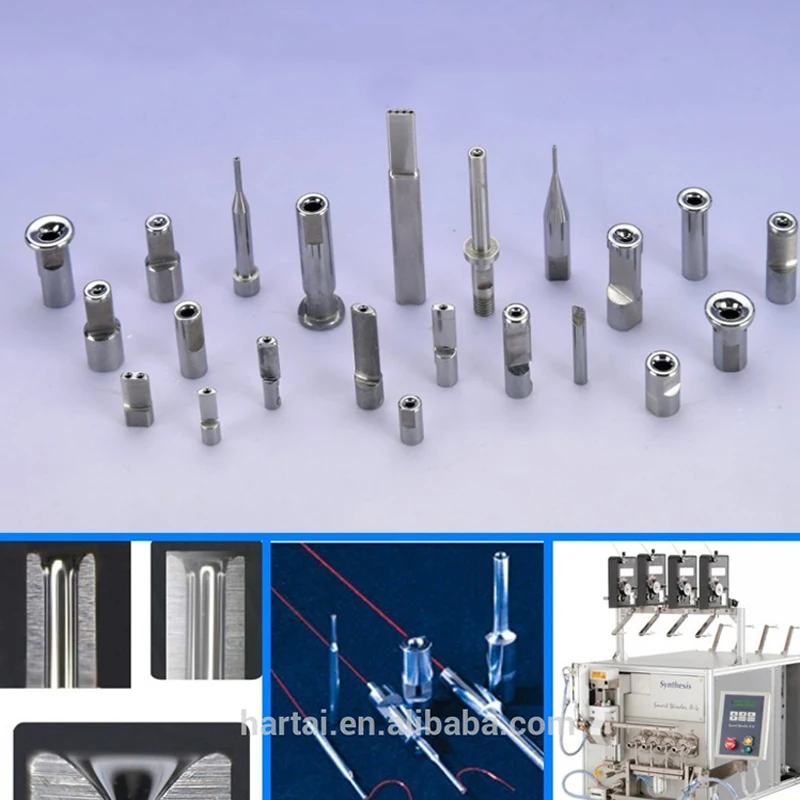

Detail pictures
