Single Colors Plastic Bag Label Printer Flexo Printing Machine Flexographic Printer
$34,000.00-35,000.00
UV IR Flexo Adhesive Label Sticker Printing Machines With Die Cutting,Cold Stamping
- Category: >>>
- Supplier: Ruian Xiaohai Machinery Factory
Share on (62458622967):
Product Overview
Description
LABEL SPECILIEST TO SOLVE AND MEET ALL YOUR LABEL MAKING REQUEST
Products Description

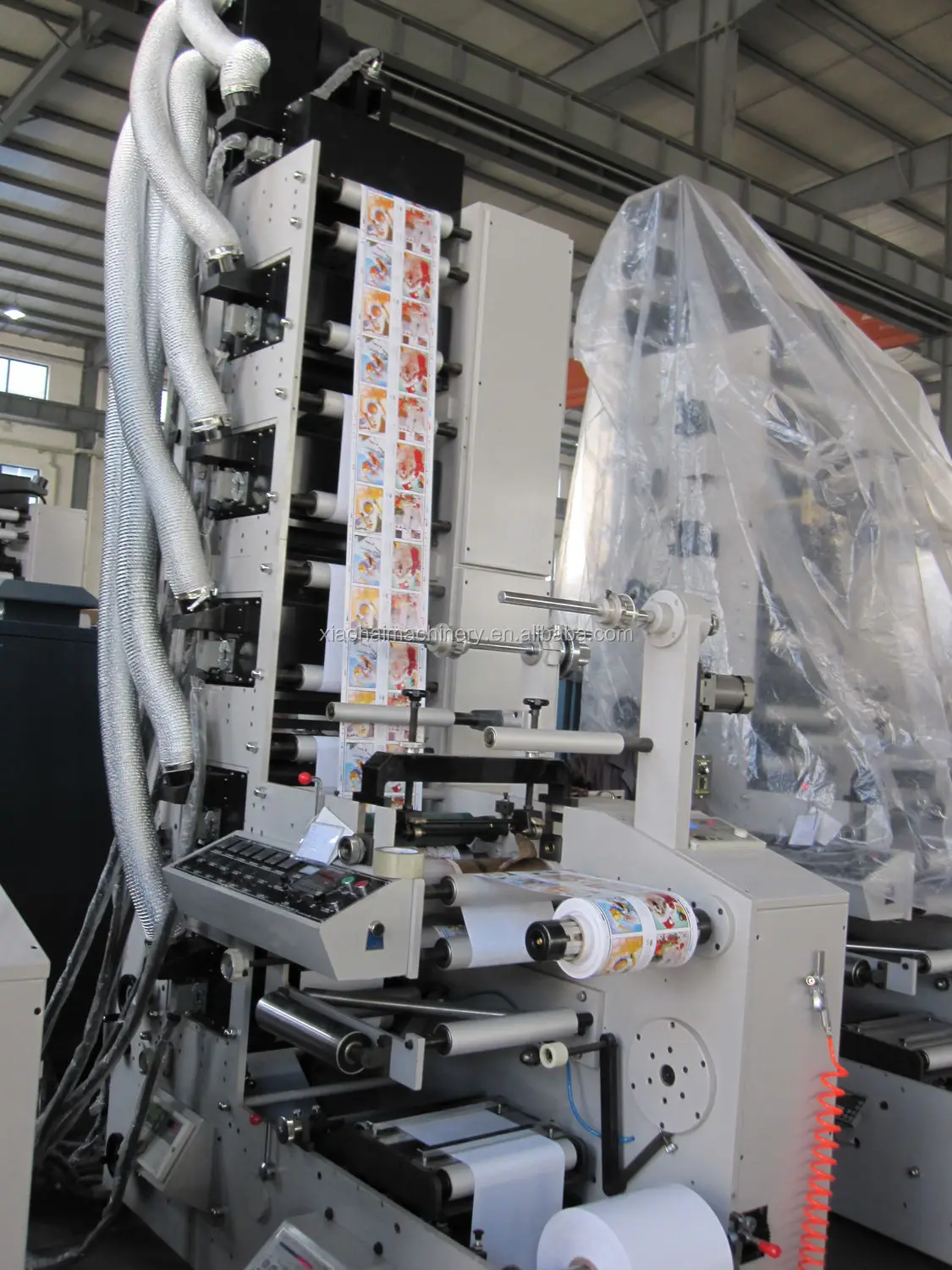

Description of uv flexo adhesive sticker label printing machine
1,Adopt the ceramic anilox cylinder to transfer the ink,
2,Each printing unit adots 360 ° plate-adjustment.
3,Three die-cutting stations, the first and second die-cutting station can do double sides,working, the third die-cutting station can be used as sheeter.
4,computerized web-guiding system is installed in the front of printing unit,it ensures the material always in the right position.(standard configuration).
5,After sheeting in the third die-cutting station, conveyor belt can output the products orderly.
6,unwinding and rewinding tension are auto-controlled by magnetic powder.two rewinders is possible in this machine.
7,video inspecting system is an option ,it can watch the printing quality when in high speed.
8,The ik rollers will be separated from the printing roller, and keep running when the macine stops.
9,Main machine inverter is imported.
10,The machine can finish material-feeding,printing, varmshing, drying, laminating, die-cutting,rewinding and sheeter in a lump. it is an ideal machine for printing note and top-grade adhesive label.
1,Adopt the ceramic anilox cylinder to transfer the ink,
2,Each printing unit adots 360 ° plate-adjustment.
3,Three die-cutting stations, the first and second die-cutting station can do double sides,working, the third die-cutting station can be used as sheeter.
4,computerized web-guiding system is installed in the front of printing unit,it ensures the material always in the right position.(standard configuration).
5,After sheeting in the third die-cutting station, conveyor belt can output the products orderly.
6,unwinding and rewinding tension are auto-controlled by magnetic powder.two rewinders is possible in this machine.
7,video inspecting system is an option ,it can watch the printing quality when in high speed.
8,The ik rollers will be separated from the printing roller, and keep running when the macine stops.
9,Main machine inverter is imported.
10,The machine can finish material-feeding,printing, varmshing, drying, laminating, die-cutting,rewinding and sheeter in a lump. it is an ideal machine for printing note and top-grade adhesive label.
2.Opitioanl parts:
1) UV dryer for each printing station or only one on last station
2) Video Camera for printng inspection
3)cold foil stamping funcation on last station
1) UV dryer for each printing station or only one on last station
2) Video Camera for printng inspection
3)cold foil stamping funcation on last station
Model | ZBS320B | ZBS450B |
Printing speed | 50m/minute | 50m/min |
Printing color number | 4 color or 5 color | 4 color or 5 color |
Max width of paper | 320mm | 460mm |
Max printing wide | 310mm | 450mm |
Max unwinding diameter | 600mm | 600mm |
Max rewinding diameter | 600mm | 600mm |
Printing length | 175-320mm | 175-320mm |
Thickness of flexo plate | 1.7mm | 1.7mm |
Precision of chromatography | ±0.1mm | ±0.15mm |
Overall dimension | 2(L)×1.1(W)×2.1(H)m | 2(L)×1.25(W)×2.1(H)m |
Weight | about 2000kg | about 2200kg |

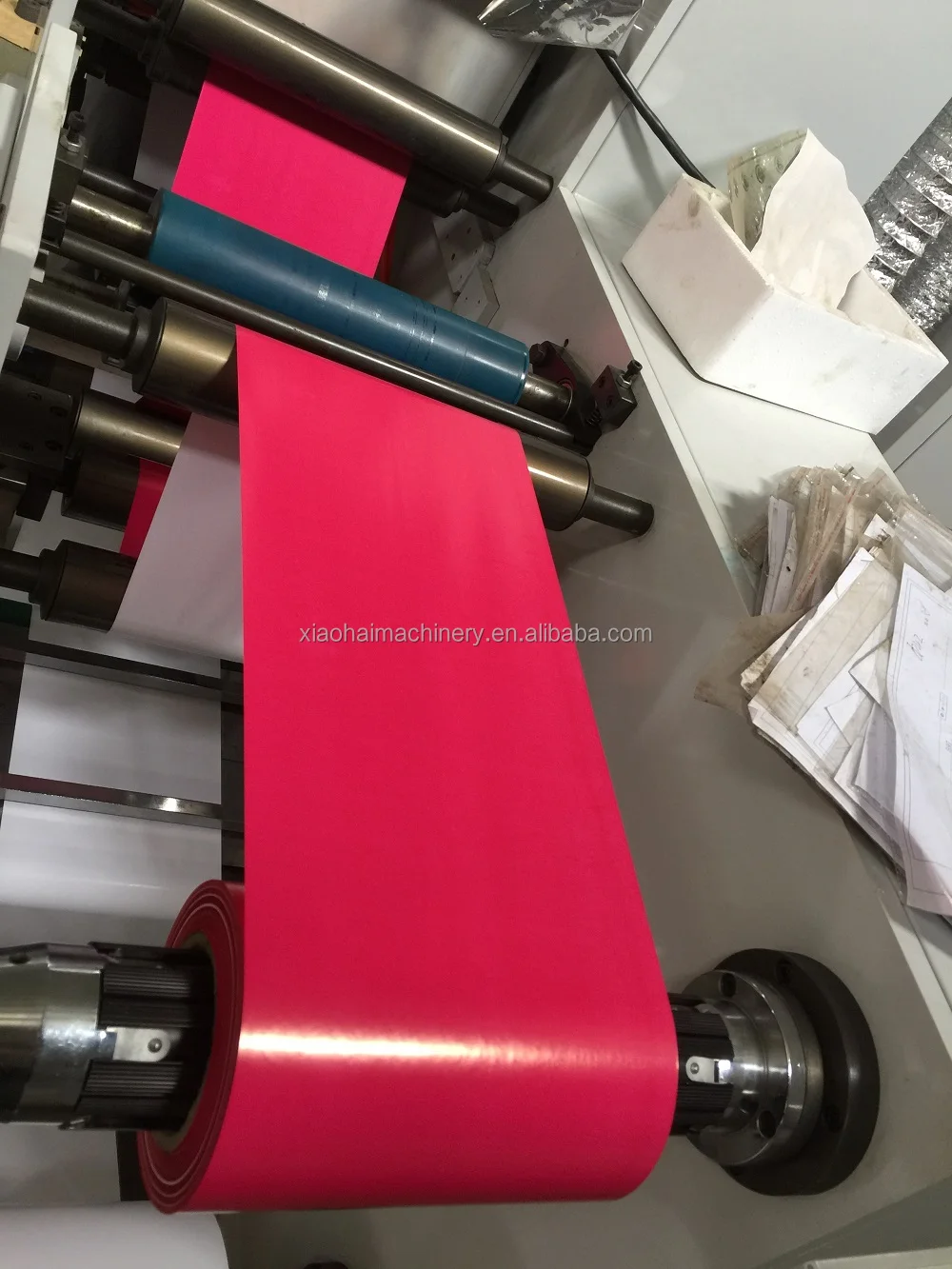

Details Images

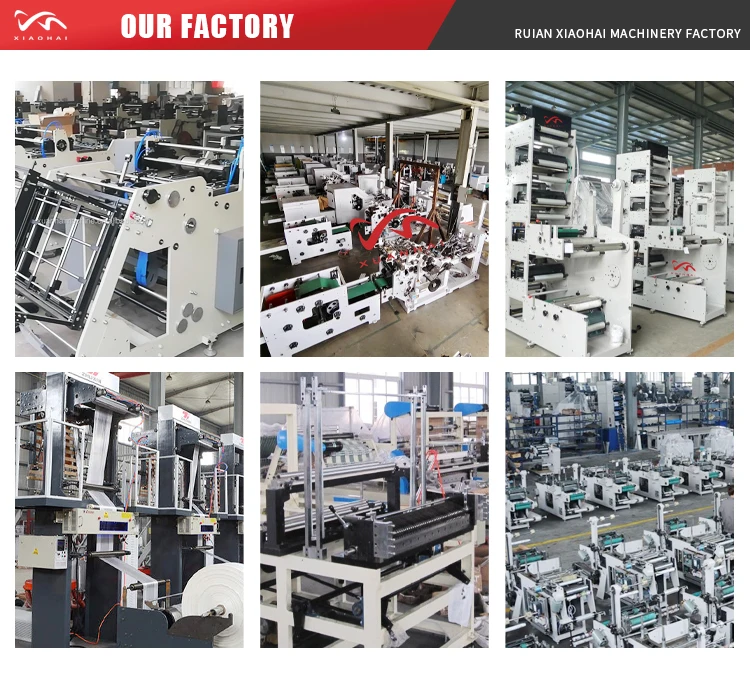

Company Profile
Our Team
FAQ
Q1:Where is your factory located? How can I visit there?
A1: Our factory is established from 1988,located in Rui an,Wenzhou City,Zhejiang Province, China, about 1 hour by air and 3-4 hours by train from Shanghai.
Q2: How does your factory do regarding quality control?
A2: All machines are doing 24 hours running test to ensure quality.
Q3: How about the payment term?
A3: 30% downpayment and pay the balance before shipment after testing the machine in our factory.
Q4:What about warranty and do the engineers available to overseas?
A4: one year for mechnical parts,half year for electrical parts. if you need our enginner to go to your factory,you need to bear his all costs. such as visa,hotels,eating and lodging at your side. salary USD100/day.
Q5:What about the service after sale?
A5: we can provide video online service or send enginner to go to your factory to do the trainning if you need.and we have english,spanish speaker.
Q6: Do you need agent for overseas?
A6: yes,we need you to be our agent. welcome to contact us.
