USA Australia Europe Office iso14001 sieg kx3 cnc mill
US $1.00-$10.00

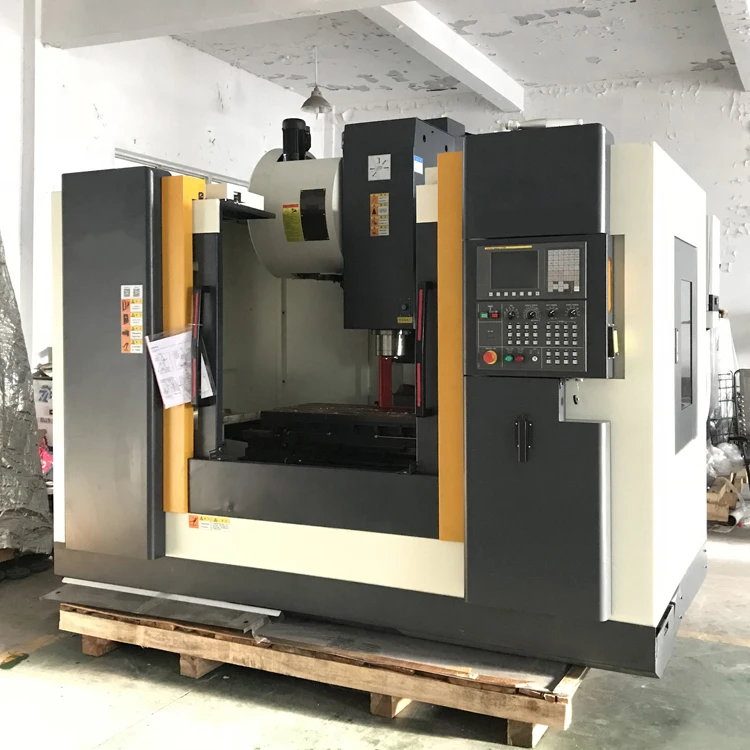

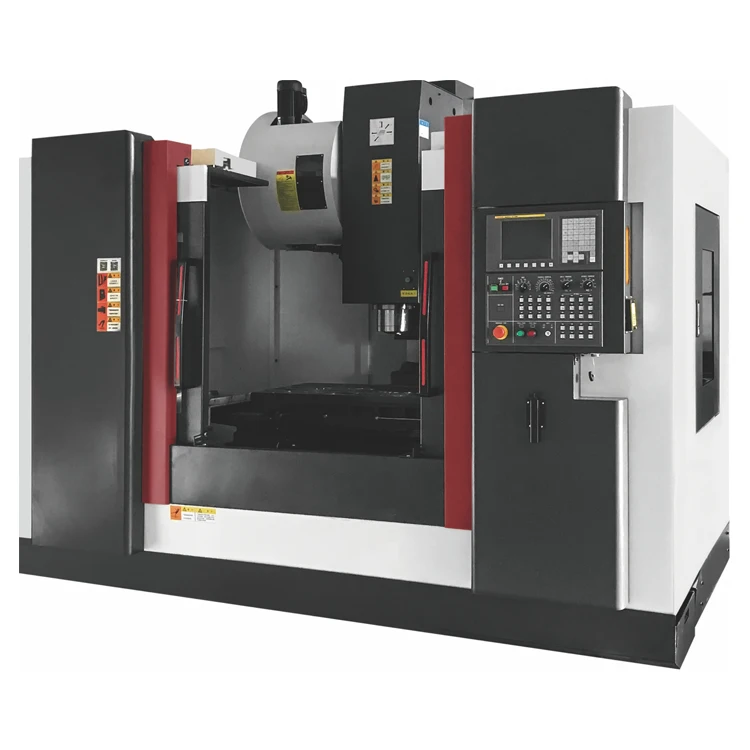

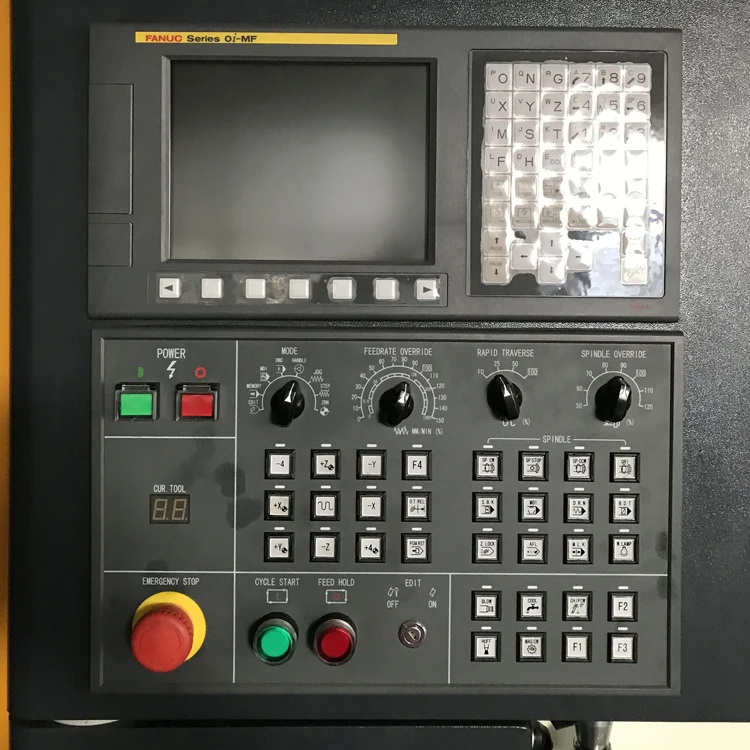

Manufacturer supply high speed heavy duty fanuc control precision parts 4 axis cnc milling machine
- Category: Milling Machines >>>
- Supplier: Ningbo,Blin,Machinery,Co.,Ltd.
Share on:
Product Overview
Description
Specification | Unit | BL-B650 | BL-B650L | BL-B850 | BL-B850L | BL-B1060 | BL-B1060L | BL-B1580 | ||||||
X/Y/Z axes guideway type | / | Box/Box/Box | Linear/Linear/Box | Box/Box/Box | Linear/Linear/Box | Box/Box/Box | Linear/Linear/Box | Box/Box/Box | ||||||
Table size | mm | 800×420 | 800×500 | 1050×500 | 1000×500 | 1300×600 | 1700×800 | |||||||
Table max. loading | kg | 600 | 350 | 600 | 500 | 800 | 600(opt.:1000) | 1500 | ||||||
T slot(NO./width/gap) | mm | 5/18/90 | ||||||||||||
X/Y/Z axes | mm | 650/400/480 | 600/500/500 | 800/500/550 | 800/500/600 | 1000/600/600 | 1500/800/700 | |||||||
Distance from spindle nose to table surface | mm | 80-560 | 110-610 | 150-700 | 80-680 | 180-780 | 80-680 | 170-870 | ||||||
Distance from spindle center to column surface | mm | 480 | 560 | 560 | 655 | 800 | ||||||||
Spindle type | mm | BT40 | BT40 | BT40 | BT50 | |||||||||
Spindle motor | kw | 7.5/11 | 7.5/11 | 7.5/11 | 15/18.5 | |||||||||
Spindle speed range | rpm | 8000 | 8000 | 8000 | 7000 | |||||||||
Cutting feed speed | m/min | 10 | 10 | 10 | 10 | |||||||||
Fast moving speed | m/min | 12/12/10 | 24/24/15 | 16/16/12 | 24/24/15 | 16/16/12 | 24/24/15 | 16/16/12 | ||||||
Ball screw O.D./pitch | mm | Φ32/6 | Φ40/12 | Φ40/10 | Φ40/12 | Φ40 | / | |||||||
Linear guideway width | mm | / | 35 | / | X:35,Y:45 | / | X:45,Y:55 | / | ||||||
Positioning precision(JIS standard) | mm | ±0.008 | ±0.008 | ±0.008 | ±0.010 | |||||||||
Repeatable positioning precision(JIS standard) | mm | ±0.003 | ±0.003 | ±0.003 | ±0.005 | |||||||||
Tool magazine type | / | Umbrella type 20T/Arm type 24T | ||||||||||||
Max. tool weight | kg | 8 | 8 | 8 | 15 | |||||||||
Max. tool length | mm | 250 | 250 | 250 | 350 | |||||||||
Max. tool dia. | mm | Φ80 | Φ80 | Φ80 | Φ120 | |||||||||
Overall dimension(L×W×H) | mm | 2300×2270×2250 | 2500×2300×2300 | 2800×2450×2800 | 3200×2900×2800 | 4300×3750×3100 | ||||||||
Gross weight/Net weight | kg | 5000/4500 | 6000/5500 | 5500/5000 | 7000/6500 | 8000/7500 | 8000/7500 | 13000/12500 | ||||||
Product Category
About Us
Packing & Shipping
Q1.Are you manufacturer or trading company?
A. We are professional machine tool manufacturer, we have total 3 manufacturers in CHINA and set export sales center & showroom in NINGBO city.
Q2. How about your price?
A. We have different series, covered high, middle, economical class with super high performance-price ratio. You may check with us for most suitable solutions.
Q3. Can you provide training for operation CNC machines?
A.Yes, free training in our factory is available.
Q4. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of one year (3 years for SIEMENS parts) , starting from one month after shipping date. Please contact us for more details.
Q5.Do you have CE certificate?
A. Yes,we have.
Q6. What’s the delivery time & package?
A.Depends on machine model and configuration. Normally not more than 45days. Please contact us to confirm. All our CNC machines are packed with sea worthy package.
Q7.What is MOQ?
A.1 Unit.
A. We are professional machine tool manufacturer, we have total 3 manufacturers in CHINA and set export sales center & showroom in NINGBO city.
Q2. How about your price?
A. We have different series, covered high, middle, economical class with super high performance-price ratio. You may check with us for most suitable solutions.
Q3. Can you provide training for operation CNC machines?
A.Yes, free training in our factory is available.
Q4. What's your warranty terms?
A. We will supply a replacement for parts that prove to be defective for a period of one year (3 years for SIEMENS parts) , starting from one month after shipping date. Please contact us for more details.
Q5.Do you have CE certificate?
A. Yes,we have.
Q6. What’s the delivery time & package?
A.Depends on machine model and configuration. Normally not more than 45days. Please contact us to confirm. All our CNC machines are packed with sea worthy package.
Q7.What is MOQ?
A.1 Unit.
