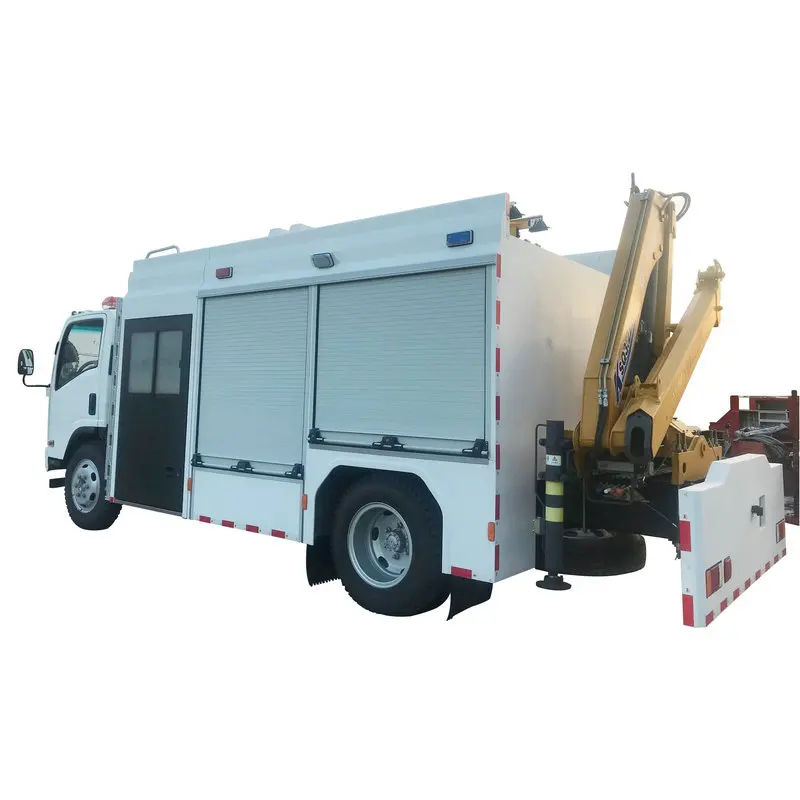

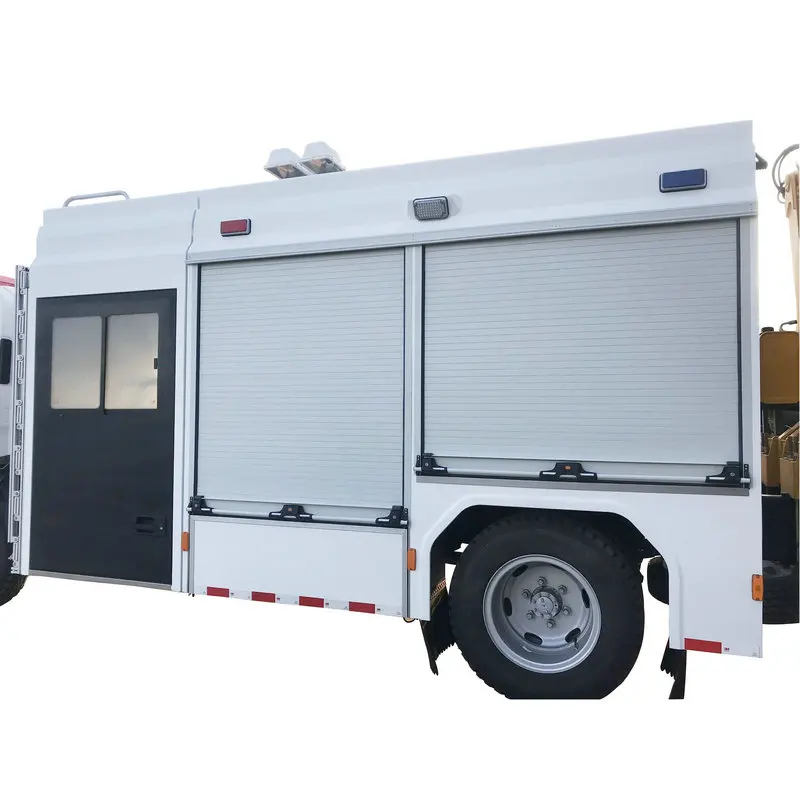

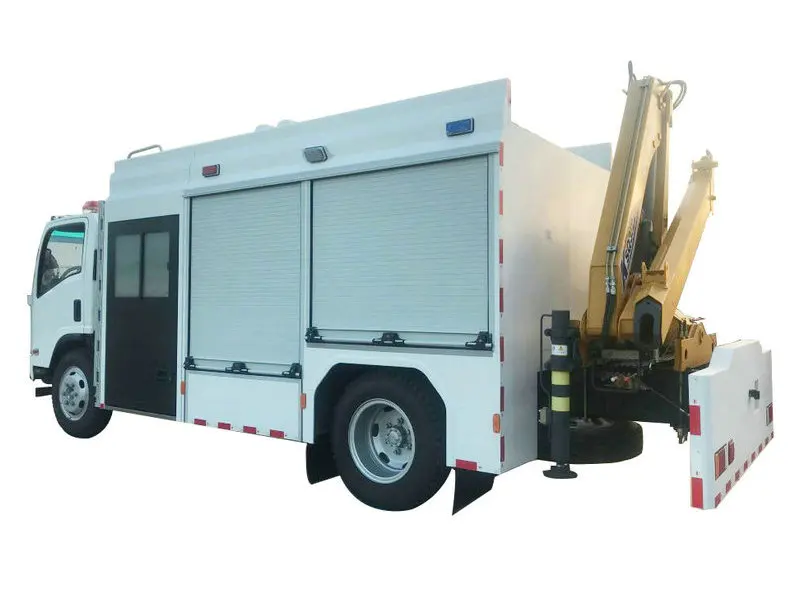

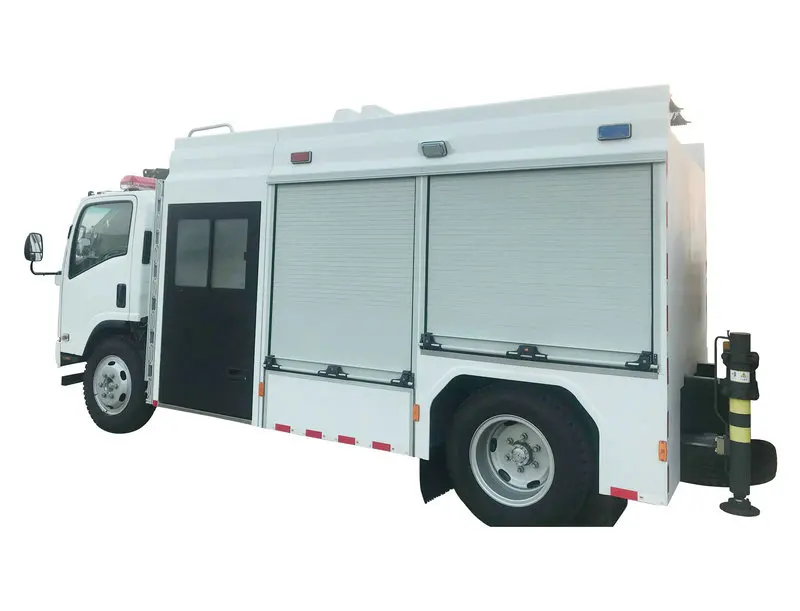

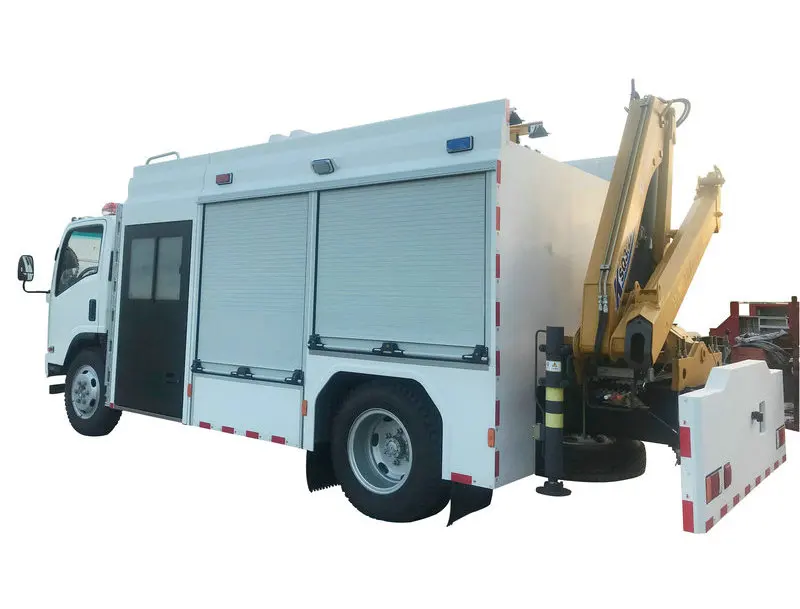

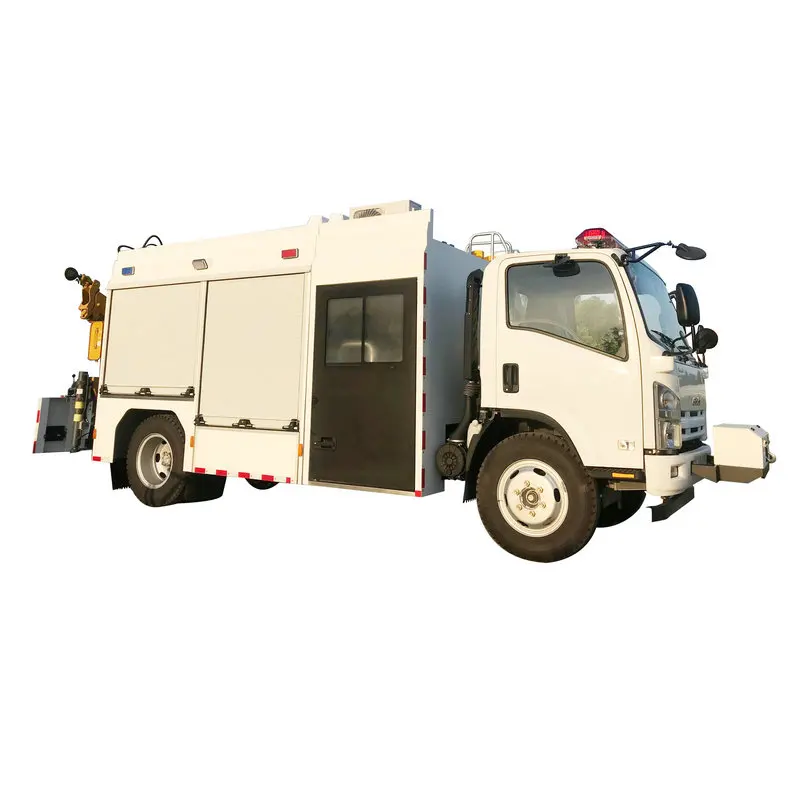

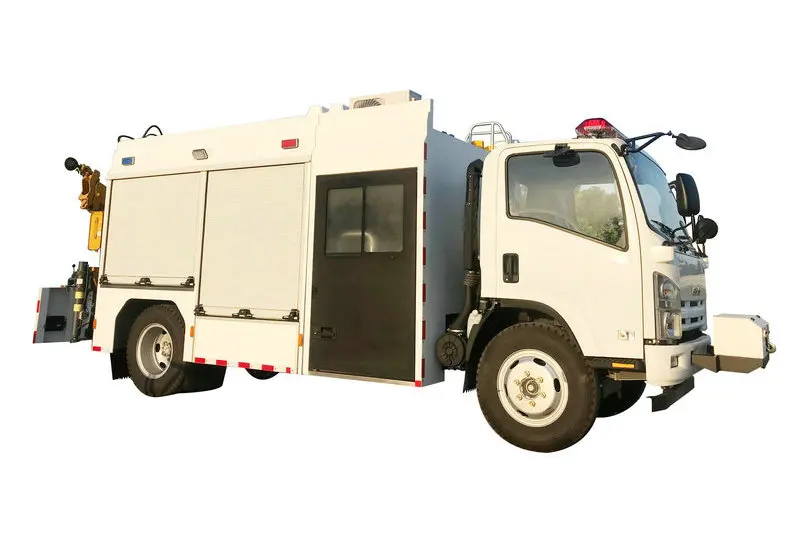

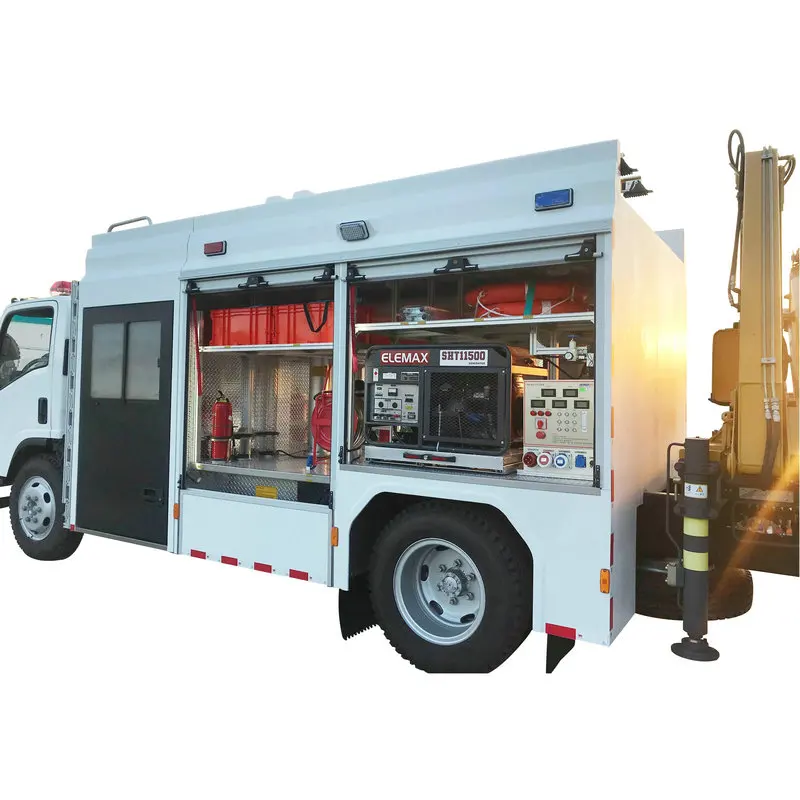

Best selling in africa Emergency Fire Rescue Truck manufacturers

Name

Technical parameters and requirements

Dimension

7860×2300×3300mm

Total weight

10000kg

Max. net power

142kW

Max. travel speed

100km/h

Emission standard

Euro 4

No of crew

6

Power density

142/10=14.2

Approach angle

≥16°

Departure angle

≥13°

Max. pull of winch

4200kg

Max Lifting load

3000kg

Engine rated power

10KVA

Pneumatic lifting LED light

Max lifting height :7.5m,power:4×1000W

Engine model

ISUZU QL1100A8MA1Y

Brand

Qingling Automobile Co., Ltd.

Emission Standard

V

Wheel base

4475mm

Tire

8.25-20, 8.25R20

Model

SQ3.2ZK2

Max. lifting load

3000kg

Model

9500LBS(24V)

Rated pulling force

4200kgf

Length of wire

Φ9.7mm*38m

Working voltage

24V

Model

SG75-41000G

Power

4000w

Max height of lifting

7.5m

Horizontal rotation angle

380°

Vertical rotation angle

330°

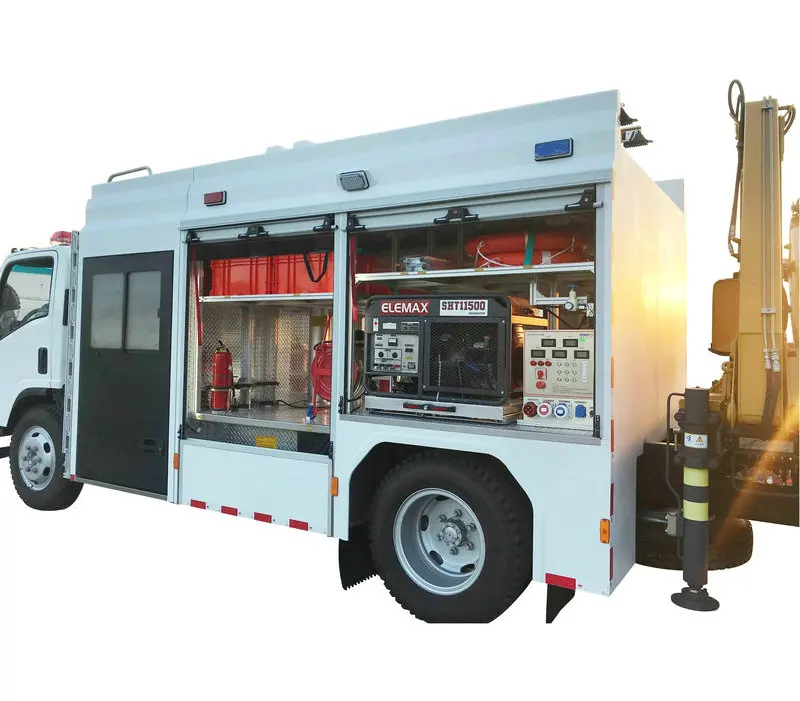

Distribution Cabinet

One 380V input interface, one 380V output interface, and two 220V output interfaces can be used to power lighting and other equipment through a generator or through municipal electricity. There is overload protection system and monitoring instrument, each operation button is marked with obvious operation logo.

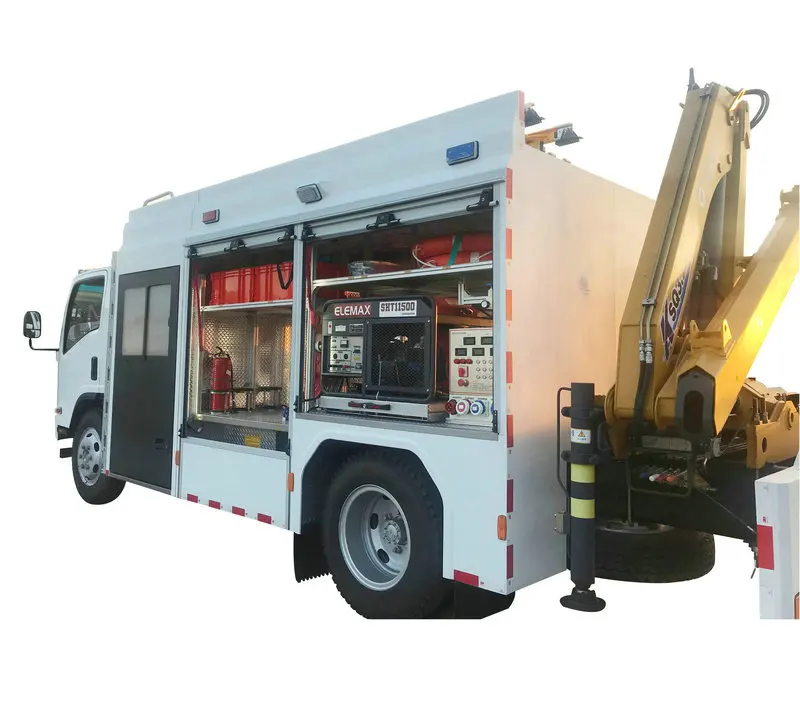

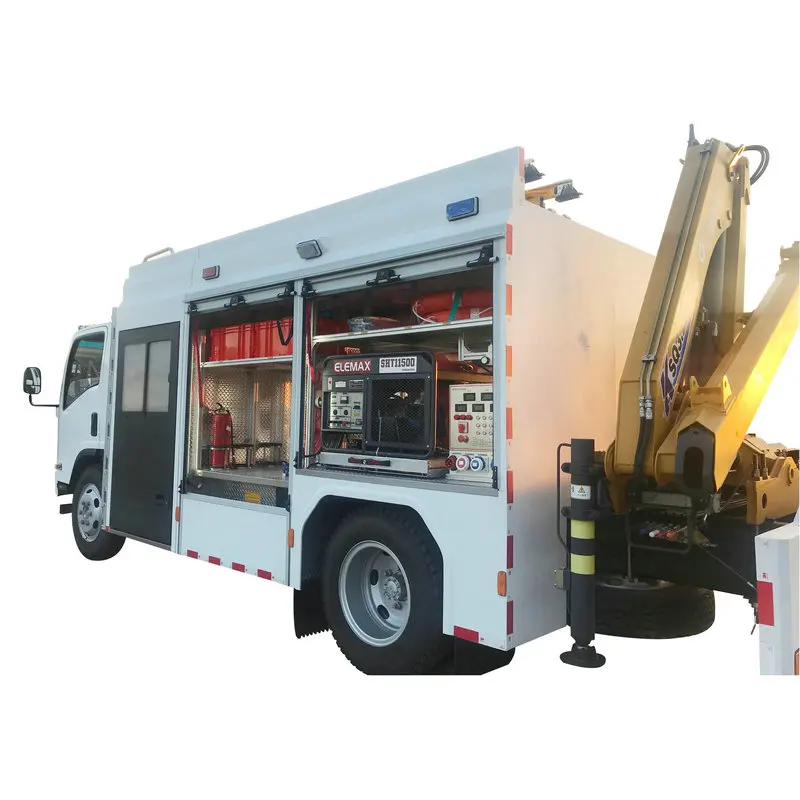

Model

SHT11500

Brand

Sato Electric Co., Ltd.

Rated power

10.0KVA

Stand-by power

11.5KVA

Voltage

 220V/380V

Start-up mode

 Electrical starting

Equipped

One mobile coil 220V; one mobile coil 380V; grounding system
