FCST080614 SM MM 850/1300/1310/1550nm Optic Time Domain Reflectometry OTDR With GPS IOML OPM Event Map And VFL
- Category: >>>
- Supplier: Fiber Cable Solution Technology Co. Ltd.
Share on (62459229671):
Product Overview
Description

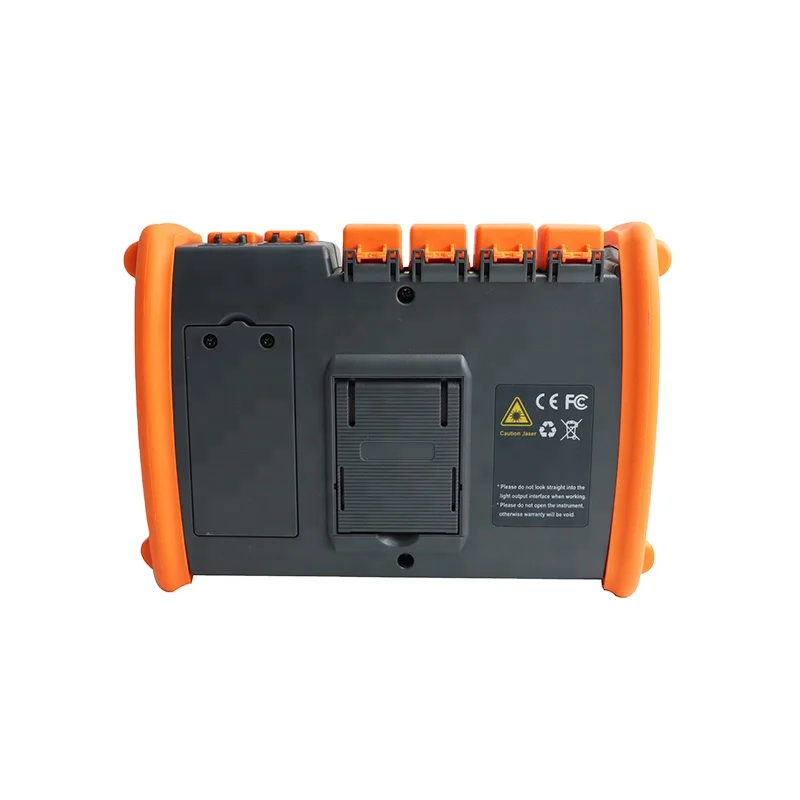

Product Views
Product Overview

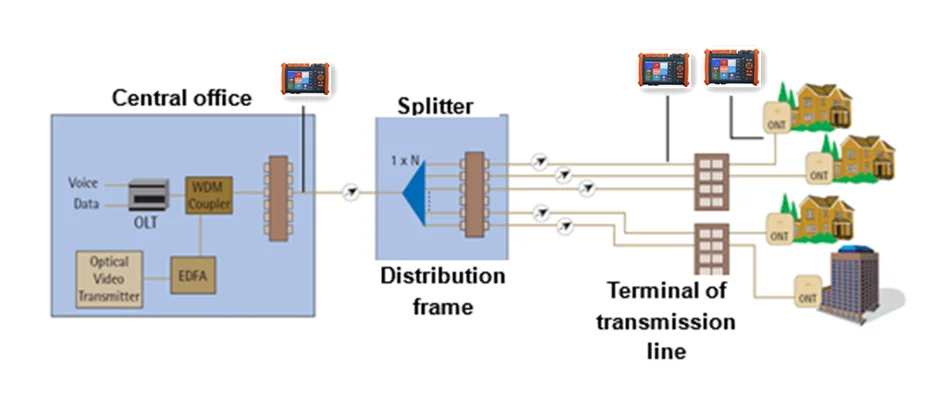

FCST080613 series optical time domain reflectometer is a new generation of portable and intelligent measuring instrument designed by FCST communication technology for testing optical fiber communication system .Adopt 5.8 inch color touch screen,button/touch dual operation,integration of eight major functional modules,multi-functional integration to help customers effectively solve the field test and maintenance.The highest 45dB dynamic range,can penetrate optical splitter,effective PON network testing;Intelligent power saving management,20 hours long standby,efficient protection of test dimension continuous.The design concept of multi-functional integration,precision testing and convenient operation makes the field test operation simple.
Product Advantages
- Automatic & manual test function;
- Touch screen and keyboard operation;
- Built-in visible fault locator (VFL) function;
- Support Bellcore GR196 and SR-4731 file format;
- Advanced antireflection LCD, clear display interface in field;
- Automatic detection of the communication light signal;
- 1.6m ultra-short event dead zone, easy to test optical fiber jumper;
- WinCE window operation system, Chinese/ English operation interface;
- Intelligent indication of battery capacity, alarm when the battery is running out;
- The most advanced technology of double color & material integrative mould, strong and firm;
- The OTDR optical output connectors are exchangeable, so it is more convenient to clean the end surface;
- Large capacity lithium battery to support over 10 hours of operation, suitable for long-time filed work;
- Two USB interfaces: can connect to the external U disk, or communicate with PC through SyncActive software;
- Touch screen and keyboard operation;
- Built-in visible fault locator (VFL) function;
- Support Bellcore GR196 and SR-4731 file format;
- Advanced antireflection LCD, clear display interface in field;
- Automatic detection of the communication light signal;
- 1.6m ultra-short event dead zone, easy to test optical fiber jumper;
- WinCE window operation system, Chinese/ English operation interface;
- Intelligent indication of battery capacity, alarm when the battery is running out;
- The most advanced technology of double color & material integrative mould, strong and firm;
- The OTDR optical output connectors are exchangeable, so it is more convenient to clean the end surface;
- Large capacity lithium battery to support over 10 hours of operation, suitable for long-time filed work;
- Two USB interfaces: can connect to the external U disk, or communicate with PC through SyncActive software;
Model | FCST080614 |
Type | Single-Mode＆Multi-Mode |
Display | 5.8 inch color LCD with touch screen |
Wave-length | 850/1300/1310/1550nm |
Max.Dynamic Range | 26/28/37/35dB |
Event dead zone | 1m |
Attenuation Dead Zone | 6m |
Distance range | 500m/1Km/2Km/4Km/8Km/16Km/32Km/64Km/128Km/256Km |
Measuring Pulse Width | 5ns/10ns/50ns/160ns/320ns/500ns/1000ns/5000ns/10000ns/20000ns |
Ranging Accuracy | ±(0.75m+Sampling interval+0.005%×Test distance) |
Loss Precision | ±0.05dB/dB |
Reflection Accuracy | ±3dB |
Data Storage | ≥2000 times |
Interface Type | FC/PC(Replaceable SC、ST) |
Communication Interface | USB mini-USB 10M/100M Ethernet |
VFL Output | ≥5mW |
LS Output | ≥5dBm |
OPM | +26dBm~-50dBm（Replaceable：+6dBm~-70dBm） |
Power Supply mode | AC/DC Adapter：AC：100v~240V 50/60Hz 0.6A；Lithium battery：7.4V 6700mAh |
Operating Temperature | -5℃~50℃ |
Storage Temperature | -20℃~70℃ |
Relative Humidity | 0~95℃ Non condensation |
Weight | 1.1kg |
Volume | 227mm×160mm×70mm |

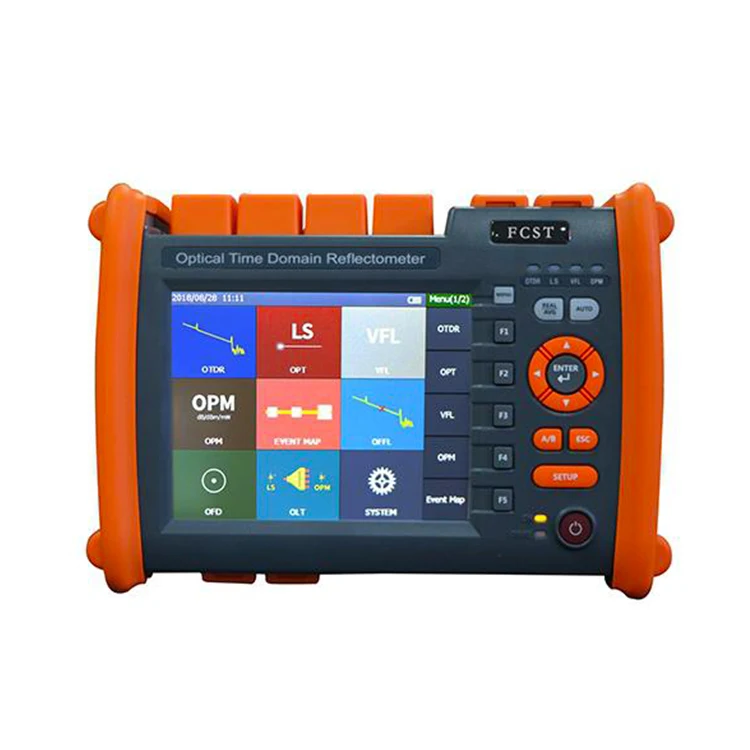

5.7-inch color touch screen. The touch key + key double operation mode, borrowed from the tablet design, is fast and convenient.

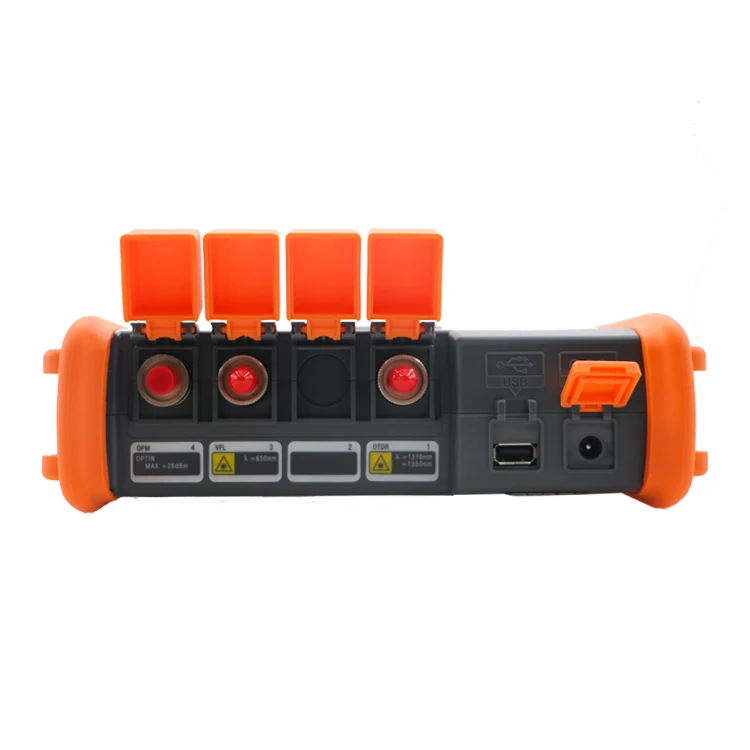

Designed to provide efficiency. Integrate OTDR/light source/optical power meter, VFL multi-function in one, stable light source function 1310/1550nm, optical power meter test function, VFL
external U disk, printer and PC can also be realized through two unused USD interfaces. It supports batch processing of files, can print four documents at a time, and supports PDF format printing.
