2m one piece moq laser distance meter module sensor measurement devices
- Category: >>>
- Supplier: Chongqing Diaoran Photoelectric S&T Co. Ltd.
Share on (62459318945):
Product Overview
Description

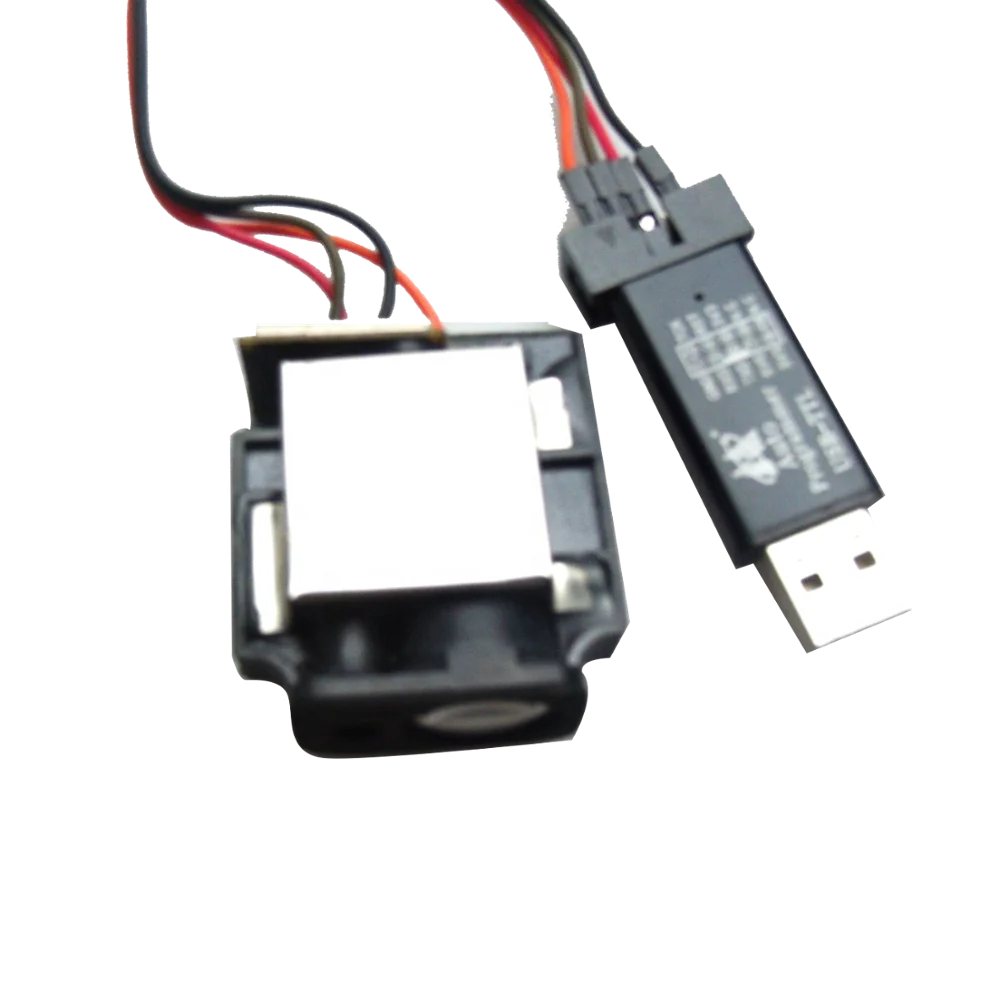

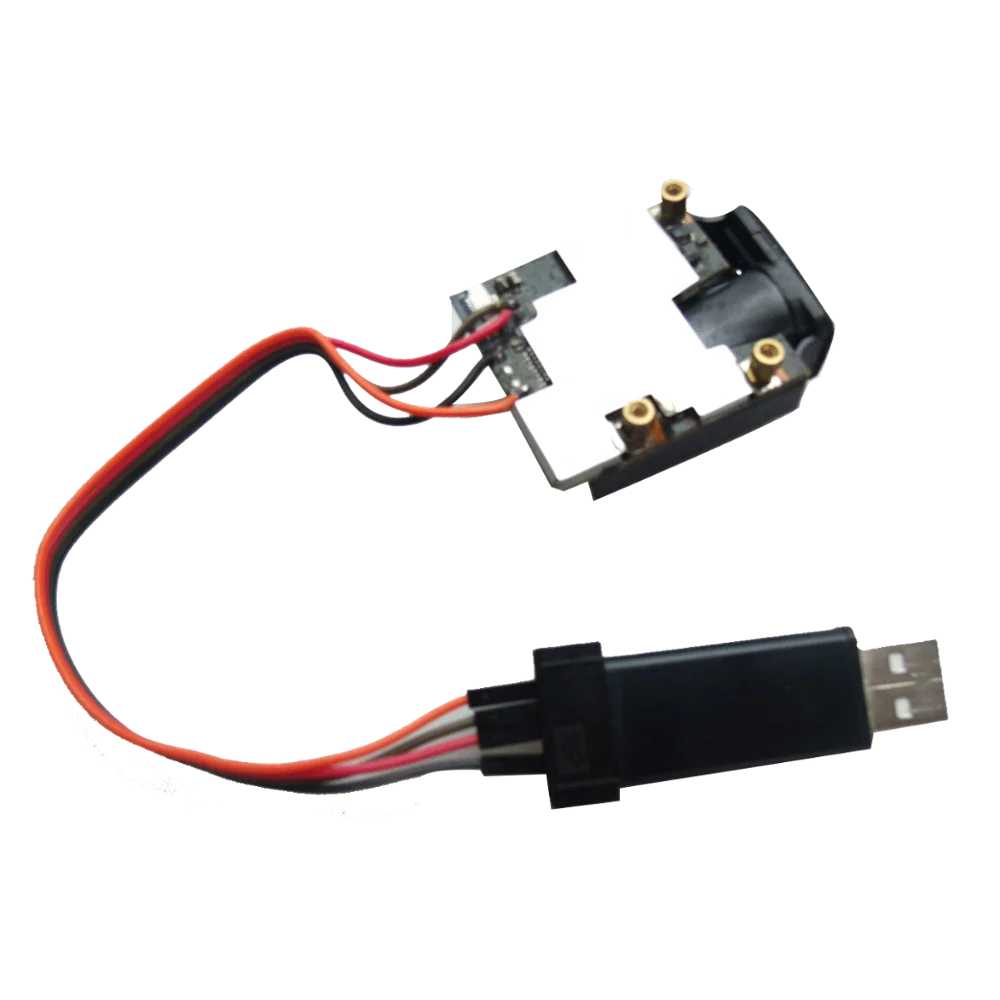

Products Appearance
Products Appearance
View
 |  |
Product Specification
Products Specification
The Main Technic Index | Details |
Measuring range | 0.05~2m |
Measurement Resolution (standard deviation) | ± 0.2mm |
Dip angle measurement | - |
Distance unit | m |
Laser type | 620~690nm |
Laser-grade | Level II, <1mW |
Spot diameter at distance-M | 6mm@10m, 30mm@50m |
Single measurement time | 0.05~1s |
Protection grade | IP40 |
working temperature | -10~+60 °C |
Storage temperature | -20~+80 °C |
Weight | About 60g |
Dimensions (length * width * height) | 48 x 42 x 18mm |
Standard of execution | GB/T 14267-2009 |
Products Description
Products Description

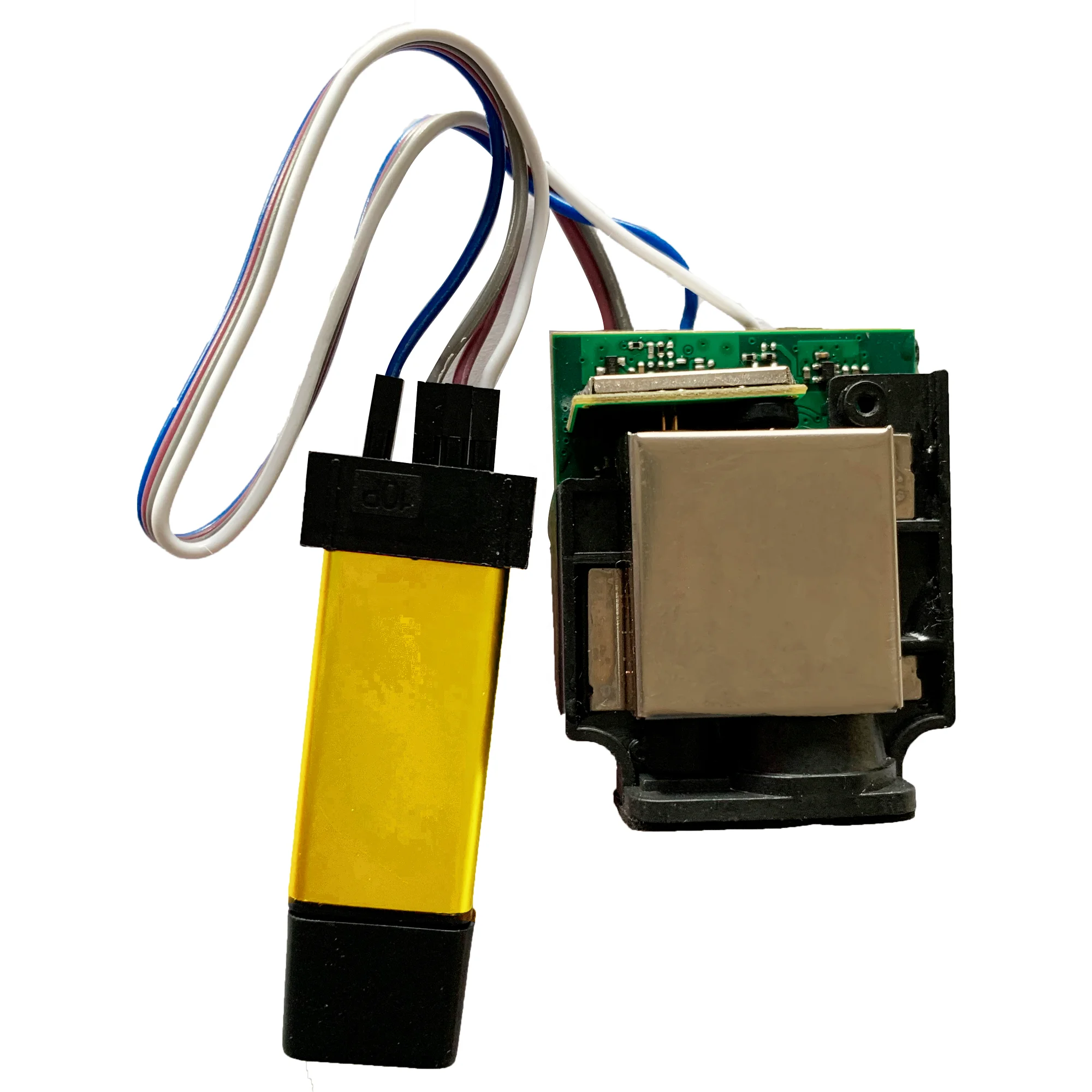

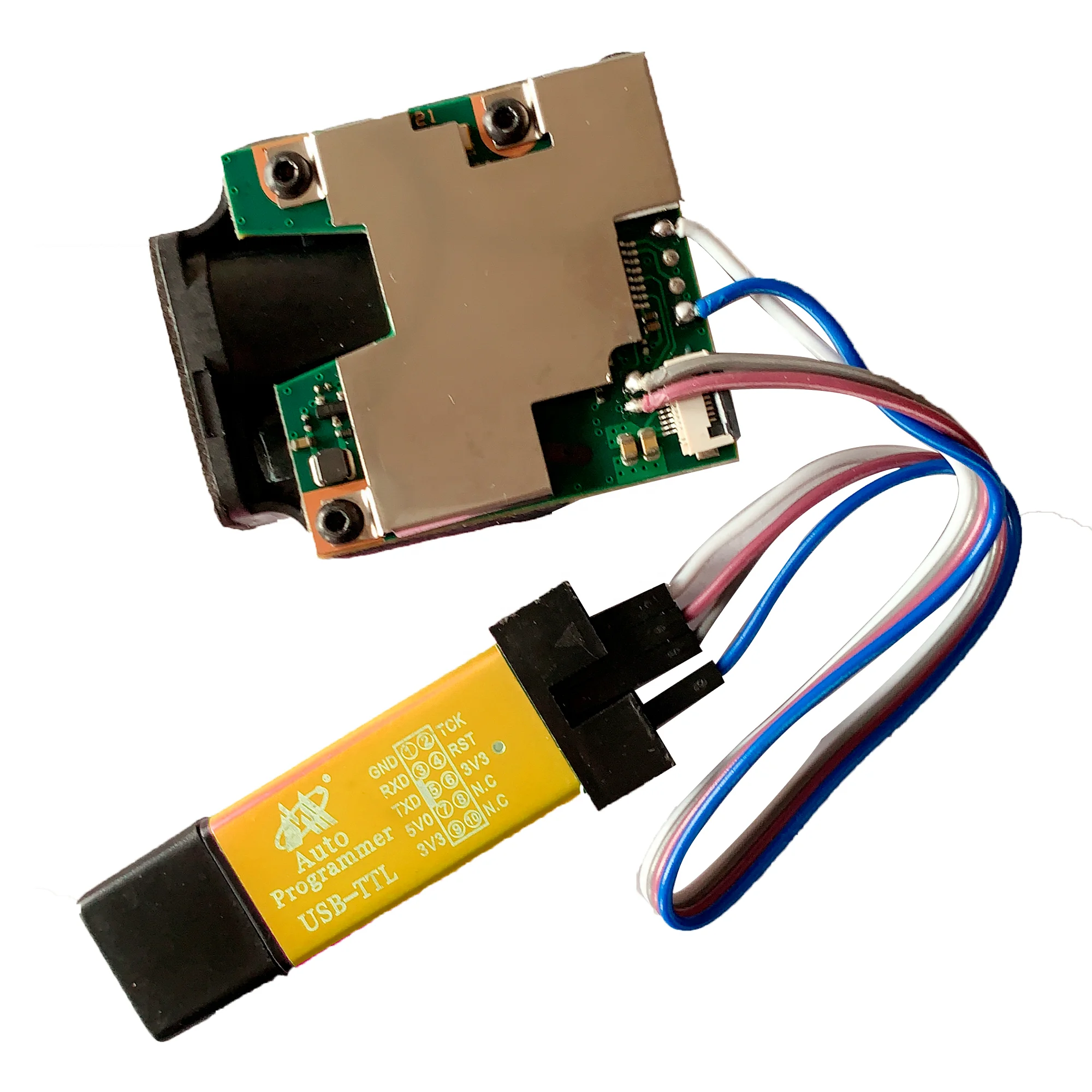

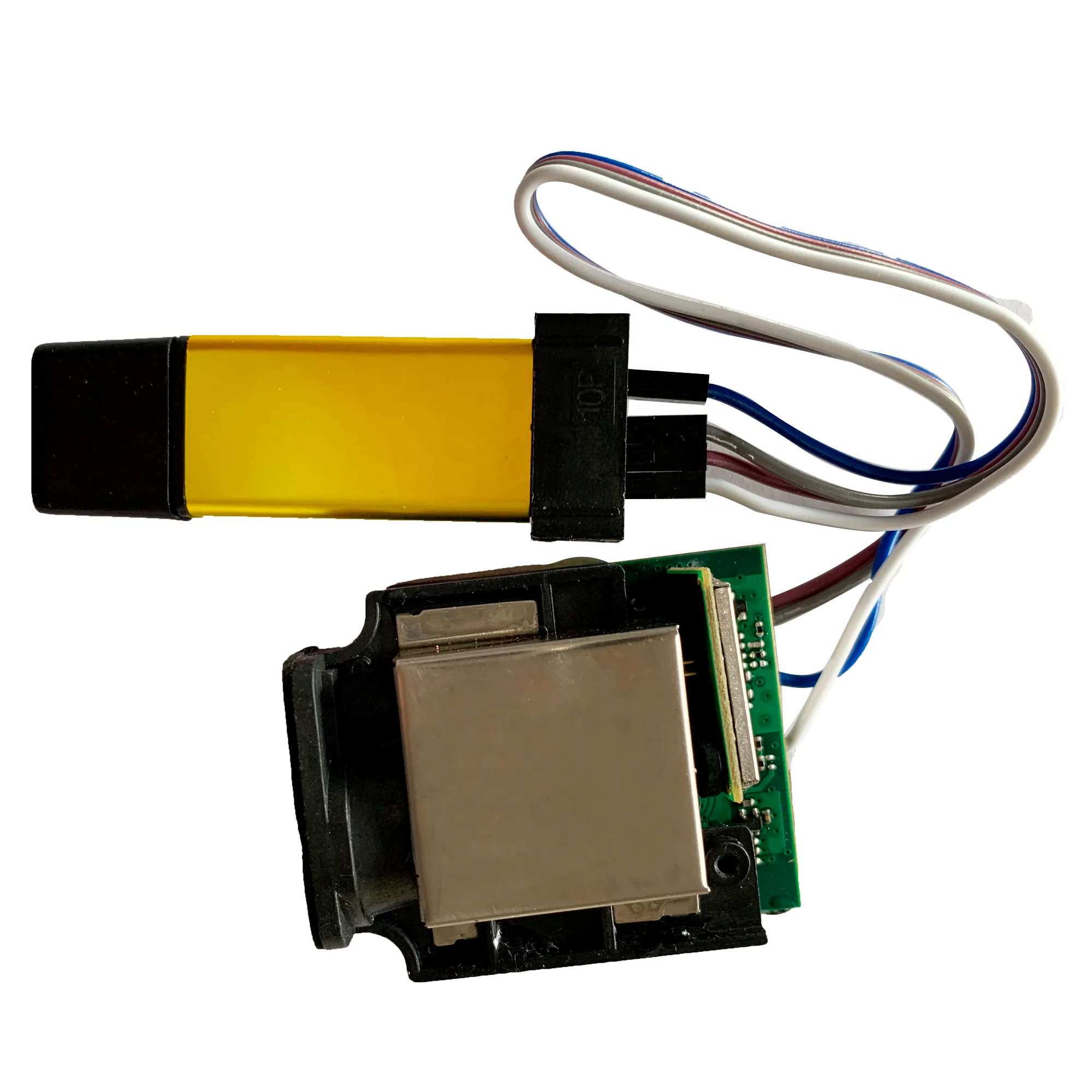

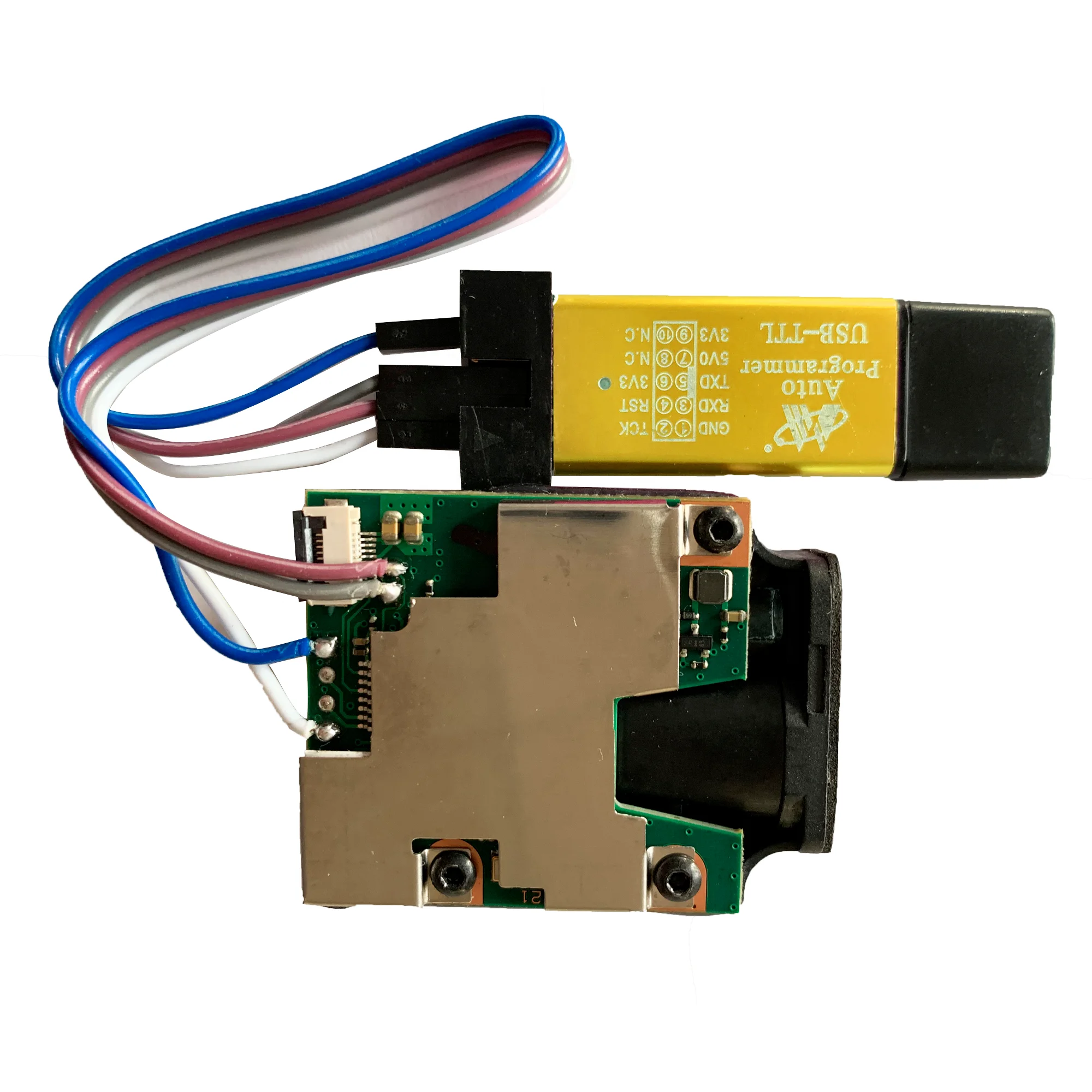

Integrated with PC
Products Integrated
Products Integrated
Power range: VCC: 3~3.3VDC, Current:100mA
Remarks:
For different measuring targets and environments, the measurement range may be shortened or the measurement result may be erroneous because of the excessive intensity of ambient light, the excessive or low ambient temperature, the weak or strong reflection of the target, or the rough surface of the target.
Communication protocol for laser ranging module
The baud rate 9600bps,
8-bit data bits,
1 bit start bits,
one-stop bit,
no parity.
ASCII Code
Functional description | Command code | Return code | Remarks |
Read parameter | FA 0601 FF | A 0681 ADDR XX XX XX…… CS | Read constant, address, amount of light, temperature |
Read machine number | FA 0604 FC | FA 0684 "DAT1 DAT2……DAT16 "CS | DATn is ASCII format |
Setting the address | FA 0401 ADDR CS | FA 048181 | Successful operation |
FA 848102 FF | Write address error,Return | ||
Distance modification | FA 0406 symbol (positive or negative, The negative and negative 0x2d are positive.0x2b), 0xXX (correction value One byte), CS | FA 04 8B 77 | Successful operation |
FA 84 8B 01 F6 | operation failed | ||
Continuous measurement data set the time interval to return | FA 0405 MeaInterver CS | FA 0485 7D | Successful operation |
FA 848501 FC | Write time interval error | ||
FA 848501 FA | operation failed | ||
Setting distance Stop point | FA 0408 Position CS | FA 0488 7A | Successful operation |
FA 848801 F9 | operation failed | ||
Notes: start point and front end option. | |||
Noted:
1. ADDR is a machine address.
2. The position is 1 from the top, 0 from the tail, the default is set to the tail (the program has a distance meter length, from the distance to the top, and then set to the tail).
3.CS is the check byte, which is the sum of all the previous bytes, return to add 1.
4. In the data returned from single and continuous measurements, quotation marks are part of the data in ASCII format
such as 123.456 meters displayed as 31 32 33 2E 34 35 36,
ADDR default value of 80 (128)
The parameter is the command to read data when the factory is set.
