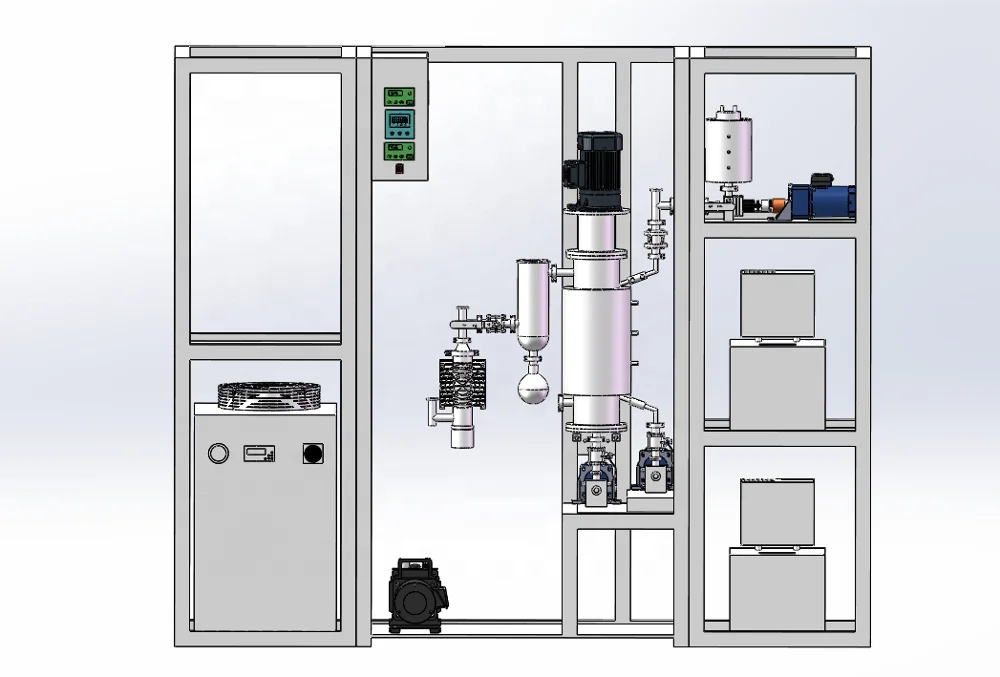

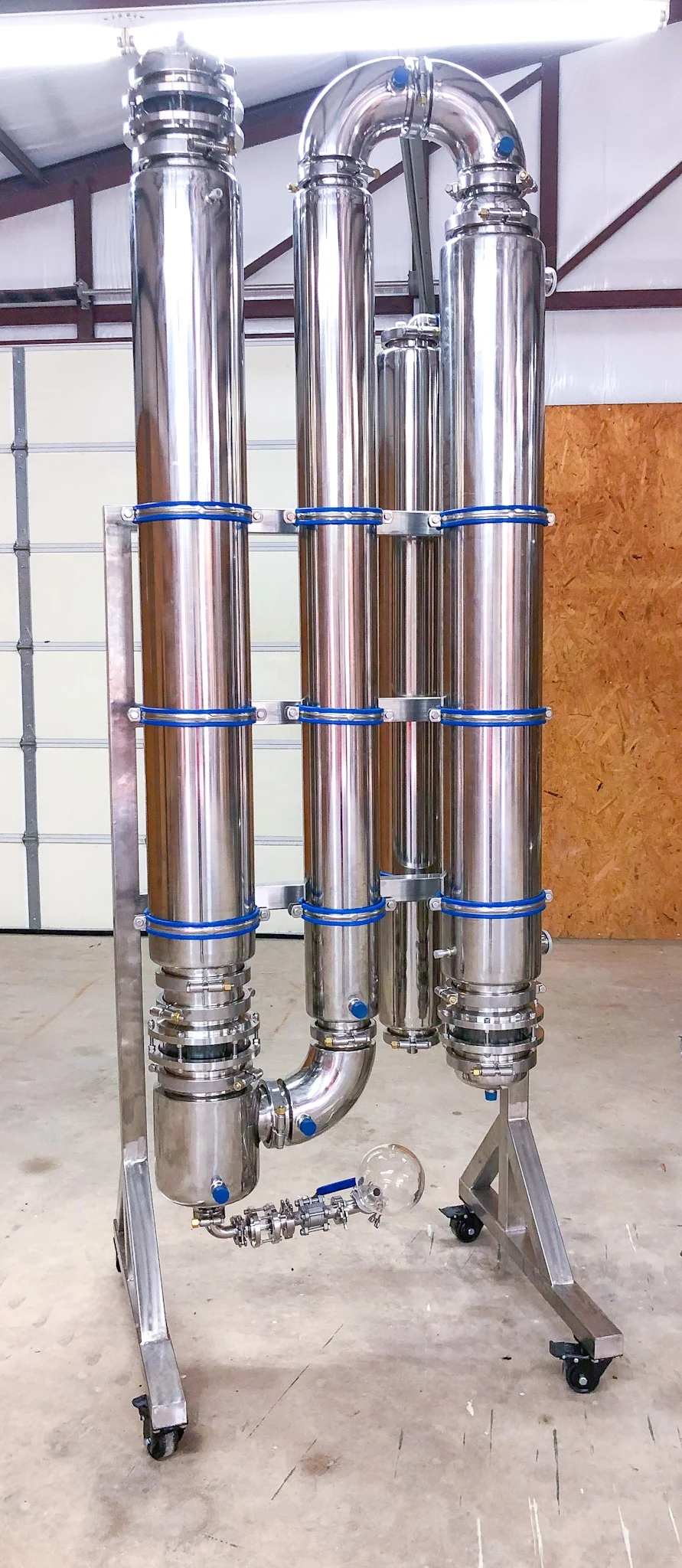

ODM 1GPM/60GPH full Turnkey Solution Falling Film Evaporator

Product Overview

Description

CEMA INSTRUMENTnow providing Falling Film Evaporator (FFE) assembled and tested here at our facility in the USA.We want to offer these units at a lower cost than our competitors, while still maintaining the highest quality.



1.Our FFE has ethanol distillation & recovery rates of 35-45 Gallons Per Hour (GPH), depending on accessories selected. ( 300L/hr & 350Liter )Larger sizes are being tested currently and will be available for sale immediately. Eliminate the need for clunky Rotary Evaporator bottlenecks in your lab and scale up!



2.     We have selected the highest possible quality of American manufactured heating (UL listed) and Cooling accessories ( Match) to pair with the FFE to achieve the best possible recovery rates.

3.     Each unit is hand tested and assembled by us personally to meet our high standard of safety, efficacy, and compliance. You will receive an assembled machine that is ready to be installed. We now have a proven track record and customer references available for multiple FFE’s that we have successfully installed in the USA.



4.     You will receive full training to operate the unit as a turn-key distillation device, and an in-person demo trial can be arranged on every order. We offer free lifetime technical support and quality assurance, as well as a 1-year manufacturer warranty for defects.





5.     Our prices are among the very lowest in the industry; however, our 304 Stainless Steel combined with top of the line auxiliary components come together to produce a high-quality machine that is identical (if not superior) to the other more expensive FFE manufacturers on the market. Our company mission is to provide reasonable prices for the highest possible quality.

FFE PRICING - 35 GPH Model:



Electrical Cooling Specifications:

3-phase

220 volts

40 amps

Electrical Pump Specifications:

Single-phase or 3-phase

220 volts

20 amps

Heating Specifications:

Propane Heating, using the largest deliverable propane tank size that is economical for you and your operation.

Physical Dimensions:

FFE: 820 lbs. – 4.2ft x 4.1ft x 8.4ft

Cooling: 5,000 lbs. – 8ft x 3.2t x 6.4ft

Heating size dimensions: Variable depending on Propane tank size, as large as possible is recommended to reduce frequency of tank refills.

If your growing company is in the market for the highest possible quality FFE, but you do not want to be price gouged by ruthless equipment manufacturers, we are grateful and happy to serve you. If you desire to deal business with cema instrument and have a headache-free professional installation, we are the clear* choice.
