MM J Series Mobile Elevating Working Platform Ladder Working Platform
- Category: >>>
- Supplier: Shanghai Ting Wang Science And Technology Ltd.
Share on (62459446231):
Product Overview
Description
Product Description

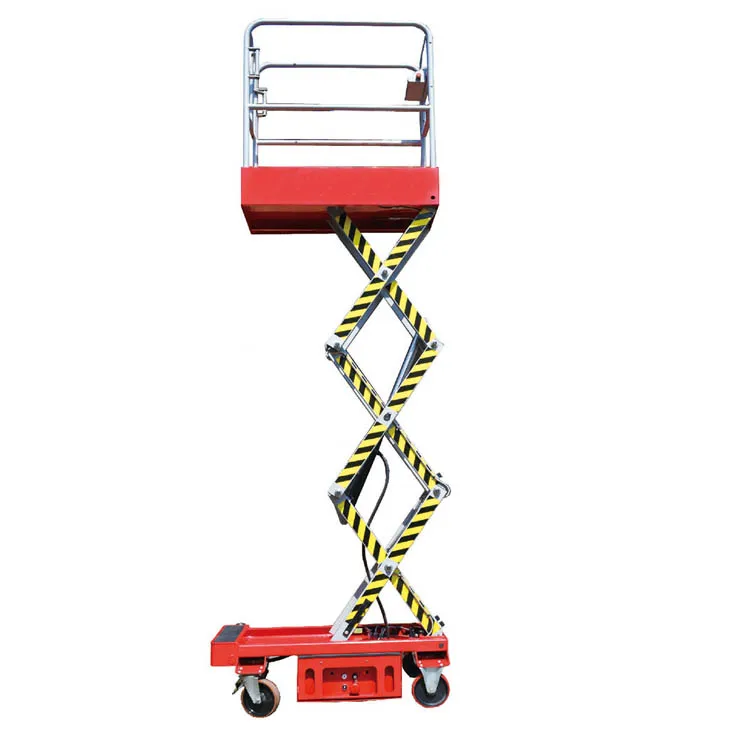

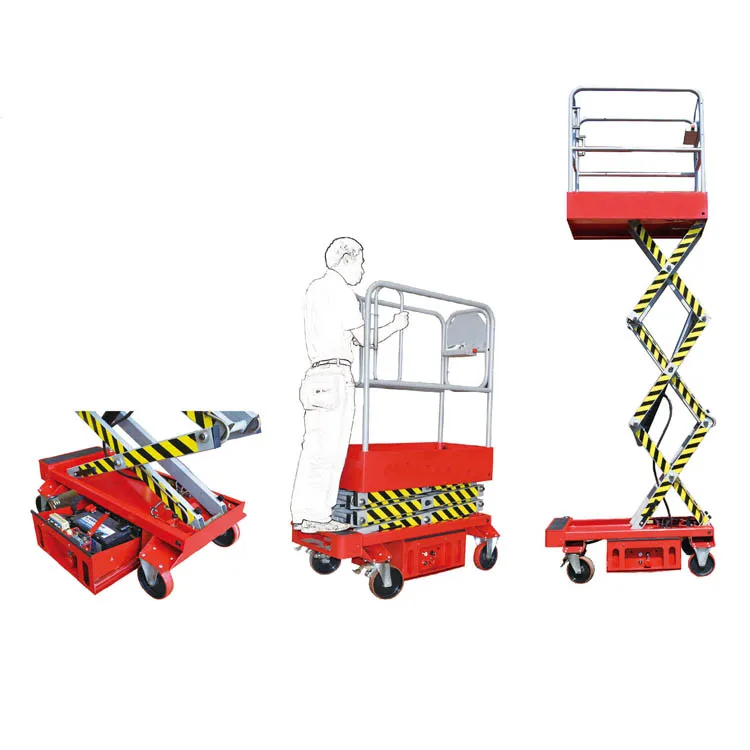

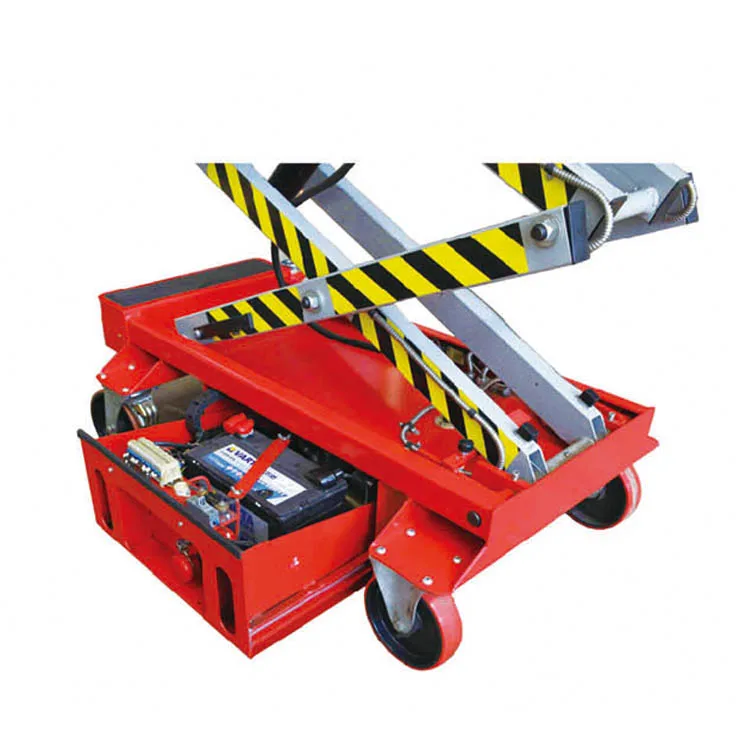

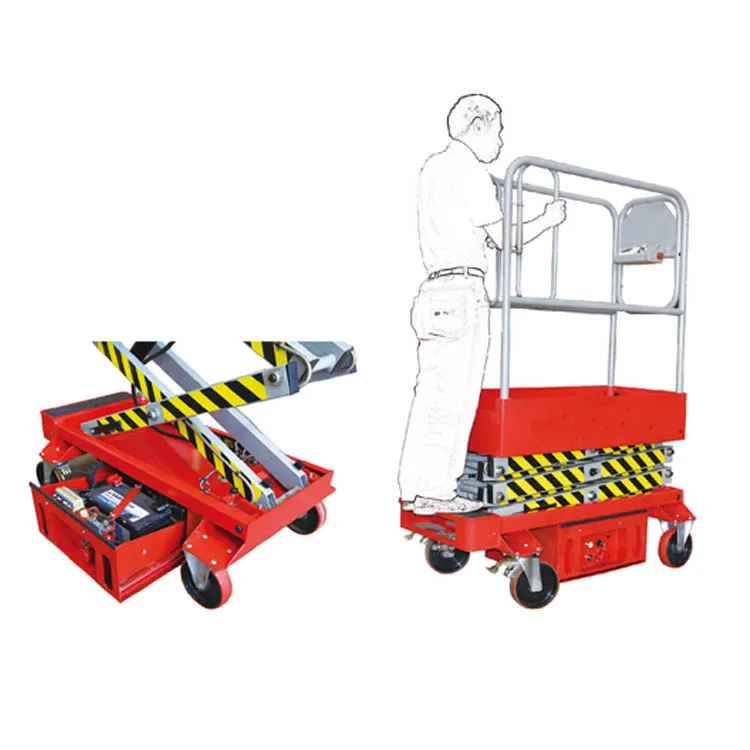

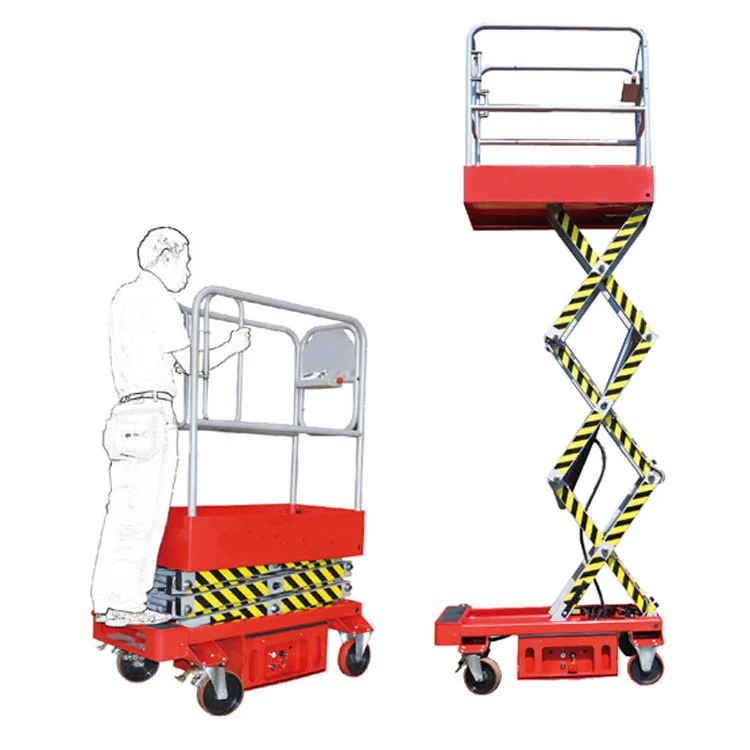

Mobile Elevating Work Platform [MM-J series]
* The Mobile Elevating Work Platform is the world leader in the development of push-around scissor lifts,which provides a
cost-effective new way to safely work at height indoors.It is a scissor lift type work platform,which is maneuvered manually
into work positions and elevated and lowered using an electro-hydraulic control system.
* It has been designed to comply with the safety requirements of the Machinery Directive 98/37/EC taking guidance from the
European Standard EN280:2001 Mobile Elevating Work Platforms.
* It is intended to be used to lift persons,plus essential tools & materials, to enable work to be undertaken at height.Typical
applications will include maintenance,cleaning,painting,etc.at varying heights above ground level.
Characteristics
* 240kg safe working load.
* 1.65 metre stowed height
* Easily manoeuvrable
* Pass through standard doors
* Simple operation
* Aluminium guard rails
* Non-slip platform
* Steerable wheels
* Brakes on two wheels
* Stabilisers
* Detachable battery charger
* Emergency lowering facility
* Easily transportable
* Low maintenance
* Complies with EN280:2001
Note:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Features:
cost-effective new way to safely work at height indoors.It is a scissor lift type work platform,which is maneuvered manually
into work positions and elevated and lowered using an electro-hydraulic control system.
* It has been designed to comply with the safety requirements of the Machinery Directive 98/37/EC taking guidance from the
European Standard EN280:2001 Mobile Elevating Work Platforms.
* It is intended to be used to lift persons,plus essential tools & materials, to enable work to be undertaken at height.Typical
applications will include maintenance,cleaning,painting,etc.at varying heights above ground level.
Characteristics
* 240kg safe working load.
* 1.65 metre stowed height
* Easily manoeuvrable
* Pass through standard doors
* Simple operation
* Aluminium guard rails
* Non-slip platform
* Steerable wheels
* Brakes on two wheels
* Stabilisers
* Detachable battery charger
* Emergency lowering facility
* Easily transportable
* Low maintenance
* Complies with EN280:2001
Note:
Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
Model | unit | MM-J2420 | MM-J2425 | MM-J2430 | MM-J2435 |
Scissor | 2 | 3 | 3 | 3 | |
Rated Capacity | kg | 240 | 240 | 240 | 240 |
Max Height without Load | mm | 610 | 700 | 700 | 720 |
Max Height without Load | mm | 2000 | 2550 | 3000 | 3500 |
Lifting Time without Load | s | 7 | 13 | 15 | 15 |
Lifting Time with Load | s | 10 | 19 | 21 | 21 |
Platform Size | mm | 1016*526 | 1016*526 | 1106*526 | 1306*526 |
Battery | V/AH | DC 12V, 80 AH | DC 12V, 80 AH | DC 12V, 80 AH | DC 12V, 80 AH |
Front Wheel | 200 | 200 | 200 | 200 | |
Rear Wheel | 200 | 200 | 200 | 200 | |
Net Weight | kg | 304 | 341 | 358 | 405 |
If you want,feel free to contact us!
Welcome to click it to order it.
