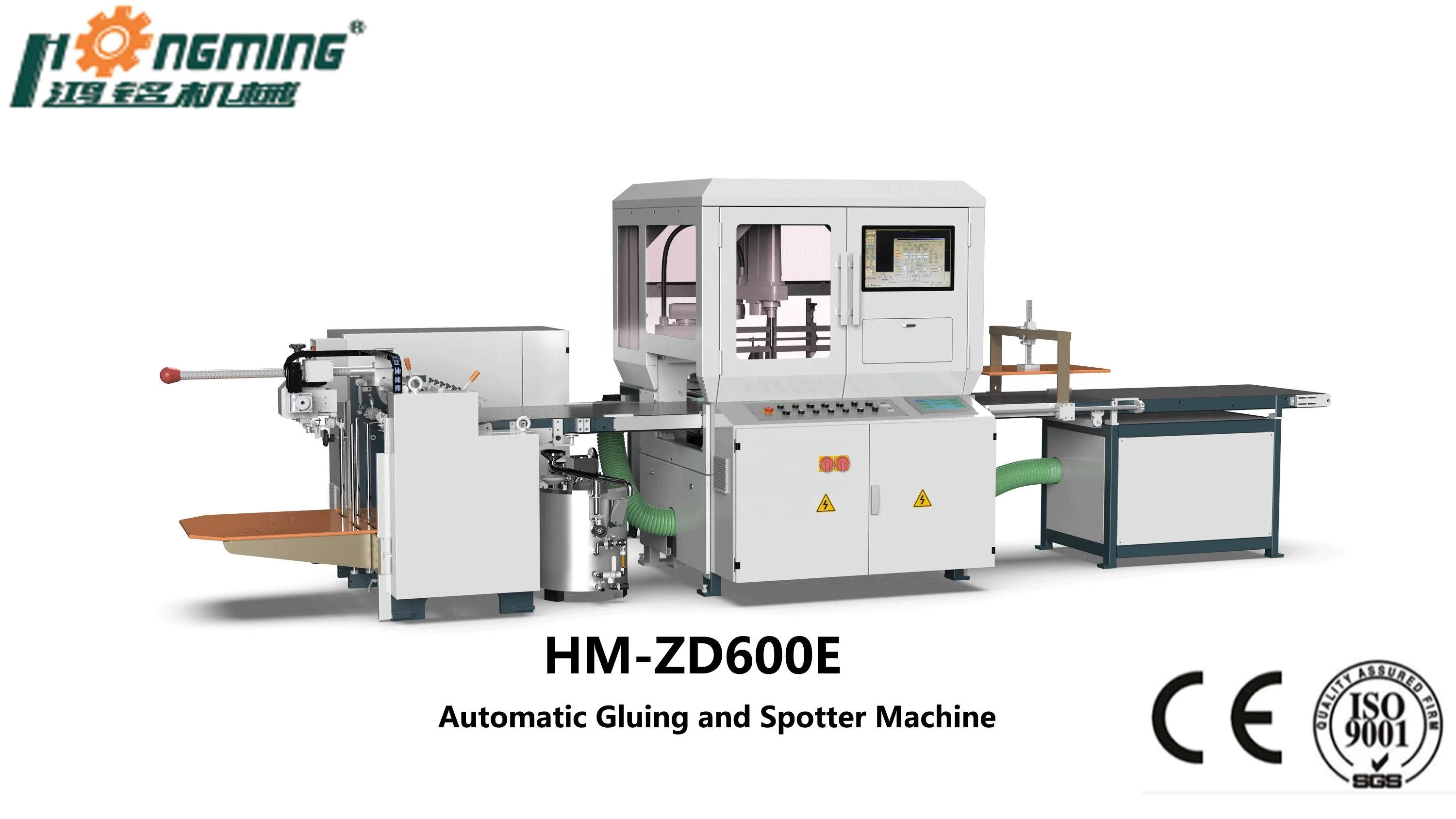

Gluing and Spotter HM 600E Automatic Gluing and Spotter Machine rigid box making machine
- Category: Packaging Forming Machines >>>
- Supplier: Guangdong Hongming Intelligent Joint Stock Co. Ltd.
Share on (62459580404):
Product Overview
Description
Product Description
HM-600E is an automatic multifunctional equipment for high precision positioning of hard cover and large-size premium box. It is suitable for mass production of a variety of rigid boxes, such as jewelry boxes, mobile phone boxes, gift boxes, cosmetic boxes, watch boxes, and some special rigid boxes, etc.
These models are with a brand new exterior which can both impress your eyes and keep you safe.

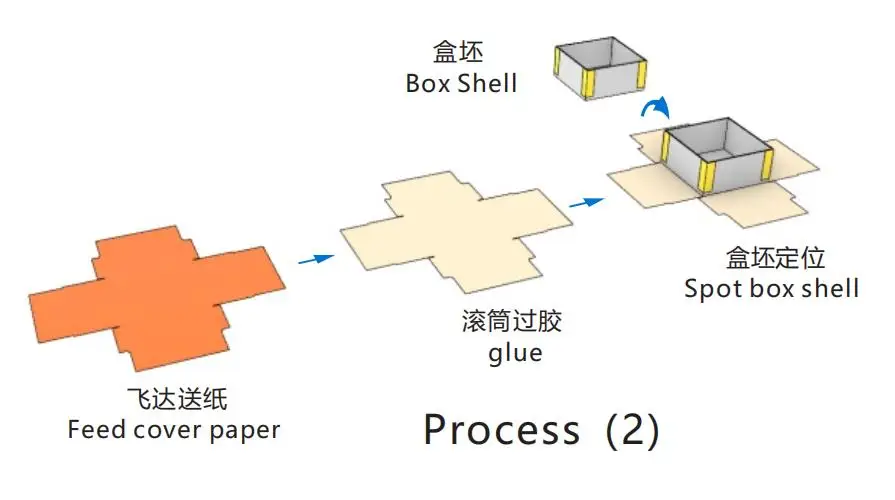

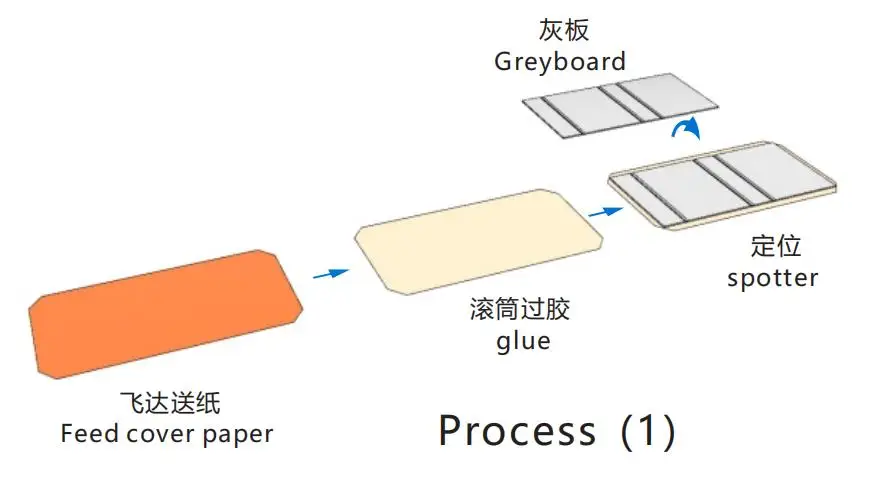

This machine adopts PLC, servo, touch screen, and CCD positioning system, which all enable the machine to feed paper, glue paper and spotter the box automatically and fluently.
This machine adopts PLC, servo, touch screen, and CCD positioning system, which all enable the machine to feed paper, glue paper and spotter the box automatically and fluently.
The feeder, the gluer and the conveyor are driven by servo system which has continuously variable transmission and enjoys high accuracy, easy adjusting, and efficiency. The spotting unit adopts camera tracing system and robot arm to pick and spot the greyboard, enhancing the spotting accuracy to±0. 05mm.
Specification
Length size | 100-600mm |
Width size | 50-400mm |
Height size | 12-190mm |
Length of paper size | 180-850mm |
Width of paper size | 95-610mm |
Paper Pile Height Max | 350mm |
Glue tank Volume | 30L |
Warranty of core components | 1 Year |
Core Components | PLC, Engine, Bearing, Gearbox, Motor, Pressure vessel, Pump |
Voltage | AC380V |
Dimension(L*W*H) | 5600*2600*1900mm |
Weight | 2000KG |
Certification | CE Certificate |
Power Consumption | 4kw/h |
speed | <=25pcs/min |
Air Supply | 100L/min, 0.8MPa |
Features function
1.Suit to all kinds of paper and box shell for positioning.;
2.Suit to all kinds of paper and cardboard for positioning.;
3.Computer control for all parameter setting.;
4.Fault diagnosis function.;
5.Automatic feed paper.;
6.24-hours control for glue pre-heating;
7.Servo system for controlling the whole machine.;
8.CCD positioning system and robot arm for positioning the box shell;
9.Automatic control system of glue viscosity(optional).
10.Corner conveyor for box shells(optional).
Note/:
2.Suit to all kinds of paper and cardboard for positioning.;
3.Computer control for all parameter setting.;
4.Fault diagnosis function.;
5.Automatic feed paper.;
6.24-hours control for glue pre-heating;
7.Servo system for controlling the whole machine.;
8.CCD positioning system and robot arm for positioning the box shell;
9.Automatic control system of glue viscosity(optional).
10.Corner conveyor for box shells(optional).
Note/:
1.The Card Paper size is determined by the cardboard's size and quality
2. The production speed of this machine is determined by the paper quality,the box shell size/quality and cardboard size/quality
2. The production speed of this machine is determined by the paper quality,the box shell size/quality and cardboard size/quality
Packing & Delivery
Wrapped in PP film and packed in wooden cases
Company Profile
Guangdong Hongming Intelligent Joint Stock Co., Ltd (Formerly Dongguan Hongming Machinery Co., Ltd) is the leading professional manufacturer who makes automatic rigid box making machines and hardcover books making machines in china. It was established in 1999.
Our main machines include the automatic rigid box making machines, the semi-auto rigid box making machines, and the hardcover books making machines. These machines are widely used to make mobile phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.
Now we have a modern factory covering 35000 square meters which is equipped with advanced CNC processing center, casting machining center, and painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacture high quality and high precision machine with CE certificate.
During the past 20 years, we lead the market by providing the automatic rigid box making machines and the semi-auto rigid box making machines to both domestic and international markets. Many oversea countries, such as USA, UAE, India, Malaysia, Vietnam, Thailand, Russia, Poland, Great Britain, Spain, Portugal, Turkey, Brazil, Mexico, Saudi Arab, Egypt, Indonesia, etc, have purchased our machines for mass production on boxes and book cases.
Today, we are dedicated to supply all our customers with the whole solution in high quality machines, the rigid box making and services through our constant efforts.
Our main machines include the automatic rigid box making machines, the semi-auto rigid box making machines, and the hardcover books making machines. These machines are widely used to make mobile phone boxes, cosmetic boxes, wine boxes, shoe boxes, chocolate boxes, etc.
Now we have a modern factory covering 35000 square meters which is equipped with advanced CNC processing center, casting machining center, and painting center. Furthermore, we have a R&D team with more than 20 people. With all of these, we are qualified to manufacture high quality and high precision machine with CE certificate.
During the past 20 years, we lead the market by providing the automatic rigid box making machines and the semi-auto rigid box making machines to both domestic and international markets. Many oversea countries, such as USA, UAE, India, Malaysia, Vietnam, Thailand, Russia, Poland, Great Britain, Spain, Portugal, Turkey, Brazil, Mexico, Saudi Arab, Egypt, Indonesia, etc, have purchased our machines for mass production on boxes and book cases.
Today, we are dedicated to supply all our customers with the whole solution in high quality machines, the rigid box making and services through our constant efforts.
Certifications
FAQ
1. who are we?
We are based in Guangdong, China, start from 2002,sell to Domestic Market(81.00%),Southeast Asia(6.00%),South Asia(5.00%),Central America(0.80%),Eastern Asia(0.80%),Mid East(0.80%),North America(0.80%),Northern Europe(0.45%),South America(0.27%),Southern Europe(0.15%),Oceania(0.01%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Rigid Box Machine,Packaging Machine,set-up boxes machines,case maker/hardcover making machines,luxury box making machines
4. why should you buy from us not from other suppliers?
Have own R&D Team, can customize machine according to customer's rigid box's requirements.
In package machine industry for 21years experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
We are based in Guangdong, China, start from 2002,sell to Domestic Market(81.00%),Southeast Asia(6.00%),South Asia(5.00%),Central America(0.80%),Eastern Asia(0.80%),Mid East(0.80%),North America(0.80%),Northern Europe(0.45%),South America(0.27%),Southern Europe(0.15%),Oceania(0.01%). There are total about 301-500 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.what can you buy from us?
Automatic Rigid Box Machine,Packaging Machine,set-up boxes machines,case maker/hardcover making machines,luxury box making machines
4. why should you buy from us not from other suppliers?
Have own R&D Team, can customize machine according to customer's rigid box's requirements.
In package machine industry for 21years experience
5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish
