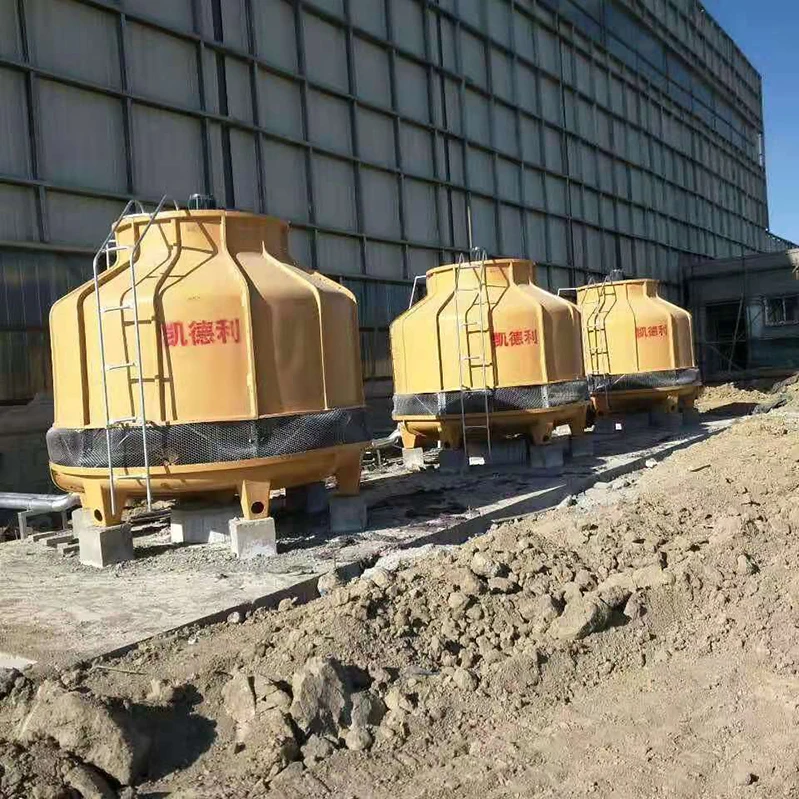

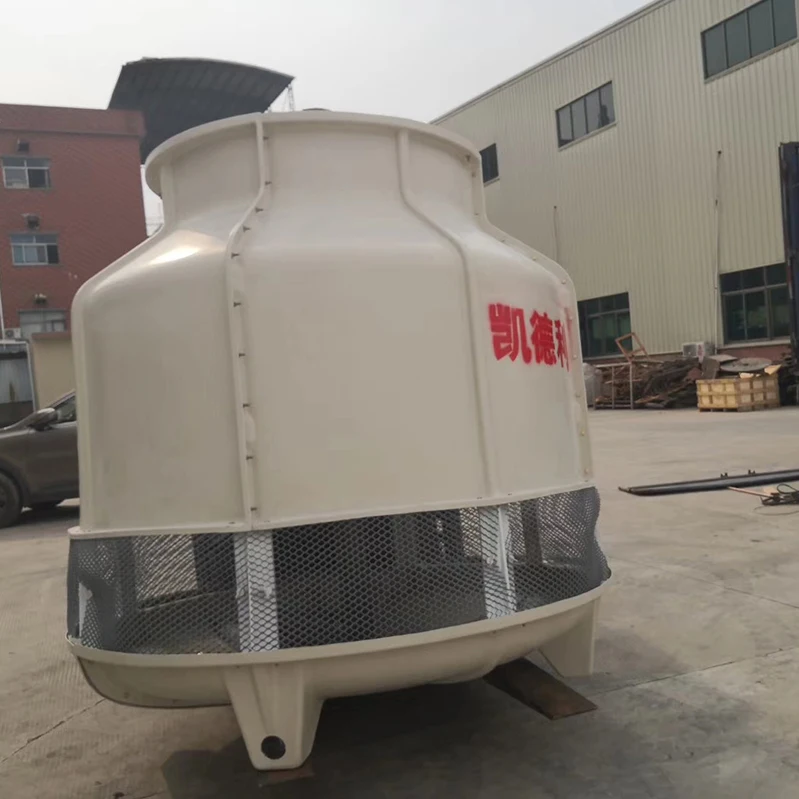

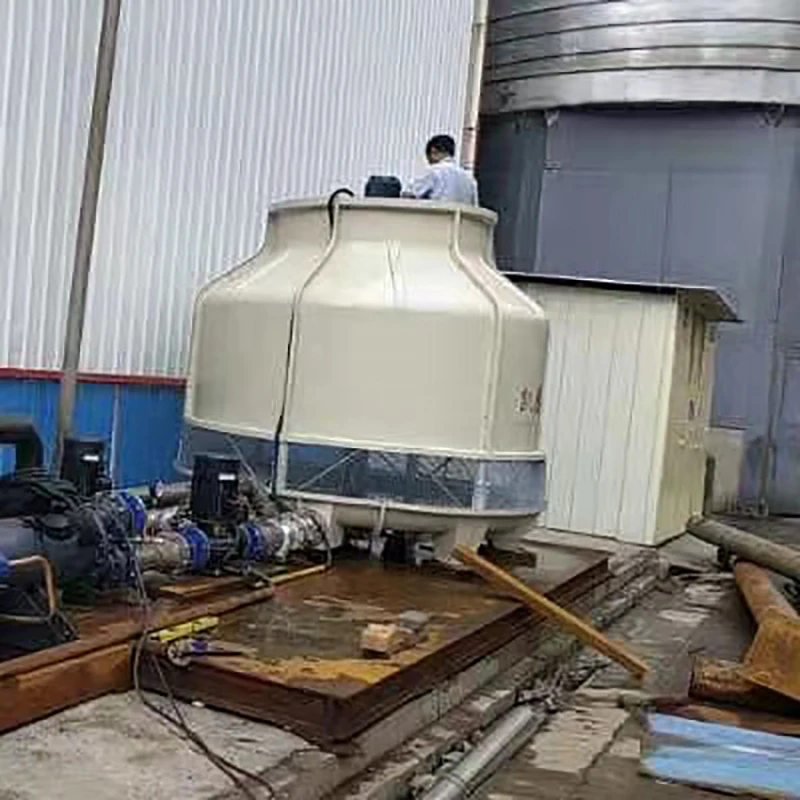

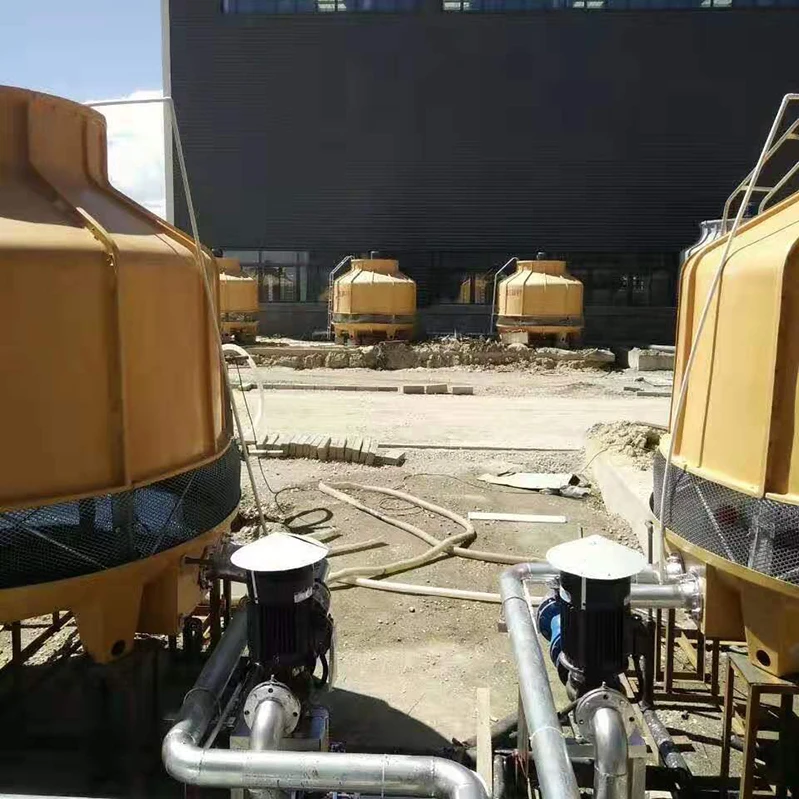

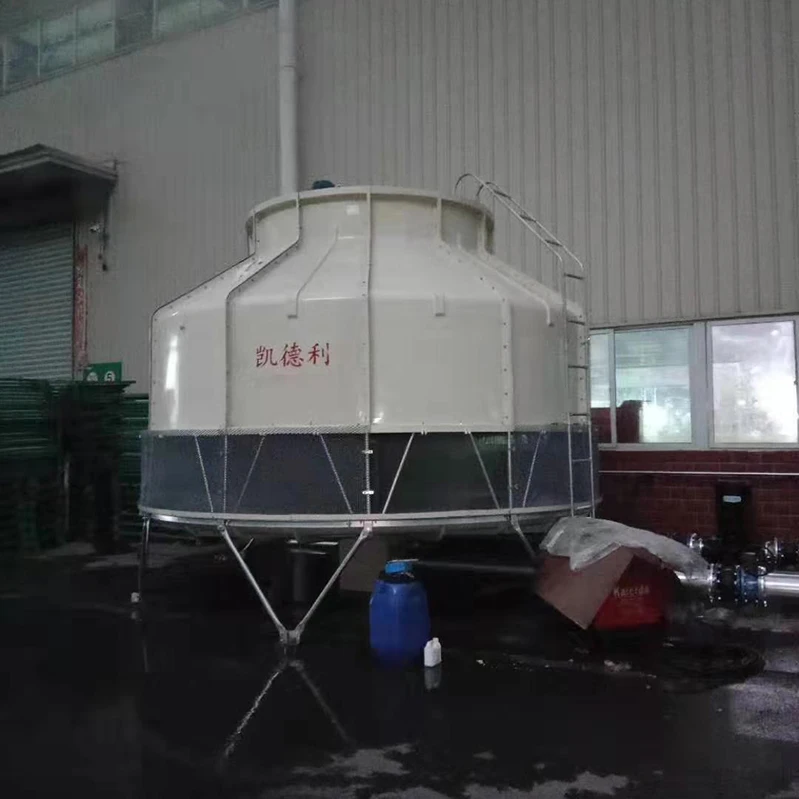

100ton High Temperature Round Counter Flow Small Water Cooling Tower Infill For Chiller

Project

Content

Data

Notes

Basic

Data

Cooling tower type

Counter flow circular cooling tower

Ton

Cooling tower Model

KWT-125

Standard

Circulating cooling water flow

97.5m³/h

In /Out temperature

37℃/32℃

Ambient Dry/Wet ball Temp.

31.5℃/28℃

Refrigerating capacity

390,600kcal/h

Noise value

65.5dB(A)

Away tower 16M

Power supply

380V/3P/50Hz

Water quality

PH value=6-8

Design

Data

Air-water ratio

0.61kg/kg

Flying water loss

≤0.02%

Evaporating water loss

≤0.833%

Net weight

550kg

Application weight

1,650kg

Fan

Data

Fan type

Axial flow

Air volume

48,000m³/h

Fan speed

720r/min

Fan leaf diameter(F)

 1,450mm

Fan leaf number

4 Pieces/Set

Rotor type

Direct rotor

Motor speed

960r/min

Motor power

2.50 kW

Motor start method

Direct start

Main

size

Tower diameter(F)

2,700mm

Tower height(H)

2,400mm

In/out tube size(DN)

125mm/125mm

Overflow/drain pipe size(DN)

25mm/25mm

Automatic hydration size(DN)

15mm

Material

Motor

Hermetic waterproof type

Fan

A.B.S

Shell

Glass steel F.R.P

High-quality

Basin

Sprinkler system

 P.V.C

Film

P.V.C

Flame retardant

Float valve

A.B.S

Inlet system

P.V.C
