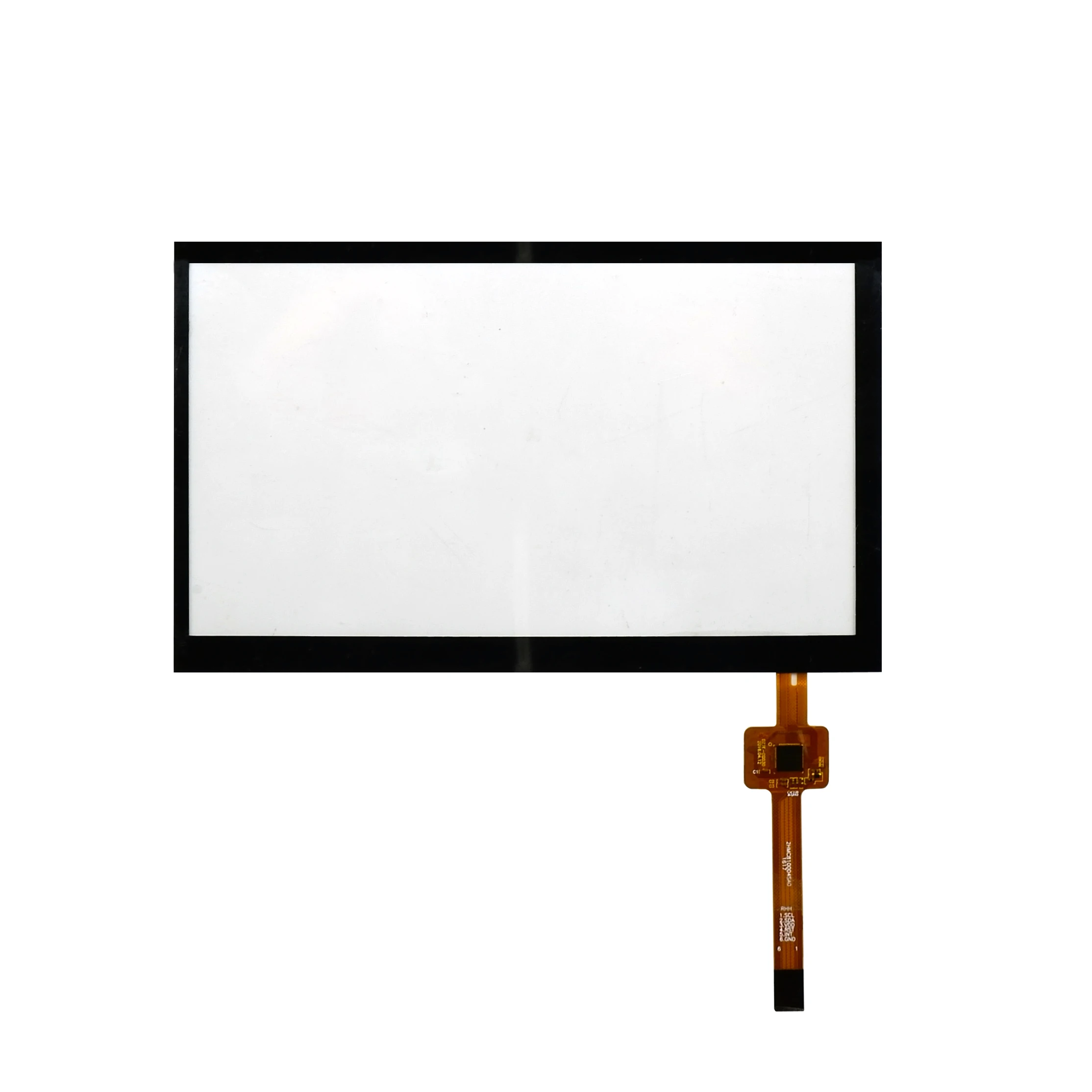

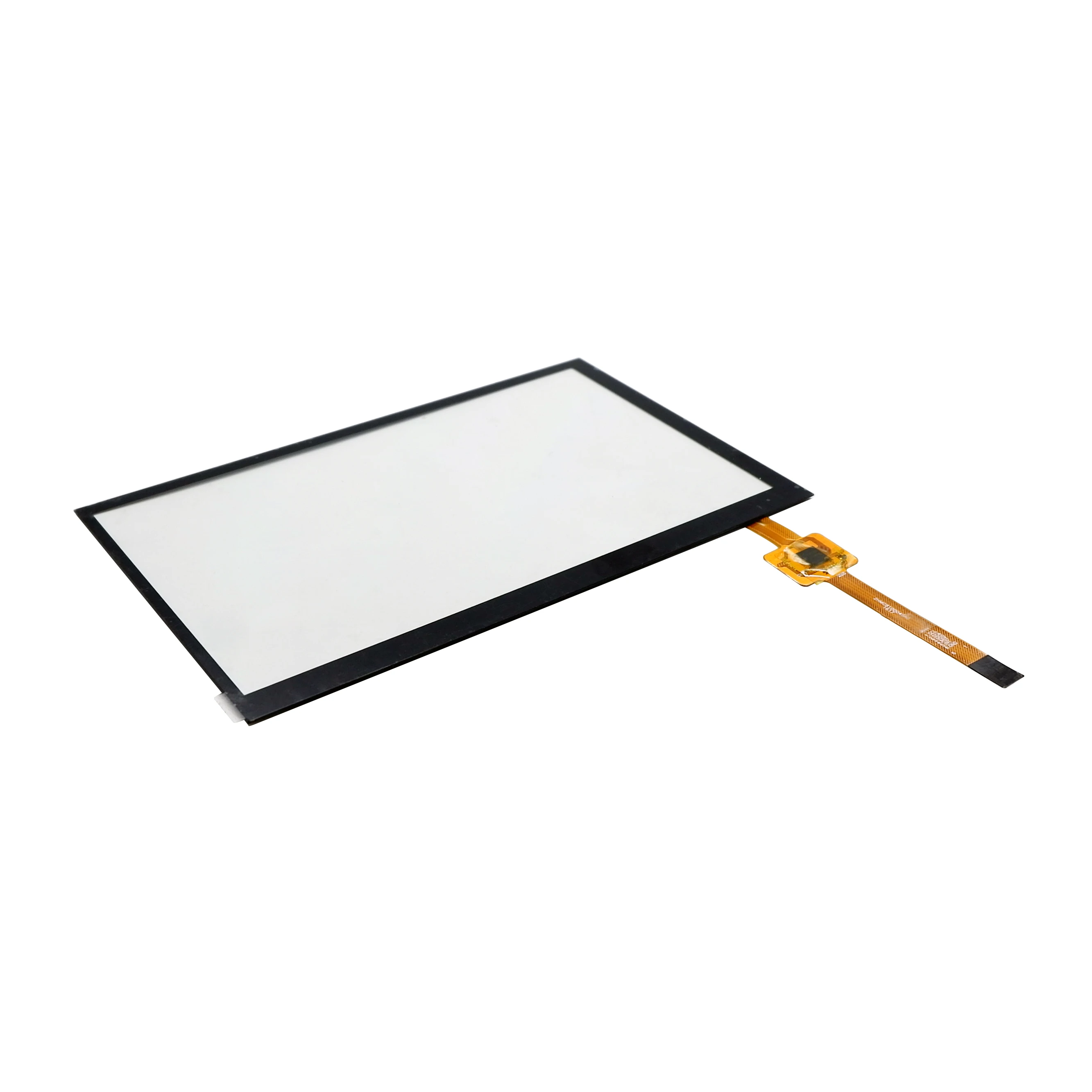

Customized 7 inch TFT Lcd Touch Screen IIC Interface 1024*600 7 inch Capacitive Touch Panel
- Category: >>>
- Supplier: Disea Electronics Co. Limited
Share on (62459896871):
Product Overview
Description
Our Advantages
1:We are a professional designer manufacturer of LCD module and capacitive touch module.
2:We have IATF16949 certificate issued by TUV, which can produce LCD module of automotive display module.
3:We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4:We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.
5:We have 6 production lines, with shipment of more than 3,000,000 pieces per year.
6:Our products can support long-term supply,Maximum supply cycle is 5-10 years.
3:We are good at ODM and OEM, product specification,LOGO and packaging can be customized.
4:We are good at the development of display module in the industrial field and provide the total solution of capacitive screen.
5:We have 6 production lines, with shipment of more than 3,000,000 pieces per year.
6:Our products can support long-term supply,Maximum supply cycle is 5-10 years.
The major products in DISEA are TFT-LCD modules which include normal and outdoor displays, normal and wide viewing angle/IPS displays, special size and transflective displays. The TFT-LCD module size we made is from 0.9" to 12.3" and working temperature between -40°C and +90°C with different customized solutions according to customers' requirements.
Product Description
Feature | Specification | Unit | ||
Display Specification | Brand | Disea | ||
Size | 7.0 | inch | ||
Screen Ratio | 16:9 | - | ||

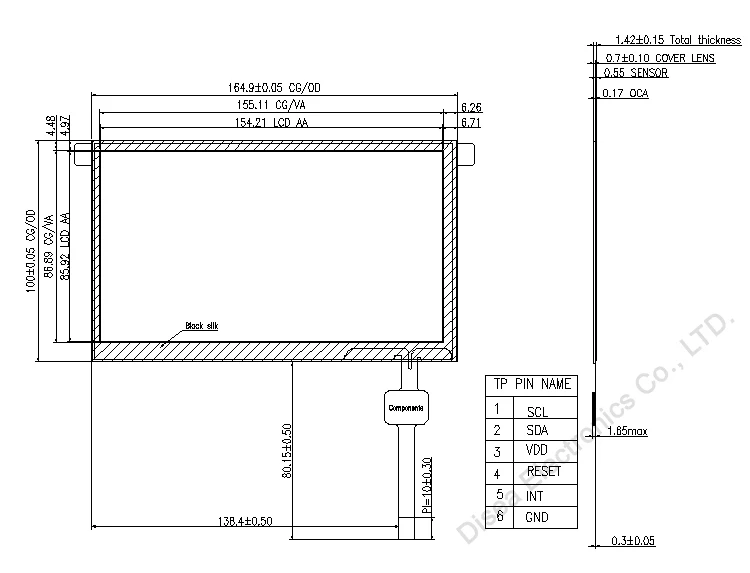

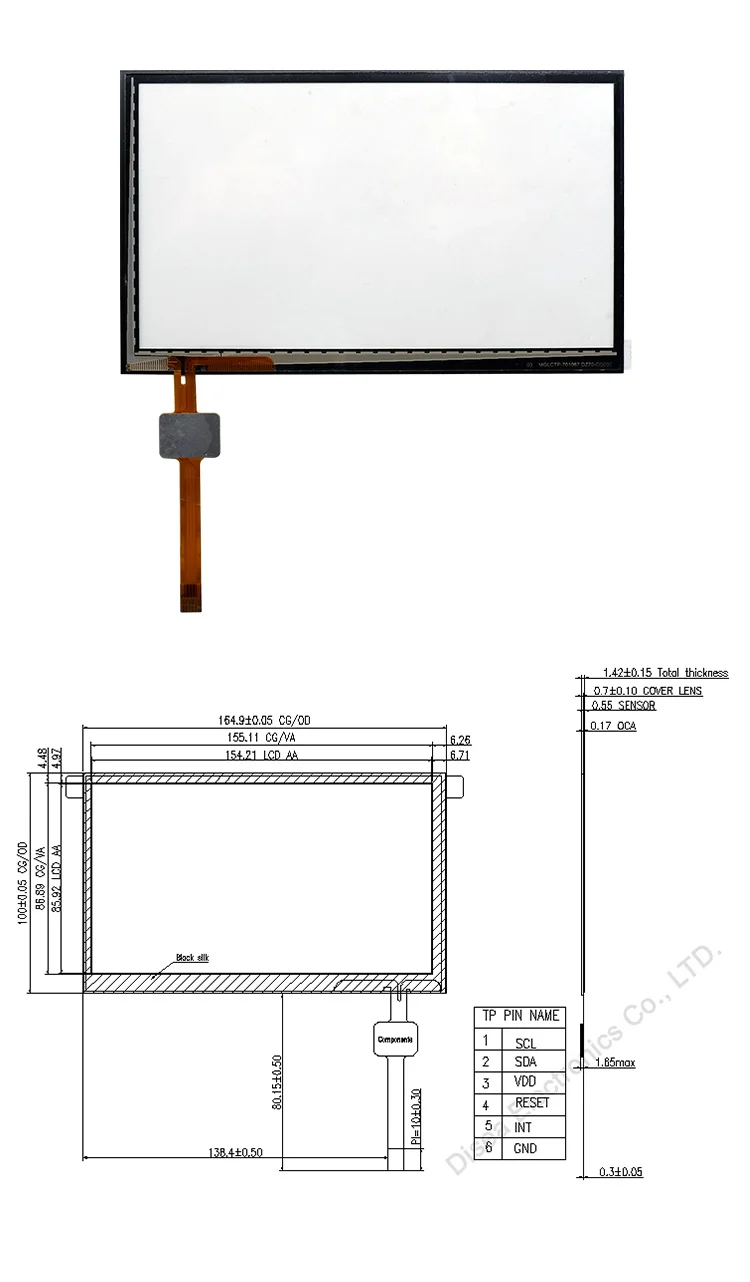

Outline (W x H x D) | 164.90*100.00*1.425 | mm | ||
Viewing Area | 154.21*85.92 | mm | ||
Cover Glass (T) | 0.7 | mm | ||
Structure | G+G | - | ||
Mechanical Characteristics | Surface Treatment | N.A. | - | |
Surface Hardness | 7H | - | ||
Transmission | 86% | % | ||
Operating Temperature | -20℃~+70℃ | ℃ | ||
Storage Temperature | -30℃~+80℃ | ℃ | ||
Electrical Characteristics | Touch controller | FT5426 | - | |
Interface | IIC | - | ||
Pin number | 6 | - | ||
Operation voltage | 2.8-3.3 | v | ||
I/O voltage | 1.8/3.3 | v | ||

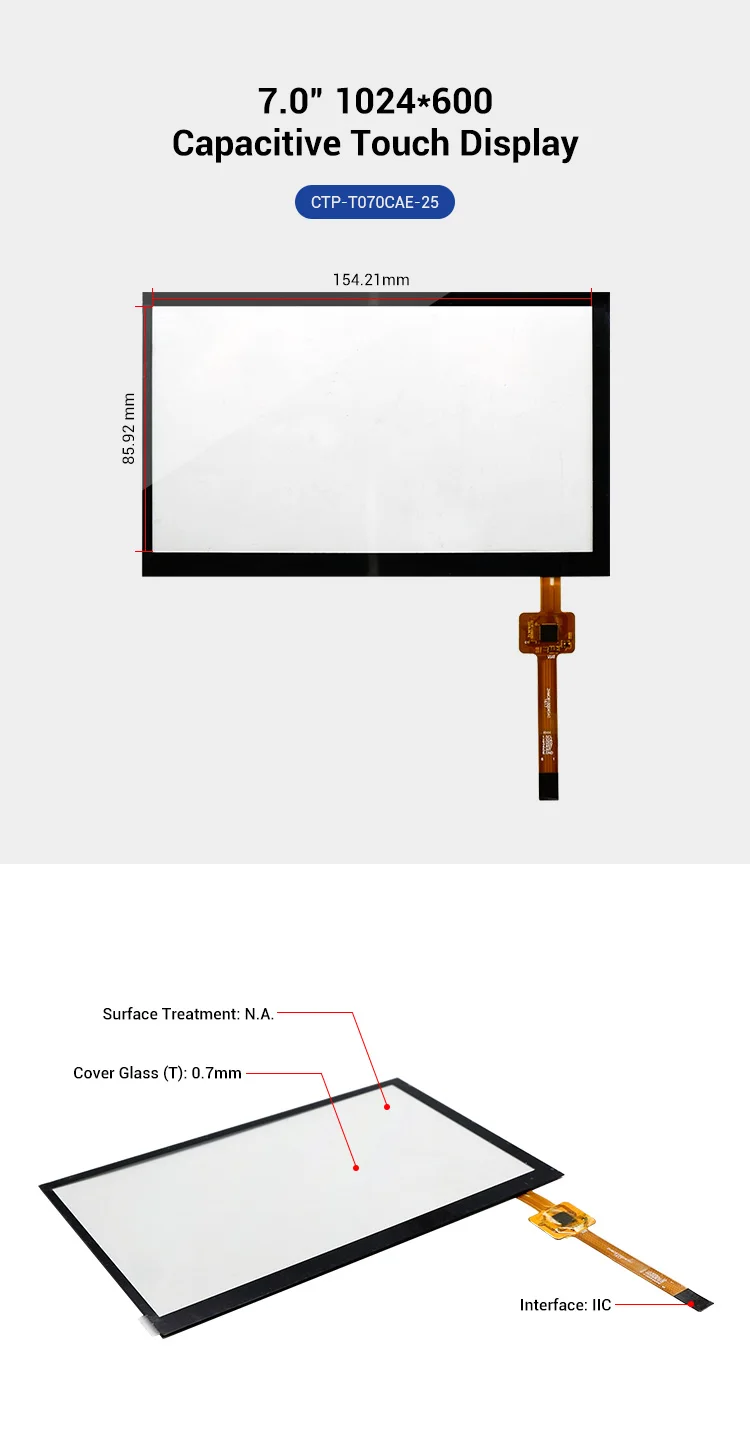

CTP-T070CAE-25 capacitive touch module. It is Widely used in instruments, apparatus, medical and other applications.
About Disea
Product packaging
Packing
Delivery
FAQ
Q:Can we customize product? What cost will be included?
A:The product can be customized, but TFT lcd module has different tooling cost, which includes FPC, Touch Screen, Backlight , Bezel and so on.
Q: Payment Terms?
A:Paypal can be accepted for sample, but Credit Card and T/T paid in advance for mass production.
Q: What is your delivery method?
A:EXW ShenZhen by DHL/ UPS / FEDEX/TNT , or ship the goods to your HK forwarder.
Q:Products are in stock? How long can you deliver?
A: Our inventory is mainly raw materials,semi-finished and a small amount of finished products.
After payment, Samples available in stock will be sent within 3 days; Small batch delivery takes 2-3 weeks; Large batch delivery takes 5-6 weeks
Q: What kind of packaging? The transport process will not be damaged?
A:Our products are divided into two categories, small - medium size use knife card isolation packaging, large size screens are used in aircraft box packaging, all packages are protected by outer box and strapping to ensure the safety of material transportation.
Q:How to control the quality of products?
A: The company has a professional quality team, and all products are 100% inspected before shipment.
Q: How long is the warranty and service of the product?
A: Generally the warranty period is one year. It depends on different products.
We guarantee our products to be free from manufacturer defects. Liability under this warranty is limited to the replacing of any product found to be defective under normal use.
Q: What certification could provide ?
A: Products by RoHS, CE, SGS certification.
Q: Can you provide product drawings and test reports?
A: According to customer needs, our company can provide product related information and test reports.
Q:The product specification is in Chinese or English?
A:The version of product specification is English.
Q: What is the minimum order quantity?
A: All our products have MOQ requirement, please contact our salesman for detailed information.
Q: Are you open to OEM processing?
A: Yes, we can OEM.
Q: What is the products application?
The products can be widely applied to the fields of HMI, handheld terminals, household medical products, instruments and apparatus, white goods, oiling machine, auto and AOI, etc.
