Environmental protection, energy saving and power saving design

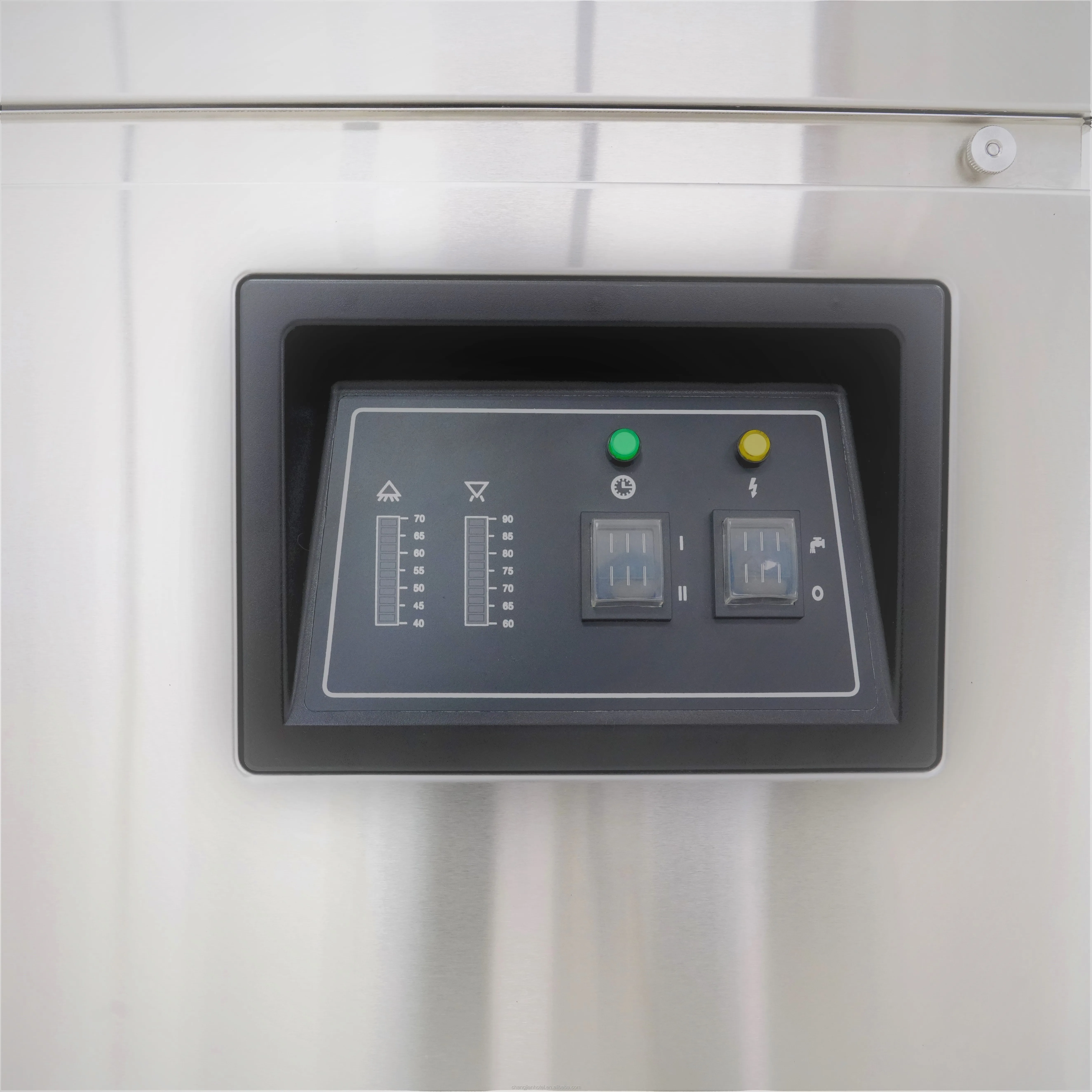

Electronically controlled single key operation

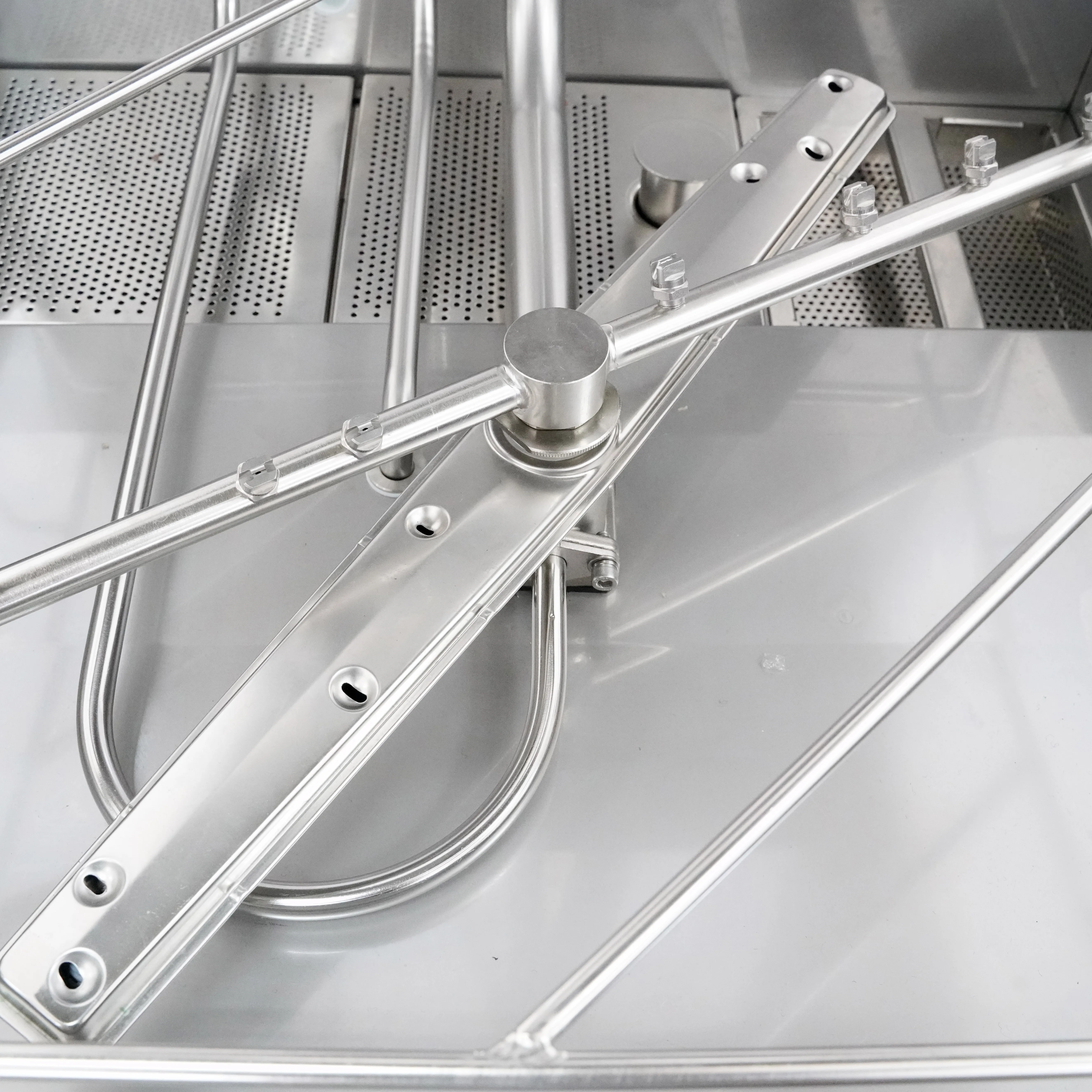

All stainless steel sprayarm
Fully automatic operating system
Unique water saving design
Application Field
100-300 people hotels, hotels, fast food restaurants, small staff restaurants and other places
Size
Name/Model
AS-900
Requirements
380V/50Hz/3N
Incoming water temperature(℃）
10
Tank heater(KW)
3
Booster heater(KW)
9
Wash pump(KW)
0.75
Total connected load(KW)
12.75
Total amps required(A)
22.3
Cross section of cable(mm²）
6
Rated current of circult breaker(A)
40
Heating
Electric

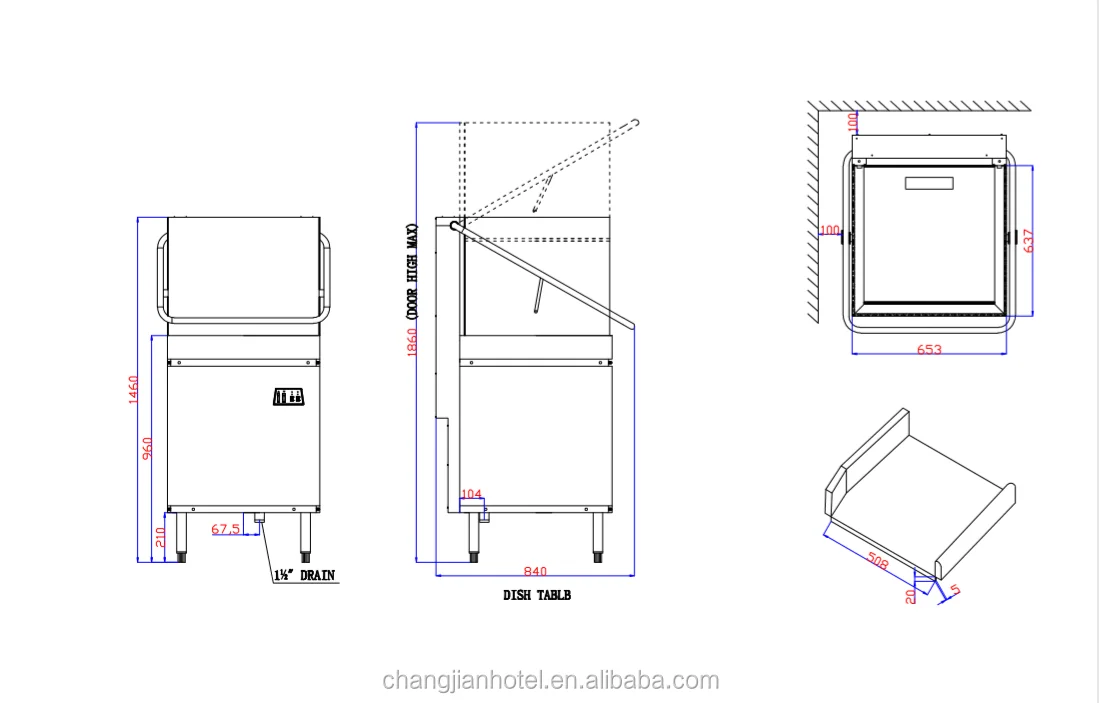

External dimension(mm)
730*840*1460
Clearance height(mm)
372
Max capacity(rack/hour)
60
Water consumption(liter/rack)
1.5
Wash tank capacity(l)
32
Booster capacity(l)
14
Wash temperature(℃）
60-65
Rinse temperature(℃）
82-90
Diameter of water inlet hose(in)
3/4
Diameter of drain pipi(in)
DN40
Incoming water pressure(Kg/cm²）
1.5KG
Incoming water hardness(g/l)
0.034-0.103
Inatallation and Connerction Requirements
a)Separate power supply all - pole disconnection and water source switch manual valves must be installed.For cutting off the power and water supply of the machine respectively b)The power supply, inlet pipeline, drainage pipeline, steam pipeline and ventilation pipeline connected with the machine must meet the relevant national standards
c)External piping connected to the machine is installed on site

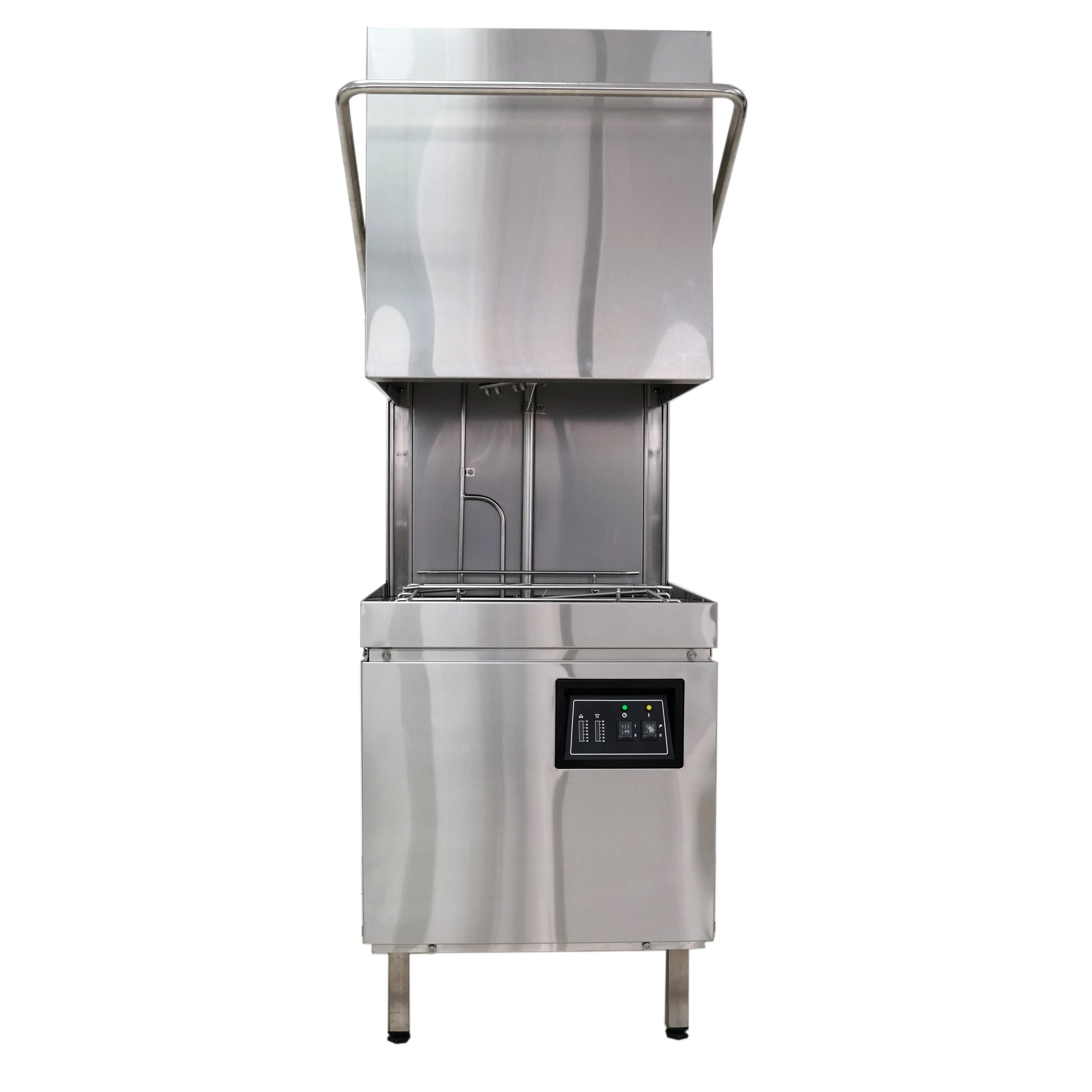

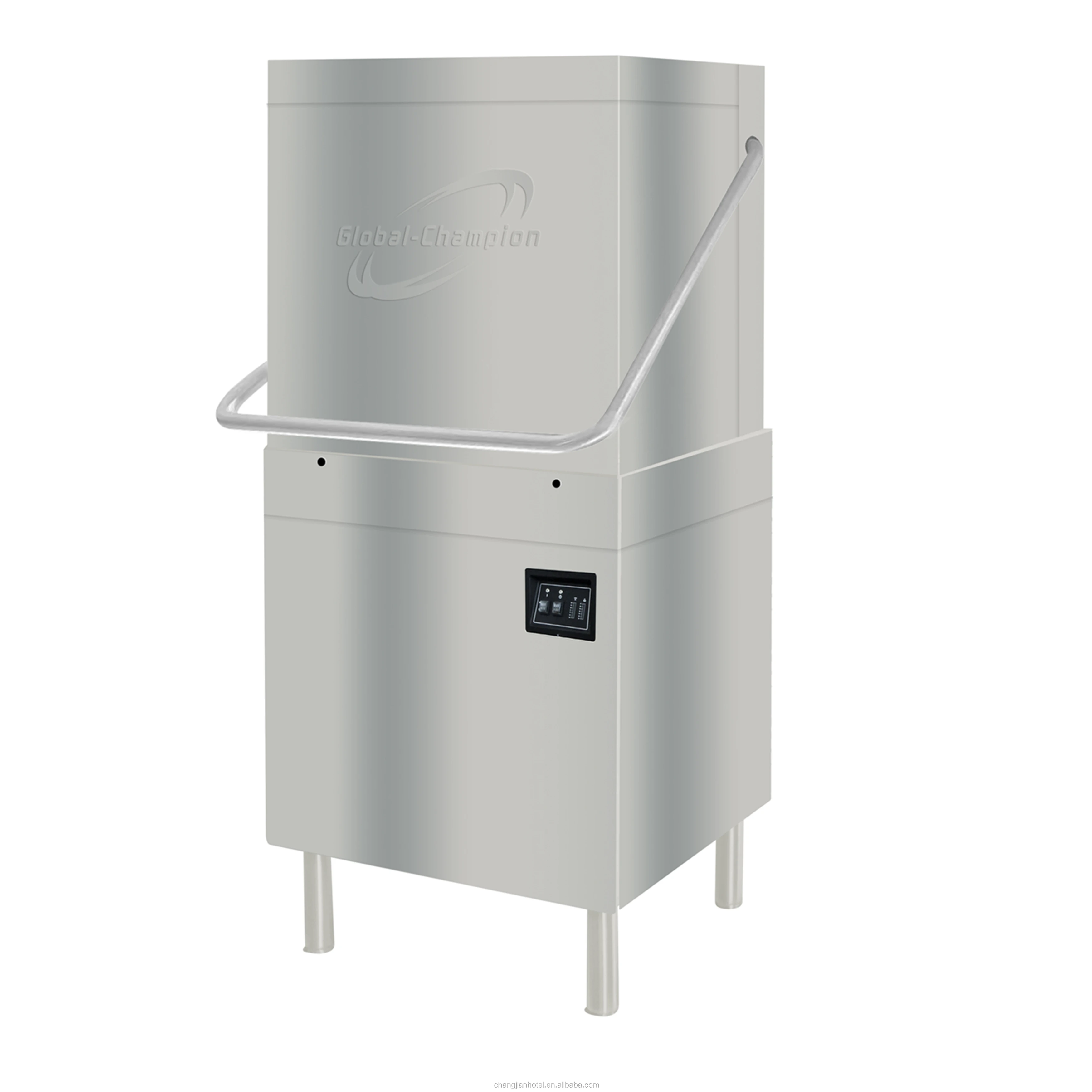

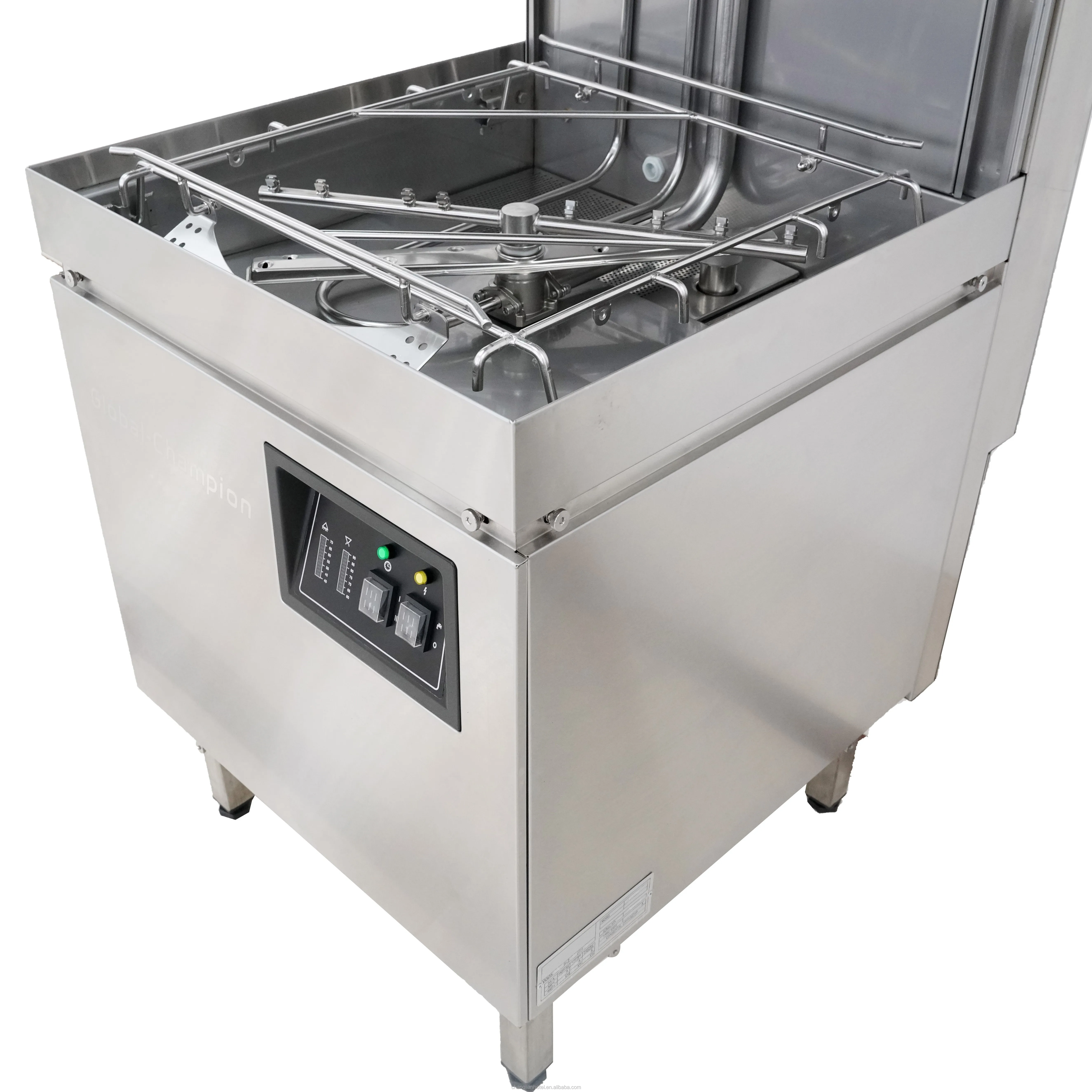

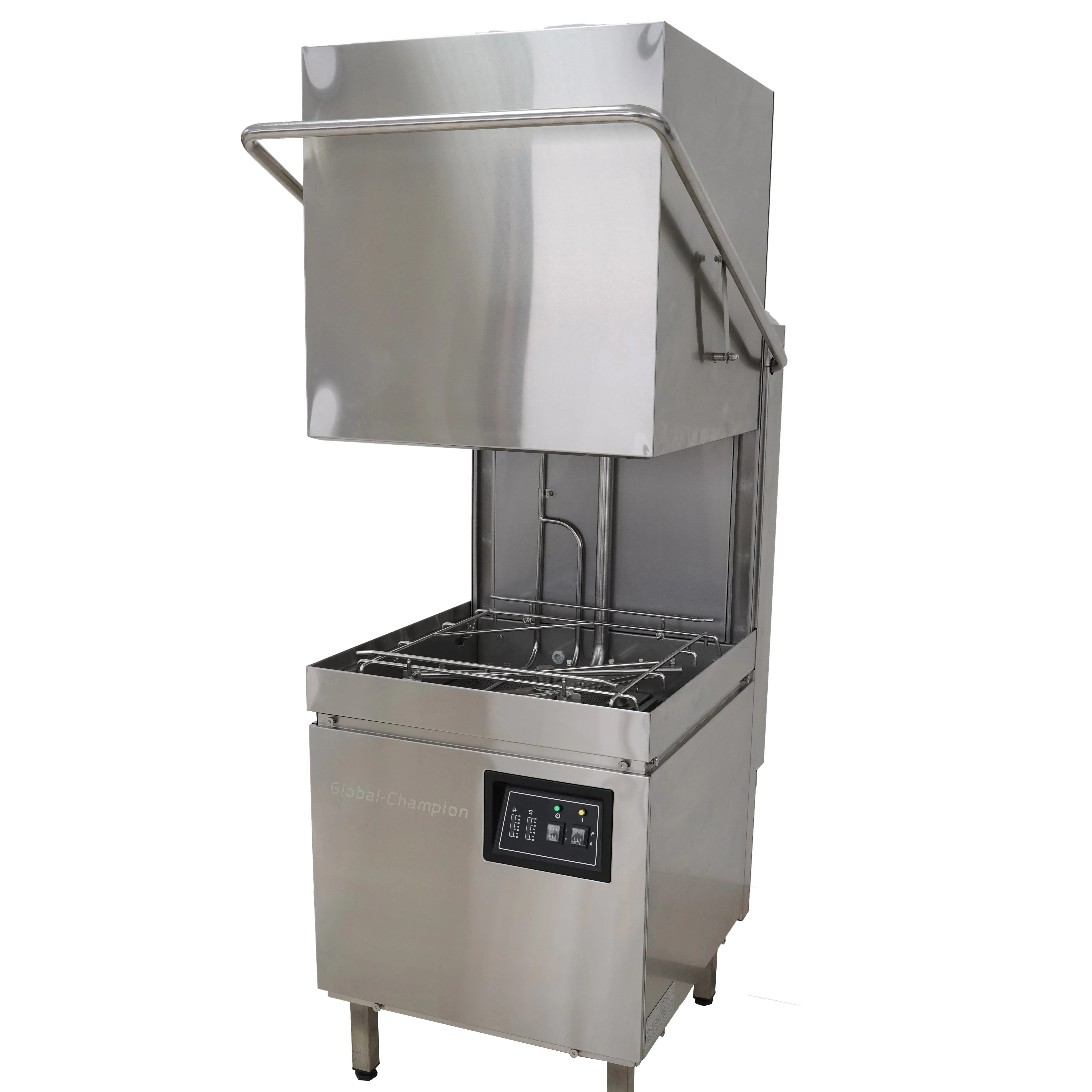

Details Images
Product packaging
Commercial Hood Type Dishwasher for hotel
AS-900
135KG
790*790*1560CM
1.Exporting Package Standard. 2.Carton Box with wooden crate to avoid damage 3.Detailed user manual in English, easy to understand
Port Shanghai

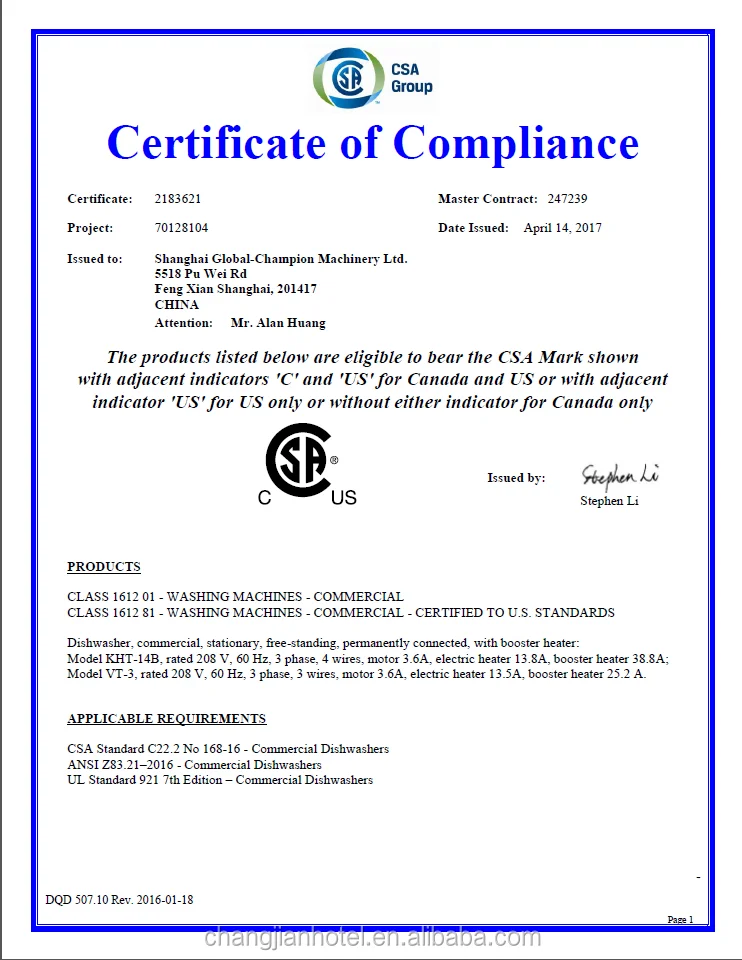

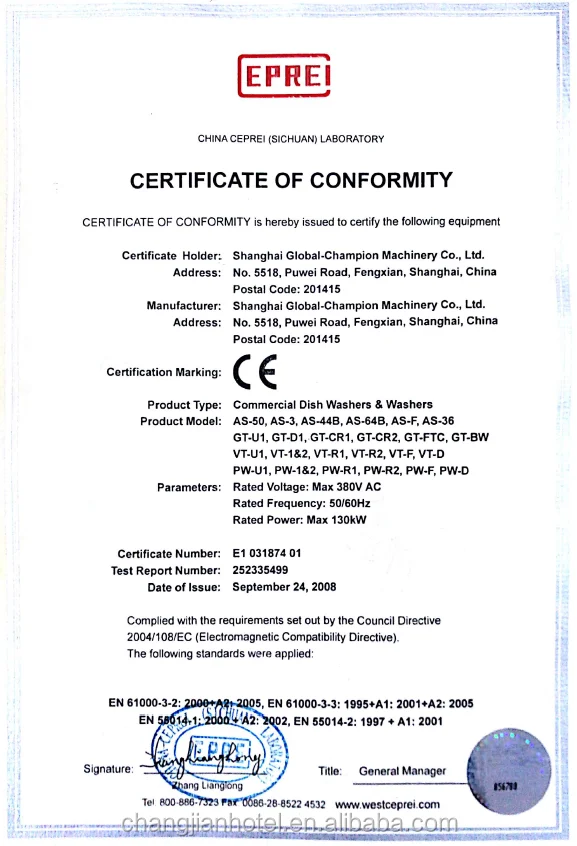

Certifications

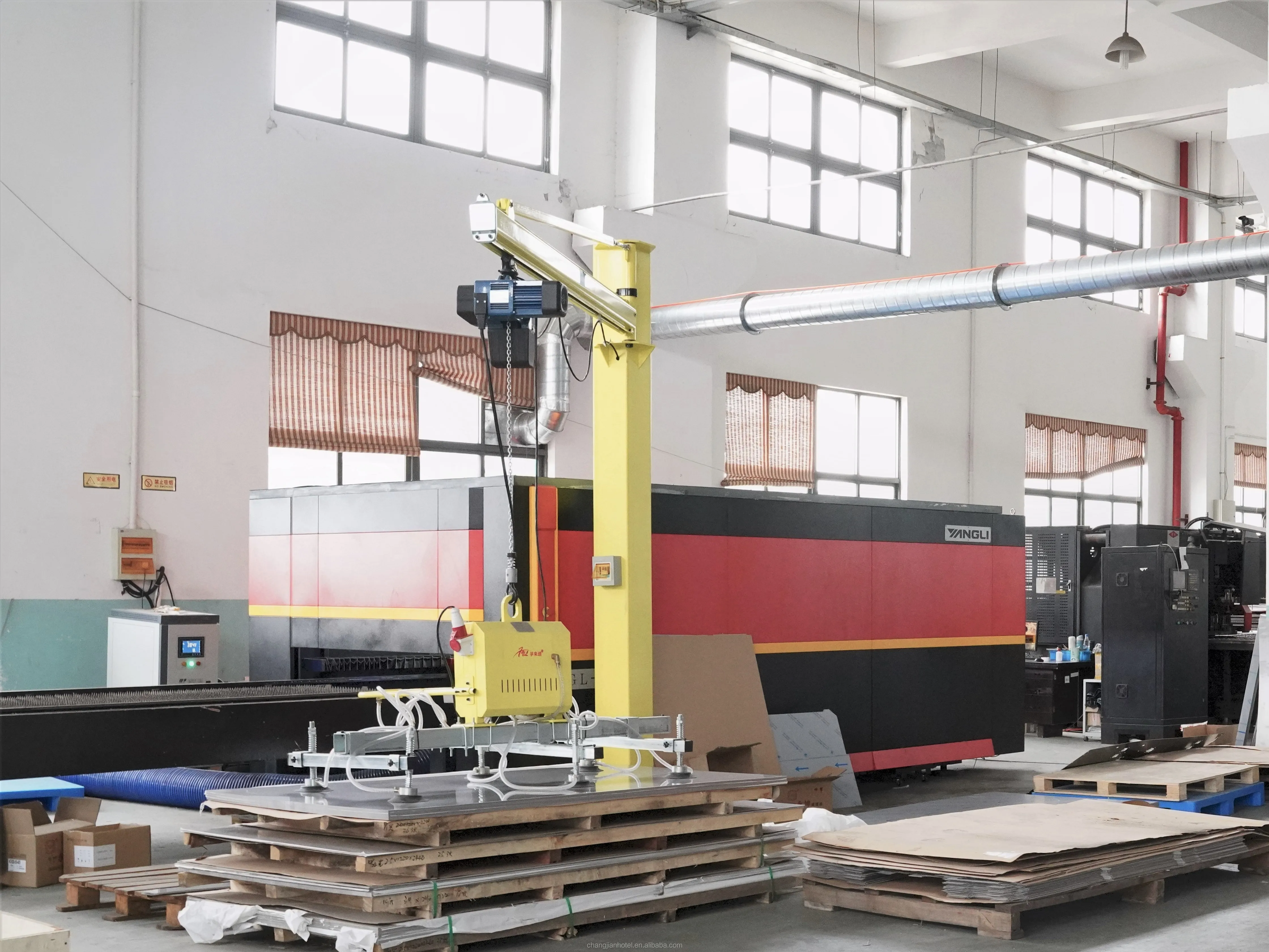

Company Profile
GLOBAL-CHAMPION INTERNATIONAL TRADING(SHANGHAI) CO.LTD is the first dishwasher manufacturer in Asia to complete the dual nationality certification for electrical safety and food safety. It has four major international certifications and exports to 15 countries and regions.Our product is dishwasher, washing boxes and so on. Suitable for catering industry, food industry, hospital, large staff canteen, department store food street theme restaurant, five-star hotel, etc
FAQ
1. Q: Are you a factory or trading company? A: We are a factory& trading company. From the earliest factory, we have developed into an international trading company with many cooperative factories, selling all kinds of high-quality kitchen equipment.
2. Q: What is the raw material of your products? A: As general, the raw material of steel is 201#,430#,304#. Other steel is also available to clients’ requirements.
3. Q: What is the delivery time? A: It depends on the order quantity and racking types. General speaking, within 15-25 days, for ordinary order quantity of heavy duty storage rack of industrial warehouse storage.
4. Q: Which port will be used as loading port? A: SHANGHAI port, the closest port to us.
5. Q: May I know the status of my order?
A: Yes. We will send you information and photos at different production stage of your order. You will get the latest information in time.
