High Efficient Sawdust Flash Drier Dryer Rice Fish Drying Oven for Sale
- Category: >>>
- Supplier: Guangzhou Yike Heat Pump Drying Equipment Technology Co. Ltd.
Share on (62459928073):
Product Overview
Description
Product Description
Purpose of drying Fruit果Hải sản lươn hàu tôm sò điệp cá khô
The purpose of drying is to remove water or solvent from some raw material and semi-finished products so as to facilitate the packing,transportation,storage,processing and use of material.Seafood belut tiram udang kering kerang
What is it ?
YKP Air Energy Heat pump Dryer uses the reverse Carnot principle to absorb the free heat from the air and transfer it to the drying room(input of 1 degrees of electric energy can produce 4 degrees of electric energy).
The temperture of the drying room is increase, and the corresponding dehumidification and moisture removal equipment is used to achieve drying of the material.
Secador de alimentos de arándanos y fresas
The working principle of Heat pump drying machine シーフードウナギカキエビホタテ牛肉魚の乾燥
* YKP heat pump dryer operates according to a basic reverse Carnot cycle. The working fluid (refrigerant) at low pressure is vaporized in the evaporator by heat drawn from the dryer exhaust air. The compressor raises the enthalpy of the working fluid of the heat pump and discharges it as superheated vapor at high-pressure. Heat is removed from the working fluid is then throttled to the low-process line (using an expansion valve) and enters the evaporator to complete the cycle.
FMeeresfrüchteaalausterngarnelen-Kamm-Muschelrindfleisch-Fischtrockner* In the dryer system,hot and dry air at the exit of condenser is allowed to pass through the drying chamber where it gains latent heat from the material. The humid air at dryer exit then passes through the evaporator where condensation of moisture occurs as the air goes below dew point temperature. Then drain the condenser water.
Product features Сушилка для фруктов и овощей
1.Safety & Environment protection：The low-temperture drying process below 80°c is fully suitable for drying.It adopts low temperture （40-80°c）fully enclosed drying mode ,no odor overlow ,no need to install complex deodorizing device.
2.Energy saving & Efficient: Using heat pump recoery technology, the closed drying mode dose not have any waste heat discharge. Buah blueberi, strawberry, nanas, kiwi makanan pengering
3.Intelligent & Operating easily: Fully automatic operation, PLC+touch screen intelligent control,which temperature and humidity can be controlled in different time.
4.The drying effect is good and the drying is even: the finished product after drying is very good in color, fragrance, taste and individual shape; high effective ingredients
Detailed Images
YKP Heat Pump Dryer
Drying Chamber-PU Board
Fan Motor

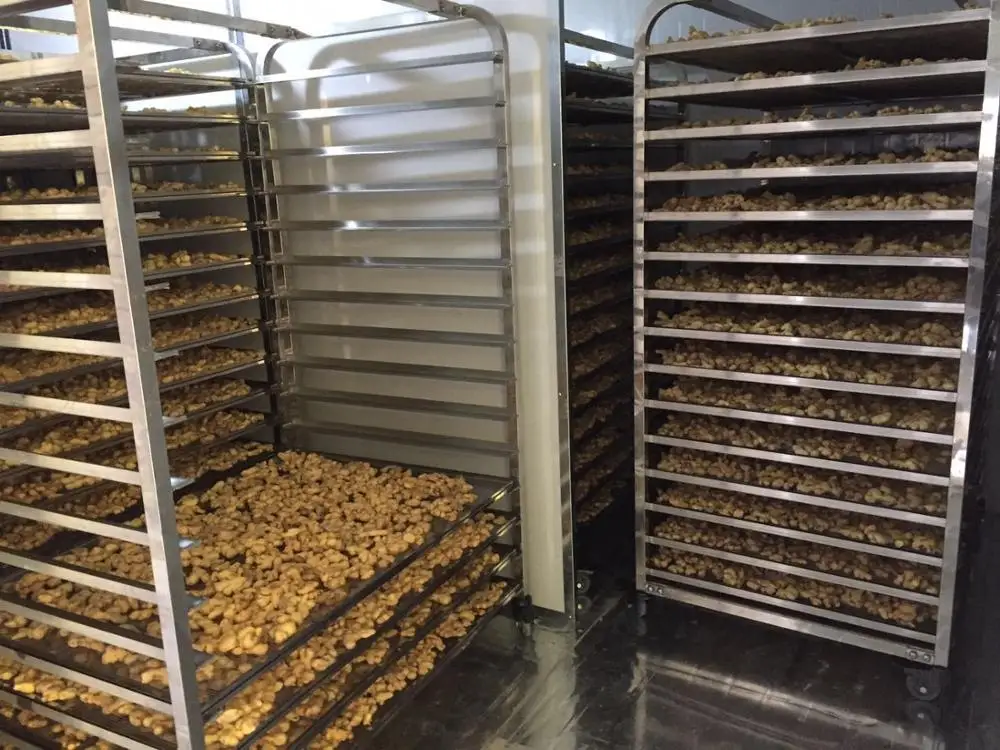

Trolleys (12-20 layers)/SUS304
Trays (Various types)/SUS304
Whole set including all spare parts
Size Information
Recommend Configuration
Model | Capacity | Drying room size | Trolley qty | Drying room size can be customized under your requirements. |
YK-72RD-15-L | 50KG/batch | 2500X1240X2200mm | / | |
YK-72RD-30-L | 100KG/batch | 3300x1240x2200mm | / | |
YK-72RD-60-L | 150KG/batch | 3810x1880x2200mm | / | |
One unit YK-72RD | 300KG/batch | 4000x2400x2400mm | 4 | |
Two units YK-72RD | 700KG/batch | 8000x2400x2400mm | 8 | |
One unit YK-145RD | 800KG/batch | 5000x3000x2400mm | 8 | |
Two units YK-145RD | 1500KG/batch | 8000x3000x2400mm | 12 | |
One unit YK-290RD | 1200KG/batch | 8000x3000x2400mm | 12 | |
Two units YK-290RD | 2000KG/batch | 12000x3000x2400mm | 20 | |
One unit YK-360RD | 1500KG/batch | 8000x3000x2400mm | 12 | |
Two units YK-360RD | 2400KG/batch | 12000x3000x2400mm | 20 | |
Two units YK-720RD | 4500KG/batch | 13000x4200x2400mm | 28 |
Products application:

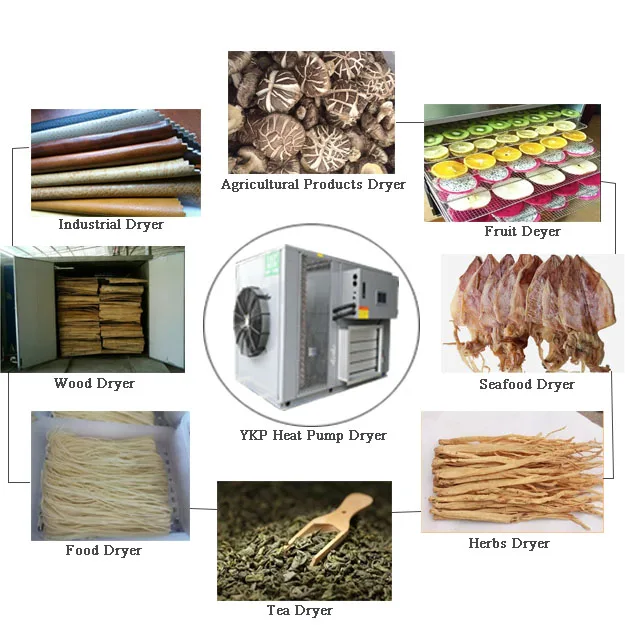

Heat pump drying equipment is suitable for drying fruit, wood, seafood, tea agriculture product and sludge in many field.
Heat pump drying equipment is suitable for drying fruit, wood, seafood, tea agriculture product and sludge in many field.
Related Products
Fruit Drying Machine
Click on me!
Meat Drying Machine
Click on me!
Vegetable Drying Machine
Click on me!
Seafood Drying Machine
Click on me!
Wood Drying Machine
Click on me!
Model:YK-24E
Click on me!
Packing&Shipping
Packing: Unit packed in plywood cases.
The Fruit Dryer is ready to be sent to Thailand.
The Vegetable Dryer is ready to be sent to Vietnam.
The Chilli Dryer is ready to be sent to Africa.
After Sales Service
Before arrival of machines: Trái cây blueberry dâu dứa kiwi thực phẩm máy sấy
* Inquiry and consulting support WITHIN 24 HOURS
* Sample testing support. 果物ブルーベリーイチゴパインキウイ食品乾燥機

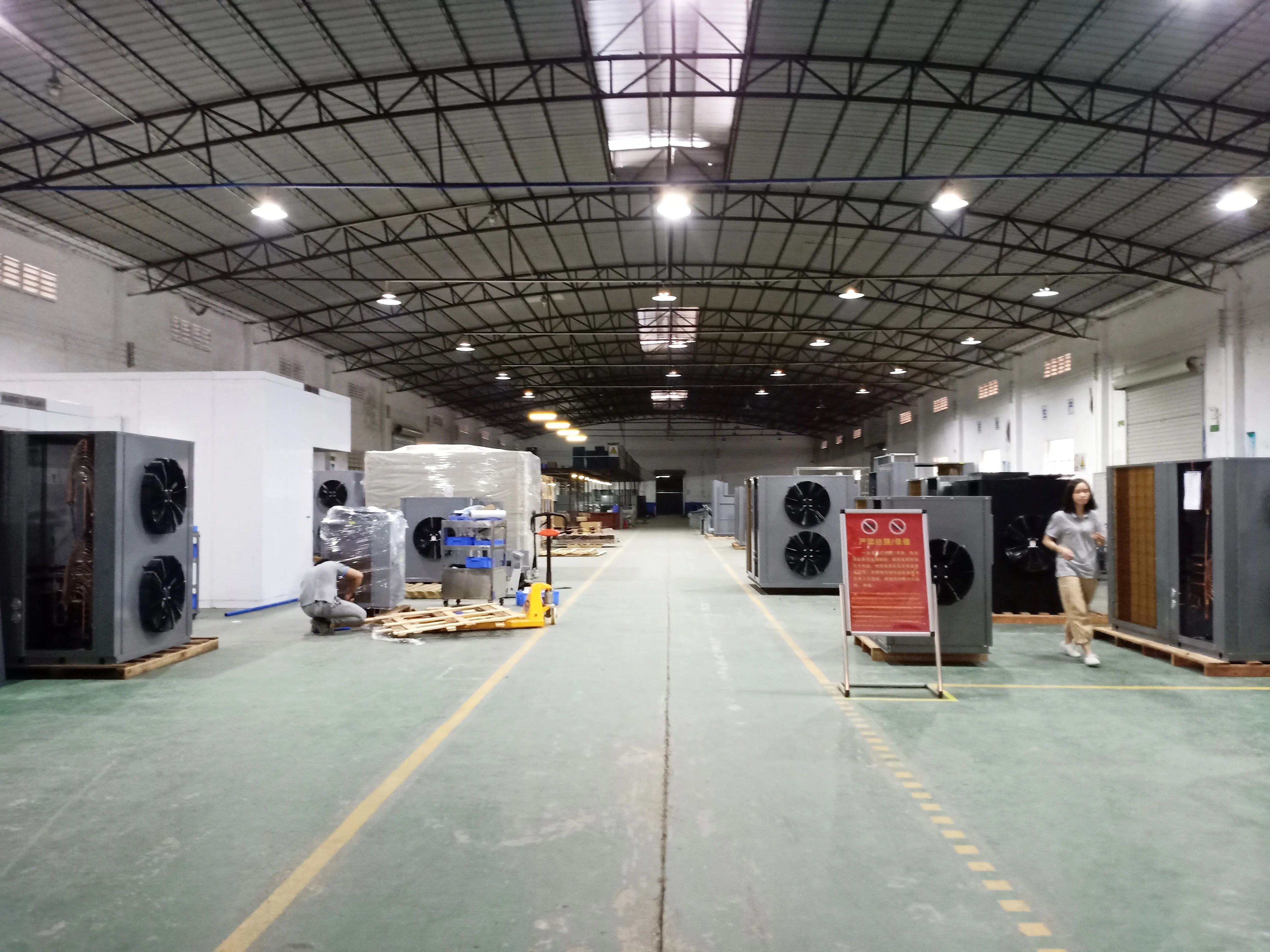

* View our Factory. 과일 블루베리 딸기 파인애플 키위 건조기
* Sample testing support. 果物ブルーベリーイチゴパインキウイ食品乾燥機
* View our Factory. 과일 블루베리 딸기 파인애플 키위 건조기
After deliver the machines:
* Technical support to instal,operate and maintain the machine
* Engineers available to service machinery overseas.
* Engineers available to service machinery overseas.
Company Profile
About us
Guangzhou Yike Heat Pump Drying Equipment Technology Co., Ltd. is committed to the research and development and application of
heat pump drying technology. Taking energy-saving and environental protection as the development direction of the enterprise, we are specialized R&D, manufacturing, selling and installing "YKP" brand heat pump dryers and reforming energy-saving and
environmental protection protection projects to provide customers with professional and systematic drying solutions.
heat pump drying technology. Taking energy-saving and environental protection as the development direction of the enterprise, we are specialized R&D, manufacturing, selling and installing "YKP" brand heat pump dryers and reforming energy-saving and
environmental protection protection projects to provide customers with professional and systematic drying solutions.
